卫星关键部件智能识别与三维重建方法

滕嘉玮; 田蕾; 江山; 孙海江; 王锐; 于征磊

doi:10.37188/CO.2025-0091

卫星关键部件智能识别与三维重建方法

doi: 10.37188/CO.2025-0091

cstr: 32171.14.CO.2025-0091

滕嘉玮^1,,
田蕾²,
江山^1, ,,
孙海江¹,
王锐¹,
于征磊³

1.
中国科学院长春光学精密机械与物理研究所, 吉林长春 130033
2.
北京跟踪与通信技术研究所, 北京 100094
3.
吉林大学生物与农业工程学院, 吉林长春 13002

基金项目: 吉林省与中国科学院科技合作高技术产业化专项资金项目（No. 204SYHZ0020）

详细信息

作者简介:
滕嘉玮（1997—），男，吉林长春人，2022年毕业于吉林大学，获硕士学位，中国科学院长春光学精密机械与物理研究所助理研究员，主要研究方向为图像处理与人工智能。E-mail：tengjiawei@ciomp.ac.cn

江　山（1986—），男，吉林长春人，2013年毕业于吉林大学，获硕士学位，中国科学院长春光学精密机械与物理研究所副研究员，硕士生导师，主要研究方向为图像处理与人工智能。E-mail：jiangshan_ciomp@qq.com

中图分类号: TP391.41;V448.25
计量
- 文章访问数: 56
- HTML全文浏览量: 20
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-24
- 录用日期: 2025-09-09
- 网络出版日期: 2025-09-27

Intelligent recognition and 3D reconstruction method for satellite key components

1.
Changchun Institute of Optics, Fine Mechanics and Physics (CIOMP), Chinese Academy of Sciences, Changchun 130033, China
2.
Beijing Institute of Tracking and Communication Technology, Beijing 100094, China
3.
School of Biological and Agricultural Engineering, Jilin University, Changchun 13002, China

Funds: Supported by Jilin Province and the Chinese Academy of Sciences Science and Technology Cooperation High Technology Industrialization Special Funds Project (No. 204SYHZ0020)

More Information

Corresponding author: jiangshan_ciomp@qq.com

摘要

摘要:
为了实现空间态势感知的任务中复杂低纹理环境下空间目标部组件识别和三维重建。本文提出了一种基于深度学习的端到端的空间目标智能感知框架，实现空间目标关键部件的智能识别和高精度三维重建。当前空间目标感知任务面临巨大挑战，在轨目标表面多为低纹理金属材料，传统特征匹配方法失效，并且部组件几何结构复杂且存在遮挡，需要兼顾全局语义和局部精度。针对以上问题，本文研究首先基于YOLOv11s轻量化网络，引入注意力机制聚焦特征，在保证实时性前提下实现空间目标及其关键部件的精确定位与识别，有助于提取目标区域做精准三维重建。然后，提出了一种适用于空间低纹理目标的三维重建算法Sat-TransMVSNet，此算法采用多尺度特征增强网络提取特征，采用全新的代价体正则化方法强化空间目标边缘几何约束，提出背景抑制-前景增强模块并结合动态深度采样策略精确重建空间目标。最后本研究通过自建不同类型的多角度空间目标数据集对整体框架进行测试。实验结果表明：卫星部组件识别算法mAP50为0.95，三维重建综合误差为0.2886 mm。基本满足高精度空间目标三维重建和关键部位的高精度智能识别。
- 三维重建 /
- 部组件识别 /
- 深度学习 /
- 空间目标
Abstract:
To achieve the recognition and 3D reconstruction of space target components in complex, low-texture environments for space situational awareness tasks, this paper proposes an end-to-end intelligent perception framework for space targets based on deep learning. This framework enables intelligent recognition and high-precision 3D reconstruction of key space target components. The current space target sensing task is facing great challenges, the surface of on-orbit targets are mostly low-texture metal materials, traditional feature matching methods are ineffective, and the geometrical structure of the components is complex and there is occlusion, so it is necessary to take into account the global semantics and local accuracy. First, based on the lightweight YOLOv11s network, an attention mechanism is introduced to focus features, achieving precise localization and recognition of space targets and their key components while ensuring real-time performance. This facilitates the extraction of target regions for accurate 3D reconstruction. Subsequently, a novel 3D reconstruction algorithm named Sat-TransMVSNet, specifically designed for low-texture space targets, is proposed. This algorithm employs a multi-scale feature enhancement network for feature extraction and utilizes a novel cost volume regularization method to strengthen geometric constraints at space target edges. It incorporates a background-suppression and foreground-enhancement module, combined with a dynamic depth sampling strategy, to accurately reconstruct space targets. Finally, the overall framework is tested using a self-built multi-angle space target dataset comprising various types. Experimental results indicate that the component recognition algorithm achieves an mAP50 of 0.95, and the comprehensive 3D reconstruction error is 0.2886 mm. This demonstrates the framework’s capability to meet the requirements for high-precision 3D reconstruction of space targets and intelligent recognition of key components.
- 3D reconstruction /
- component recognition /
- deep learning /
- space targets

HTML全文

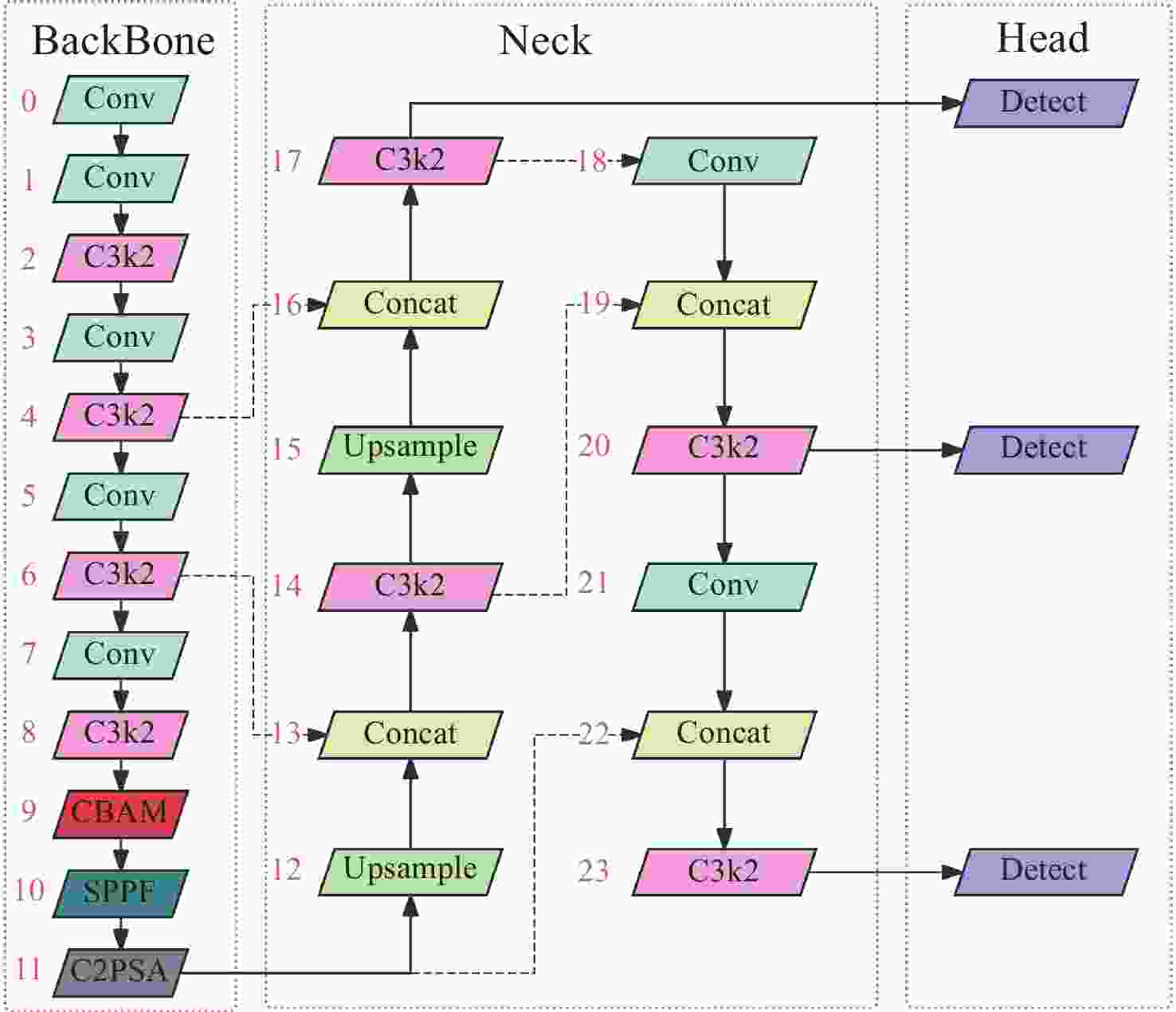

图 1 添加了CBAM注意力机制的YOLOv11s结构图

Figure 1. Structure diagram of YOLOv11s with CBAM attention mechanism added

下载: 全尺寸图片幻灯片

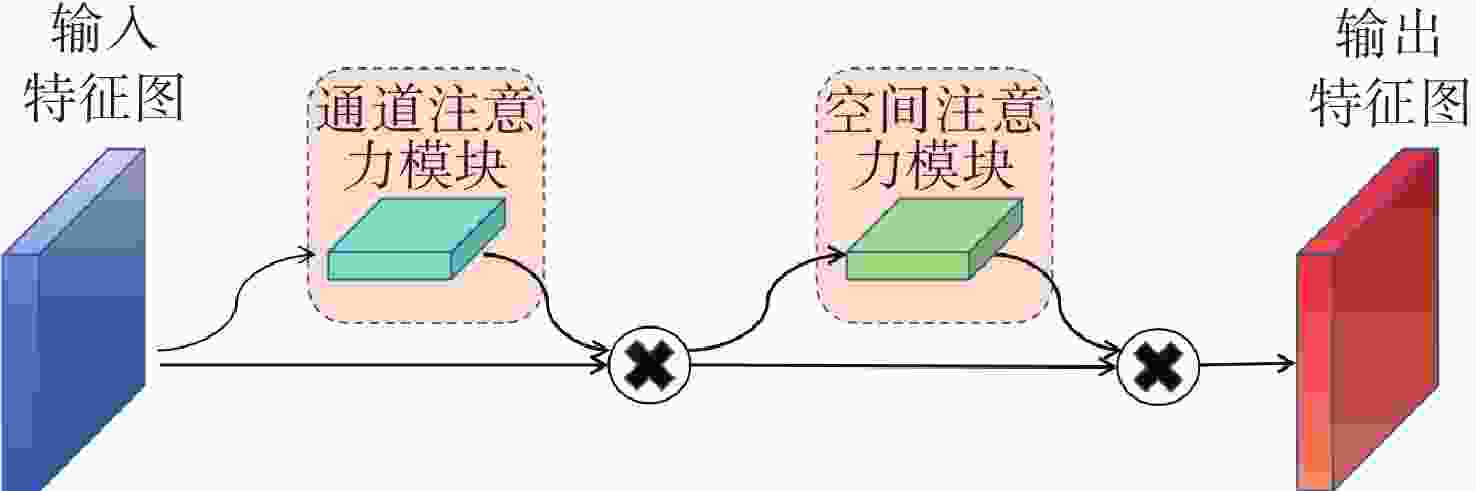

图 2 CBAM注意力机制结构图

Figure 2. CBAM attention mechanism structure diagram

下载: 全尺寸图片幻灯片

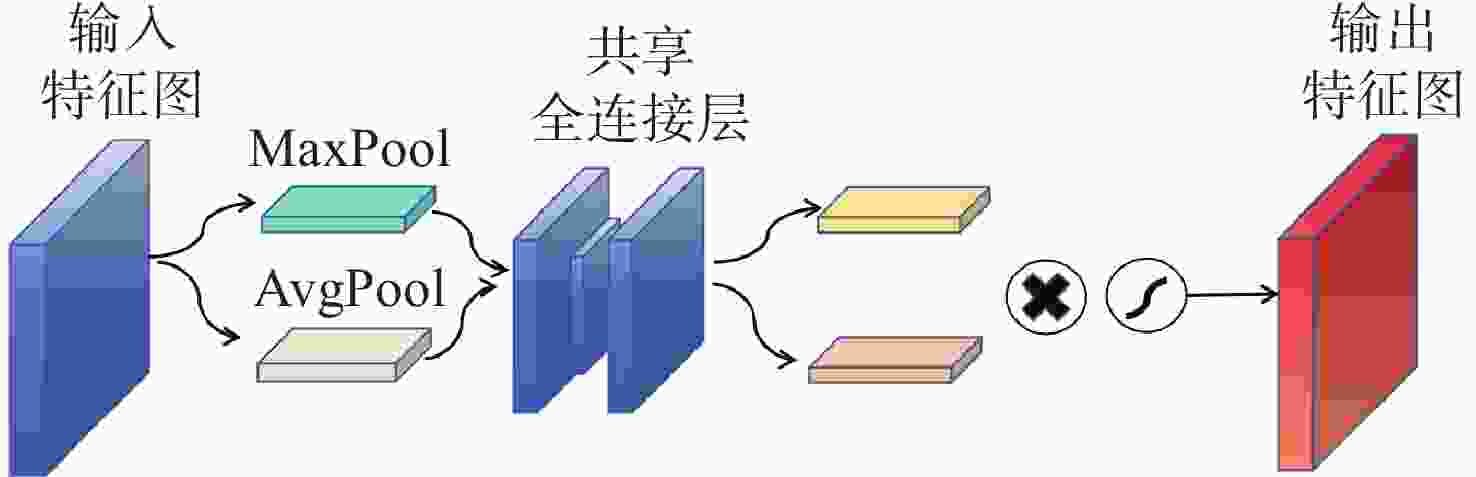

图 3 通道注意力模块结构图

Figure 3. Channel attention module structure diagram

下载: 全尺寸图片幻灯片

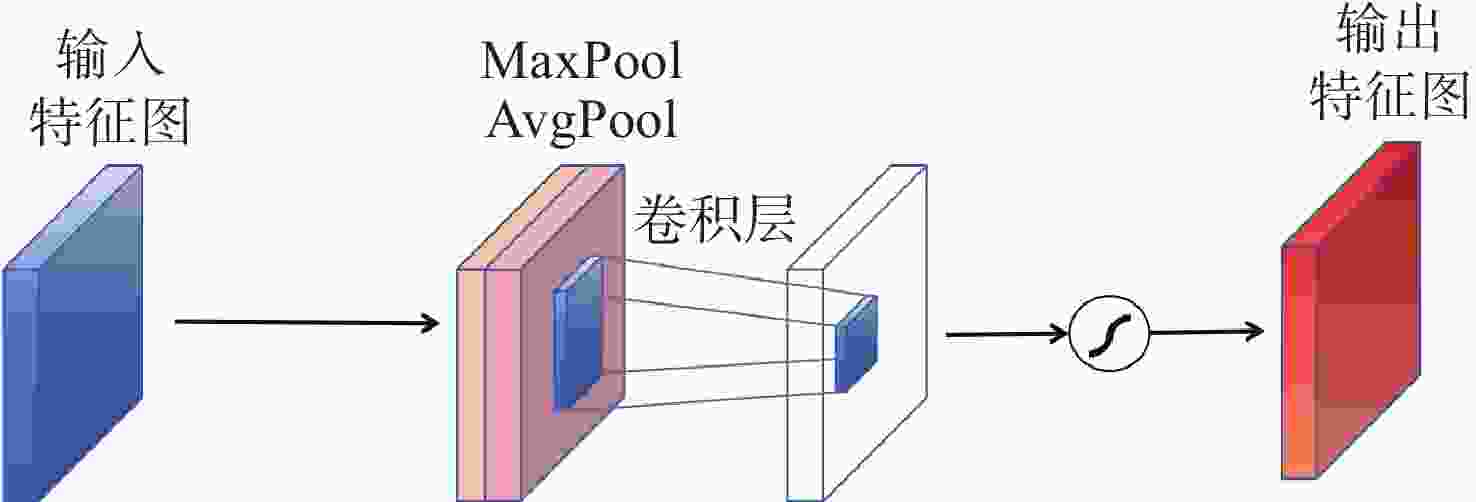

图 4 空间注意力模块结构图

Figure 4. Spatial attention module structure diagram

下载: 全尺寸图片幻灯片

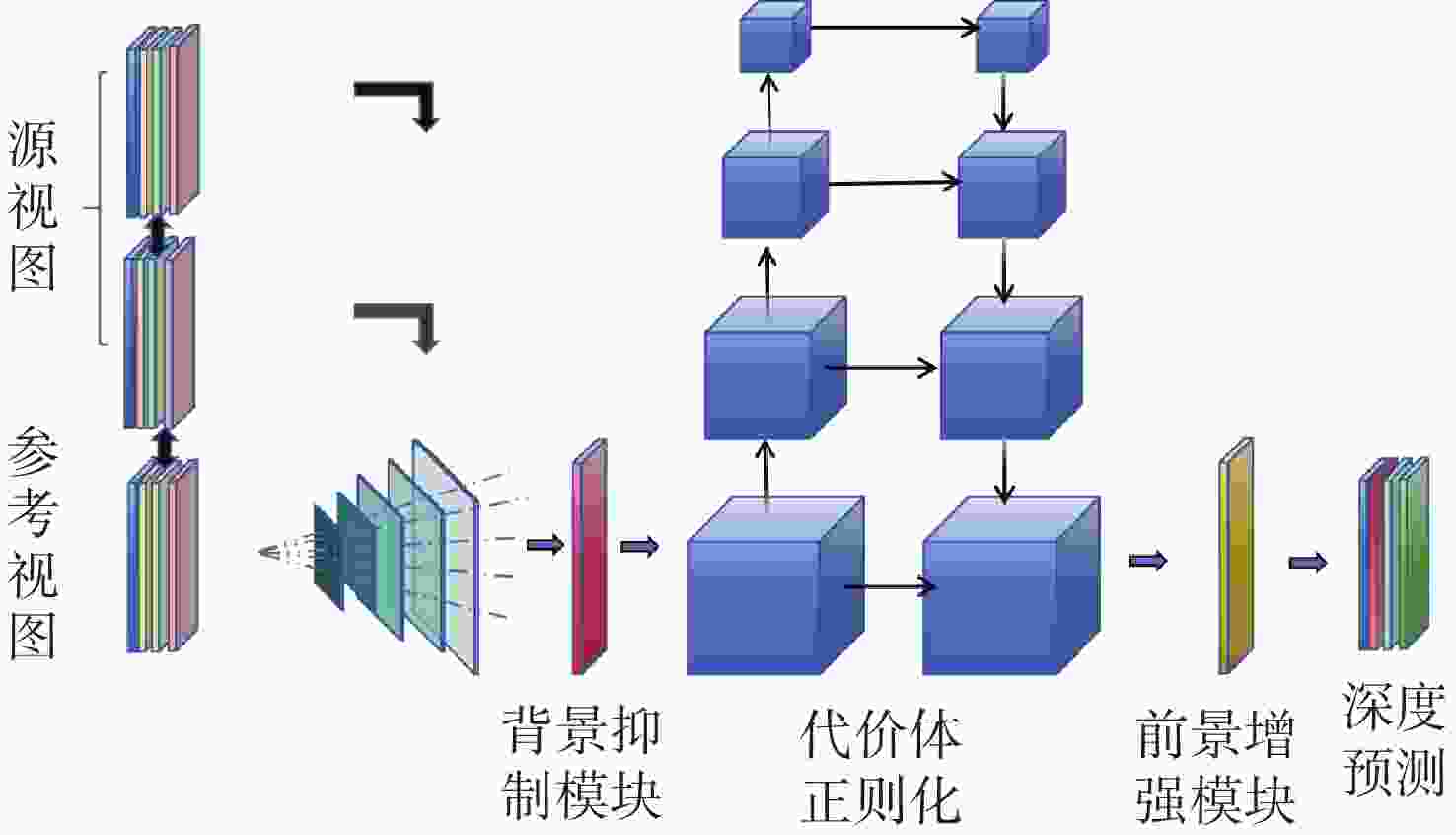

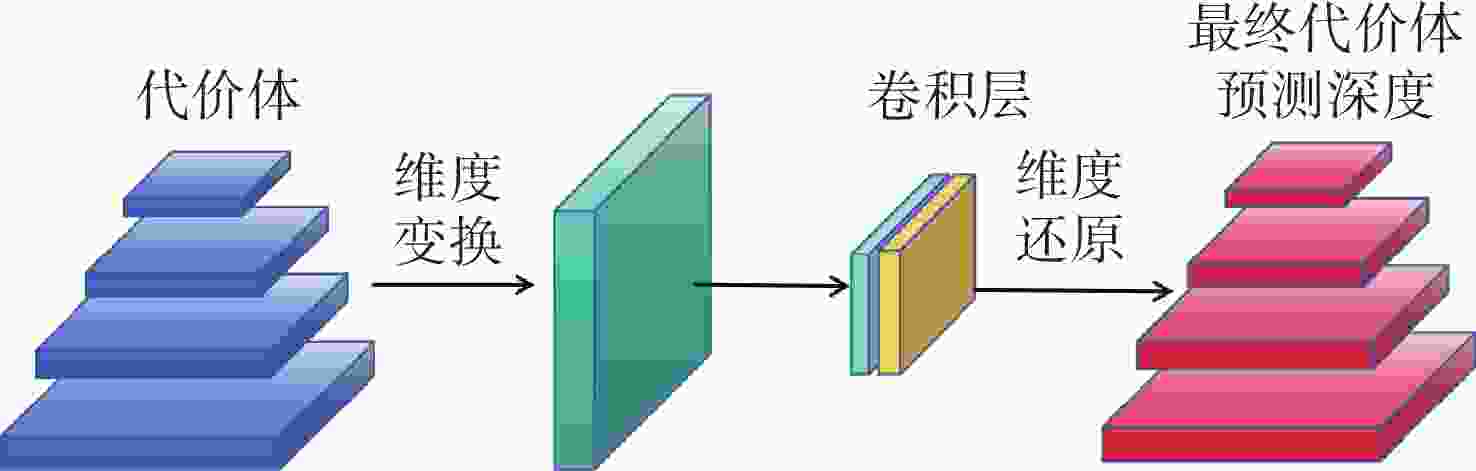

图 5 深度预测模块结构图

Figure 5. Depth prediction module structure diagram

下载: 全尺寸图片幻灯片

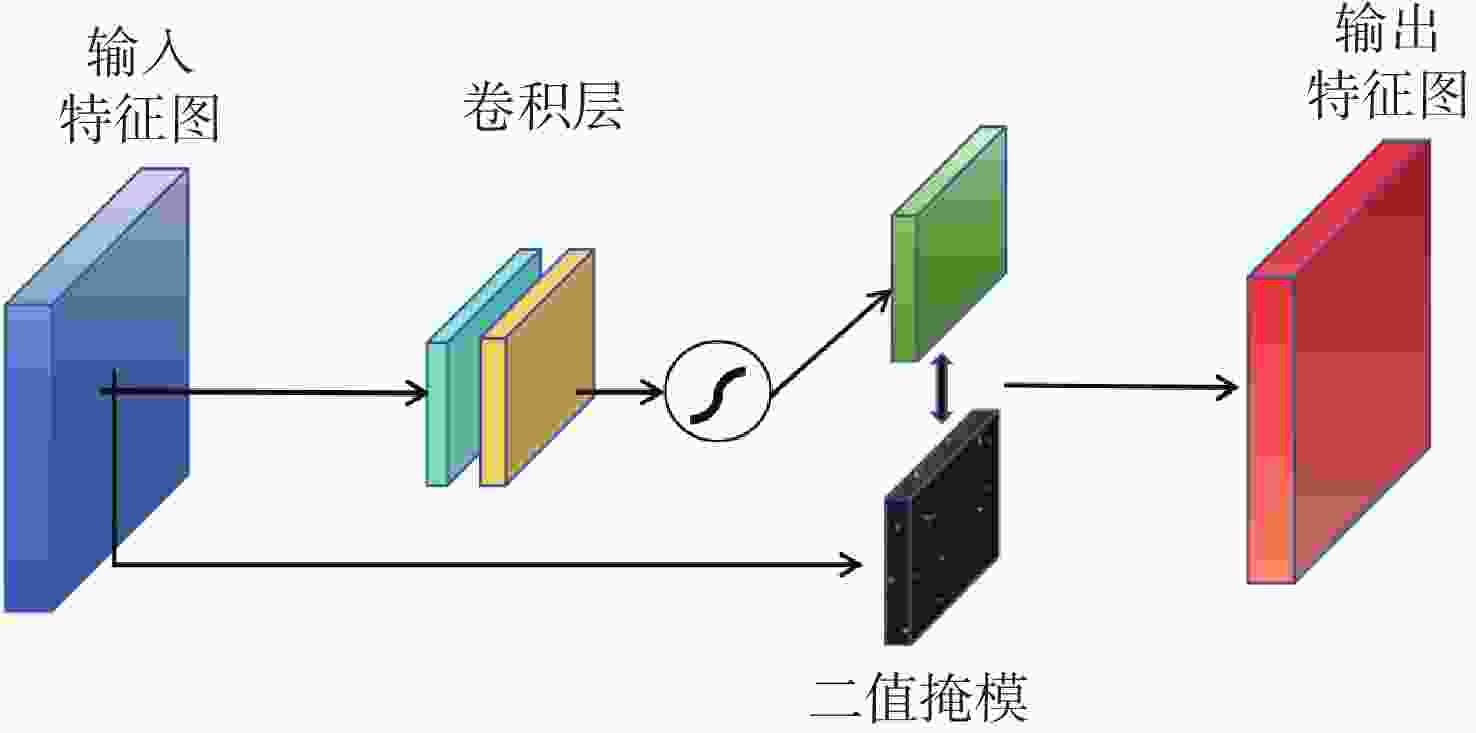

图 6 背景抑制模块结构图

Figure 6. Background suppression module structure diagram

下载: 全尺寸图片幻灯片

图 7 前景增强模块结构图

Figure 7. Foreground enhancement module structure diagram

下载: 全尺寸图片幻灯片

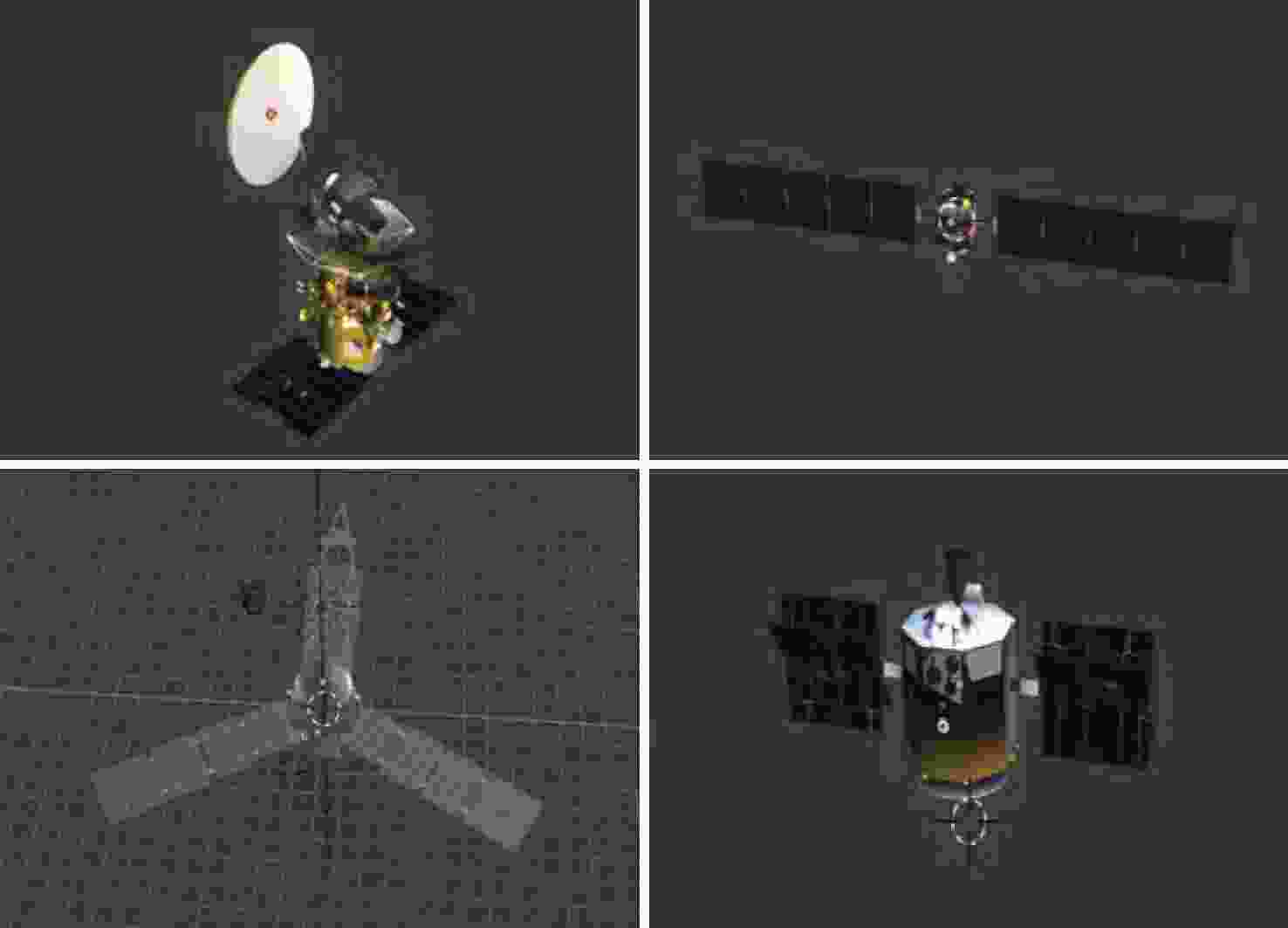

图 8 部分卫星模型图

Figure 8. Partial satellite model schematic diagram

下载: 全尺寸图片幻灯片

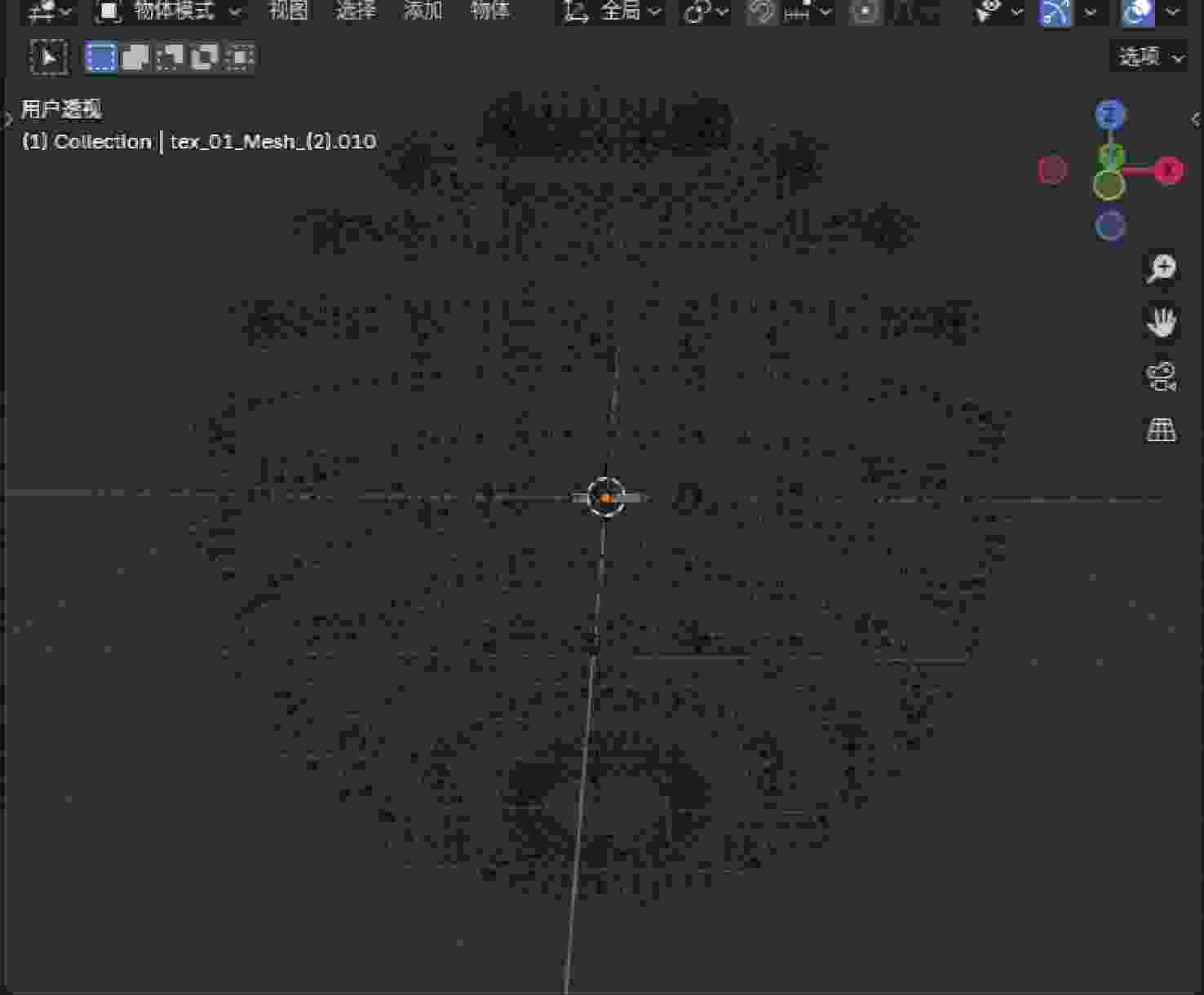

图 9 摄像机视点分布图

Figure 9. Camera viewpoint distribution diagram

下载: 全尺寸图片幻灯片

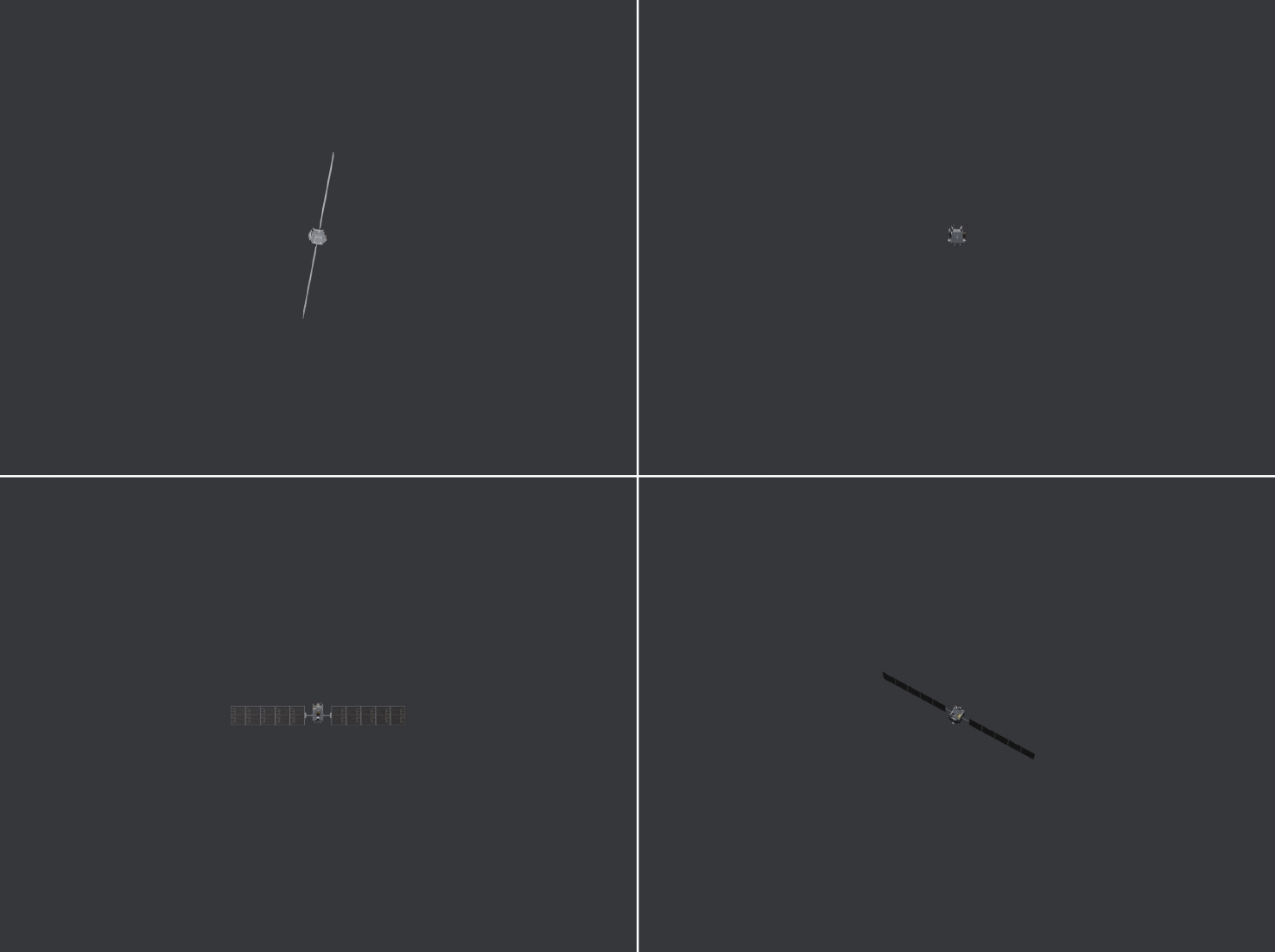

图 10 生成卫星图像示例

Figure 10. Sample generated satellite images

下载: 全尺寸图片幻灯片

图 11 BUAA-SID-share1.0卫星图像示例

Figure 11. BUAA-SID-share1.0 satellite image samples

下载: 全尺寸图片幻灯片

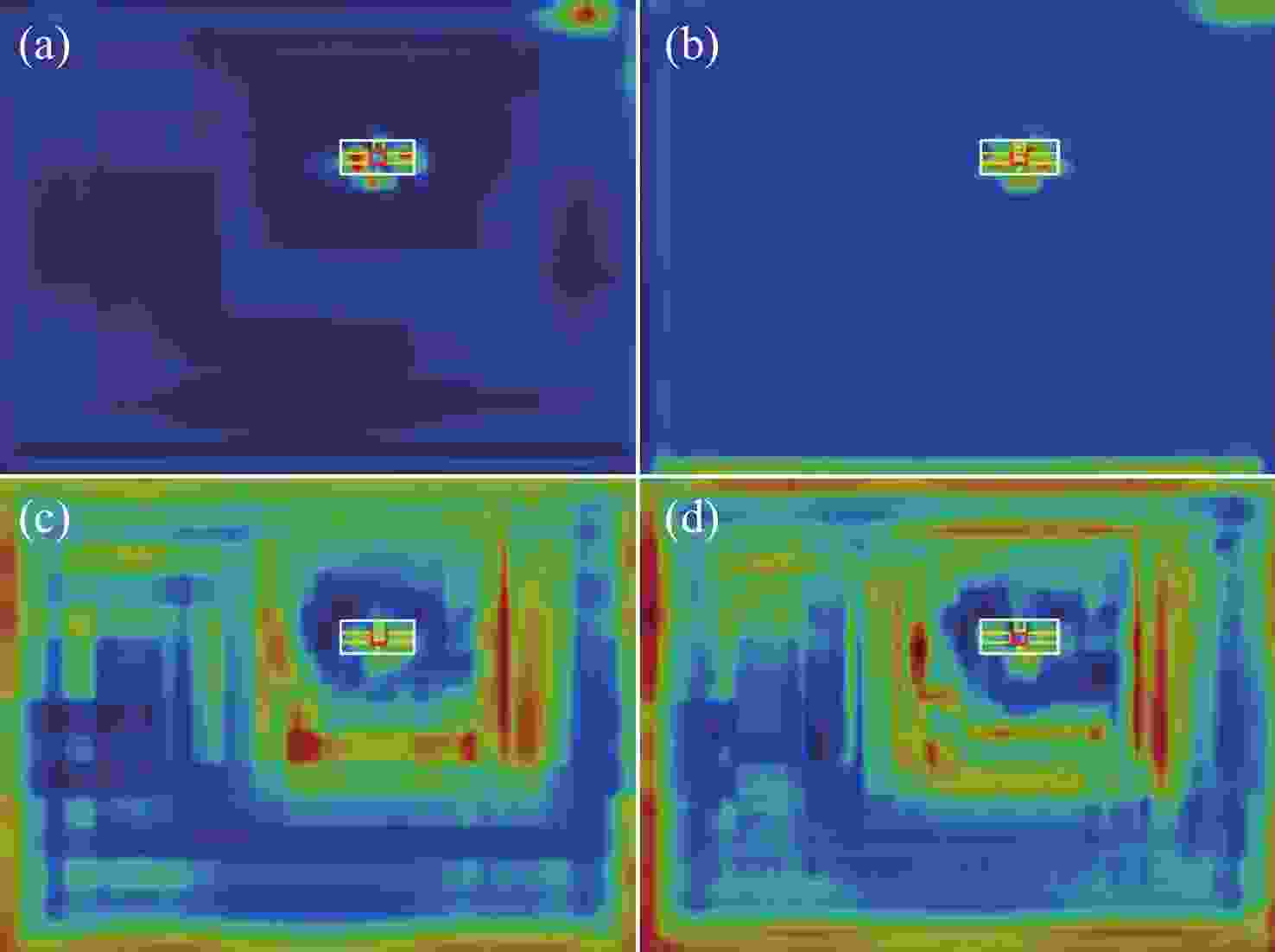

图 12 训练结果热力图

Figure 12. Feature learning heatmap from training process

下载: 全尺寸图片幻灯片

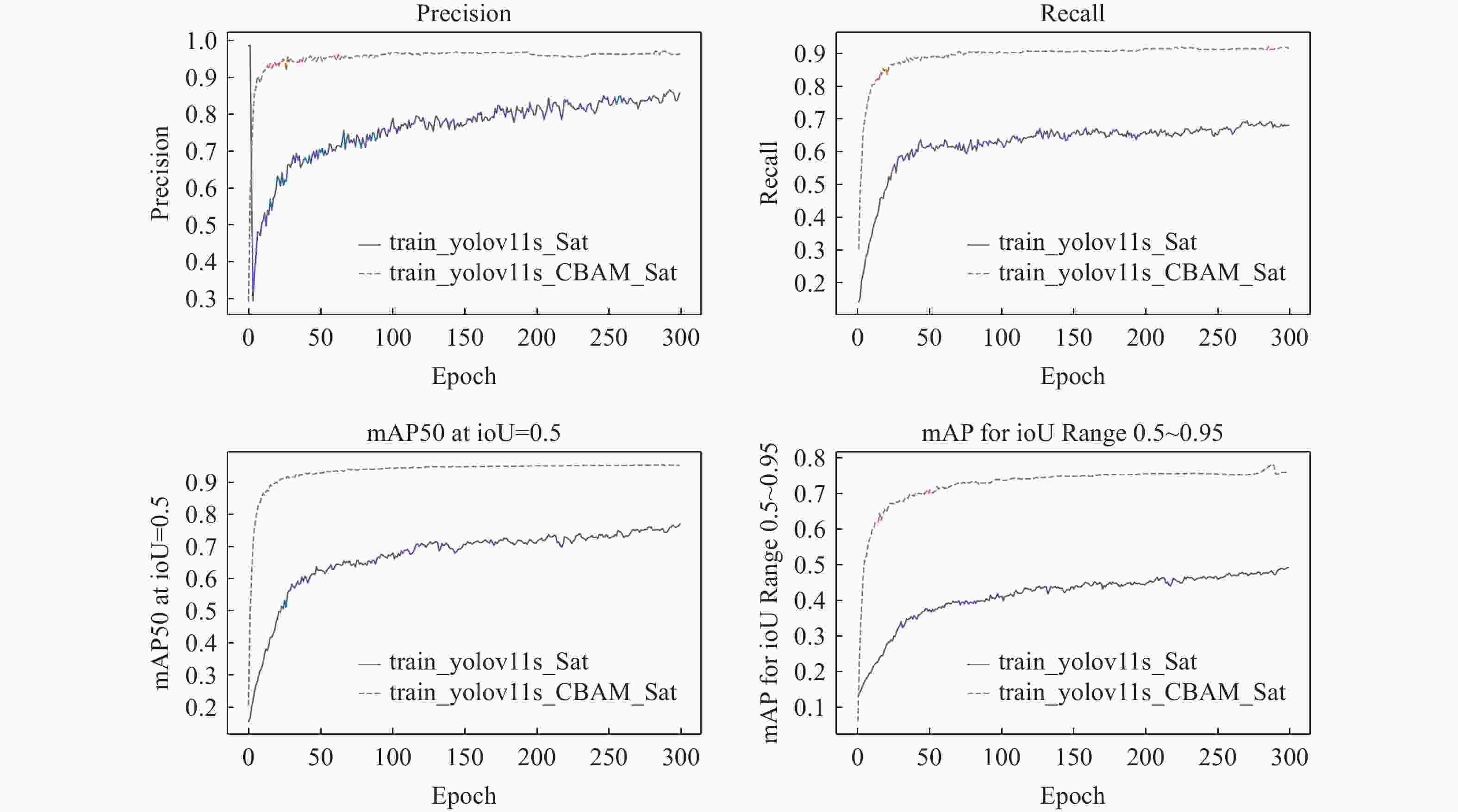

图 13 YOLOv11s算法与 YOLOv11s-CBAM算法指标对比图

Figure 13. Comparative metrics diagram between YOLOv11s and YOLOv11s-CBAM algorithms

下载: 全尺寸图片幻灯片

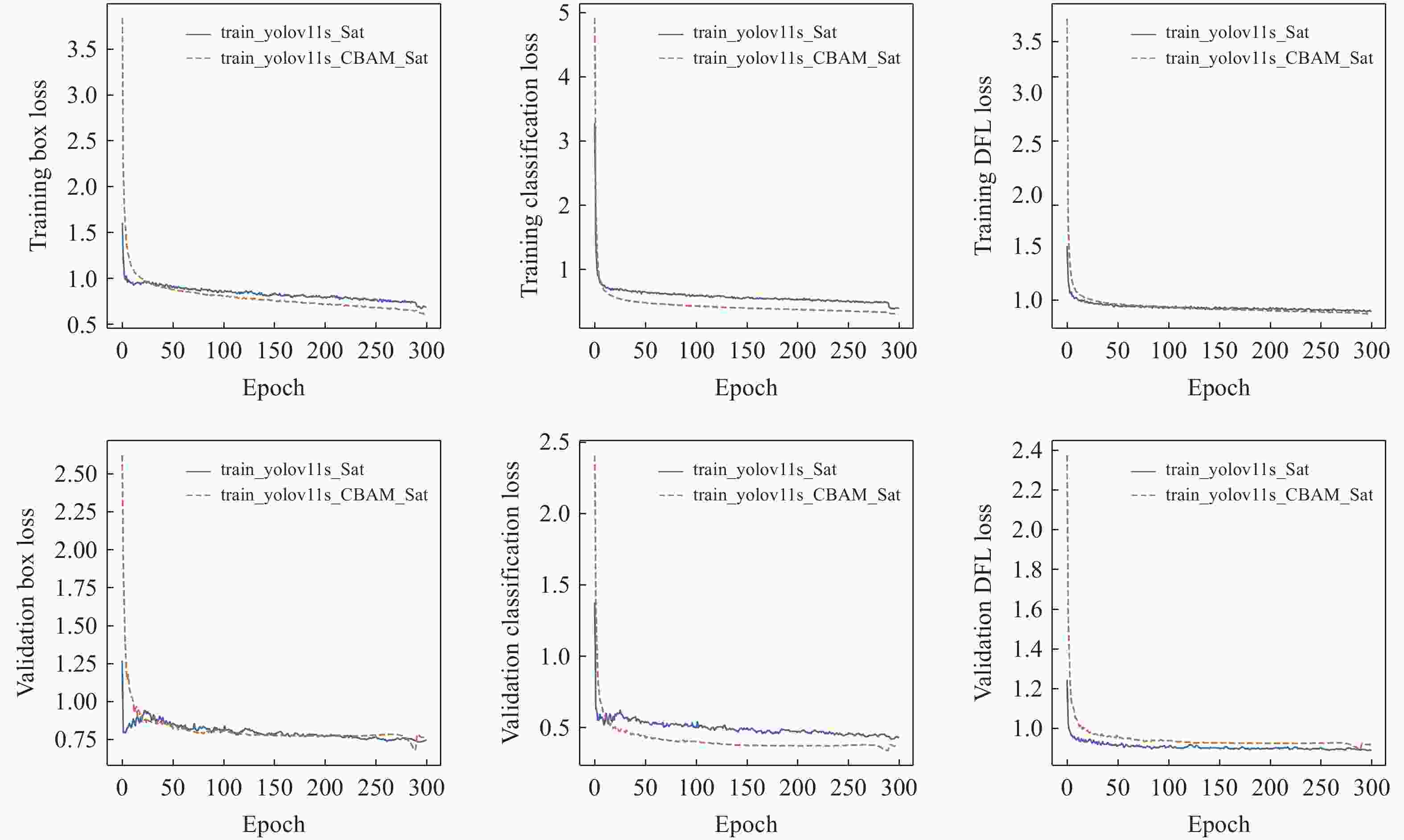

图 14 YOLOv11s算法与 YOLOv11s-CBAM算法损失函数对比图

Figure 14. Comparative loss diagram between YOLOv11s and YOLOv11s-CBAM algorithms

下载: 全尺寸图片幻灯片

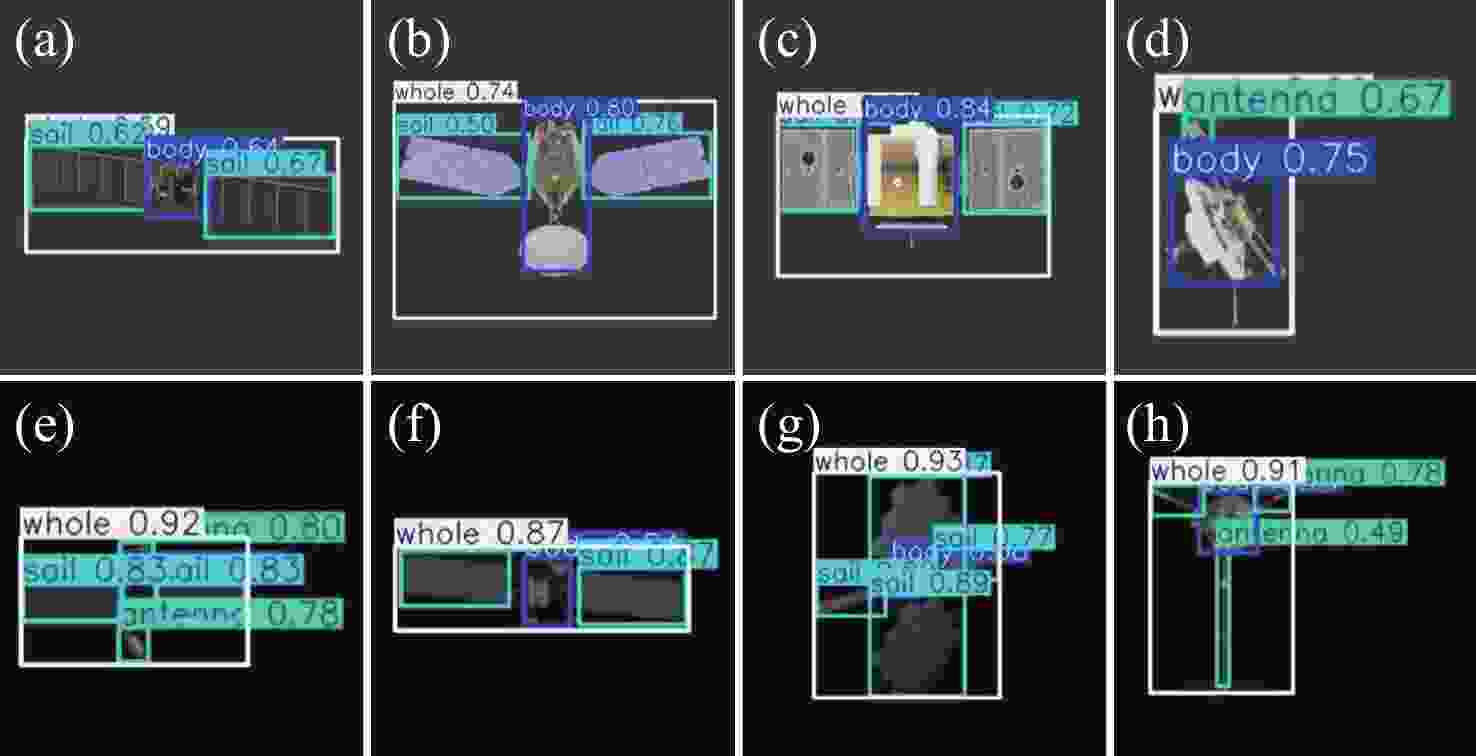

图 15 YOLOv11s-CBAM算法卫星部组件识别结果图（a-h）

Figure 15. Satellite component recognition result using YOLOv11s-CBAM algorithm (a-h)

下载: 全尺寸图片幻灯片

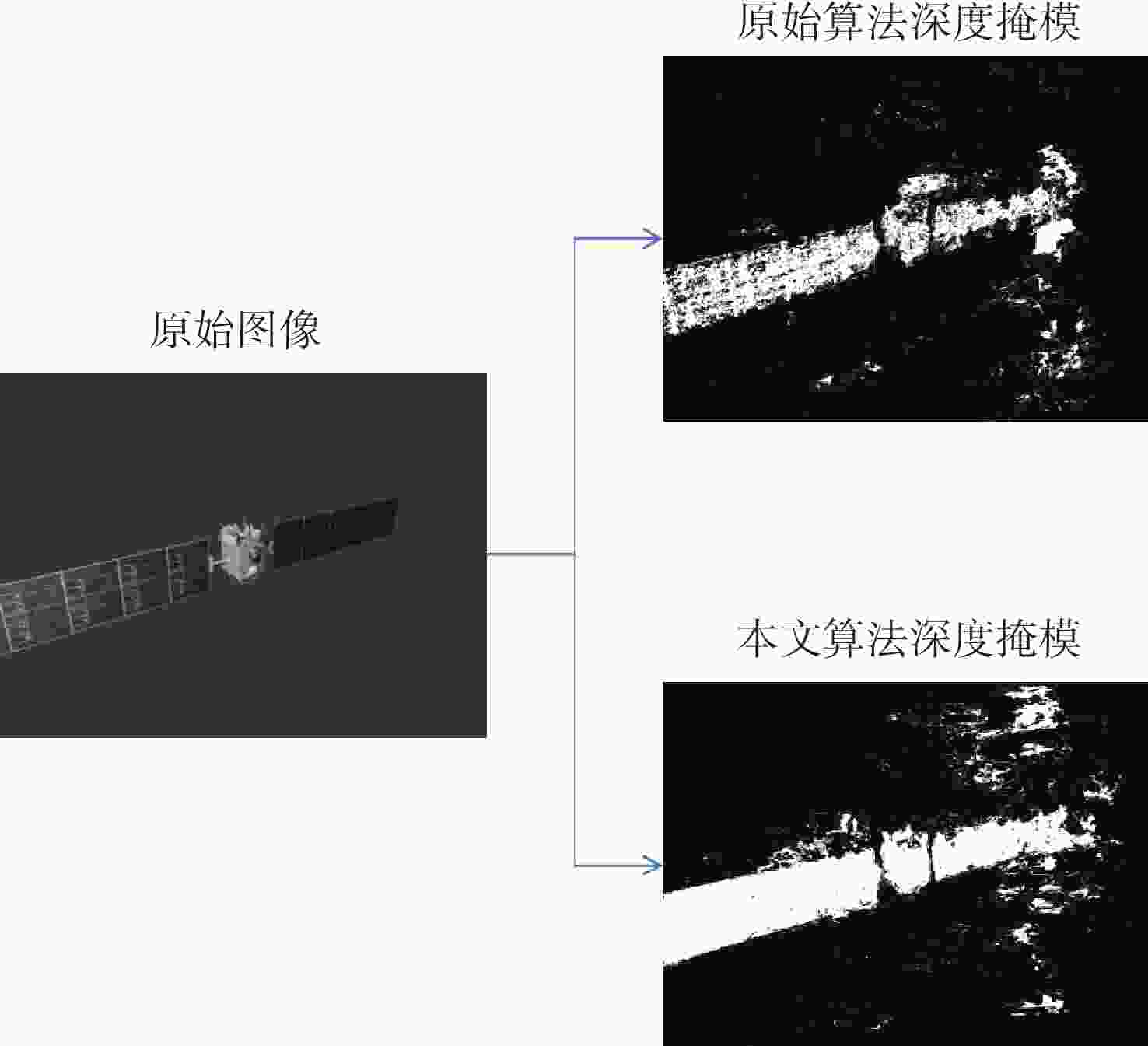

图 16 深度掩膜图对比

Figure 16. Comparison of depth masks

下载: 全尺寸图片幻灯片

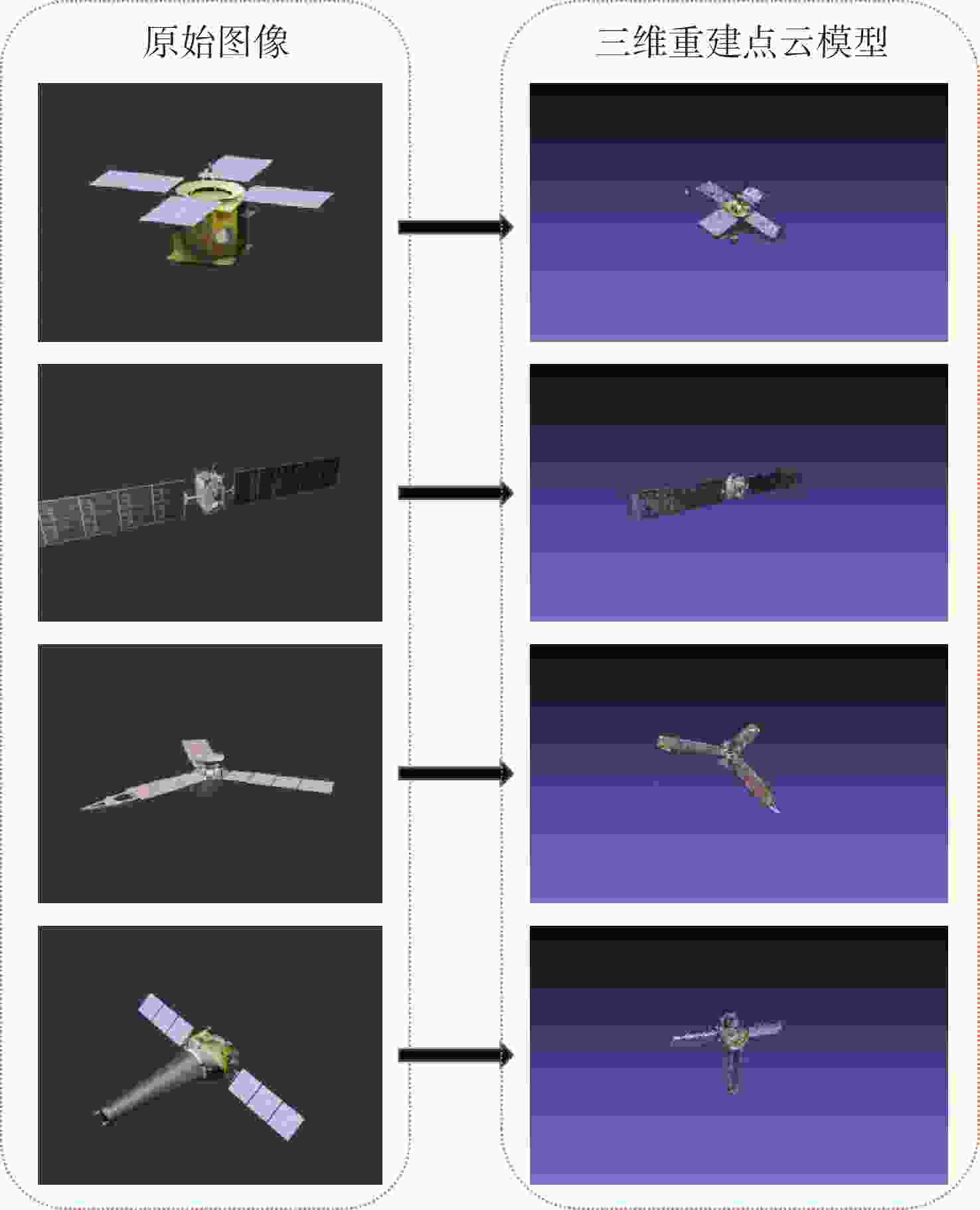

图 17 本文三维重建算法结果图

Figure 17. The result chart of the 3D reconstruction algorithm in this article

下载: 全尺寸图片幻灯片

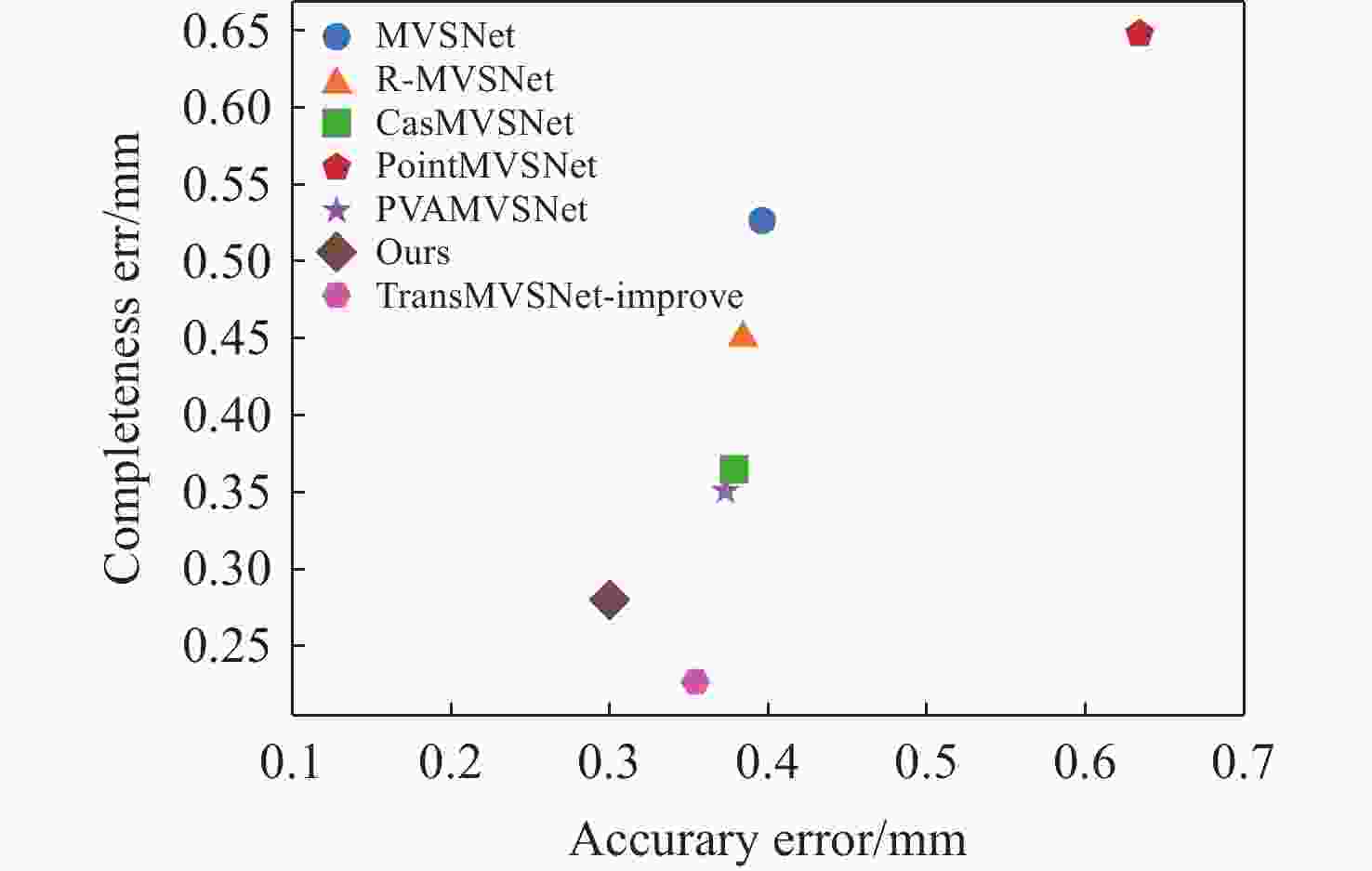

图 18 在DTU数据集上与MVSNet系列算法对比图

Figure 18. Comparison with state-of-the-art deep learning-based MVS methods on DTU dataset

下载: 全尺寸图片幻灯片

表 1 空间目标部组件目标识别性能对比

Table 1. Comparison of target recognition performance of spatial target division components

算法名称 mAP50 Precision Recall

YOLOV8s 0.909 0.918 0.903
YOLOV5s 0.899 0.953 0.809
Faster R-CNN 0.782 0.893 0.792
SSD 0.693 0.784 0.681
YOLOV11s-CBAM 0.961 0.965 0.927

下载: 导出CSV

表 2 三维重建算法训练结果对比（单位：mm）

Table 2. Comparison of the training results 3D reconstruction algorithm (Unit: mm)

算法名称总损失深度损失绝对误差损失阈值误差

原始算法 5.139 5.263 5.737 0.197
本文算法 4.539 5.1683 5.383 0.155

下载: 导出CSV
