基于法诺共振的全介质硫系化合物超表面用于高性能中红外折射率传感

许诺; 黄虎钧; 郭万祺; 姜湖; 王莹莹; 张培晴; 沈祥; 戴世勋; 宋宝安

doi:10.37188/CO.2025-0158

基于法诺共振的全介质硫系化合物超表面用于高性能中红外折射率传感

doi: 10.37188/CO.2025-0158

cstr: 32171.14.CO.2025-0158

许诺^{1, 2, 3,},
黄虎钧⁵,
郭万祺^{1, 2, 3},
姜湖^{1, 2, 3},
王莹莹^{1, 2, 3},
张培晴^{2, 3, 4},
沈祥^{1, 2, 3},
戴世勋^{2, 3, 4},
宋宝安^{1, 2, 3, ,}

1.
宁波大学信息科学与工程学院, 浙江宁波 315211
2.
浙江省光电探测材料与器件重点实验室, 浙江宁波 315211
3.
浙江省先进红外光电材料与器件工程研究中心, 浙江宁波 315211
4.
宁波大学高等技术研究院, 浙江宁波 315211
5.
宁波舜宇车载光学技术有限公司, 浙江宁波 315400

基金项目: 国家自然科学基金（No. 62135011）宁波市自然科学基金（No. 2024J024）

详细信息

作者简介:
许　诺（2001—），女，安徽滁州人，硕士，宁波大学信息与通信工程专业硕士研究生，主要研究超表面折射率传感方向。E-mail:2621504779@qq.com

宋宝安（1980—），男，山西晋中人，教授，博士生导师。获哈尔滨工业大学博士学位，现任宁波大学信息学院教授。长期致力于红外材料与光子器件研究，聚焦于硫系材料的可控制备、性能精准调控及光电特性高精度表征。E-mail：songbaoan@nbu.edu.cn

中图分类号: 中图分类:O436
计量
- 文章访问数: 10
- HTML全文浏览量: 3
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2025-12-16
- 录用日期: 2026-02-03
- 网络出版日期: 2026-03-24

All-dielectric chalcogenide metasurfaces based on fano resonance for high-performance mid-infrared refractive index sensing

XU Nuo^{1, 2, 3
,},
HUANG Hu-jun⁵,
GUO Wan-qi^{1, 2, 3},
JIANG Hu^{1, 2, 3},
WANG Ying-ying^{1, 2, 3},
ZHANG Pei-qing^{2, 3, 4},
SHEN Xiang^{1, 2, 3},
DAI Shi-xun^{2, 3, 4},
SONG Bao-an^{1, 2, 3
, ,}

1.
School of Information Science and Engineering, Ningbo University, Ningbo, 315211, China
2.
Zhejiang Province Key Laboratory of Optoelectronic Detection Materials and Devices, Ningbo, 315211, China
3.
Zhejiang Provincial Engineering Research Center for Advanced Infrared Optoelectronic Materials and Devices, Ningbo, 315211, China
4.
Ningbo University Advanced Technology Research Institute, Ningbo, 315211, China
5.
Ningbo Sunny Automotive Optical Technology Co., Ltd, Ningbo 315400, China

Funds: Supported by National Natural Science Foundation of China (No. 62135011); Ningbo Natural Science Foundation (No. 2024J024)

More Information

Corresponding author: songbaoan@nbu.edu.cn

摘要

摘要:
本研究提出一种基于全介质超表面的高性能中红外折射率传感器，工作波长约为5.36 µm。超表面单元结构由四个对称分布的Sb₂Se₃半椭圆结构与一个中心Sb₂Se₃圆柱体周期性排列构成，以BaF₂为衬底。采用时域有限差分法进行数值模拟，获得结构的反射光谱，分析共振峰处的电磁场矢量分布，并探究几何参数对光谱的影响。反射光谱中观察到的法诺共振现象通过准连续域束缚态理论予以解释。通过对几何参数进行系统性扫描，重点考察在固定谐振峰强度条件下，各结构参数对器件品质因子与半高全宽的影响规律，比较不同方向调整参数时光谱线宽的响应差异。进一步通过改变背景折射率，研究了基于法诺共振的折射率传感特性。结果表明，该传感器最高灵敏度达1985 nm/RIU，最大品质因子为1096.6，优值达400。与现有报道的中红外折射率传感器相比，在灵敏度、品质因子及优质等关键性能上均展现出明显优势。本研究为发展基于硫系化合物的高性能中红外光学传感器提供了有效的设计思路与性能参考。
- 全介质超表面 /
- 折射率传感 /
- 准连续域束缚态 /
- 中红外 /
- 硫系化合物
Abstract:
This study proposes a high-performance mid-infrared refractive index sensor based on an all-dielectric metasurface, operating at a wavelength of approximately 5.36 μm. The metasurface unit consists of four symmetrically arranged Sb₂Se₃ semi-elliptical structures and a central Sb₂Se₃ cylinder, periodically arranged on a BaF₂ substrate. Numerical simulations were performed using the finite-difference time-domain (FDTD) method to obtain the reflection spectrum and to analyze the electromagnetic field vector distribution at the resonance peak, as well as the influence of geometric parameters on the spectral response. The observed Fano resonance in the reflection spectrum is explained by the theory of quasi-bound states in the continuum (Q-BIC). Through systematic parameter scanning, we investigate the influence of structural parameters on the quality factor (Q) and full width at half-maximum (FWHM) under the constraint of fixed resonance intensity, and compare the spectral linewidth responses when adjusting parameters in different directions. Furthermore, by varying the background refractive index, the refractive-index sensing characteristics based on the Fano resonance are studied. The results show that the sensor achieves a maximum sensitivity of 1985 nm/RIU, a peak Q-factor of 1096.6, and a figure of merit (FOM) of 400. Compared with previously reported mid-infrared refractive index sensors, the proposed design demonstrates significant advantages in key performance metrics such as sensitivity, Q-factor, and FOM. This work provides a feasible design strategy and performance reference for developing high-performance mid-infrared optical sensors based on chalcogenide compounds.
- all-dielectric meta-surface /
- refractive index sensing /
- quasi-bound states in the continuum /
- mid-infrared /
- chalcogenide compounds

HTML全文

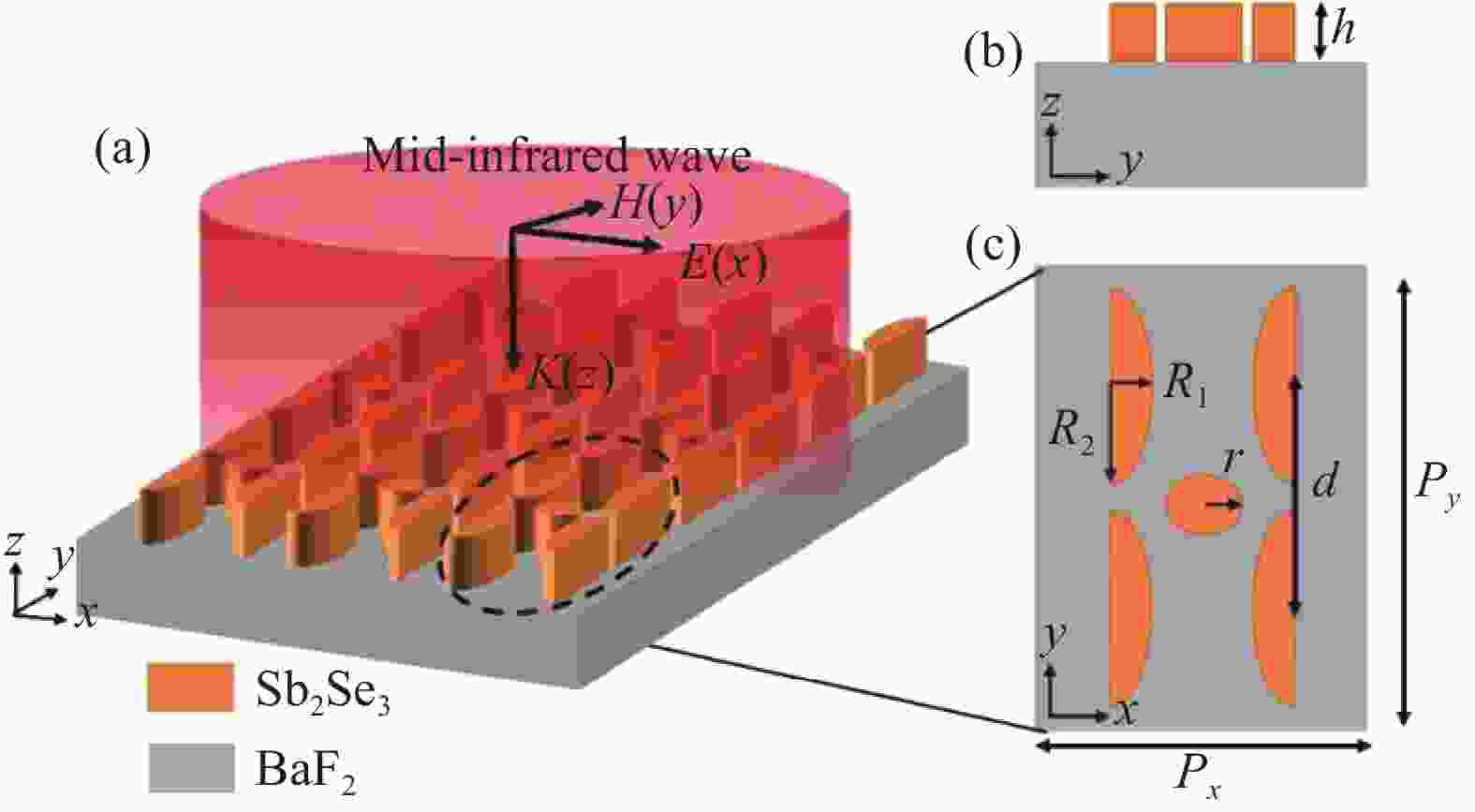

图 1 Sb₂Se₃蝶形超表面结构示意图。(a) 超表面阵列与入射光束；(b) 单元结构的YOZ平面侧视图；(c) 单元结构的XOY平面俯视图

Figure 1. Schematic diagram of the Sb₂Se₃ butterfly-shaped metasurface array. (a) metasurface array and incident light; (b) Side view of the unit structure in the YOZ plane; (c) Top view of the unit structure in the XOY plane

下载: 全尺寸图片幻灯片

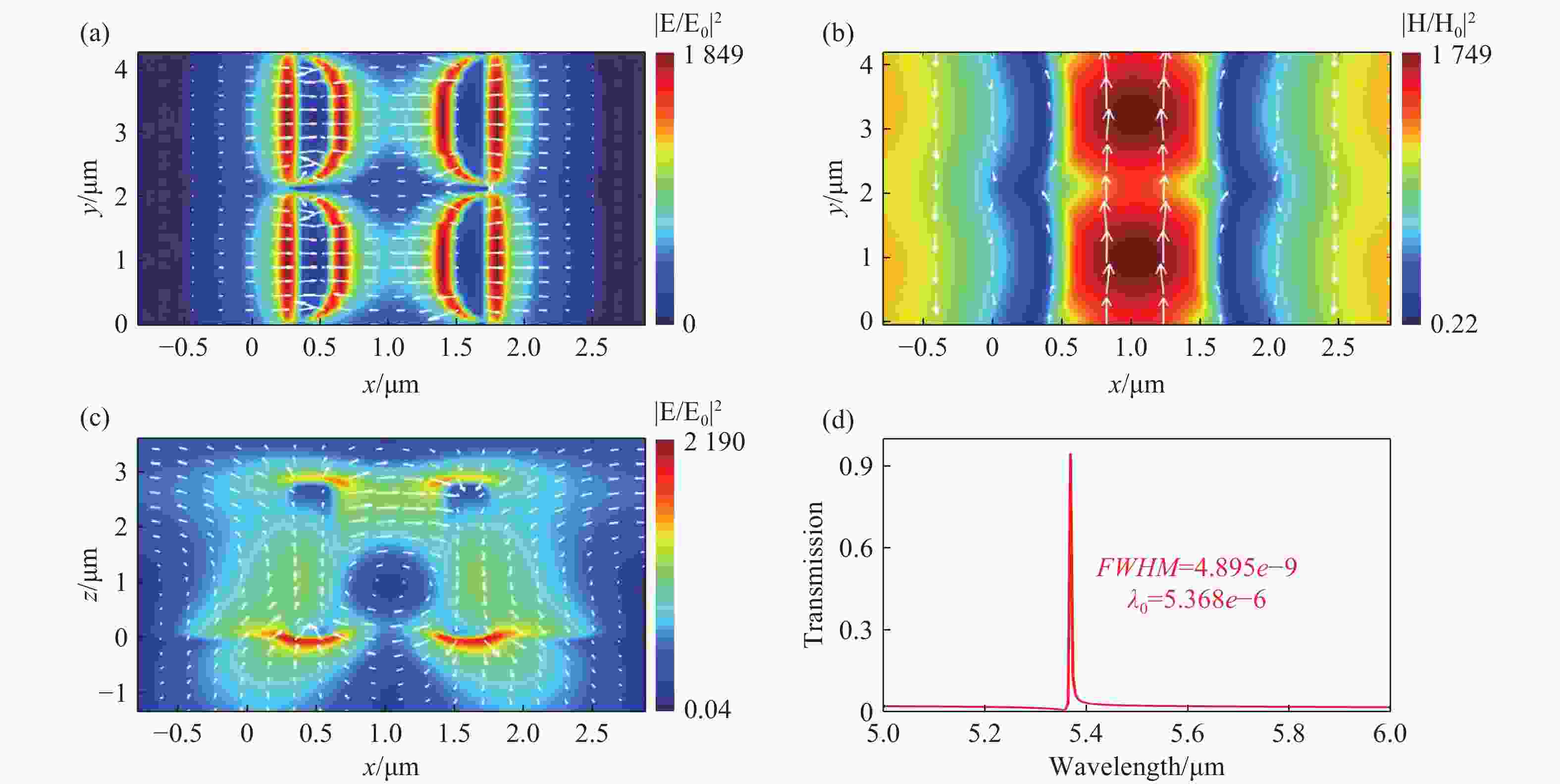

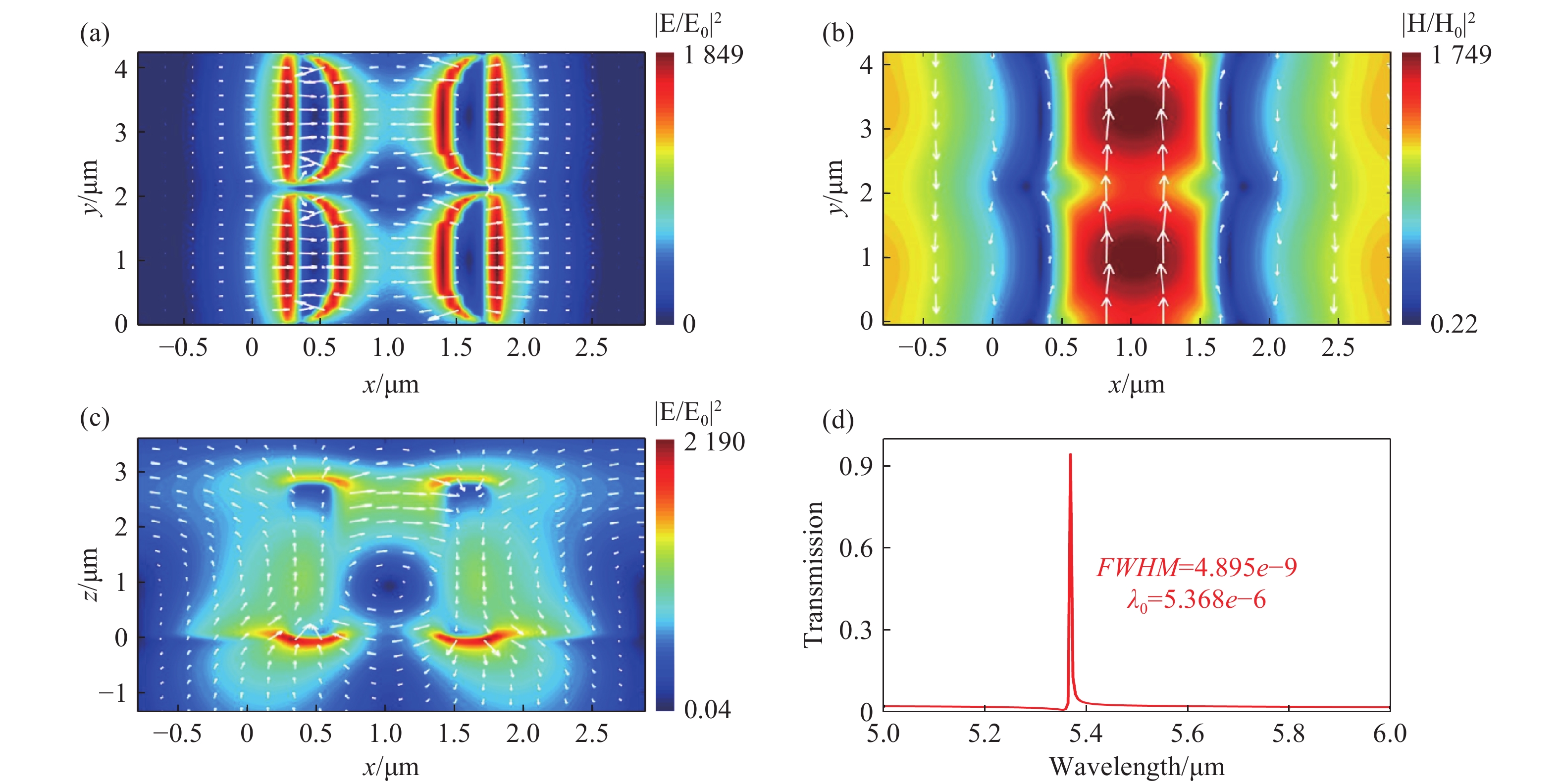

图 2 超表面结构的电磁场分布。(a) XOY平面内电场；(b) XOY平面内磁场；(c) XOZ平面内电场；(d) 超表面结构的反射光谱,周围介质为空气(n=1)

Figure 2. Electromagnetic field distributions of the metasurface structure. (a) Electric field in the XOY-plane; (b) Magnetic field in the XOY-plane; (c) Electric field in the XOZ-plane; (d) Reflection spectra of the metasurface structure (ambient medium: air, n = 1)

下载: 全尺寸图片幻灯片

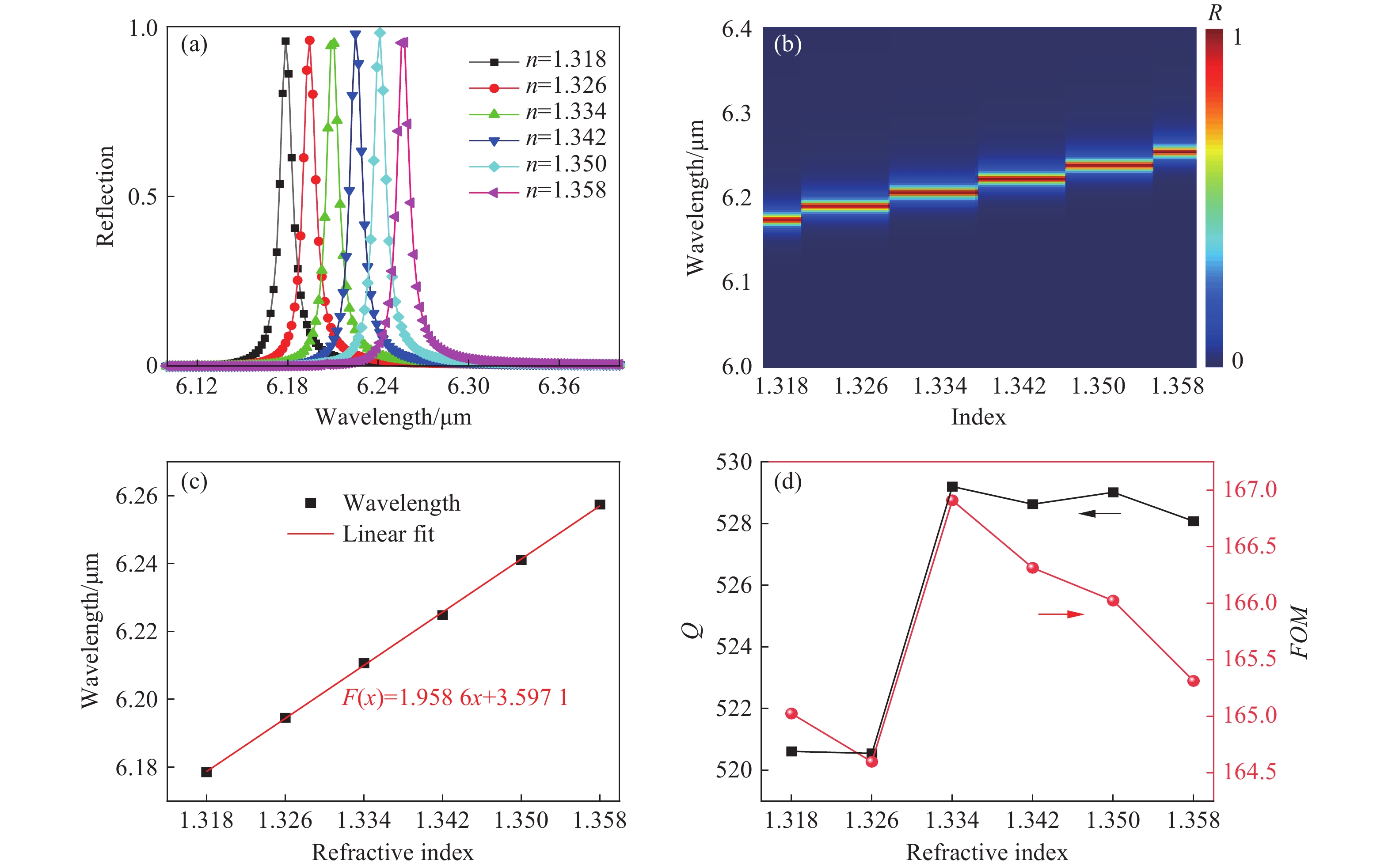

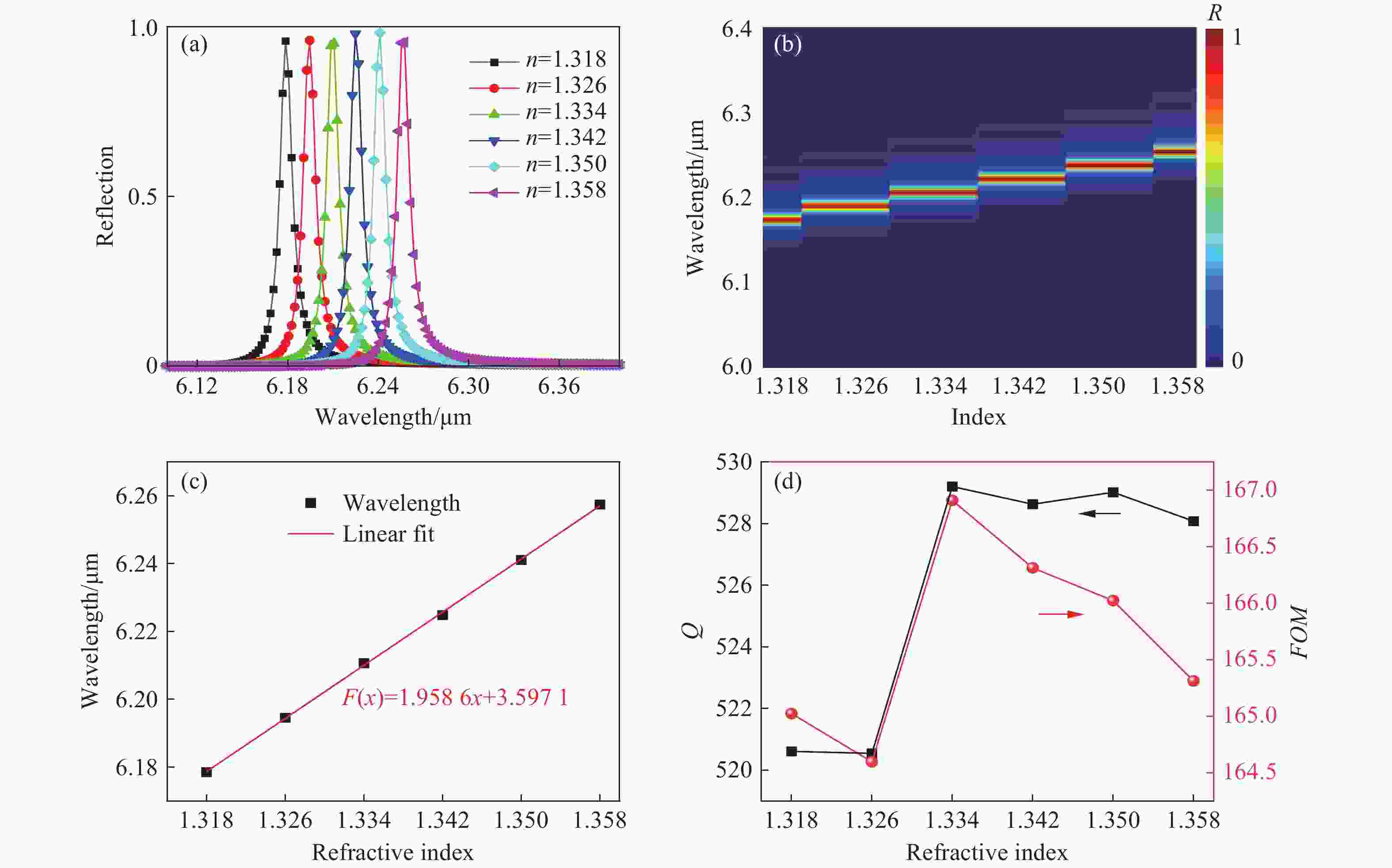

图 3 传感器性能的定量评估结果。(a) 超表面在不同折射率介质中的反射光谱；(b) 共振波长位移与环境折射率的依赖关系；(c) 共振波长位移随折射率的变化关系；(d) 共振峰的FOM值与品质因子Q随折射率的变化关系

Figure 3. Quantitative evaluation results of sensor performance. (a) Reflection spectra of the metasurface in media with varying refractive indices; (b) Dependence of the resonance wavelength shift on the environmental refractive index; (c) Resonance wavelength shift as a function of the refractive index; (d) The relationship between the FOM value of the resonance peak and the quality factor Q with changes in refractive index

下载: 全尺寸图片幻灯片

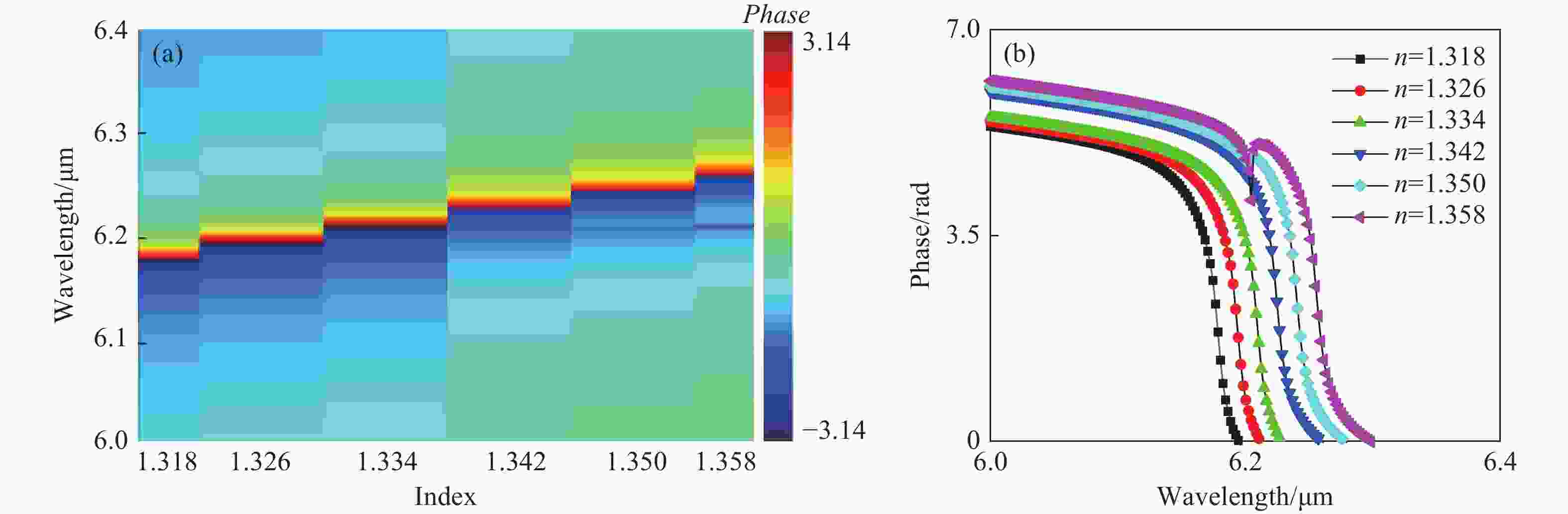

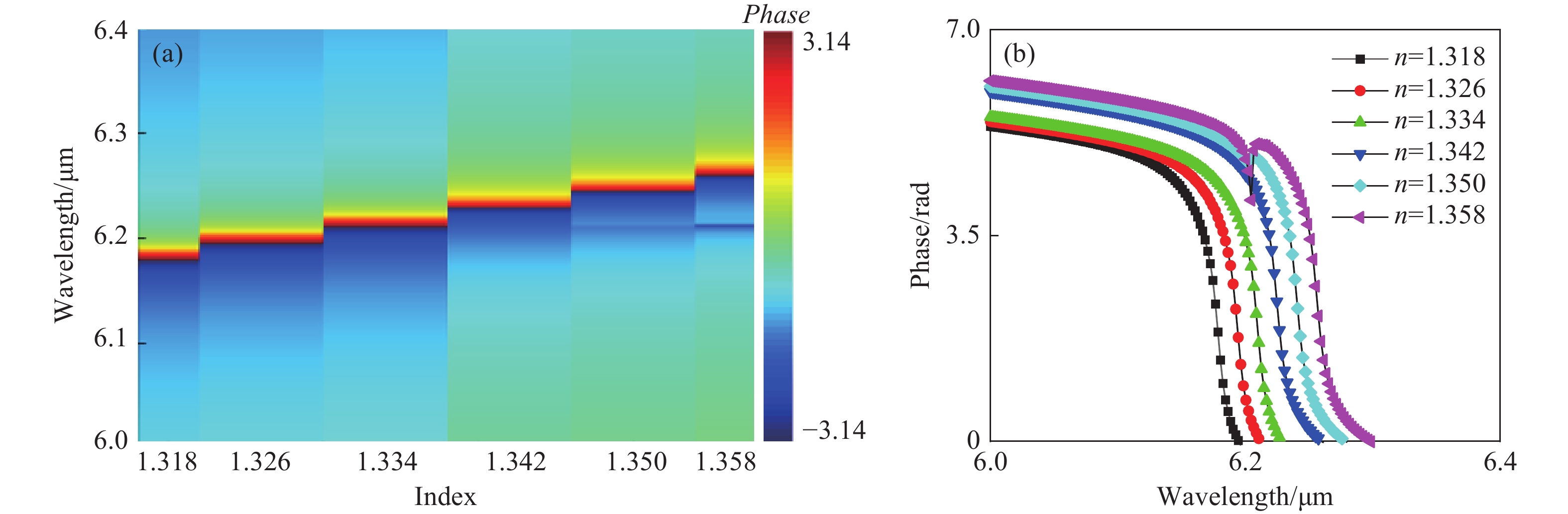

图 4 在不同环境折射率下的谐振波长相位演化特性。(a)干涉相移分布图; (b)相位-折射率响应曲线

Figure 4. Phase evolution at resonance wavelength under varying ambient refractive index. (a) Spatial phase distribution map; (b) Quantitative phase shift trajector

下载: 全尺寸图片幻灯片

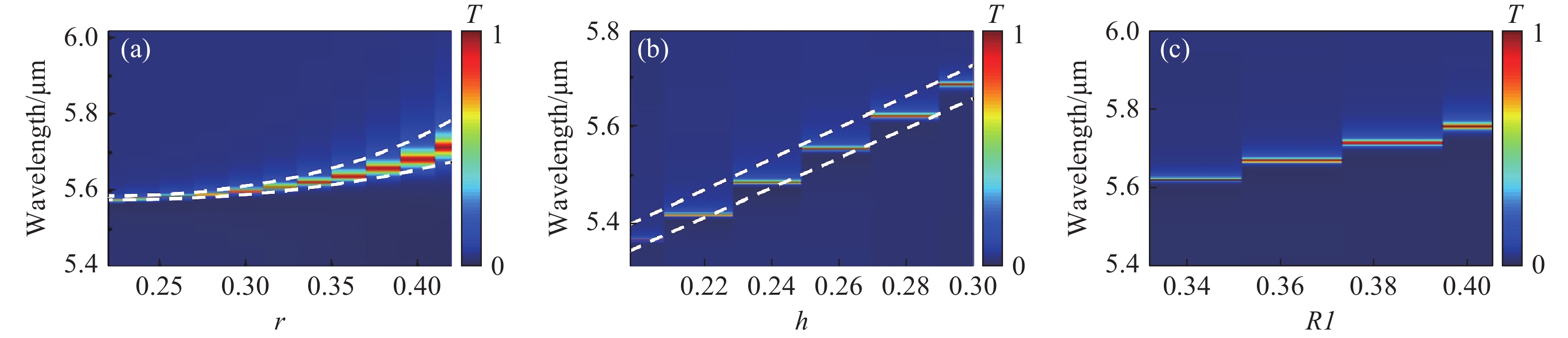

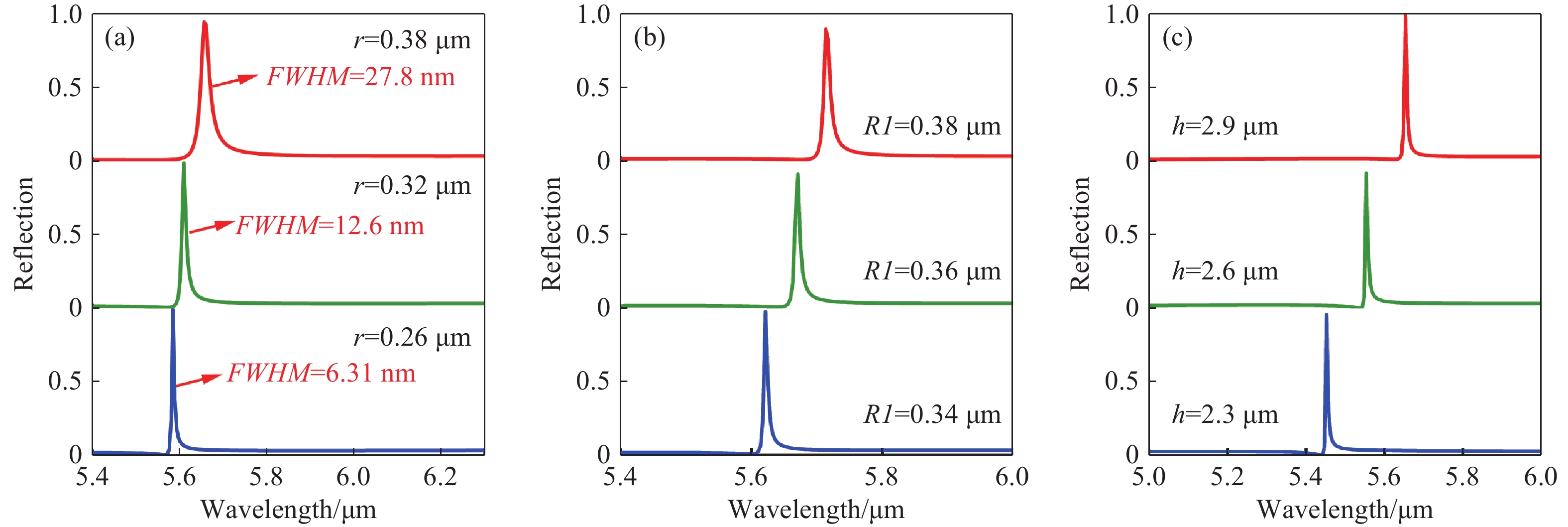

图 5 不同几何参数下的反射谱。(a) 中心柱半径r；(b) 半短轴R1；(c) 结构高度h

Figure 5. Transmission spectra under different geometric parameters. (a) central pillar radius r; (b) semi-axis R1; (c) structure height h

下载: 全尺寸图片幻灯片

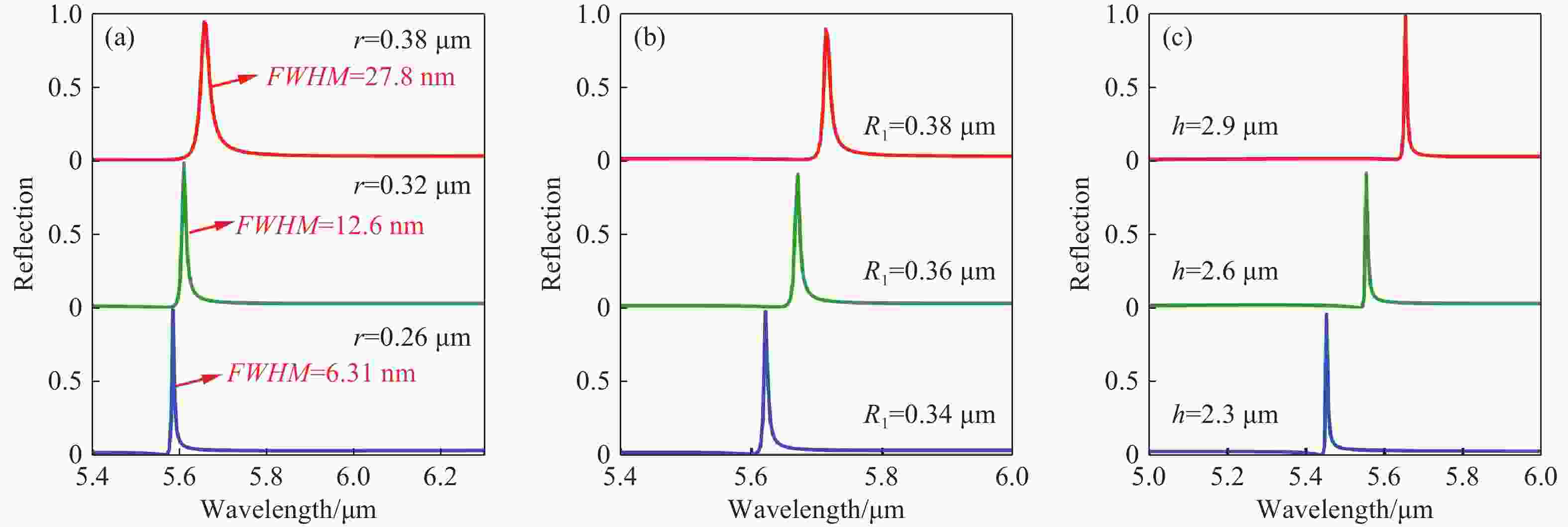

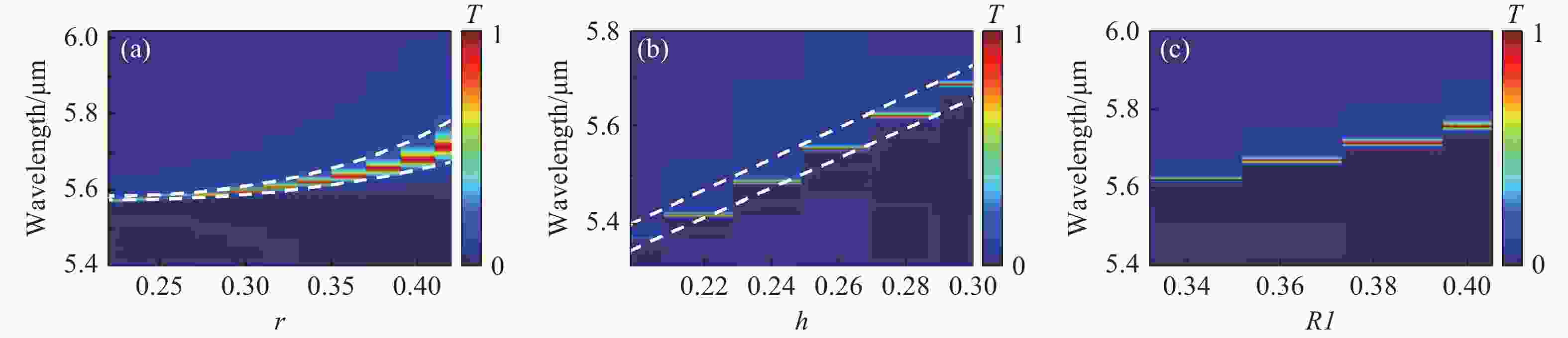

图 6 (a) 谐振波长随半径r变化的反射图；(b) 谐振波长随短半轴R1变化的的反射谱图；(c) 谐振波长随结构高度h的变化图像

Figure 6. (a) Reflection spectrum as a function of the central pillar radius r; (b) Reflection spectrum as a function of the short semi-axis R1; (c) Reflection spectrum as a function of the structure height h

下载: 全尺寸图片幻灯片

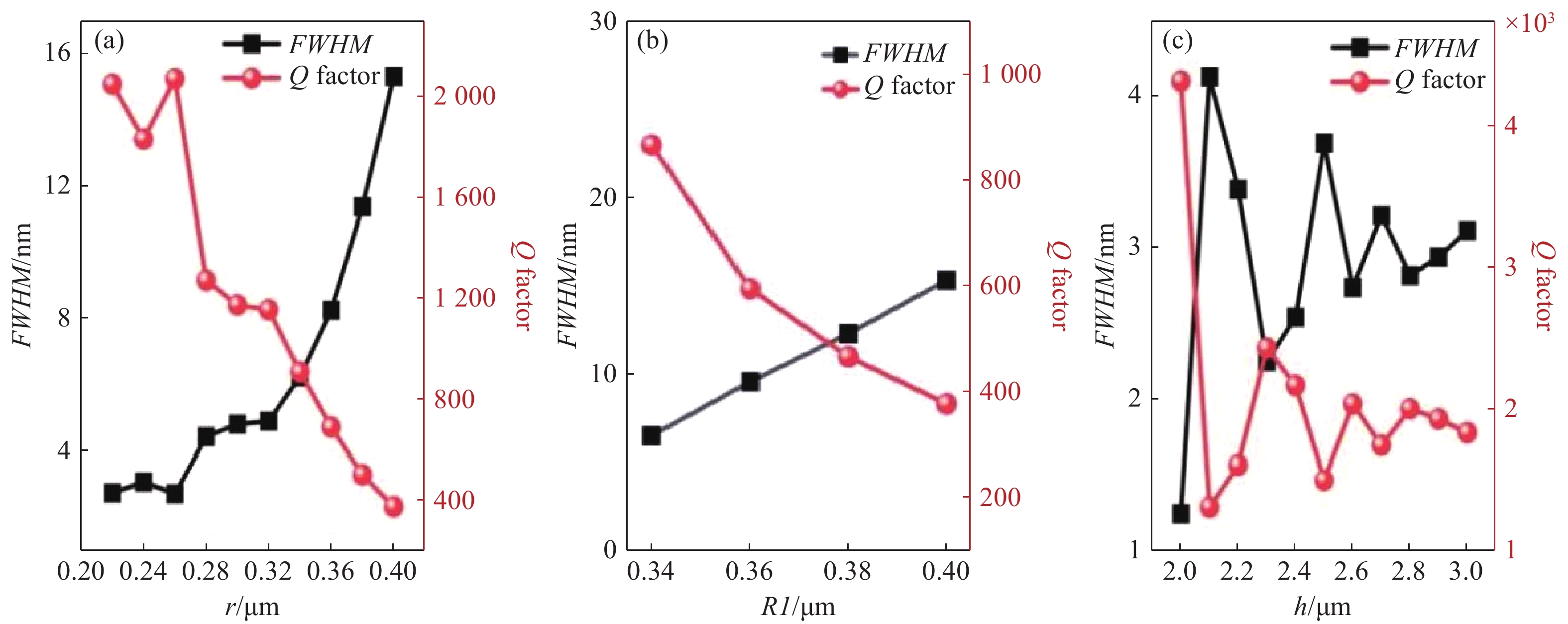

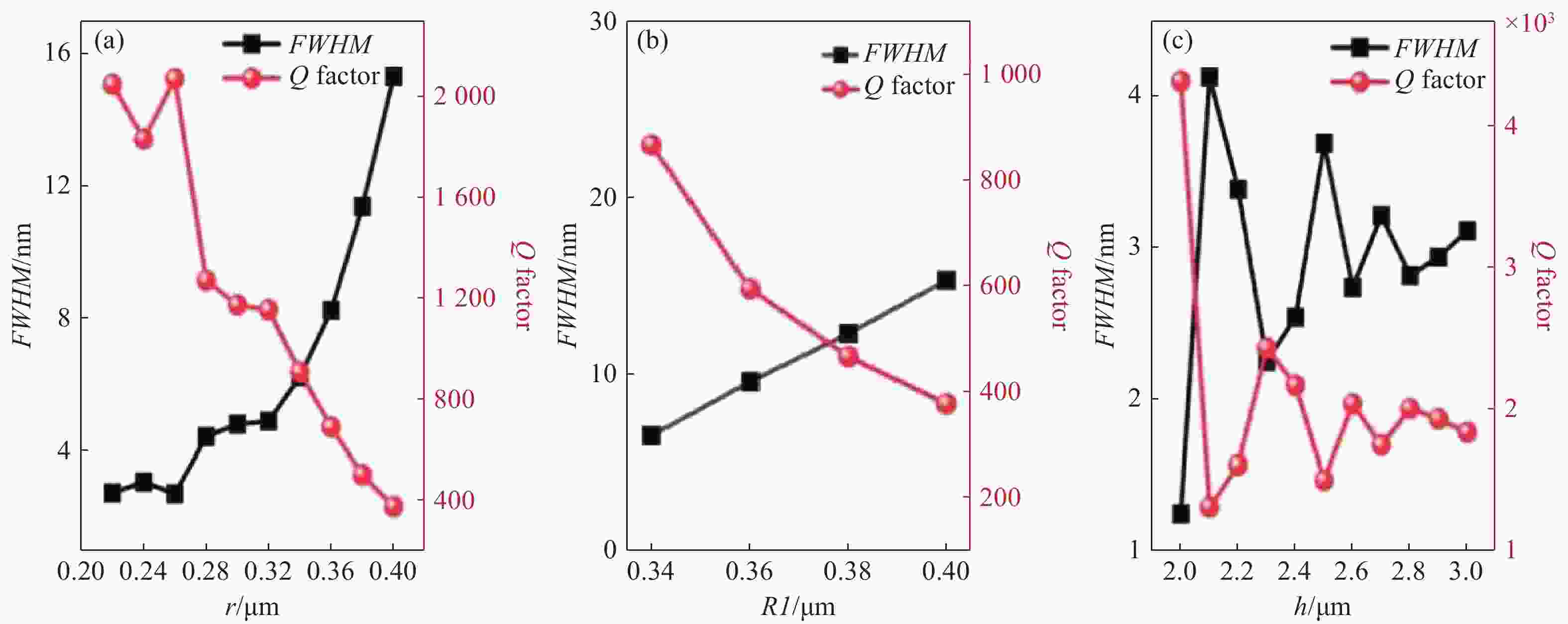

图 7 FWHM及品质因子Q与结构参数r，R1，h的定量关系。(a) 中心柱半径r；(b) 短半轴R1；(c) 结构高度h

Figure 7. Quantitative relationship between FWHM, quality factor Q, and structural parameters r, R1, h. (a) Central pillar radius r; (b) Minor semi-axis R1; (c) Structure height h

下载: 全尺寸图片幻灯片

参考文献(45)

[1]	SHAMIM S, MOHSIN A S M, RAHMAN M, et al. Recent advances in the metamaterial and metasurface-based biosensor in the gigahertz, terahertz, and optical frequency domains[J]. Heliyon, 2024, 10(13): e33272. doi: 10.1016/j.heliyon.2024.e33272
[2]	LIU H G, ZHENG L, MA P ZH, et al. Metasurface generated polarization insensitive Fano resonance for high-performance refractive index sensing[J]. Optics Express, 2019, 27(9): 13252-13262. doi: 10.1364/OE.27.013252
[3]	LI SH P, XIE Y J, MENG J L, et al. Ultracompact and dynamically tunable plasmonic THz switch based on graphene microcavity metamaterial[J]. Optical Review, 2020, 27(3): 271-276. doi: 10.1007/s10043-020-00589-6
[4]	KOSHELEV K, FAVRAUD G, BOGDANOV A, et al. Nonradiating photonics with resonant dielectric nanostructures[J]. Nanophotonics, 2019, 8(5): 725-745. doi: 10.1515/nanoph-2019-0024
[5]	OVERVIG A, ALÙ A. Diffractive nonlocal metasurfaces[J]. Laser & Photonics Reviews, 2022, 16(8): 2100633. doi: 10.1002/lpor.202100633
[6]	HU T ZH, QIN ZH F, CHEN H, et al. High-Q filtering and dynamic modulation in all-dielectric metasurfaces induced by quasi-BIC[J]. Optics Express, 2022, 30(11): 18264-18272. doi: 10.1364/OE.457383
[7]	CHEN J L, CHEN ZH X, ZHOU Z X, et al. Spin-dependent edge detection and imaging enabled by optical circularly polarised states[J]. Light: Advanced Manufacturing, 2025, 6(1): 62-70. doi: 10.37188/lam.2025.008
[8]	MA J Y, REN J L, ZHANG J H, et al. Quantum imaging using spatially entangled photon pairs from a nonlinear metasurface[J]. eLight, 2025, 5(1): 2. doi: 10.1186/s43593-024-00080-8
[9]	DENG Y, WANG X, GONG Z L, et al. All-silicon broadband ultraviolet metasurfaces[J]. Advanced Materials, 2018, 30(38): 1802632.
[10]	ZHANG H R, WANG T, TIAN J Y, et al. Quasi-BIC laser enabled by high-contrast grating resonator for gas detection[J]. Nanophotonics, 2022, 11(2): 297-304. doi: 10.1515/nanoph-2021-0368
[11]	YANG W H, XIAO SH M, SONG Q H, et al. All-dielectric metasurface for high-performance structural color[J]. Nature Communications, 2020, 11(1): 1864. doi: 10.1038/s41467-020-15773-0
[12]	JI J T, YE ZH L, WANG ZH ZH, et al. Dynamic holographic display with addressable on-chip metasurface network based on lithium niobate photonics[J]. Light: Science & Applications, 2025, 14(1): 332.
[13]	ISLAM M S, SULTANA J, BIABANIFARD M, et al. Tunable localized surface plasmon graphene metasurface for multiband superabsorption and terahertz sensing[J]. Carbon, 2020, 158: 559-567. doi: 10.1016/j.carbon.2019.11.026
[14]	NEJAD M S, ARDAKANI A G. Significant enhancement of third harmonic generation in graphene layers placed on a random grating supporting plasmonic Anderson localized states[J]. Optics & Laser Technology, 2023, 161: 109123. doi: 10.1016/j.optlastec.2023.109123
[15]	LU X Y, ZHANG T Y, WAN R G, et al. Numerical investigation of narrowband infrared absorber and sensor based on dielectric-metal metasurface[J]. Optics Express, 2018, 26(8): 10179-10187. doi: 10.1364/OE.26.010179
[16]	ALIPOUR A, MIR A, FARMANI A. Ultra high-sensitivity and tunable dual-band perfect absorber as a plasmonic sensor[J]. Optics & Laser Technology, 2020, 127: 106201. doi: 10.1016/j.optlastec.2020.106201
[17]	LIU N, WEISS T, MESCH M, et al. Planar metamaterial analogue of electromagnetically induced transparency for plasmonic sensing[J]. Nano Letters, 2010, 10(4): 1103-1107. doi: 10.1021/nl902621d
[18]	赵小龙, 常旭艳, 刘艳莉, 等. 基于非连通金属−介质−金属波导耦合D形谐振腔的多法诺共振传感器[J]. 中国光学(中英文), 2025, 18(6): 1484-1494. ZHAO X L, CHANG X Y, LIU Y L, et al. Multi-Fano resonances sensing based on a non-through metal-insulator-metal waveguide coupling D-shaped cavity[J]. Chinese Optics, 2025, 18(6): 1484-1494. (in Chinese).
[19]	张志东, 张慧男, 梁洁, 等. 基于Au纳米平行双棒超表面阵列的双Fano共振和折射率传感器特性研究[J]. 中国光学(中英文), 2023, 16(4): 961-971. doi: 10.37188/CO.EN-2023-0008 ZHANG ZH D, ZHANG H N, LIANG J, et al. Double Fano resonance and refractive index sensors based on parallel-arranged Au nanorod dimer metasurface arrays[J]. Chinese Optics, 2023, 16(4): 961-971. (in Chinese). doi: 10.37188/CO.EN-2023-0008
[20]	YANG S, NDUKAIFE J C. Optofluidic transport and assembly of nanoparticles using an all-dielectric quasi-BIC metasurface[J]. Light: Science & Applications, 2023, 12(1): 188.
[21]	LI J Y, YE L F. Dielectric dual-dimer metasurface for enhanced mid-infrared chiral sensing under both excitation modes[J]. Nanophotonics, 2023, 12(12): 2189-2197. doi: 10.1515/nanoph-2023-0128
[22]	YU SH L, LI H, WANG Y S, et al. Multiple Fano resonance excitation of all-dielectric nanoholes cuboid arrays in near infrared region[J]. Results in Physics, 2021, 28: 104569. doi: 10.1016/j.rinp.2021.104569
[23]	CHEN H W, FAN X Y, FANG W J, et al. High-Q Fano resonances in all-dielectric metastructures for enhanced optical biosensing applications[J]. Biomedical Optics Express, 2024, 15(1): 294-305. doi: 10.1364/BOE.510149
[24]	YESILKOY F, ARVELO E R, JAHANI Y, et al. Ultrasensitive hyperspectral imaging and biodetection enabled by dielectric metasurfaces[J]. Nature Photonics, 2019, 13(6): 390-396. doi: 10.1038/s41566-019-0394-6
[25]	LI H, XING J J, SHI Y, et al. Performance analysis and optimization of high Q-factor toroidal resonance refractive index sensor based on all-dielectric metasurface[J]. Optics & Laser Technology, 2023, 157: 108752. doi: 10.1016/j.optlastec.2022.108752
[26]	JAHANI Y, ARVELO E R, YESILKOY F, et al. Imaging-based spectrometer-less optofluidic biosensors based on dielectric metasurfaces for detecting extracellular vesicles[J]. Nature Communications, 2021, 12(1): 3246. doi: 10.1038/s41467-021-23257-y
[27]	NAIK G V, SHALAEV V M, BOLTASSEVA A. Alternative plasmonic materials: beyond gold and silver[J]. Advanced Materials, 2013, 25(24): 3264-3294. doi: 10.1002/adma.201205076
[28]	LUK'YANCHUK B, ZHELUDEV N I, MAIER S A, et al. The Fano resonance in plasmonic nanostructures and metamaterials[J]. Nature Materials, 2010, 9(9): 707-715. doi: 10.1038/nmat2810
[29]	CHRIST A, EKINCI Y, SOLAK H H, et al. Controlling the Fano interference in a plasmonic lattice[J]. Physical Review B, 2007, 76(20): 201405. doi: 10.1103/PhysRevB.76.201405
[30]	LI Q Y, WU X B, ZHOU Y J. Plasmonic nanosensors and metasensors based on new physical mechanisms[J]. Chemosensors, 2022, 10(10): 397. doi: 10.3390/chemosensors10100397
[31]	WANG P, KRASAVIN A V, LIU L F, et al. Molecular plasmonics with metamaterials[J]. Chemical Reviews, 2022, 122(19): 15031-15081. doi: 10.1021/acs.chemrev.2c00333
[32]	SINGH R, CAO W, AL-NAIB I, et al. Ultrasensitive terahertz sensing with high-Q Fano resonances in metasurfaces[J]. Applied Physics Letters, 2014, 105(17): 4895595. doi: 10.1063/1.4895595
[33]	LIU G D, ZHAI X, WANG L L, et al. A high-performance refractive index sensor based on Fano resonance in Si split-ring metasurface[J]. Plasmonics, 2018, 13(1): 15-19. doi: 10.1007/s11468-016-0478-9
[34]	LIM W X, SINGH R. Universal behaviour of high-Q Fano resonances in metamaterials: terahertz to near-infrared regime[J]. Nano Convergence, 2018, 5(1): 5. doi: 10.1186/s40580-018-0137-2
[35]	LI H, YU SH L, YANG L, et al. High Q-factor multi-Fano resonances in all-dielectric double square hollow metamaterials[J]. Optics & Laser Technology, 2021, 140: 107072. doi: 10.1016/j.optlastec.2021.107072
[36]	FAN H J, LI J, LIU CH, et al. Polarization-independent tetramer metasurface with multi-Fano resonances based on symmetry-protected bound states in the continuum[J]. Optics Communications, 2022, 525: 128864. doi: 10.1016/j.optcom.2022.128864
[37]	CHEN X E, ZHANG Y, CAI G X, et al. All-dielectric metasurfaces with high Q-factor Fano resonances enabling multi-scenario sensing[J]. Nanophotonics, 2022, 11(20): 4537-4549. doi: 10.1515/nanoph-2022-0394
[38]	LEE E, SEO I C, LIM S C, et al. Active switching and tuning of sharp Fano resonances in the mid-infrared spectral region[J]. Optics Express, 2016, 24(22): 25684-25696. doi: 10.1364/OE.24.025684
[39]	SUN W W, LIANG ZH ZH, SHI X Y, et al. Potential of high Q dual band Mid-Infrared metasurfaces with Quasi-BIC for refractive index sensing[J]. Optics & Laser Technology, 2024, 174: 110631. doi: 10.1016/j.optlastec.2024.110631
[40]	刘欣丽. 用于太阳能电池的Sb₂Se₃薄膜光电特性及微观结构研究[D]. 宁波: 宁波大学, 2023. LIU X L. Study on photoelectric properties and microstructure of Sb₂Se₃ thin films applied in solar cells[D]. Ningbo: Ningbo University, 2023. (in Chinese).
[41]	CHEN X J, LIN J, WANG K. A review of integrated photonic devices using Sb₂Se₃[J]. Advanced Physics Research, 2025, 4(1): 2400080. doi: 10.1002/apxr.202400080
[42]	HSU C W, ZHEN B, STONE A D, et al. Bound states in the continuum[J]. Nature Reviews Materials, 2016, 1(9): 16048. doi: 10.1038/natrevmats.2016.48
[43]	KANG M, LIU T, CHAN C T, et al. Applications of bound states in the continuum in photonics[J]. Nature Reviews Physics, 2023, 5(11): 659-678. doi: 10.1038/s42254-023-00642-8
[44]	BISWAS S K, ADI W, BEISENOVA A, et al. From weak to strong coupling: quasi-BIC metasurfaces for mid-infrared light-matter interactions[J]. Nanophotonics, 2024, 13(16): 2937-2949.
[45]	LI SH L, HUANG L J, ZHONG H Z, et al. Observation of multiple quasi-bound states in the continuum by symmetry breaking in a photonic crystal slab[J]. Photonics Research, 2025, 13(4): 968-975. doi: 10.1364/PRJ.547681
