摘要:

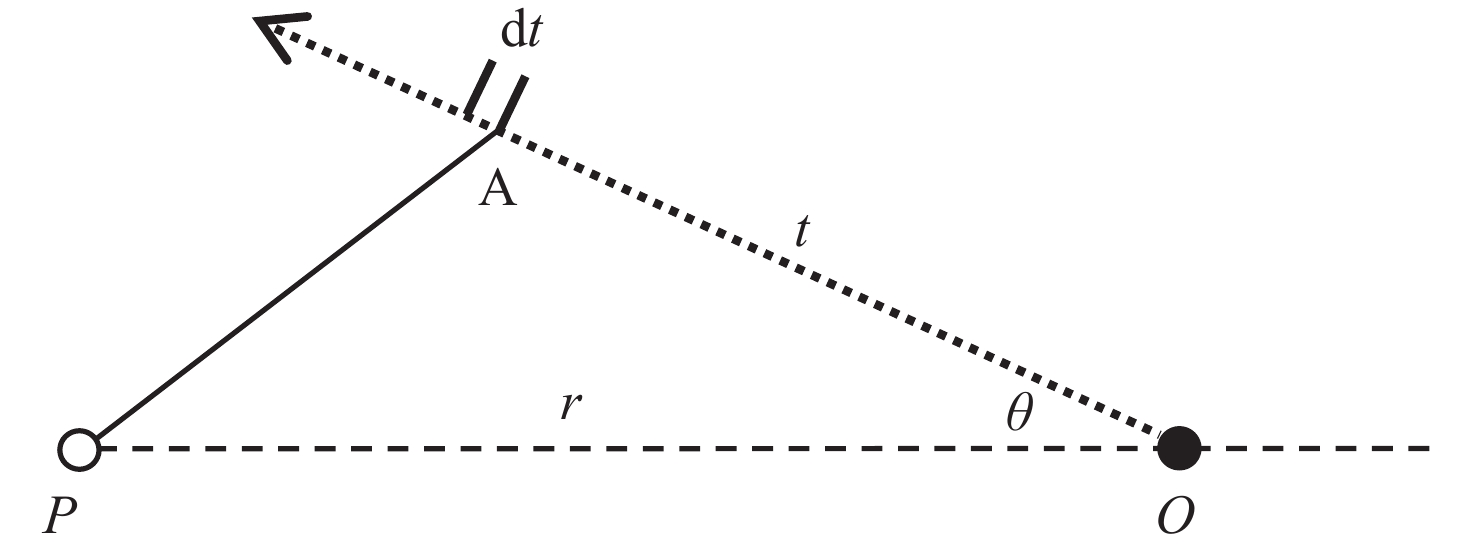

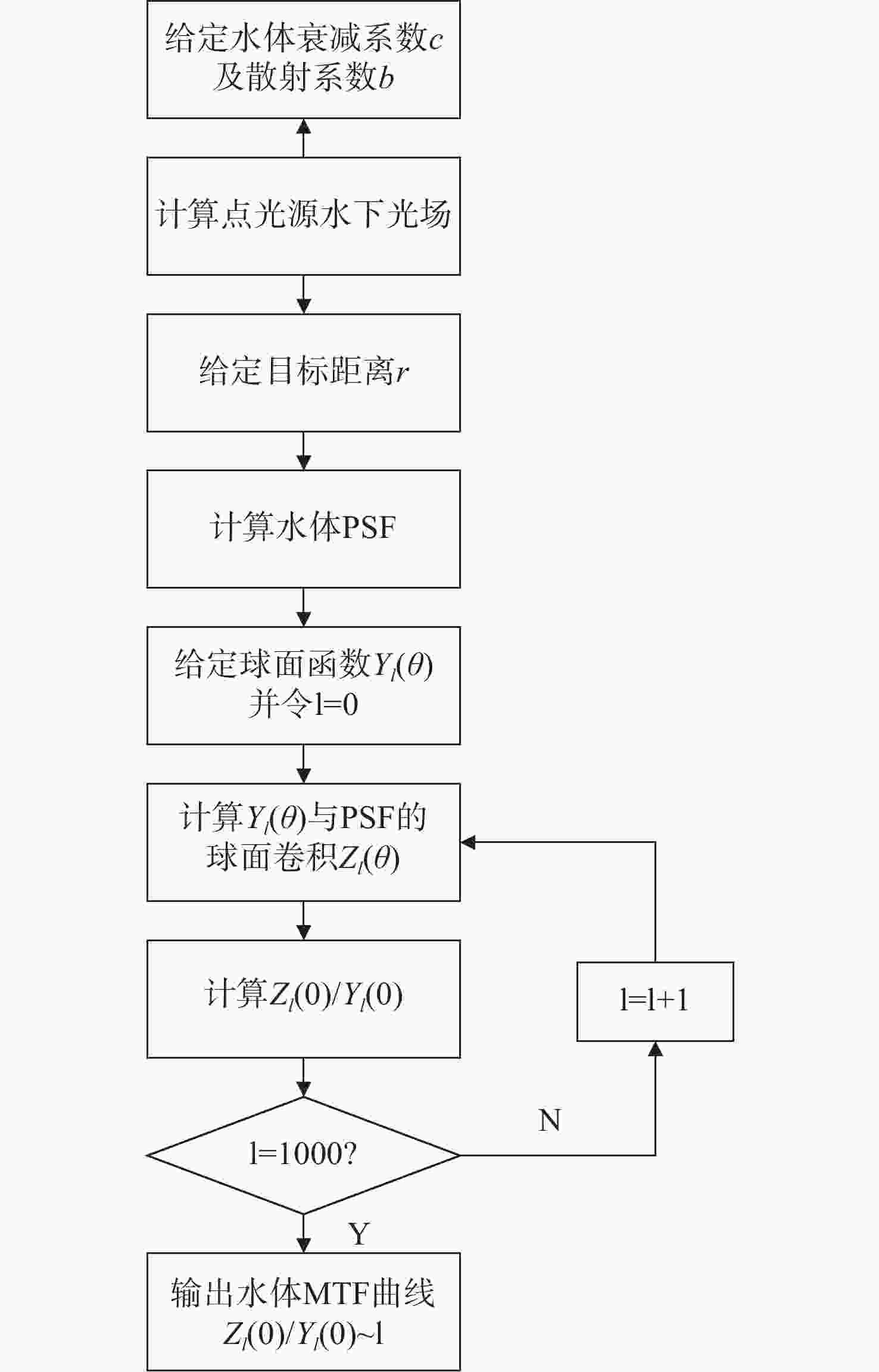

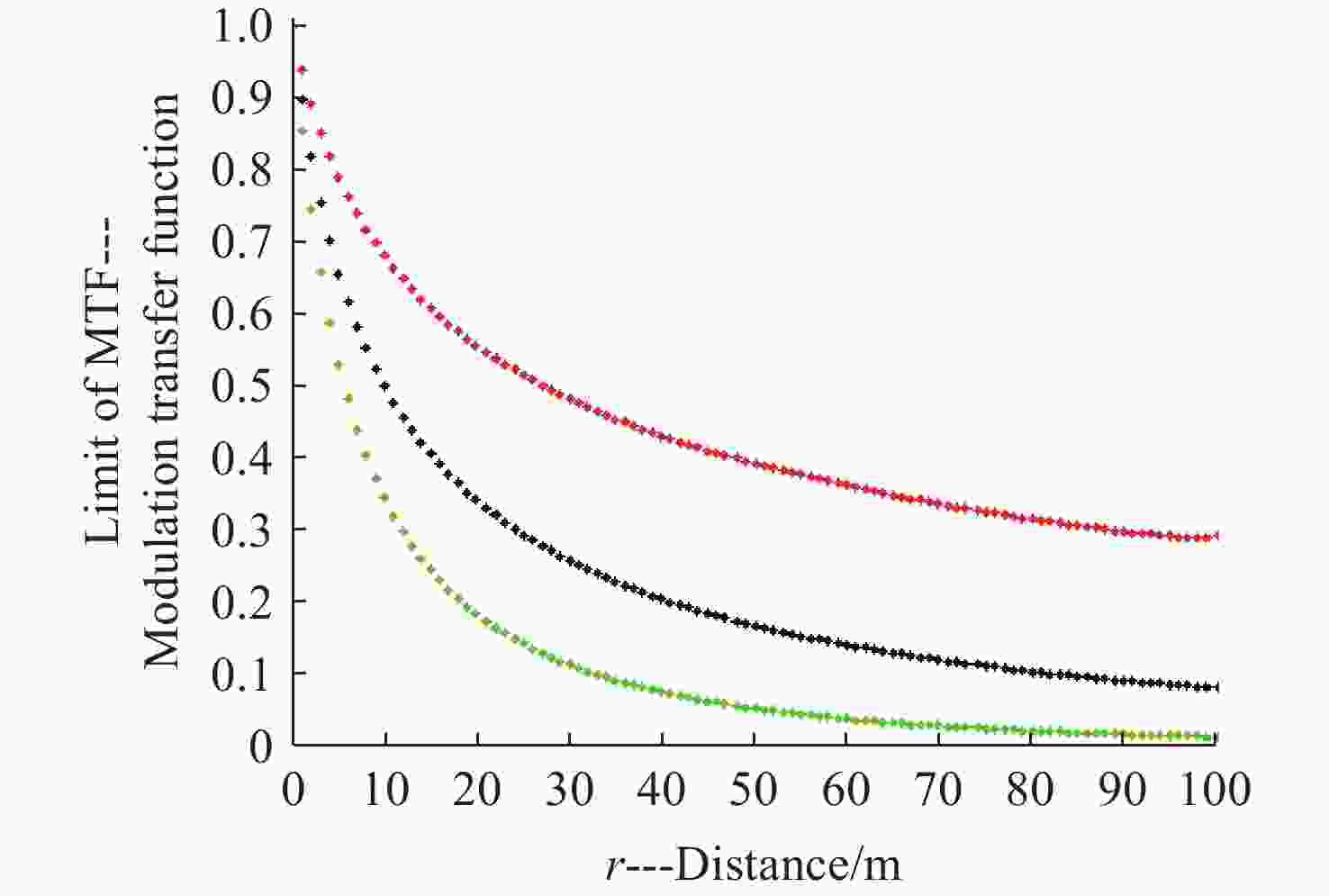

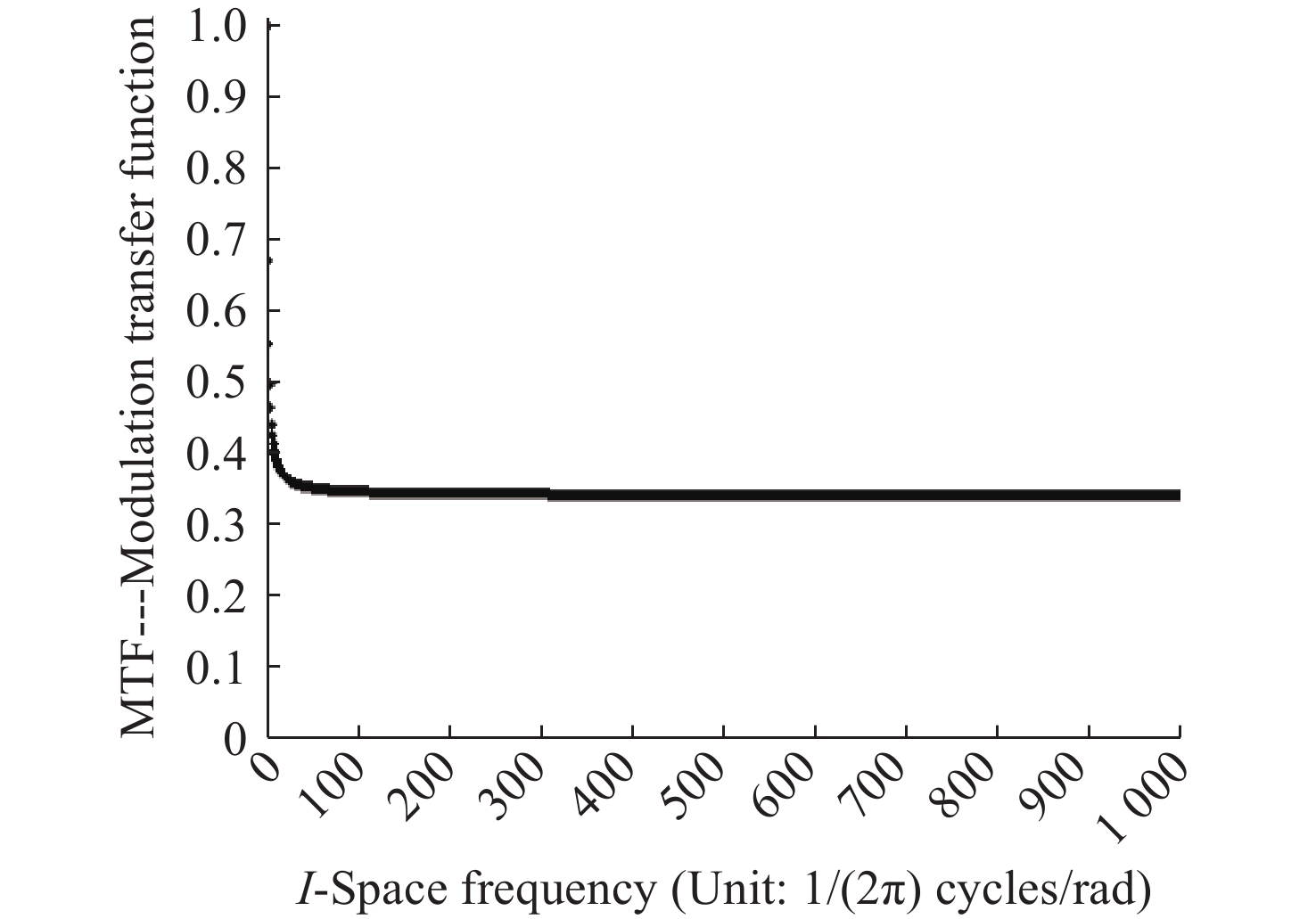

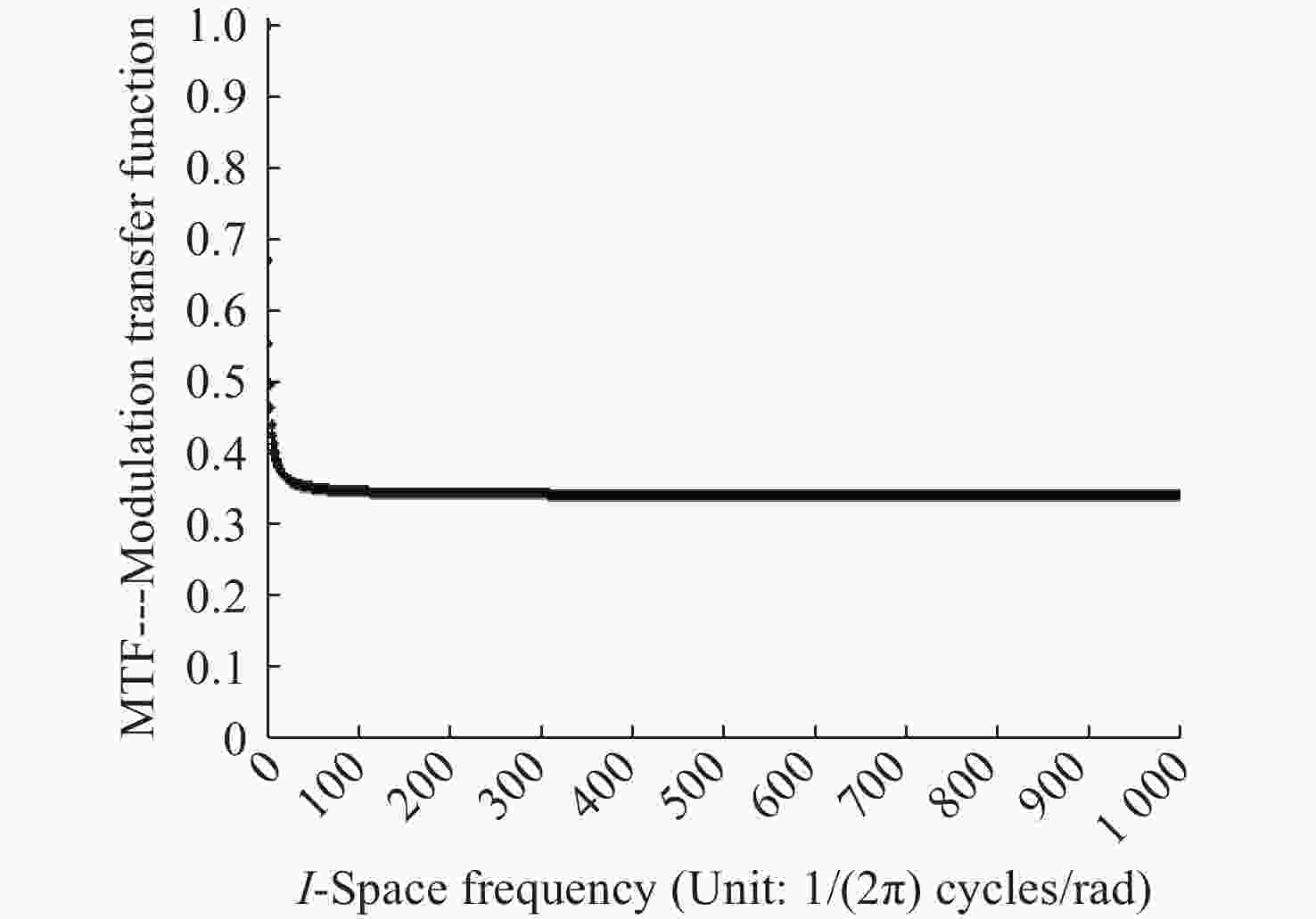

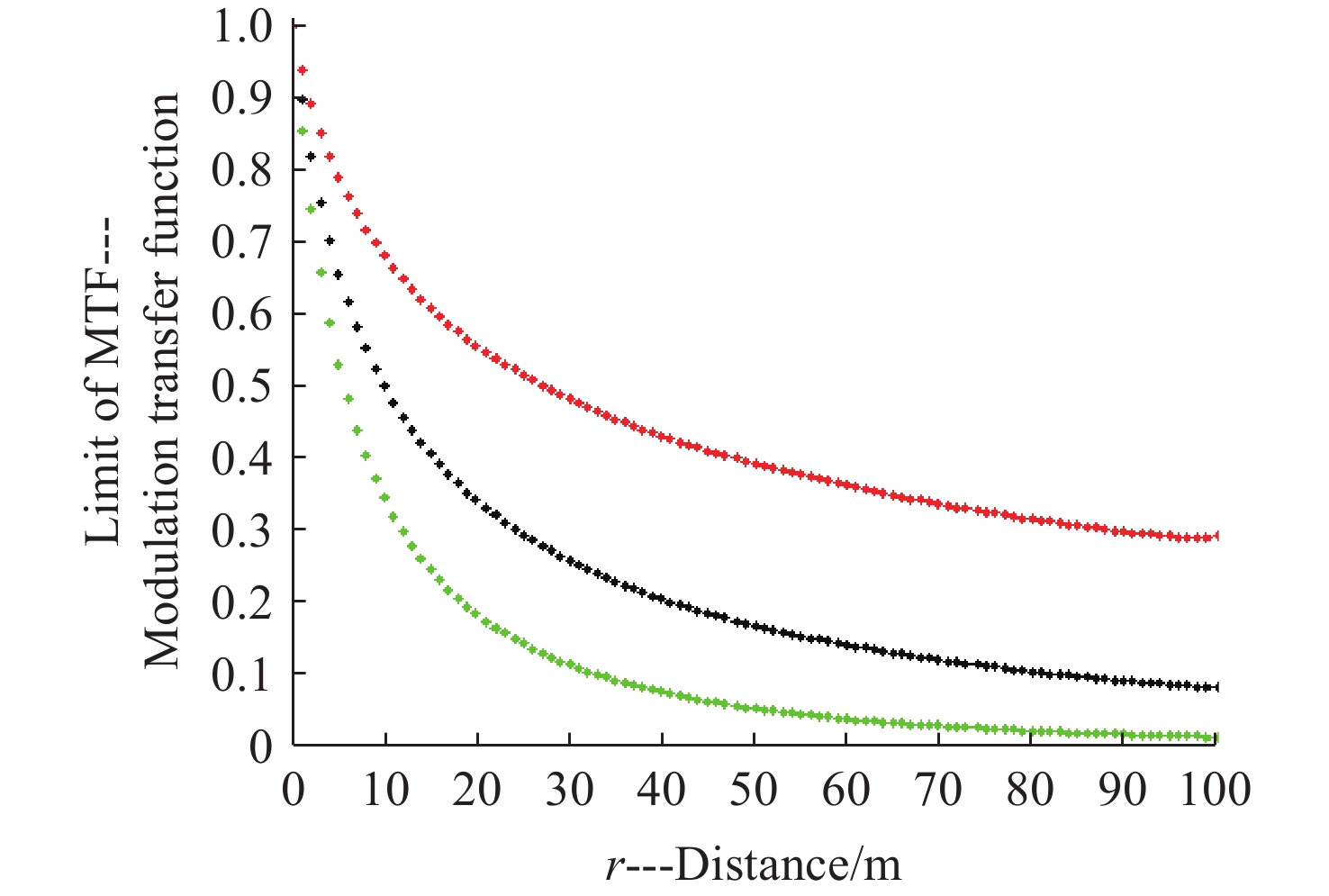

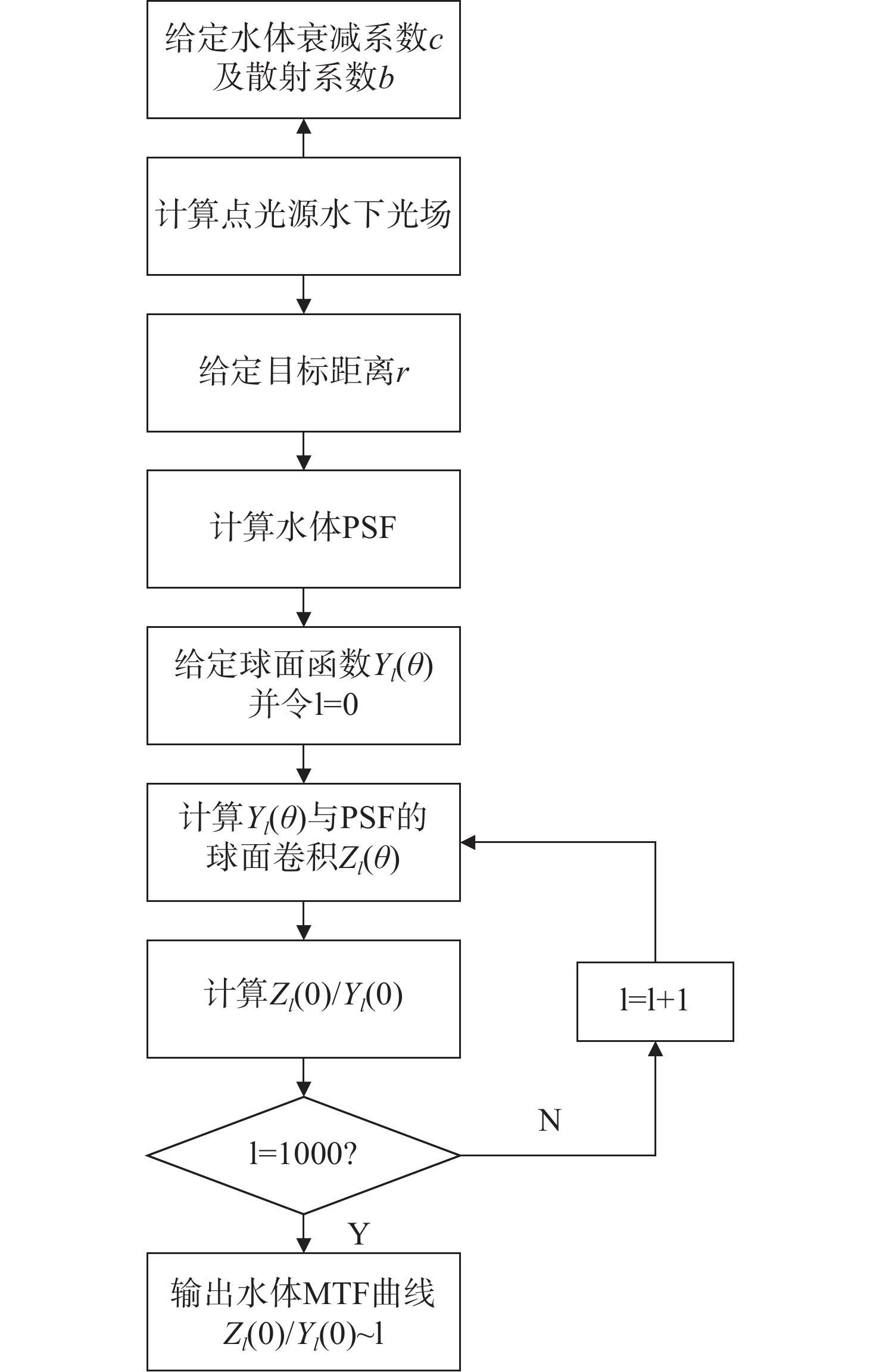

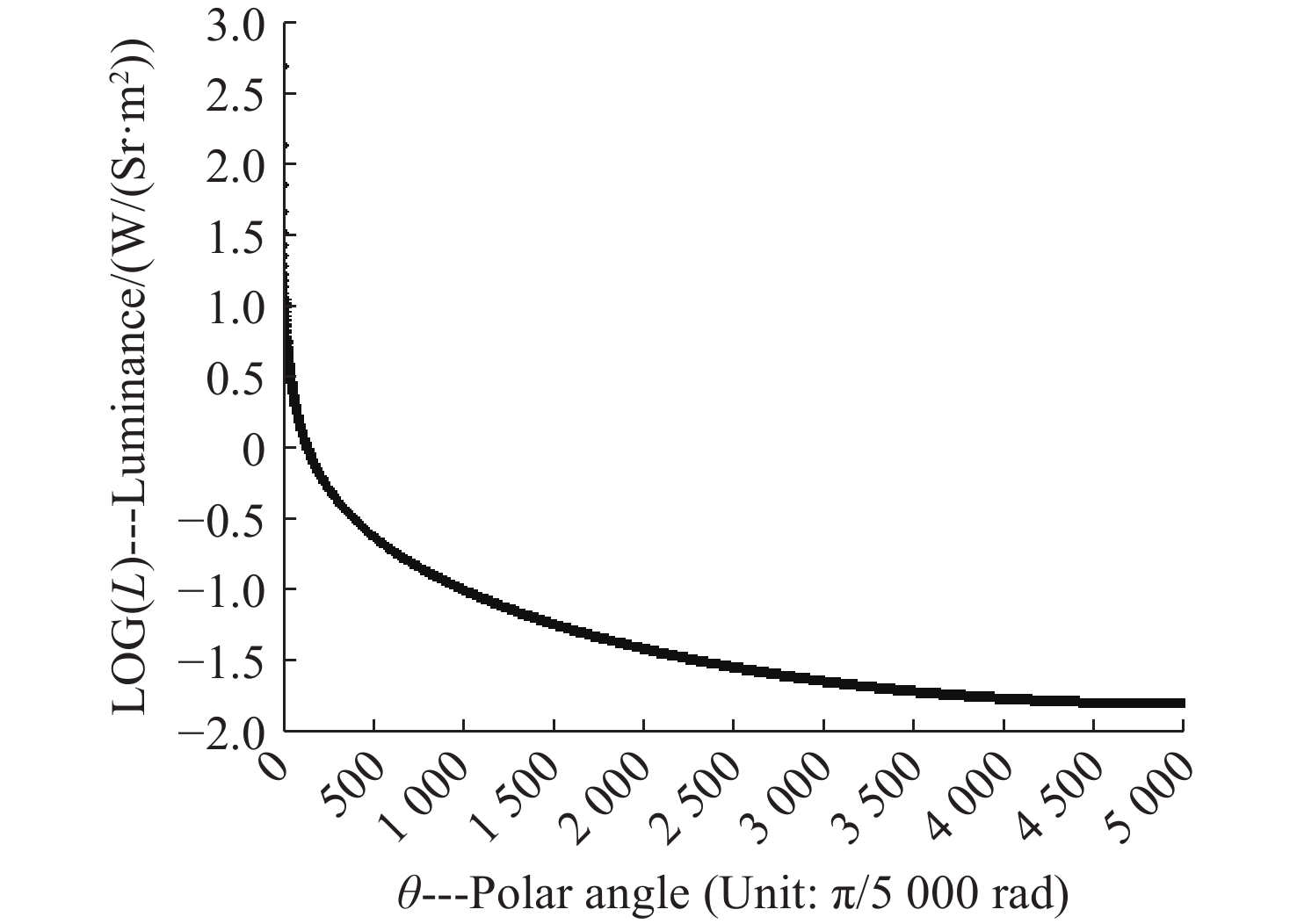

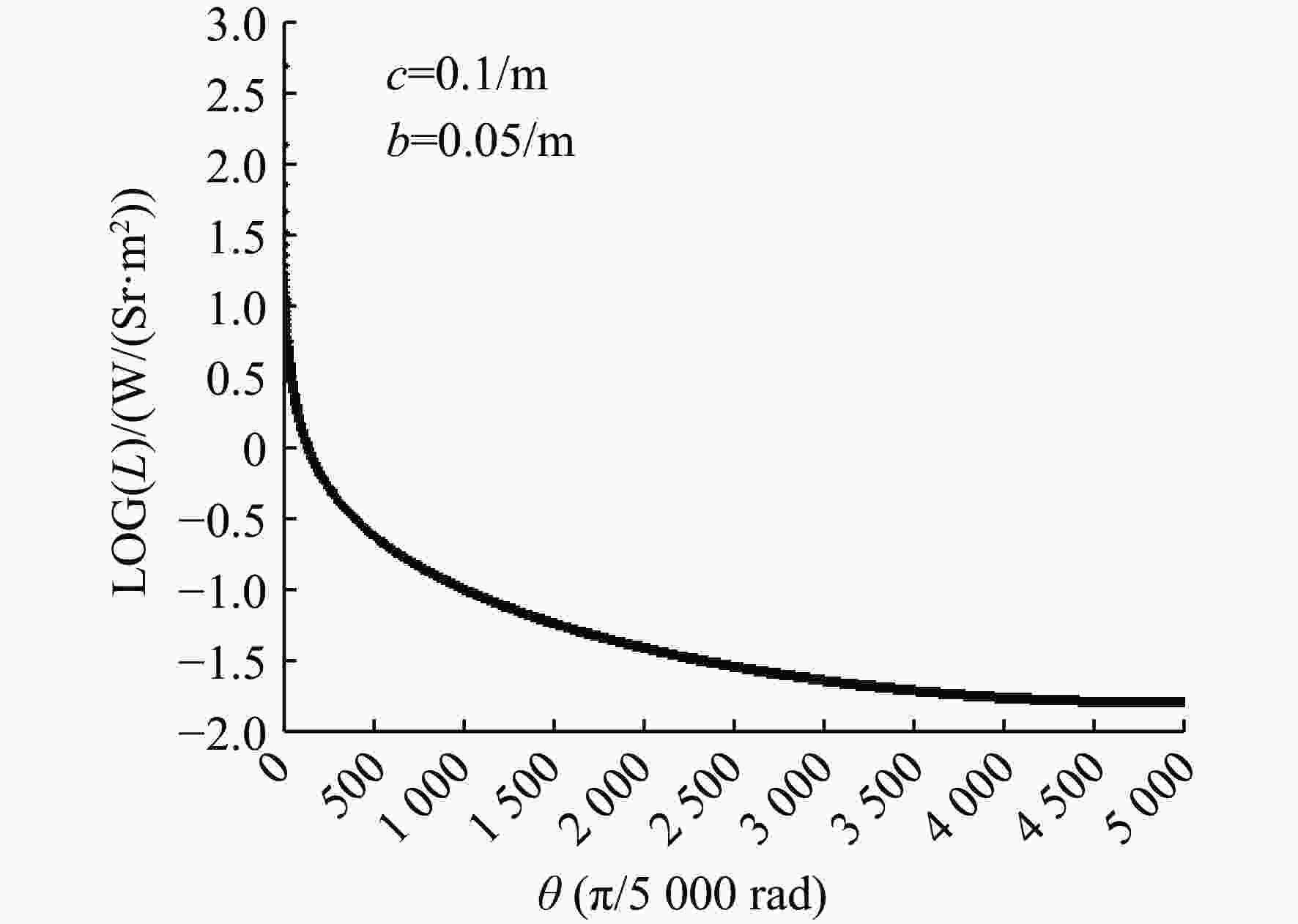

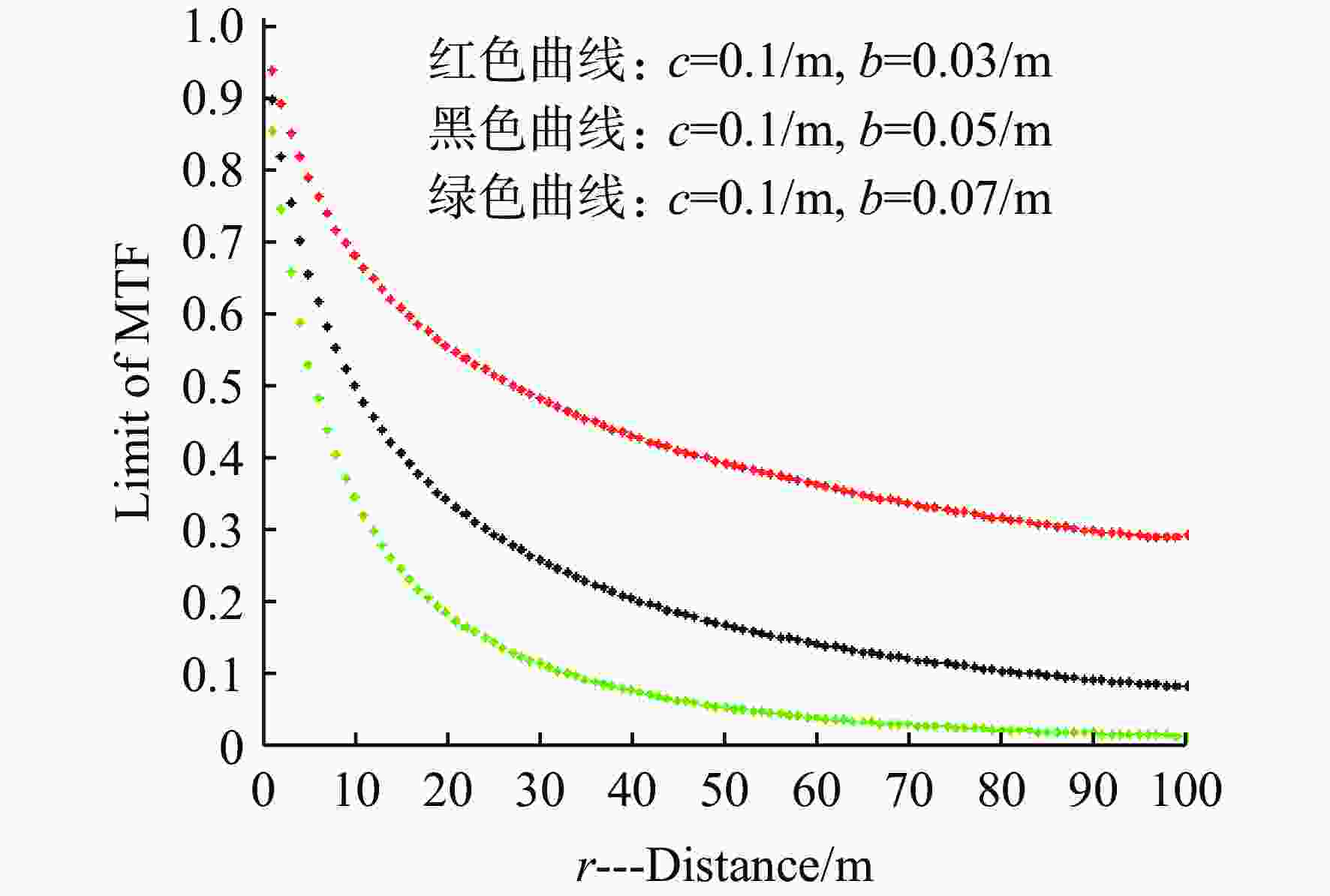

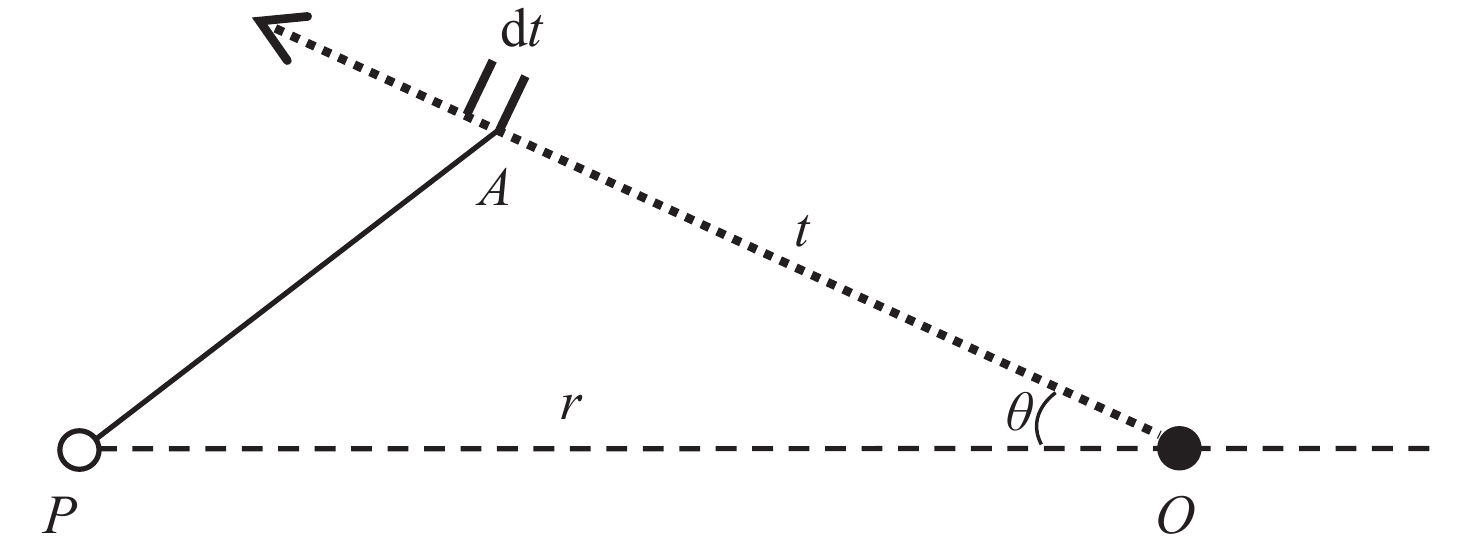

水体对光线的多次散射会形成水下光场，水下光场的存在使水下光电成像质量显著恶化，为了对水下光电图像质量退化进行定量分析，需要研究水下光场分布，建立严格的水下图像传输模型。假定水体体散射函数为球形对称，首先计算出理想点光源的水下光场分布，然后通过沿路径的亮度积分得到水体点扩展函数，最后借助于球谐函数与球面卷积等数学工具推导出球面空间中的水体调制传递函数。在已知水体固有光学参数的条件下，给出了水体调制传递函数以及对比度极限因子的图象。该算法模型解决了球形体散射函数条件下的水体调制传递函数推导问题，为解决非球形体散射函数及动态光场条件下水体调制传递函数的推导问题奠定了基础。

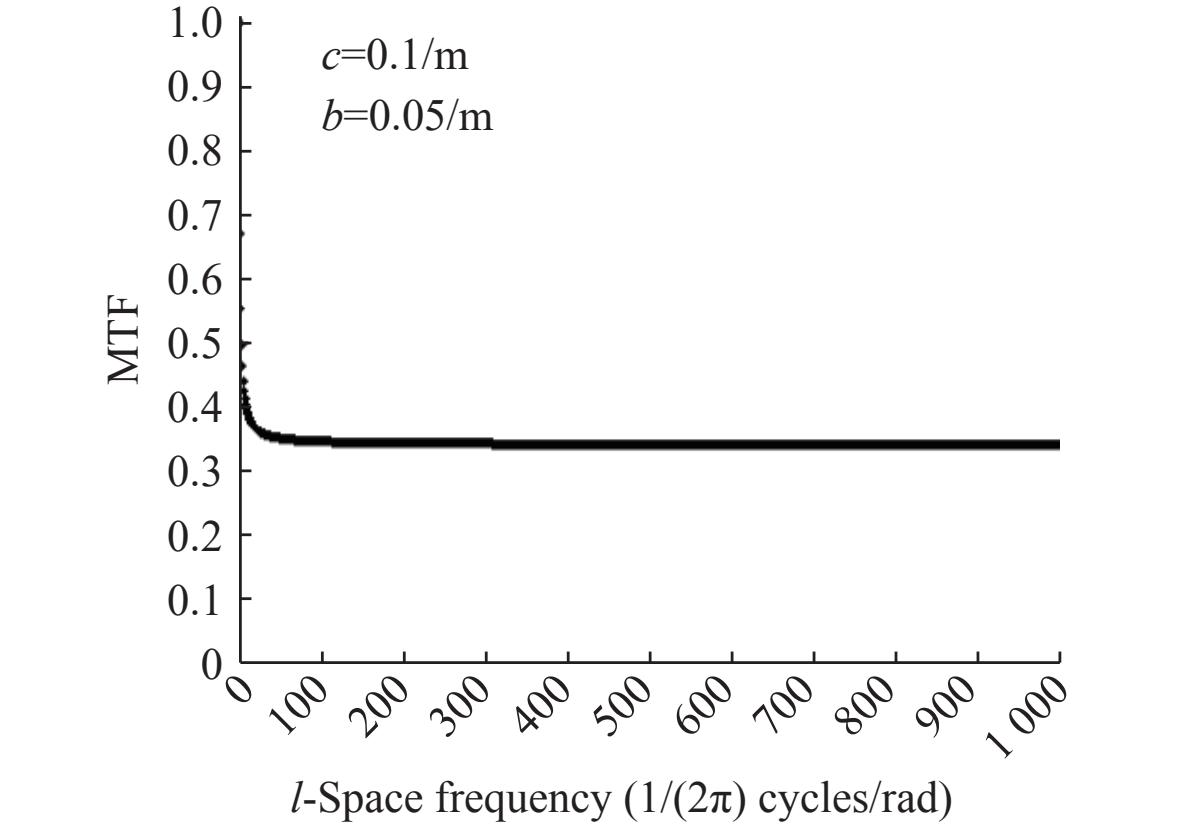

Abstract:The quality of underwater imaging significantly deteriorates due to underwater light field which caused by multiple scattering of water. In order to quantitatively analyze the quality degradation of underwater image, it is necessary to study the distribution of underwater light field and establish a strict underwater image transmission model. Assuming that water VSF is spherical symmetry, underwater light field distribution formed by an ideal point light source is calculated, and then water PSF is obtained by brightness integral along the path. Finally, water MTF in the spherical space is derived by means of mathematical tools such as spherical harmonic function and spherical convolution. Under the condition that the intrinsic optical parameters of water are known, curves of water MTF and contrast limit factor are presented. The algorithm model solves the derivation of water MTF under the condition of spherical water VSF, and this lays a foundation for the derivation of water MTF under the condition of non spherical water VSF and dynamic light field.
-

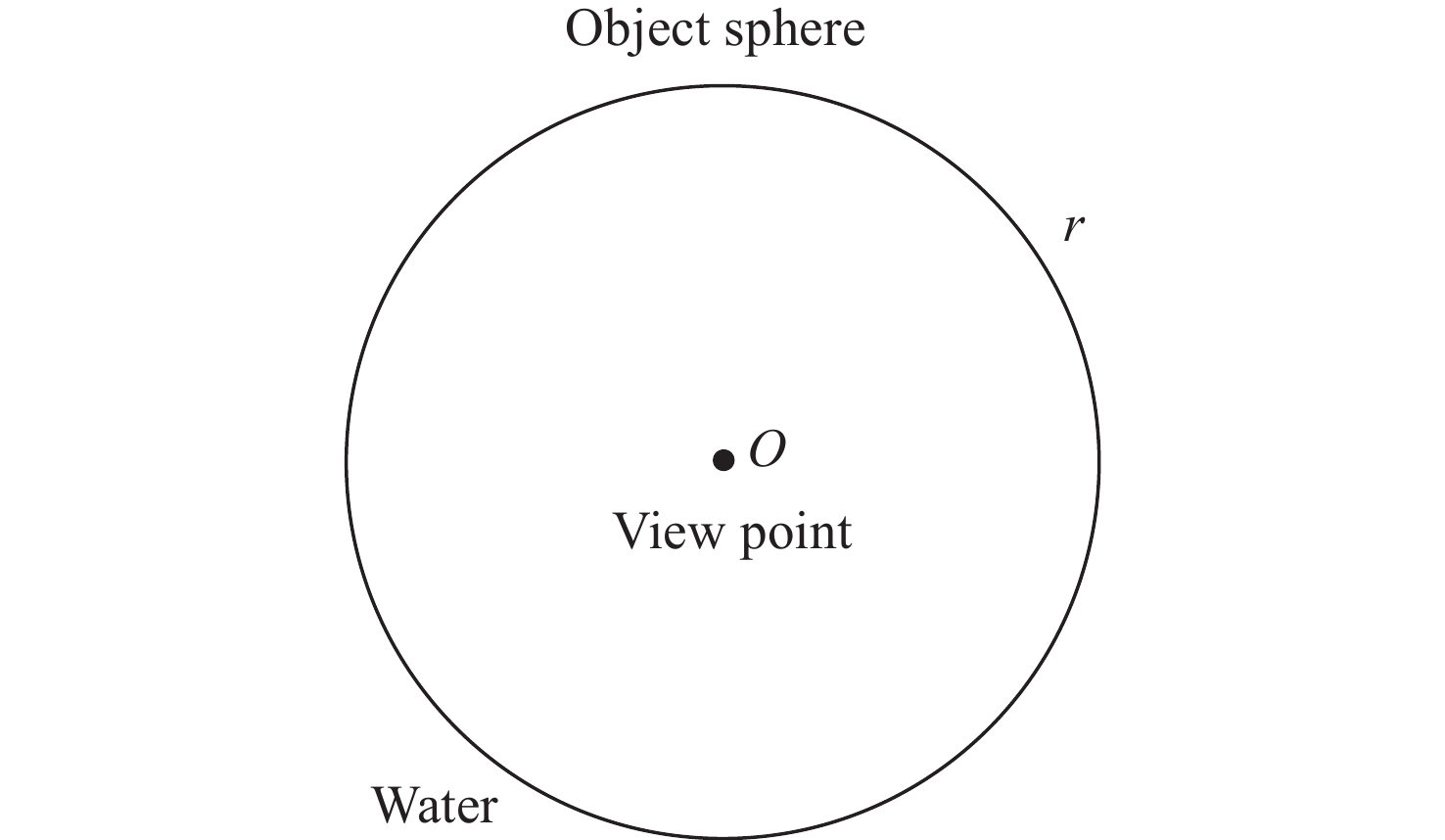

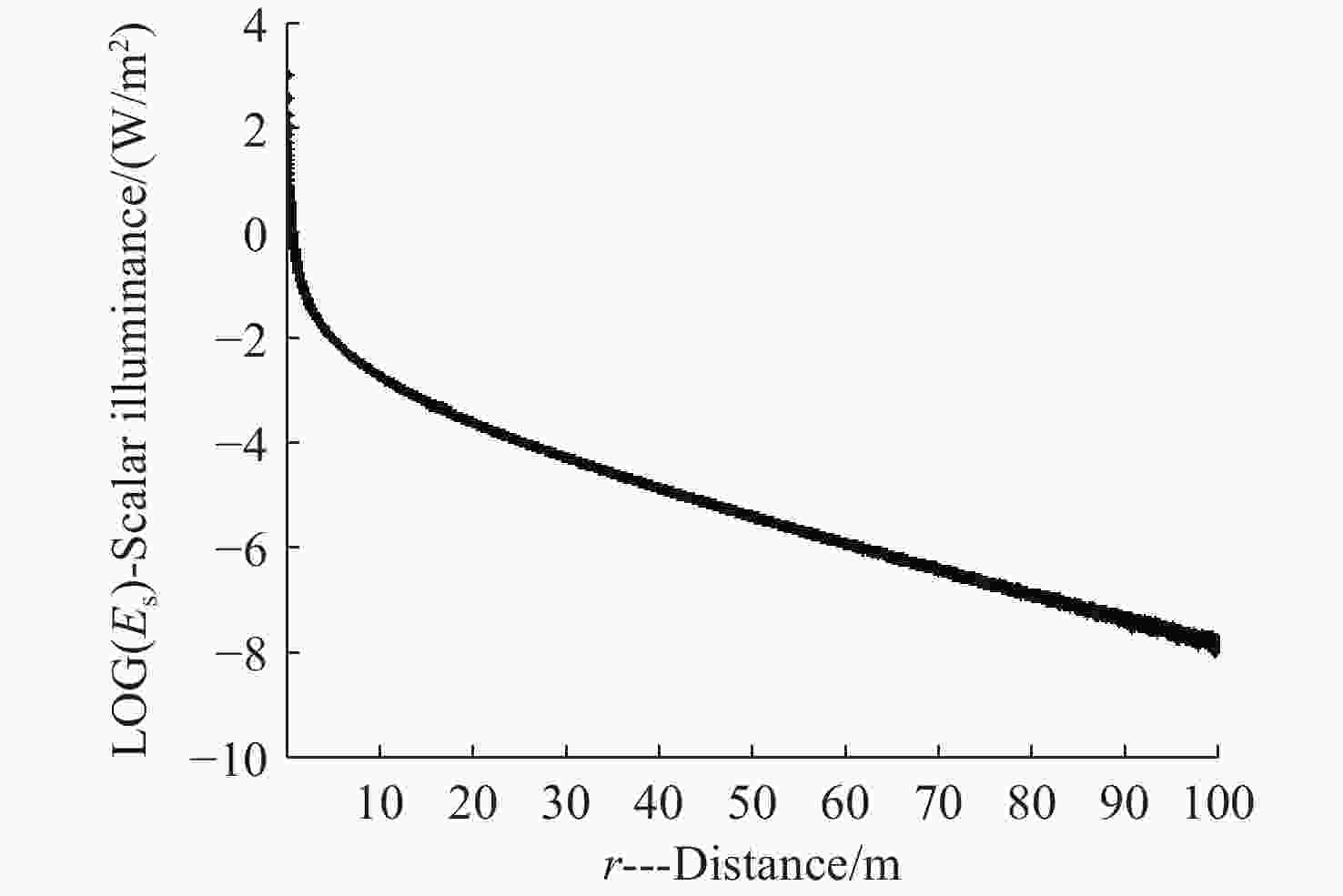

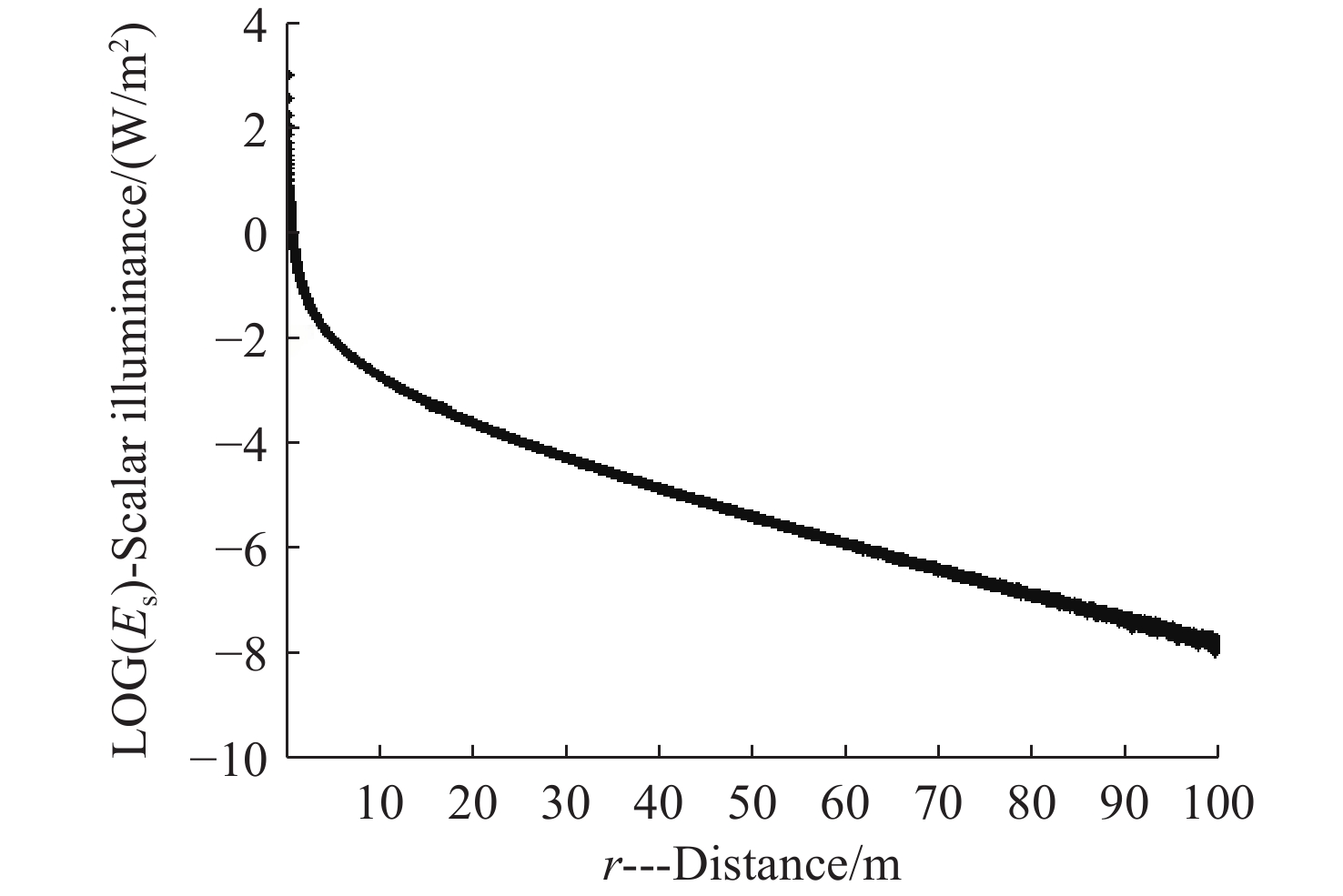

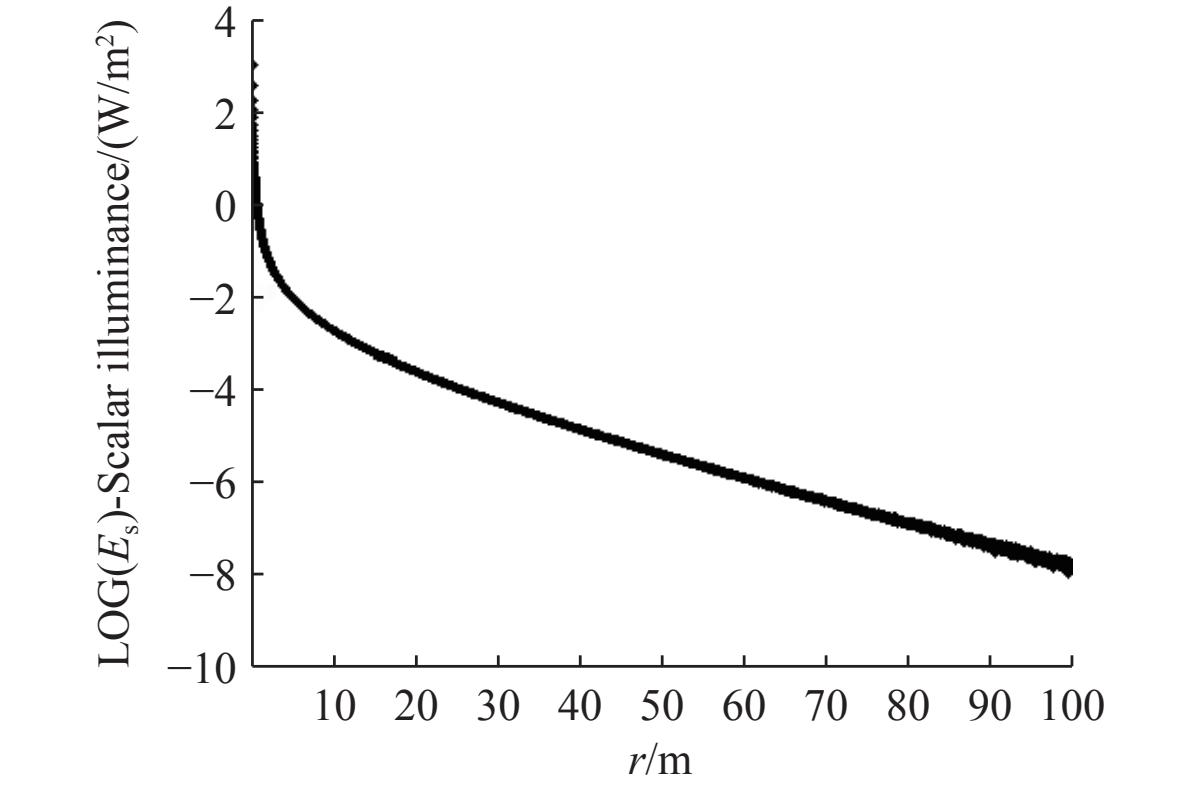

图 2 点光源形成的水下光场（c=0.1/m, b=0.05/m）
Figure 2. Underwater light field formed by point light source (c=0.1/m, b=0.05/m)
-
[1] DUNTLEY S Q. Light in the sea[J]. Journal of the Optical Society of America, 1963, 53(2): 214-233. [2] JERLOV N G. Marine Optics[M]. Amsterdam: Elsevier, 1976. [3] MOBLEY C D. Light and Water: Radiative Transfer in Natural Waters[M]. London: Academic Press, 1994: 21-69. [4] KOCAK D M, CAIMI F M. The current art of underwater imaging – with a glimpse of the past and vision of the future[J]. Marine Technology Society Journal, 2005, 39(3): 5-26. doi: 10.4031/002533205787442576 [5] CAIMI F M, KOCAK D M, DALGLEISH F, et al. Underwater imaging and optics: recent advances[C]. Proceedings of the OCEANS 2008, IEEE, 2010: 1-9. [6] JAFFE J S. Underwater optical imaging: the past, the present, and the prospects[J]. IEEE Journal of Oceanic Engineering, 2015, 40(3): 683-700. doi: 10.1109/JOE.2014.2350751 [7] CAO X N, YANG H, WANG M, et al. Integrated optomechanical ultrasonic sensors with nano-Pascal-level sensitivity[J]. Light: Science & Applications, 2026, 15(1): 171, doi: 10.1038/s41377-026-02238-0. [8] WELLS W H. Loss of resolution in water as a result of multiple small-angle scattering[J]. Journal of the Optical Society of America, 1969, 59(6): 686-691. doi: 10.1364/JOSA.59.000686 [9] WELLS W H. Theory of small-angle scattering[R]. 1973. (查阅网上资料, 未找到出版地和出版者信息, 请确认). [10] JAFFE J S. Monte Carlo modeling of underwater-image formation: validity of the linear and small-angle approximations[J]. Applied Optics, 1995, 34(24): 5413-5421. doi: 10.1364/AO.34.005413 [11] MERTENS L E, REPLOGLE F S Jr. Use of point spread and beam spread functions for analysis of imaging systems in water[J]. Journal of the Optical Society of America, 1977, 67(8): 1105-1117. doi: 10.1364/JOSA.67.001105 [12] VOSS K J, CHAPIN A L. Measurement of the point spread function in the ocean[J]. Applied Optics, 1990, 29(25): 3638-3642. doi: 10.1364/AO.29.003638 [13] VOSS K J. Simple empirical model of the oceanic point spread function[J]. Applied Optics, 1991, 30(18): 2647-2651. doi: 10.1364/AO.30.002647 [14] MCLEAN J W, VOSS K J. Point spread function in ocean water: comparison between theory and experiment[J]. Applied Optics, 1991, 30(15): 2027-2030. doi: 10.1364/AO.30.002027 [15] HOU W L, GRAY D J, WEIDEMANN A D, et al. Comparison and validation of point spread models for imaging in natural waters[J]. Optics Express, 2008, 16(13): 9958-9965. doi: 10.1364/OE.16.009958 [16] HOU W L, WEIDEMANN A D, GRAY D J, et al. Imagery-derived modulation transfer function and its applications for underwater imaging[J]. Proceedings of SPIE, 2007, 6696: 669622. doi: 10.1117/12.734953 [17] RONALD J, ZANEVELD V, BEARDSLEY G F. Modulation transfer function of sea water[J]. Journal of the Optical Society of America, 1969, 59(4): 378-380. doi: 10.1364/JOSA.59.000378 [18] DEL GROSSO V A. Modulation transfer function of water[C]. Proceedings of the OCEAN 75 Conference, IEEE, 1975: 331-347. [19] BRUSCAGLIONI P, DONELLI P, ISMAELLI A, et al. Monte Carlo calculations of the modulation transfer function of an optical system operating in a turbid medium[J]. Applied Optics, 1993, 32(15): 2813-2824. doi: 10.1364/AO.32.002813 [20] MCGLAMERY B L. A computer model for underwater camera systems[J]. Proceedings of SPIE, 1980, 0208: 221-232. (查阅网上资料, 未找到页码信息, 请确认). [21] JAFFE J S. Computer modeling and the design of optimal underwater imaging systems[J]. IEEE Journal of Oceanic Engineering, 1990, 15(2): 101-111. doi: 10.1109/48.50695 [22] PALOWITCH A W. The limits of optical imaging system[J]. Underwater System Design, 1992, 3(4): 11-17. (查阅网上资料, 未找到本条文献信息, 请确认). [23] HOU W L. A simple underwater imaging model[J]. Optics Letters, 2009, 34(17): 2688-2690. doi: 10.1364/OL.34.002688 [24] 李彩, 曹文熙, 柯天存, 等. 水体体散射函数测量技术研究进展[J]. 热带海洋学报, 2013, 32(5): 65-72.LI C, CAO W X, KE T C, et al. Progress in measurement techniques of volume scattering function of the ocean[J]. Journal of Tropical Oceanography, 2013, 32(5): 65-72. (in Chinese). [25] 徐聪辉, 李彩. 广角水体体散射函数测量技术及其应用研究进展[J]. 遥感学报, 2019, 23(6): 1078-1090.XU C H, LI C. Progress of measurement technology and application of general-angle Volume Scattering Function of water[J]. Journal of Remote Sensing, 2019, 23(6): 1078-1090. (in Chinese). [26] 黄晓圣, 吴东, 张亭禄, 等. 图像式海水小角度散射函数测量仪[J]. 光学学报, 1998, 18(12): 1716-1720.HUANG X SH, WU D, ZHANG T L, et al. A scatterometer for sea water scattering function measurement[J]. Acta Optica Sinica, 1998, 18(12): 1716-1720. (in Chinese). [27] 于亦凡, 陈维真, 黄海龙, 等. 图像传输方法测量海水的点扩展函数[J]. 光学学报, 2000, 20(12): 1647-1651. doi: 10.3321/j.issn:0253-2239.2000.12.012YU Y F, CHEN W ZH, HUANG H L, et al. Measurement of the point spread function of seawater with method of image transmission[J]. Acta Optica Sinica, 2000, 20(12): 1647-1651. (in Chinese). doi: 10.3321/j.issn:0253-2239.2000.12.012 [28] 刘智深, 黄晓圣, 贺明霞, 等. 海洋与大气光学传递函数与自然光辐射场的关系[J]. 光学学报, 1987, 7(8): 707-713.LIU ZH S, HUANG X SH, HE M X, et al. Relation between optical transfer function and natural light field in the sea or atmosphere[J]. Acta Optica Sinica, 1987, 7(8): 707-713. (in Chinese). [29] 何大华, 李阳阳, 周少杰. 水下光场的迭代求解[J]. 中国光学, 2022, 15(2): 297-305.HE D H, LI Y Y, ZHOU SH J. Iterative solution of underwater scattering light field[J]. Chinese Optics, 2022, 15(2): 297-305. (in Chinese). [30] 何大华, 程朴, 李阳阳. 水下光场的蒙特卡罗法求解[J]. 应用光学, 2023, 44(2): 268-274.HE D H, CHENG P, LI Y Y. Monte Carlo method for solving underwater light field[J]. Journal of Applied Optics, 2023, 44(2): 268-274. (in Chinese). [31] 何大华, 张瑞文, 李阳阳, 等. 水下光电成像模型[J]. 光学与光电技术, 2023, 21(5): 107-116.HE D H, ZHANG R W, LI Y Y, et al. Underwater electro-optical imaging model[J]. Optics & Optoelectronic Technology, 2023, 21(5): 107-116. (in Chinese). [32] 黄有为, 金伟其, 王霞, 等. 凝视型水下激光成像后向散射光理论模型研究[J]. 光学学报, 2007, 27(7): 1191-1197. doi: 10.3321/j.issn:0253-2239.2007.07.009HUANG Y W, JIN W Q, WANG X, et al. Theoretical optical backscattering model for staring underwater laser imaging[J]. Acta Optica Sinica, 2007, 27(7): 1191-1197. (in Chinese). doi: 10.3321/j.issn:0253-2239.2007.07.009 [33] 闫旭光, 彭复员, 徐国华, 等. 海水介质中激光前向散射的空间时间特性分析[J]. 激光技术, 2005, 29(3): 266-269. doi: 10.3969/j.issn.1001-3806.2005.03.031YAN X G, PENG F Y, XU G H, et al. Analysis of temporal and frequency characteristics of fore-scattered laser in ocean channel[J]. Laser Technology, 2005, 29(3): 266-269. (in Chinese). doi: 10.3969/j.issn.1001-3806.2005.03.031 [34] 刘雪明, 张明德, 孙小菡. 水下激光成像系统的MTF分析[J]. 中国激光, 1999, 26(4): 332-336. doi: 10.3321/j.issn:0258-7025.1999.04.011LIU X M, ZHANG M D, SUN X H. Analysis of the MTF for an underwater laser imaging system[J]. Chinese Journal of Lasers, 1999, 26(4): 332-336. (in Chinese). doi: 10.3321/j.issn:0258-7025.1999.04.011 [35] 赵璞. 基于Monte Carlo方法水下光学成像MTF研究[D]. 青岛: 中国海洋大学, 2013.ZHAO P. The research of underwater optical imaging MTF based on the Monte Carlo method[D]. Qingdao: Ocean University of China, 2013. (in Chinese). [36] 孙立颖, 夏珉, 韩捷飞, 等. 湍流环境中水下成像系统的调制传递函数研究[J]. 光学学报, 2016, 36(8): 0801002. doi: 10.3788/AOS201636.0801002SUN L Y, XIA M, HAN J F, et al. Research of modulation transfer function of underwater imaging system in turbulent environment[J]. Acta Optica Sinica, 2016, 36(8): 0801002. (in Chinese). doi: 10.3788/AOS201636.0801002 [37] 蒲欢, 季小玲. 海洋湍流中光学成像相关问题研究[J]. 光学学报, 2016, 36(10): 1026014. doi: 10.3788/AOS201636.1026014PU H, JI X L. Problems of optical imaging in oceanic turbulence[J]. Acta Optica Sinica, 2016, 36(10): 1026014. (in Chinese). doi: 10.3788/AOS201636.1026014 [38] 王竹溪, 郭敦仁. 特殊函数概论[M]. 北京: 北京大学出版社, 2000. (查阅网上资料, 不确定年份是否正确, 请确认).WANG ZH X, GUO D R. Introduction to Special Functions[M]. Beijing: Peking University Press, 2000. (in Chinese). [39] 吴厚德, 翟予峥, 王洪昌, 等. 实时输出视频的水下主动偏振成像[J]. 光学 精密工程, 2024, 32(10): 1443-1455. doi: 10.37188/OPE.20243210.1443WU H D, ZHAI Y ZH, WANG H CH, et al. Real-time video output method for underwater active polarization imaging[J]. Optics and Precision Engineering, 2024, 32(10): 1443-1455. (in Chinese). doi: 10.37188/OPE.20243210.1443 [40] BAI X Y, LIANG Z D, ZHU ZH M, et al. Polarization-based underwater geolocalization with deep learning[J]. eLight, 2023, 3(1): 15. doi: 10.1186/s43593-023-00050-6 -
