共路双波长像面数字全息远距离形貌测量

丁梦雨; 袁铭嘉; 张磊

doi:10.37188/CO.EN-2025-0008

共路双波长像面数字全息远距离形貌测量

丁梦雨^{1, 3,},
袁铭嘉^{1, 3},
张磊^{1, 2, 3, ,}

1.
安徽大学物理与光电工程学院, 光电信息获取与控制教育部重点实验室, 安徽合肥 230601
2.
湖北工业大学机械工程学院, 现代制造质量工程湖北省重点实验室, 湖北武汉 430068
3.
安徽大学信息材料与智能感知安徽省实验室, 安徽合肥 230601

详细信息

中图分类号: O438.1
计量
- 文章访问数: 40
- HTML全文浏览量: 14
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-02-14
- 录用日期: 2025-03-18
- 网络出版日期: 2025-08-27

Same-path dual-wavelength image plane digital holography for long-distance topographic measurements

doi: 10.37188/CO.EN-2025-0008

DING Meng-yu^{1, 3
,},
YUAN Ming-jia^{1, 3},
ZHANG Lei^{1, 2, 3
, ,}

1.
Key Laboratory of Opto-Electronic Information Acquisition and Manipulation Ministry of Education, School of Physics and Optoelectronic Engineering, Anhui University, Hefei 230601, China
2.
Hubei Key Laboratory of Modern Manufacturing Quality Engineering, School of Mechanical Engineering, Hubei University of Technology, Wuhan 430068, China
3.
Information Materials and Intelligent Sensing Laboratory of Anhui Province, Anhui University, Hefei 230601, China

Funds: Supported by National Natural Science Foundation of China (No. 52275515); Open Funding of Magnetic Confinement Fusion Laboratory of Anhui Province (No. 2023AMF03004)

More Information

Author Bio:
DING Meng-yu (1999—), from Bozhou, Anhui. Received a Bachelor's degree from Anhui University of Science and Technology in 2022 and is currently a master's student at Anhui University. Primarily engaged in research on optical precision measurement. E-mail: b22201037@stu.ahu.edu.cn

ZHANG Lei (1987—), from Shucheng, Anhui, Ph.D., Associate Professor. Received a Ph.D. from Zhejiang University in 2016. Primarily engaged in research on aspheric/freeform surface testing, interferometer development and application, structured light imaging, optical design, etc. E-mail: optzl@ahu.edu.cn

Corresponding author: optzl@ahu.edu.cn

摘要

摘要:
双波长像面数字全息术用于实现远距离形貌测量，未来有望应用于实验先进超导托卡马克（EAST）偏滤器表面测量。照明与成像光束共路的设计适用于托卡马克装置的上部诊断通道。通过选择波长间隔为1.02 nm的两个波长，系统测量范围扩展到276.87 μm，可测量高度变化138.44 μm的表面。实验结果表明，系统对标称80 μm的台阶测量误差为7.00％，最小可测高度变化10 μm表面，对系统远距离的测量能力进行了验证，并对托卡马克装置拆除的偏滤器进行离线测量。上述结果证实，该系统有望用于偏滤器的形貌测量。
- 共同路径 /
- 双波长 /
- 形貌测量
Abstract:
The dual-wavelength image plane digital holography is employed to achieve the long-distance topography measurements, which is expected for the Examination and Analysis System Technology (EAST) in divertor surface monitoring. The same-path design for the illumination and imaging beams is suitable for the upper diagnosis channel of the tokamak device. By selecting two wavelengths with a gap of 1.02 nm, the measurement range of system is extended to 276.87 µm, allowing for 138.44 µm gradient measurements. Experimental results demonstrate that the measurement error of the system for a step with a nominal high of 80 μm is 7.00%, with a minimum detectable height variation of 10 μm. Furthermore, confirm the long-distance measurement capability of the system, and off-line measurements were conducted on a dismantled divertor from a tokamak device. Which proves the system can be applied to the topography measurements of the divertor.
- same-path /
- dual-wavelength /
- topography measurements

HTML全文

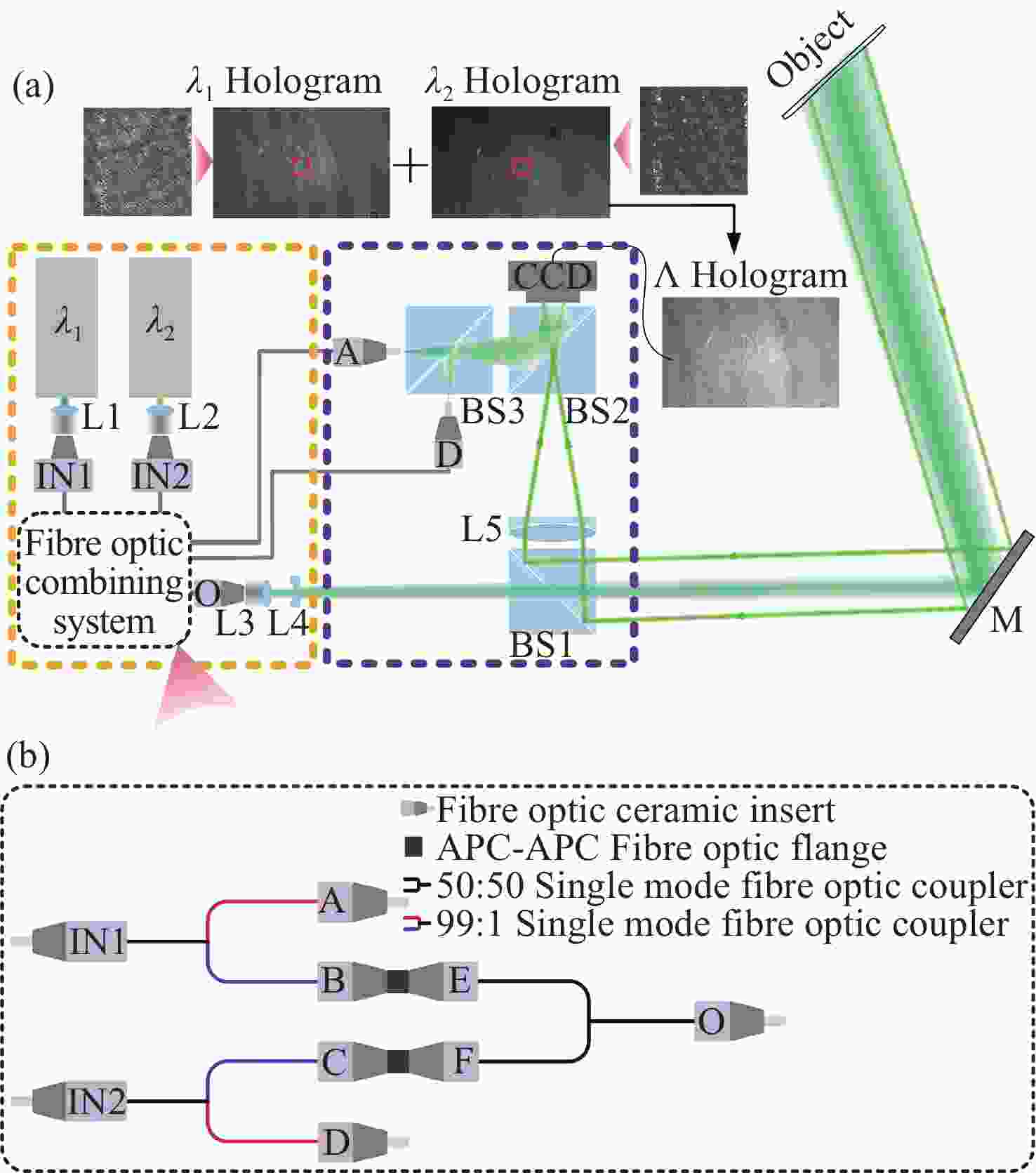

Figure 1. System schematic diagram. (a) System schematic. (b) Fiber optic combining system.

下载: 全尺寸图片幻灯片

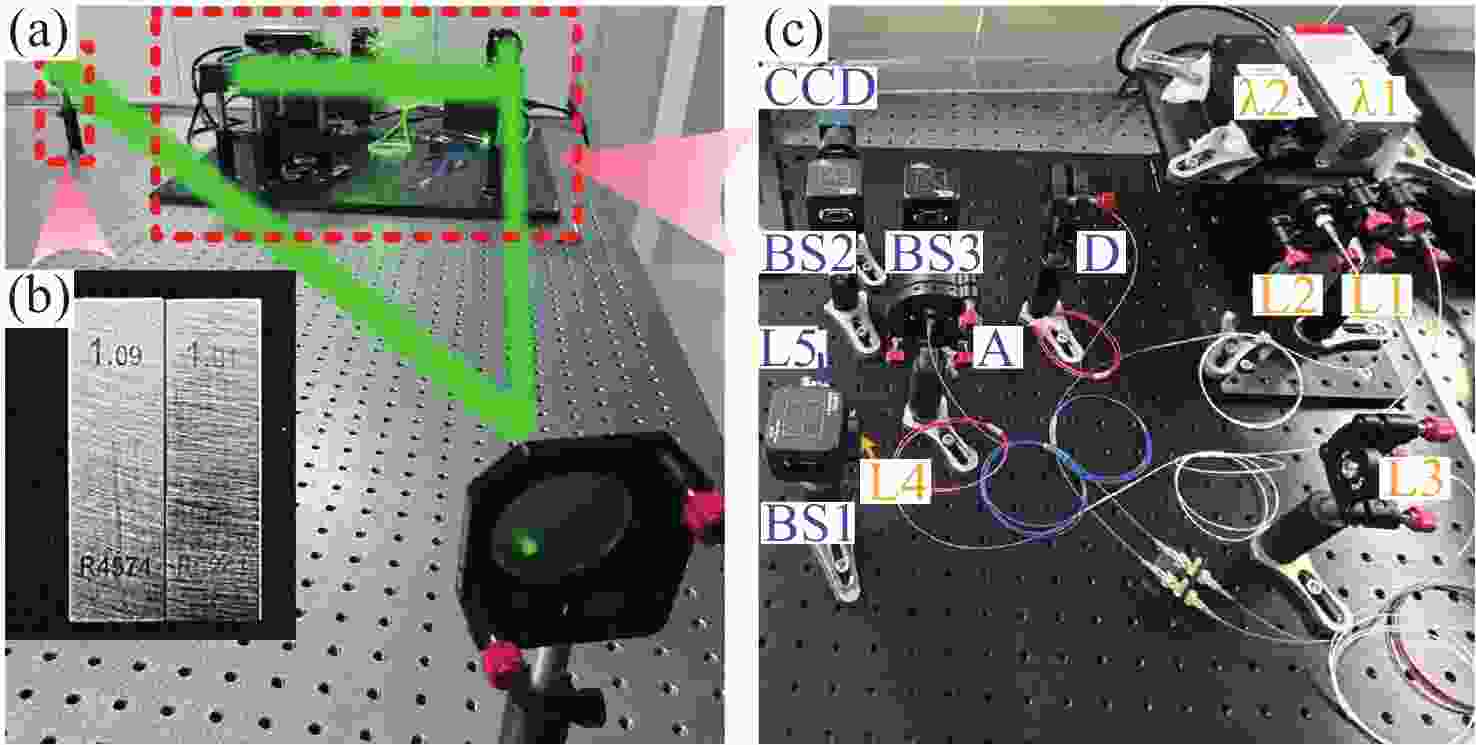

Figure 2. The experiment layout. (a) Overall system layout. (b) The 80 µm step object. (c) Specific structure of the illumination and imaging parts.

下载: 全尺寸图片幻灯片

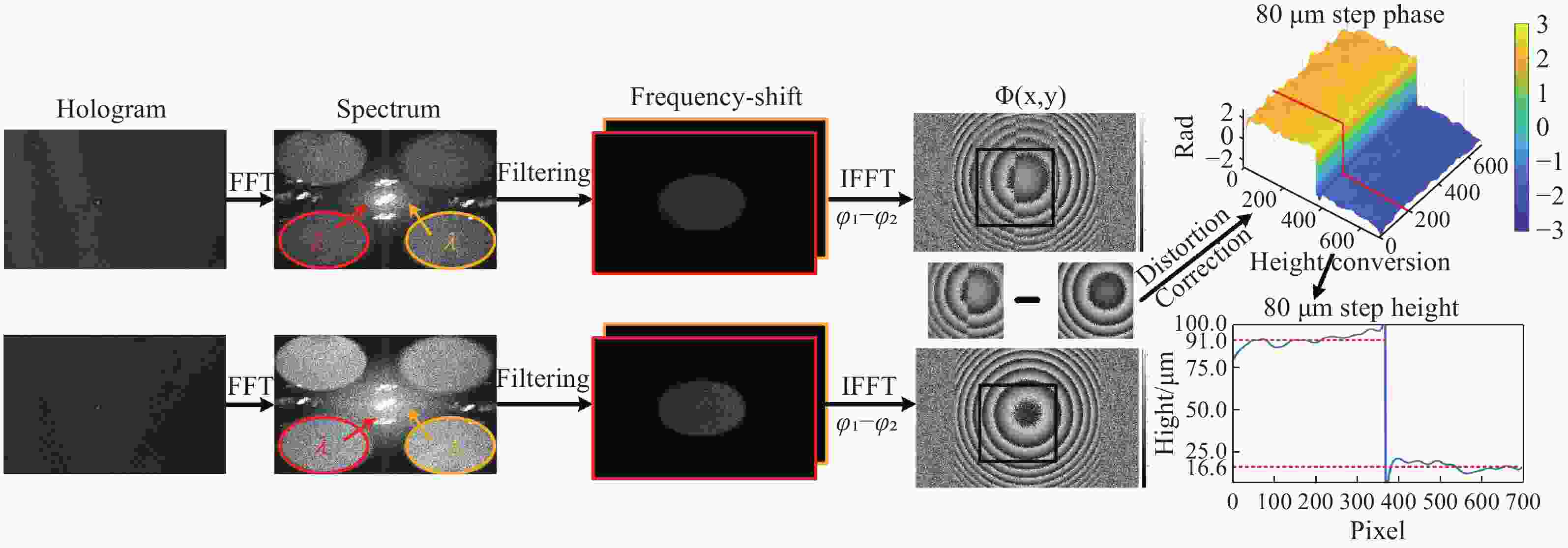

Figure 3. Numerical reconstruction process of 80 µm step.

下载: 全尺寸图片幻灯片

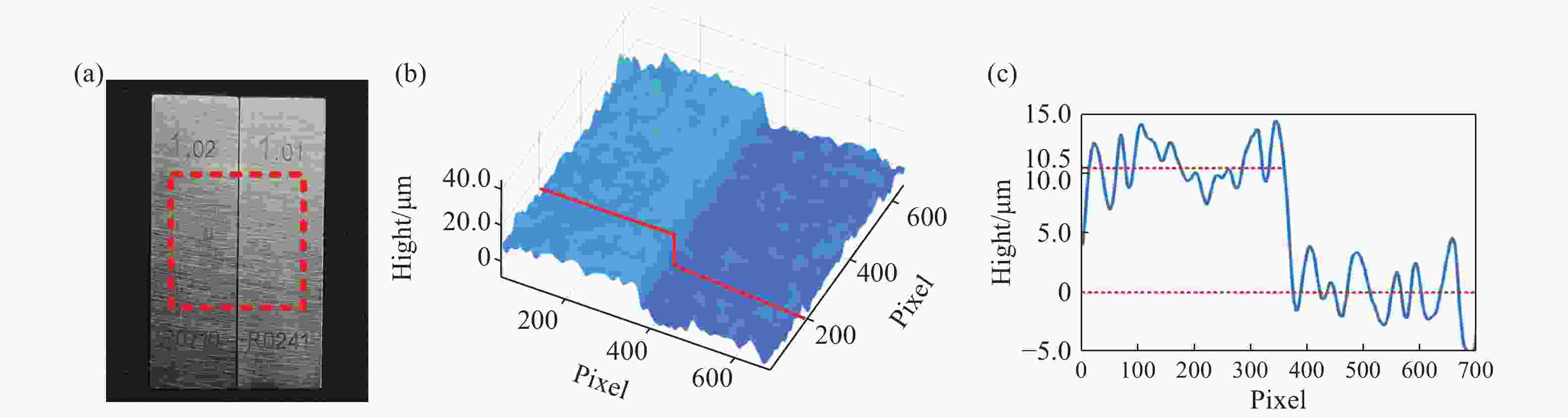

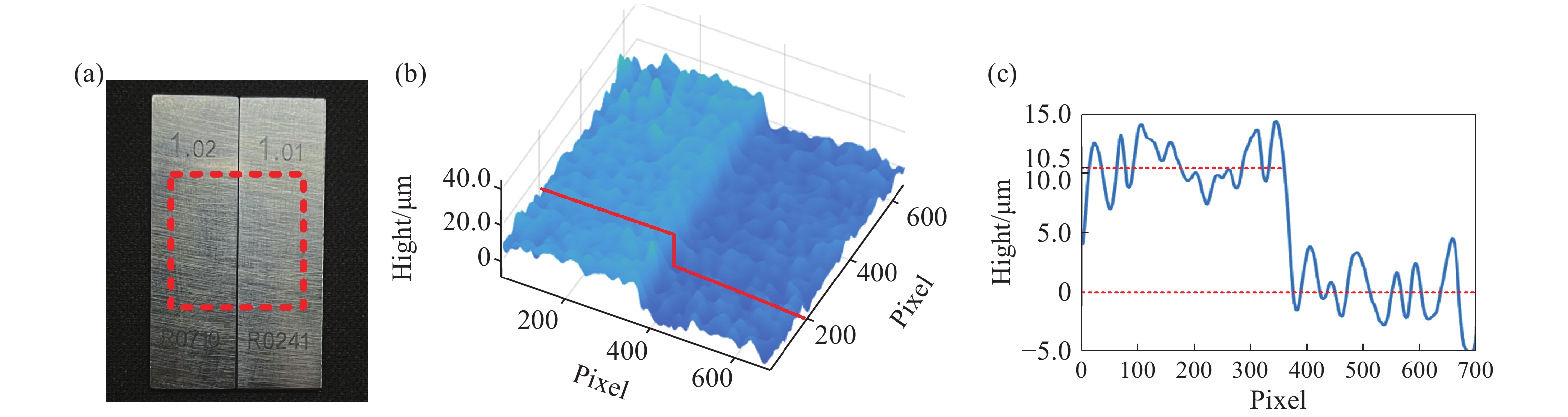

Figure 4. 10 µm step measurement results. (a) The 10 µm step object. (b) Topography map representation with a 10 µm step. (c) Outline of the red line in (b).

下载: 全尺寸图片幻灯片

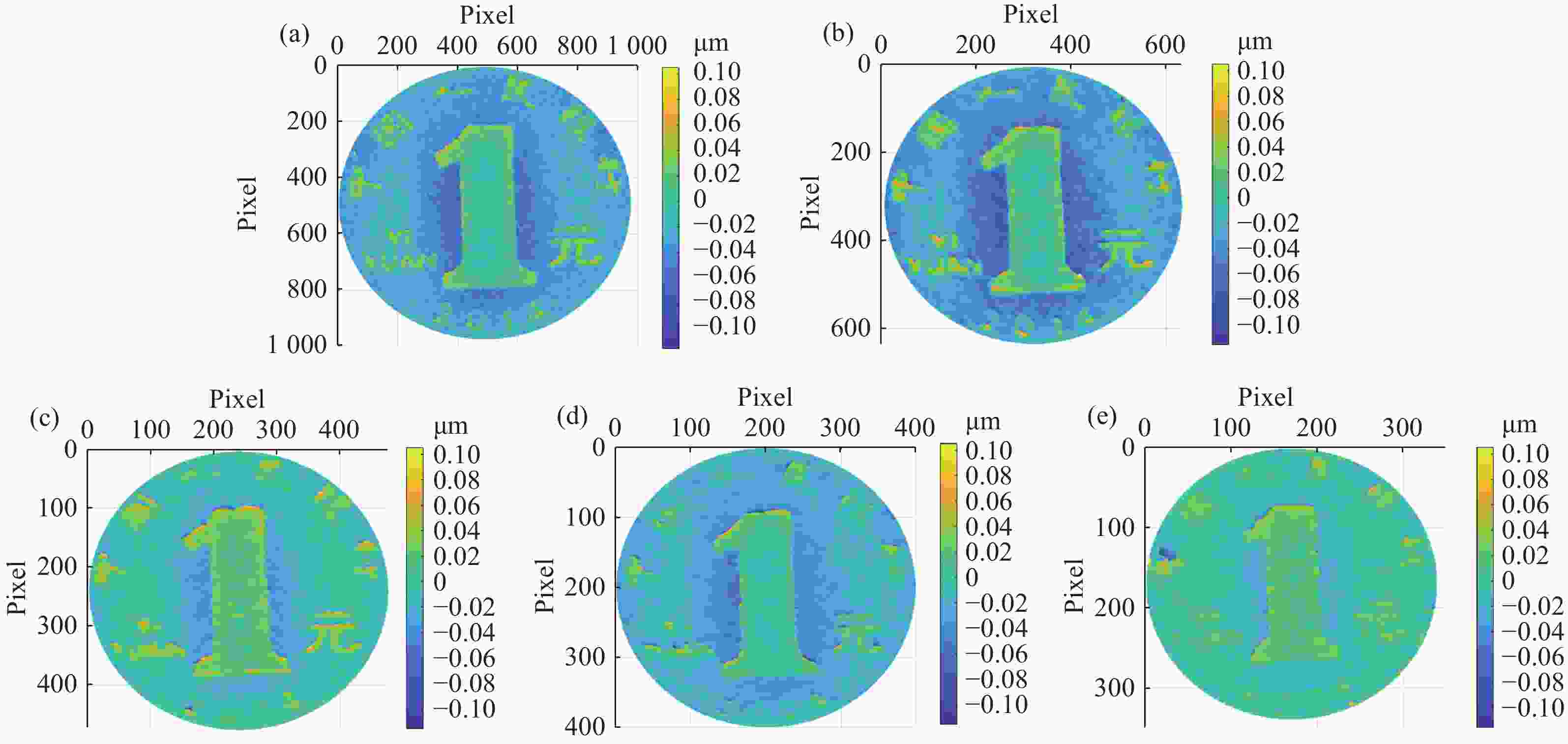

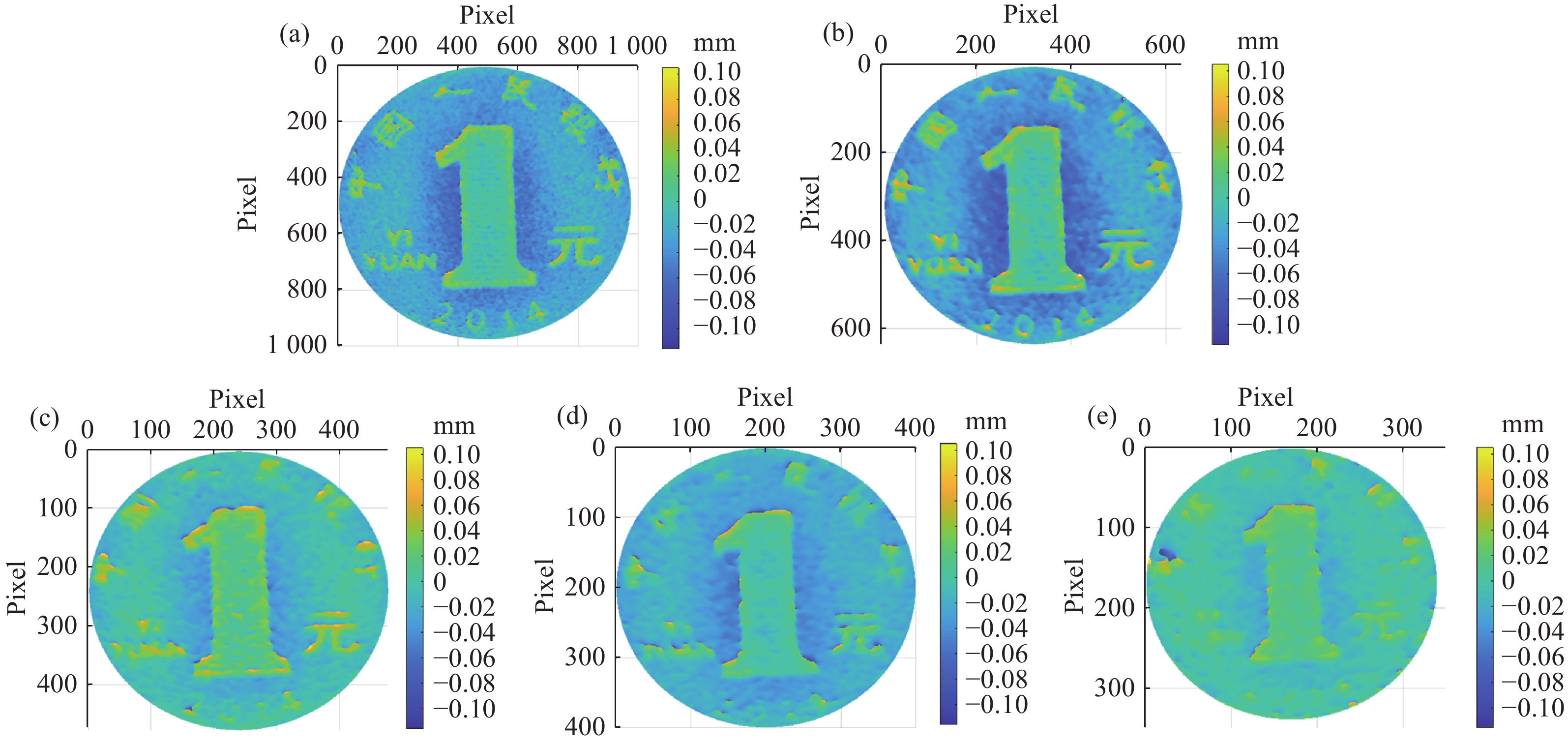

Figure 5. 3D topographies of coin at different distances. (a)-(e) 3D topographies of coin located 1m to 5 m away from the first mirror M, with a spacing of 1 m.

下载: 全尺寸图片幻灯片

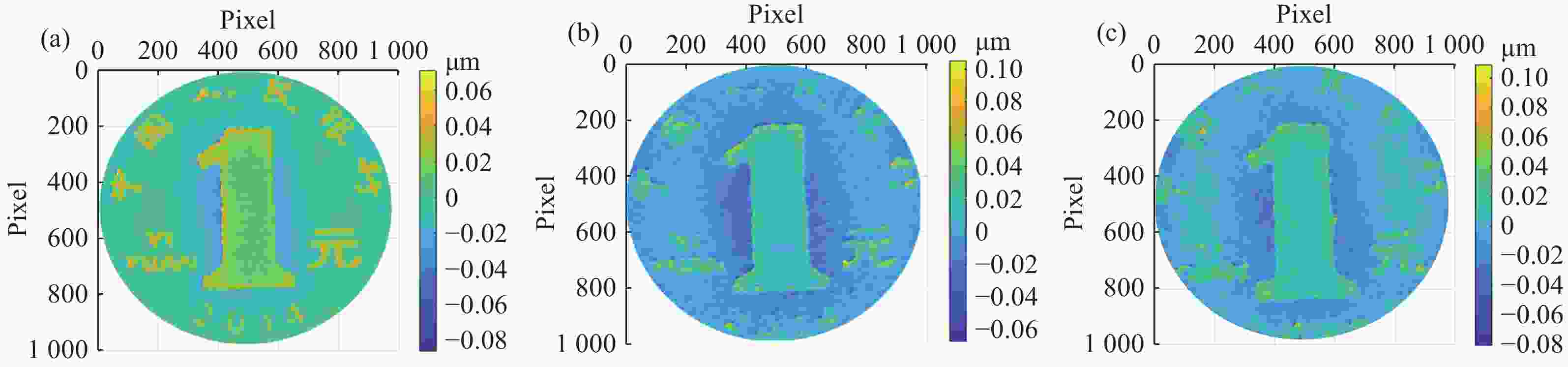

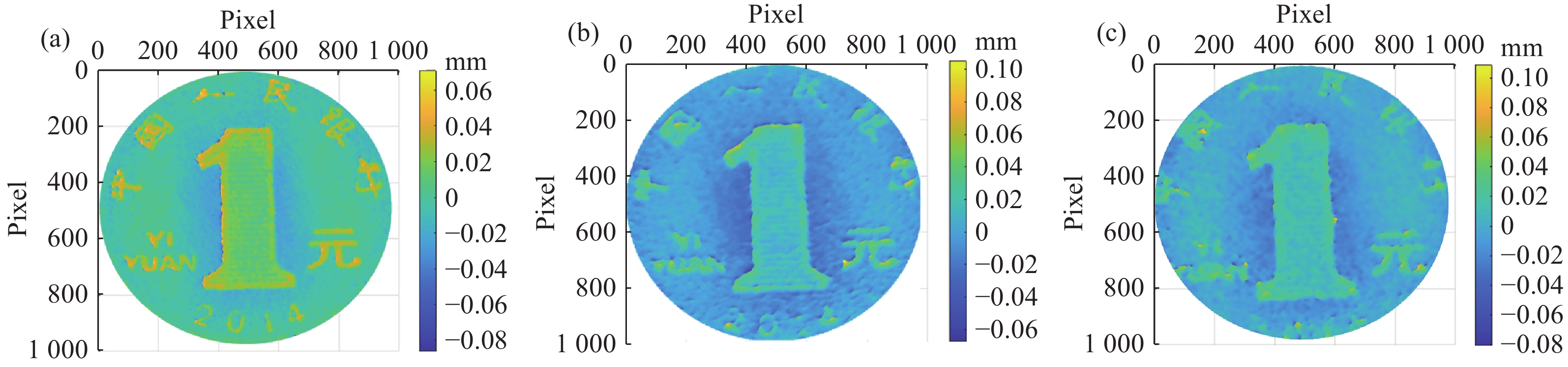

Figure 6. Topography of coin. (a) Coin at 2 m from the first mirror. (b) Coin at 3.5 m from the first mirror. (c) Coin at 5 m from the first mirror.

下载: 全尺寸图片幻灯片

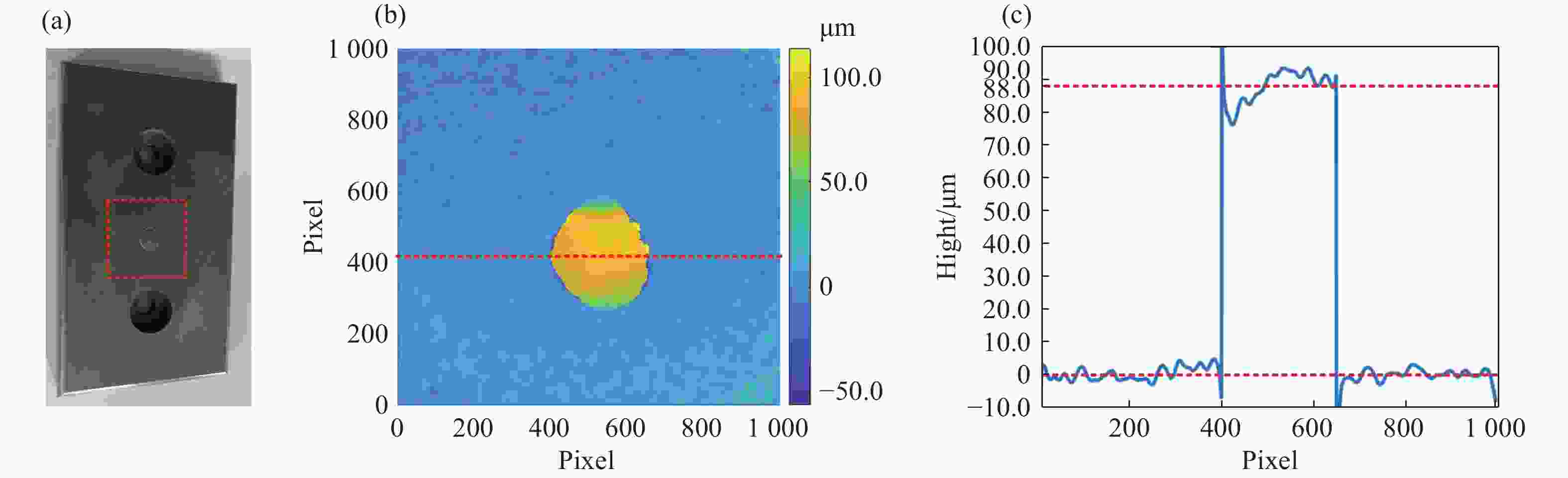

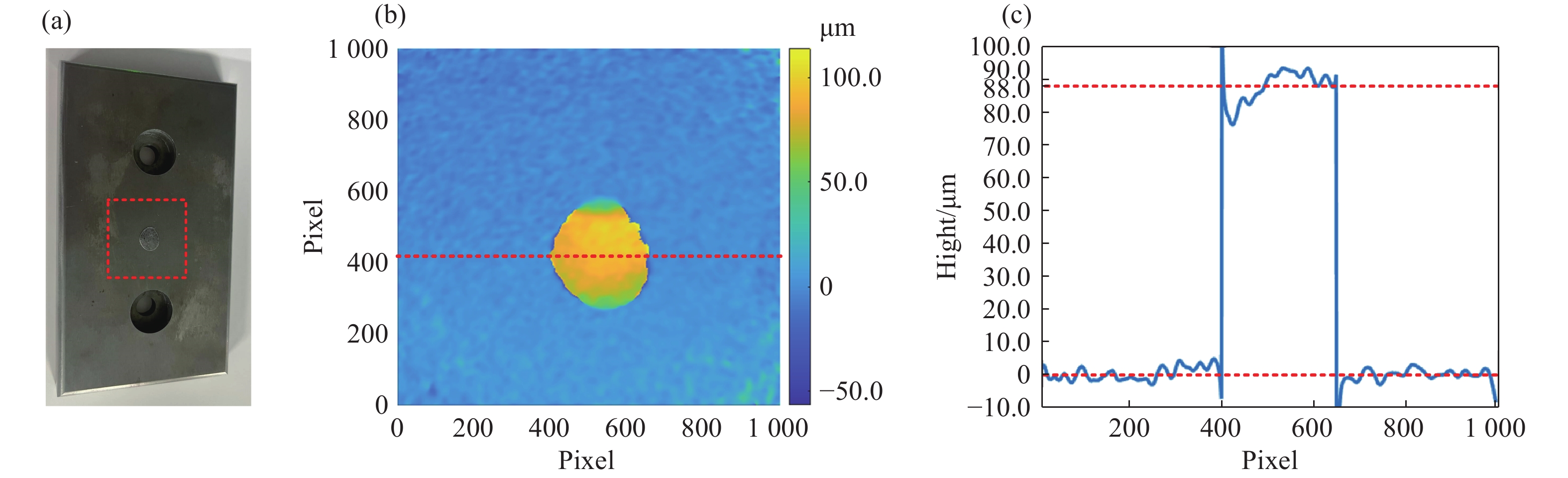

Figure 7. Divertor topography measurement result. (a) The divertor surface, where the red areas are simulated surface deposits. (b)The topography of the red area in (a). (c) The red line outline in (b).

下载: 全尺寸图片幻灯片

Table 1. RMS values corresponding to 3D topography at different distances.

Distance (m) 1 2 3 4 5

RMS (µm) 0.0142 0.0142 0.0143 0.0145 0.0145

下载: 导出CSV
