基于人工智能的高精度菌落提取与分离系统

赵旭峰; 贾志强; 陈维学; 胡鹏涛; 苏新然; 李俊霖; 葛明锋; 董文飞

doi:10.37188/CO.EN-2025-0025

基于人工智能的高精度菌落提取与分离系统

赵旭峰^1,,
贾志强^{1, 2},
陈维学²,
胡鹏涛²,
苏新然²,
李俊霖²,
葛明锋^{1, 3, 4, ,},
董文飞^{1, 2, ,}

1.
中国科学院苏州生物工程技术研究所生物材料与干细胞实验室, 江苏苏州 215163
2.
长春理工大学机电工程学院, 吉林长春 130022
3.
郑州中科生物医学工程技术研究院, 河南郑州 450001
4.
济南国科医工科技发展有限公司, 山东济南 250001

计量
- 文章访问数: 39
- HTML全文浏览量: 13
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-03
- 录用日期: 2025-06-05
- 网络出版日期: 2025-08-27

Artificial intelligence-enabled high-precision colony extraction and isolation system

doi: 10.37188/CO.EN-2025-0025

ZHAO Xu-feng^1
,,
JIA Zhi-qiang^{1, 2},
CHEN Wei-xue²,
HU Peng-tao²,
SU Xin-ran²,
LI Jun-lin²,
GE Ming-feng^{1, 3, 4
, ,},
DONG Wen-fei^{1, 2
, ,}

1.
CAS Key Laboratory of Bio-Medical Diagnostics, Suzhou Institute of Biomedical Engineering and Technology, Chinese Academy of Sciences, Suzhou, 215163, P.R.China
2.
College of Mechanical and Electrical Engineering, Changchun University of Science and Technology, Changchun, 130022, P.R.China
3.
Zhengzhou Institute of Biomedical Engineering and Technology, Zhengzhou, Henan 450001, China
4.
Jinan Guoke Medical Technology Development Co., Ltd., Jinan, Shandong 250001, China

Funds: Supported by National Key R&D Program of China (No. 2022YFC2406200); Scientific Instrument and Equipment Development Projects of Chinese Academy of Sciences (No. YJKYYQ20200038)；Projects of Chinese Academy of Sciences (No. YJKYYQ20210032).

More Information

Author Bio:
ZHAO Xufeng (1996—), male, native of Changchun, Jilin Province, Master’s candidate. He obtained his Bachelor’s degree from Changchun University of Science and Technology in 2020. His research focuses on opto-mechatronics integration technology and large-field-of-view imaging technology. E-mail: 2021100591@mails.cust.edu.cn

GE Mingfeng (1987—), male, native of Nantong, Jiangsu Province, Ph.D., Research Professor, Master’s Supervisor. He received his Doctor of Engineering degree in Circuits and Systems from Shanghai Institute of Technical Physics, Chinese Academy of Sciences in 2015. His research focuses on fluorescence microscopic imaging systems, hyperspectral microscopic imaging instrumentation development, and their applications in biomedical detection. E-mail: gemf@sibet.ac.cn

DONG Wenfei (1975—), male, native of Siping, Jilin Province, is currently a Research Professor at the Suzhou Institute of Biomedical Engineering and Technology (SIBET), Chinese Academy of Sciences (CAS), and serves as a Ph.D. Supervisor. He is the Principal Investigator of the National Key Scientific Instrument and Equipment Development Project under the Ministry of Science and Technology (MOST). With long-term expertise in nanobiophotonics, his research focuses on the fundamental and applied studies of nanomaterials and technologies in biomedical sensing, imaging, diagnosis, and therapy. E-mail: wenfeidong@sibet.ac.cn

Corresponding author: gemf@sibet.ac.cn; wenfeidong@sibet.ac.cn

摘要

摘要:
标准菌悬液在微生物诊断中具有重要意义。传统制备方法依赖人工操作，存在重复性差、效率低及生物安全隐患等问题。本研究提出一种融合大视野成像与人工智能技术的高精度自动化菌落提取分选系统，实现菌落智能筛查与定位。首先，开发了大视野成像系统，可采集90 mm培养皿高分辨图像，物理分辨率达13.2 μm，成像速度为13帧/秒；其次，应用人工智能技术实现菌落自动识别与定位，支持筛选直径1.9−2.3 mm的目标菌落；接着设计三轴运动控制平台，配合路径规划算法实现菌落高效提取，采用电动移液器进行精准菌落采集；同时开发菌悬液浓度测量模块，以650 nm激光二极管为光源，实现0.01麦氏浓度(MCF)的测量精度。最终通过大肠杆菌悬液制备验证系统性能：经17小时培养后分4次提取大肠杆菌，达到系统设定目标浓度。该工作有望实现微生物样本的快速精准制备，显著缩短检测周期，减轻医务人员工作负担。
- 人工智能 /
- 菌落提取与分离 /
- 大视场成像 /
- 自动化
Abstract:
Standard bacterial suspensions play a crucial role in microbiological diagnosis. Traditional preparation methods, which rely heavily on manual operations, face challenges such as poor reproducibility, low efficiency, and biosafety concerns. In this study, we propose a high-precision automated colony extraction and separation system that combines large-field imaging and artificial intelligence (AI) to facilitate intelligent screening and localization of colonies. Firstly, a large-field imaging system was developed to capture high-resolution images of 90 mm Petri dishes, achieving a physical resolution of 13.2 μm and an imaging speed of 13 frames per second. Subsequently, AI technology was employed for the automatic recognition and localization of colonies, enabling the selection of target colonies with diameters ranging from 1.9 to 2.3 mm. Next, a three-axis motion control platform was designed, accompanied by a path planning algorithm for the efficient extraction of colonies. An electronic pipette was employed for accurate colony collection. Additionally, a bacterial suspension concentration measurement module was developed, incorporating a 650 nm laser diode as the light source, achieving a measurement accuracy of 0.01 McFarland concentration (MCF). Finally, the system’s performance was validated through the preparation of an E. coli suspension. After 17 hours of cultivation, E. coli was extracted four times, achieving the target concentration set by the system. This work is expected to enable rapid and accurate microbial sample preparation, significantly reducing detection cycles and alleviating the workload of healthcare personnel.
- artificial intelligence /
- colony extraction and isolation /
- large-field imaging /
- automation
注释:
Author Contributions: Competing Interests:

HTML全文

Figure 1. Artificial Intelligence-enabled high-precision colony extraction and isolation system. (a) Optical system for colony extraction. (b) Workflow of colony extraction. (c) Deep learning-based colony recognition.

下载: 全尺寸图片幻灯片

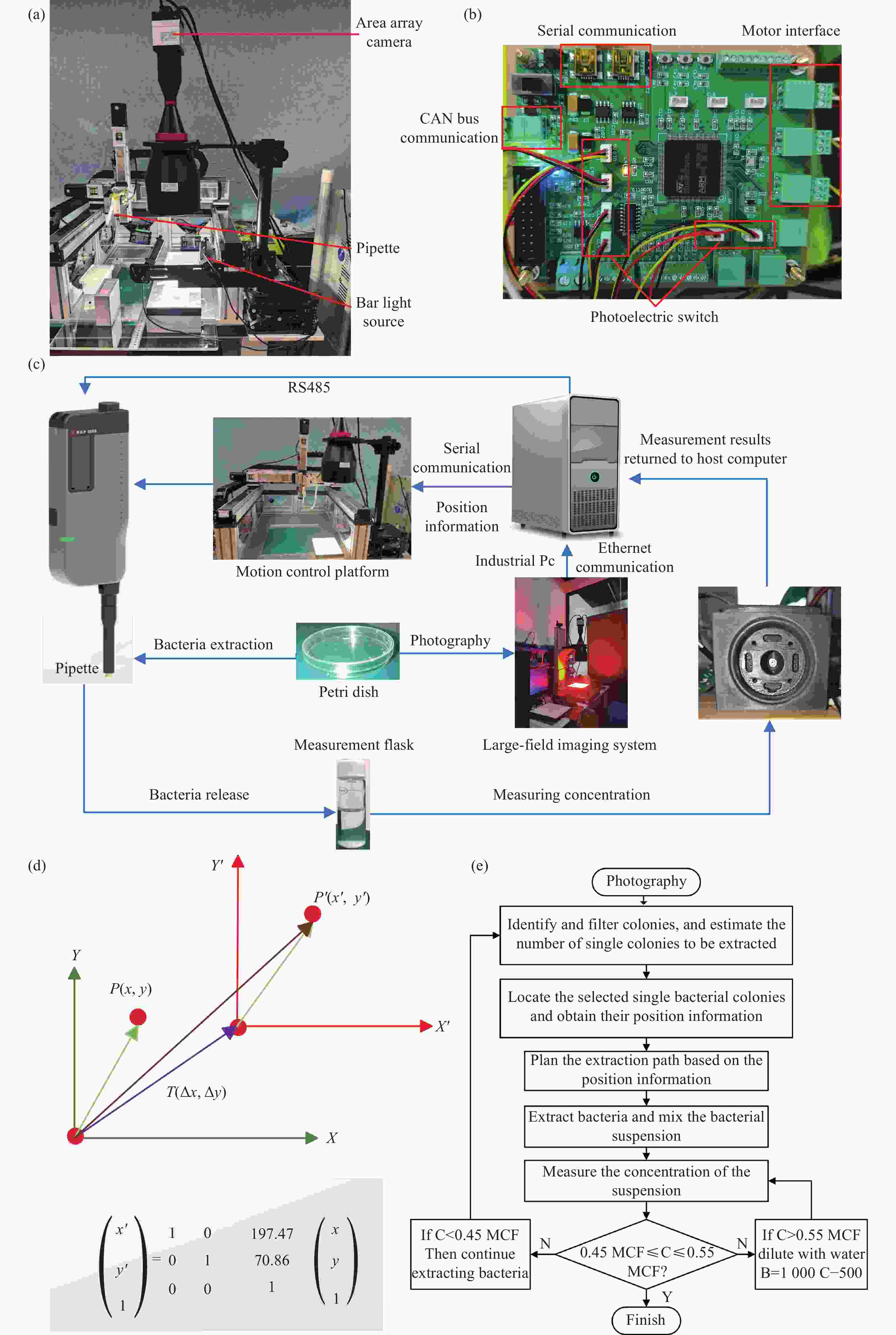

Figure 2. High-precision automated colony extraction system. (a) Core control board. (b) Physical diagram of the optical system for colony extraction. (c) Components of the extraction system. (d) Translation transformation between the world coordinate system and the camera coordinate system. (e) Schematic diagram of dynamic solution adjustment.

下载: 全尺寸图片幻灯片

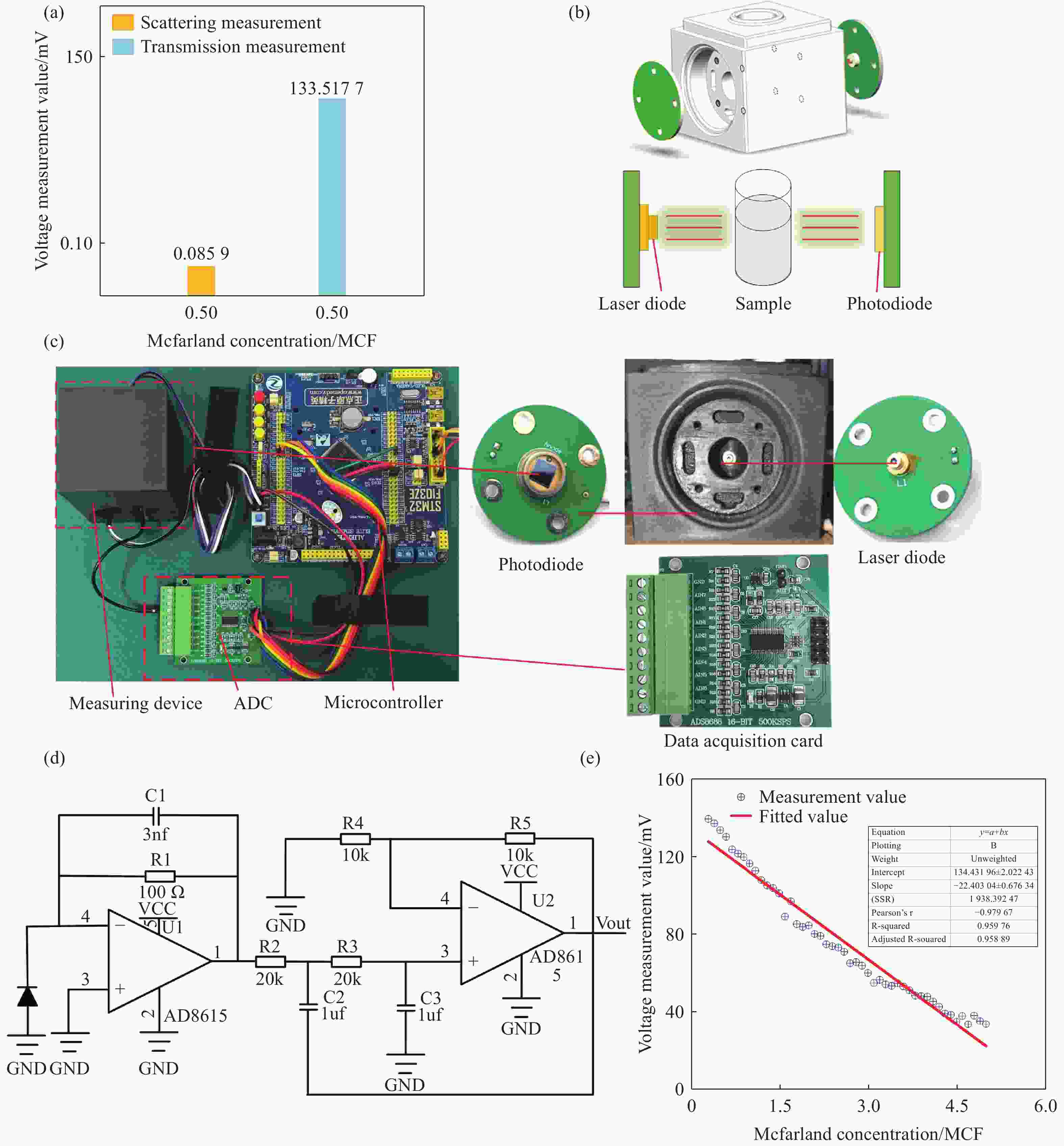

Figure 3. Bacterial suspension concentration measurement system. (a) Comparison of scattering and transmission measurement values at 0.5 McFarland concentration. (b) Schematic diagram and 3D model of the bacterial suspension concentration measurement module. (c) Physical diagram of the single-wavelength measurement system. (d) Circuit diagram of the signal amplification for measurement. (e) Calibration curve of measured voltage versus standard concentration.

下载: 全尺寸图片幻灯片

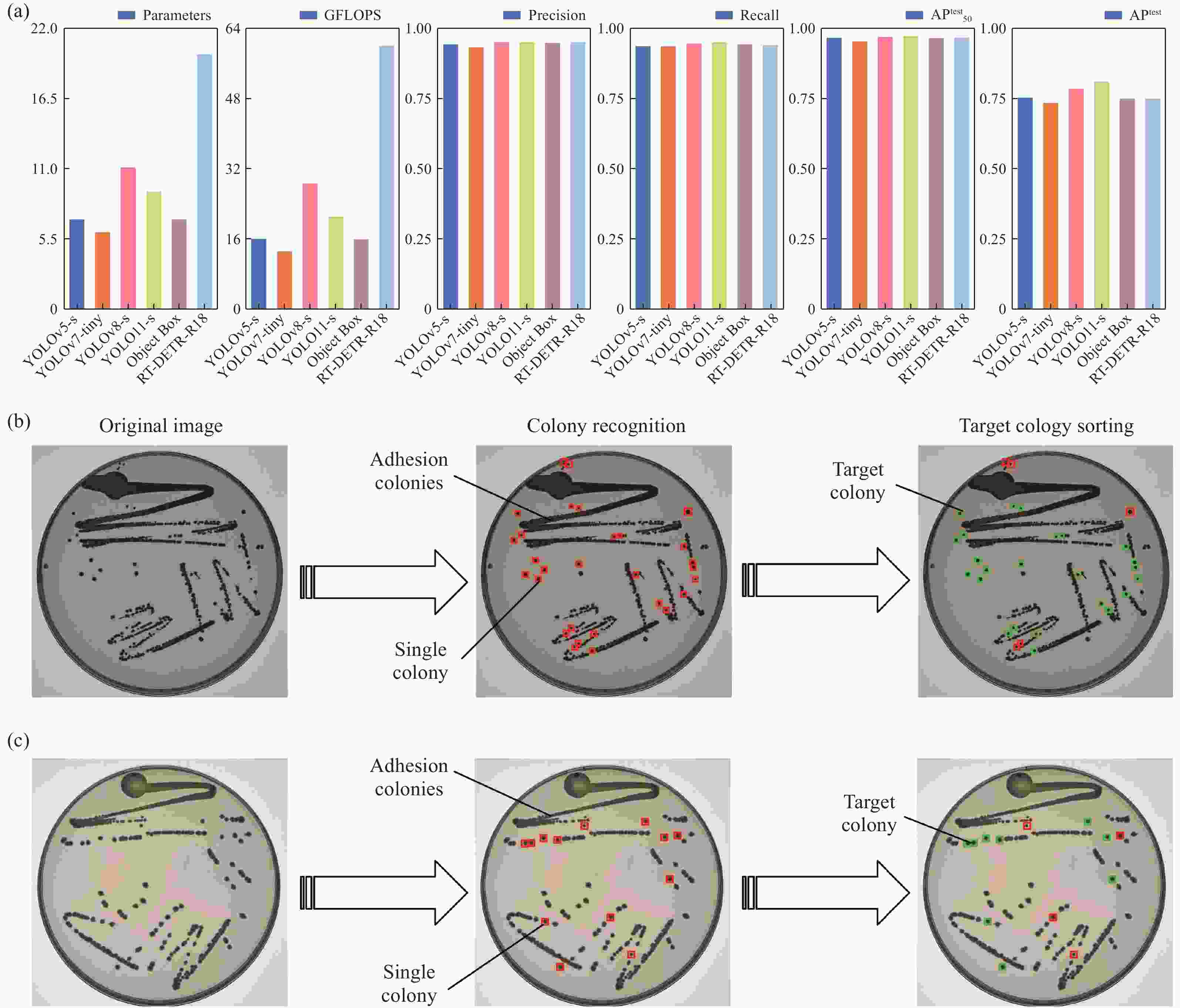

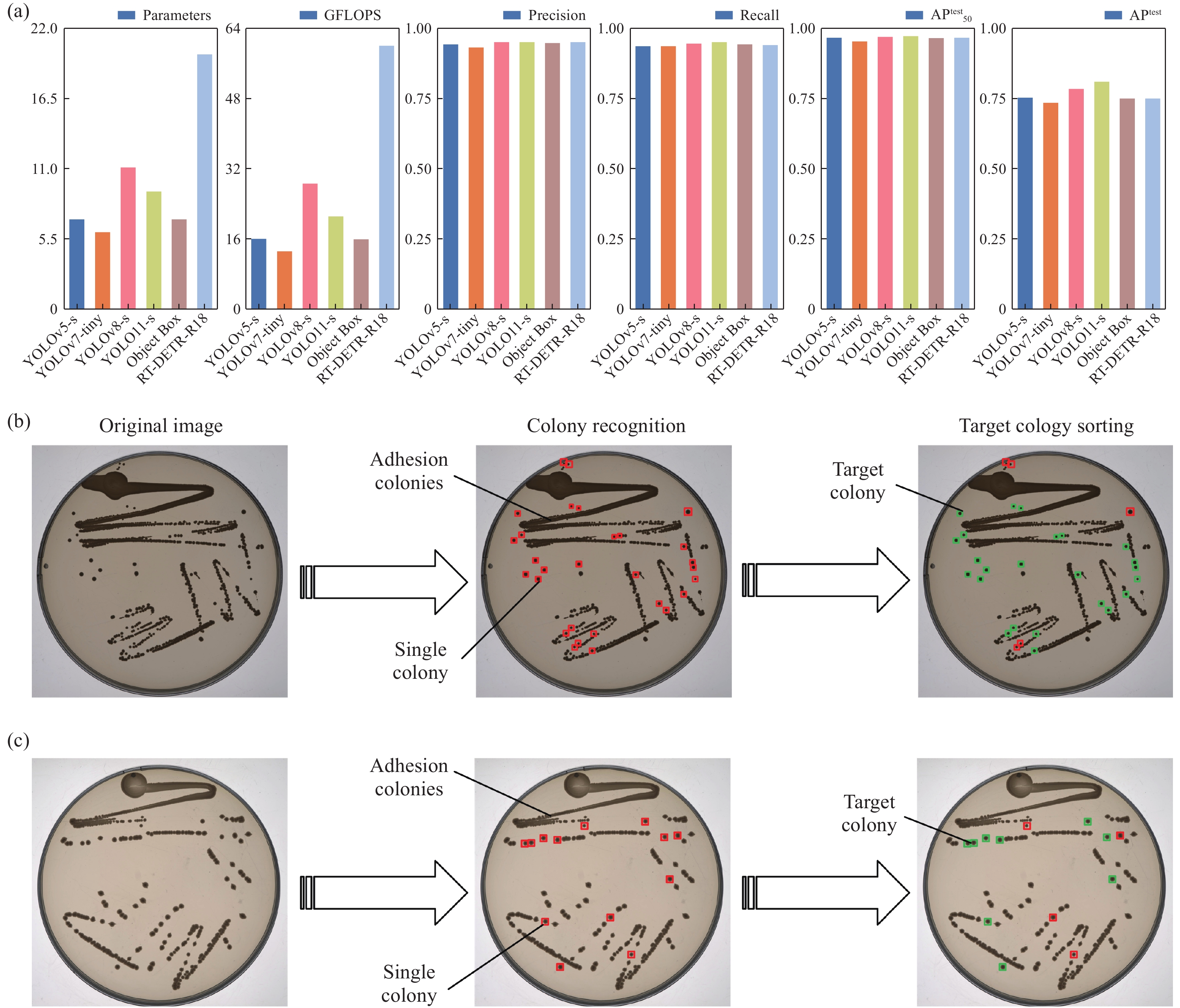

Figure 4. Deep learning-based single colony recognition and localization. (a) Performance of different models on metrics of parameters, GFLOPs, precision, recall, AP^test₅₀, and AP^test. (b, c) The processing of target colony sorting.

下载: 全尺寸图片幻灯片

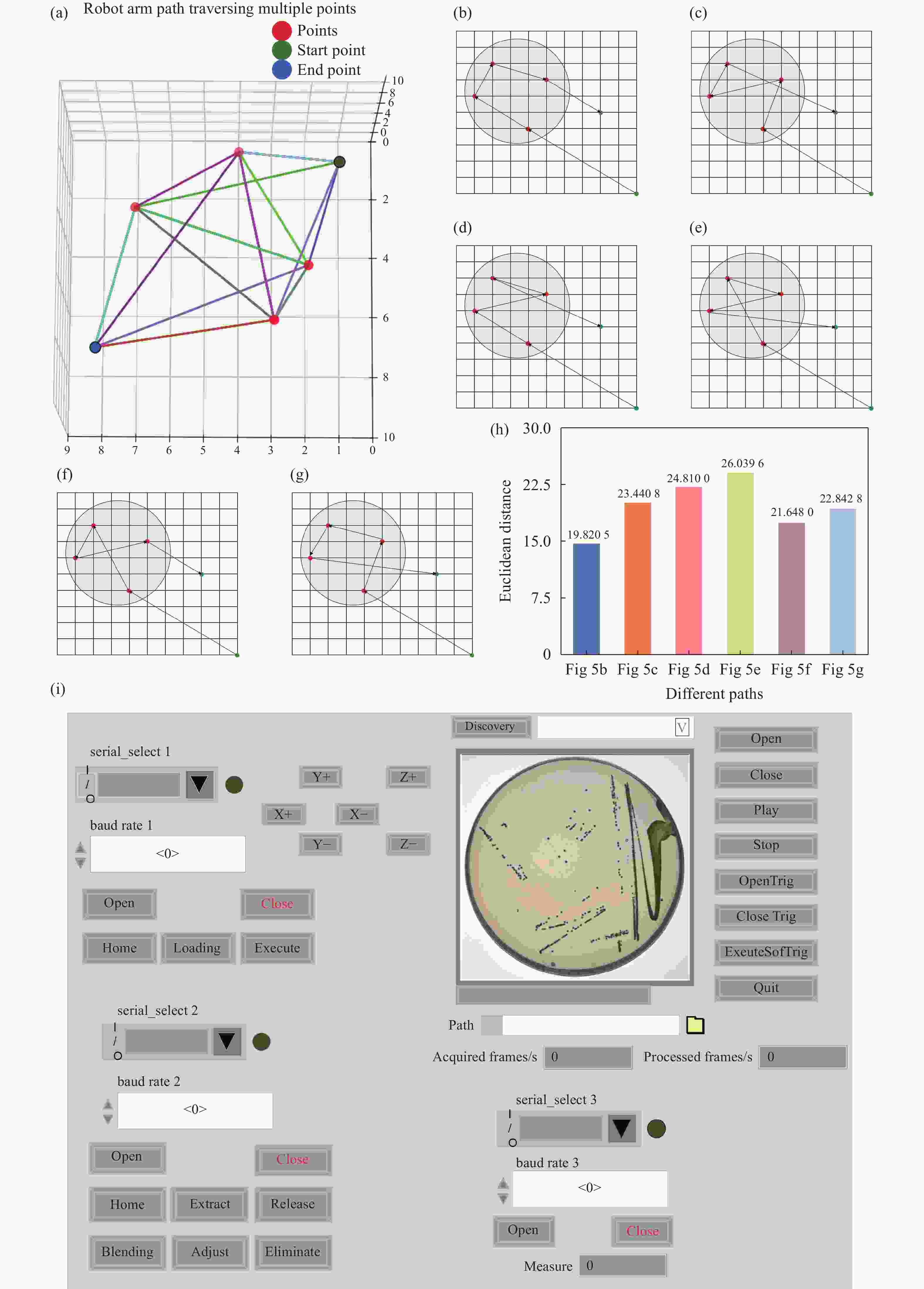

Figure 5. Path planning for single colony extraction. (a) 3D random path diagram. (b) This work. (c) Random path 1. (d) Random path 2. (e) Random path 3. (f) Random path 4. (g) Random path 5. (h) Comparison of Euclidean distances for different path planning strategies. (i) Host computer operation interface.

下载: 全尺寸图片幻灯片

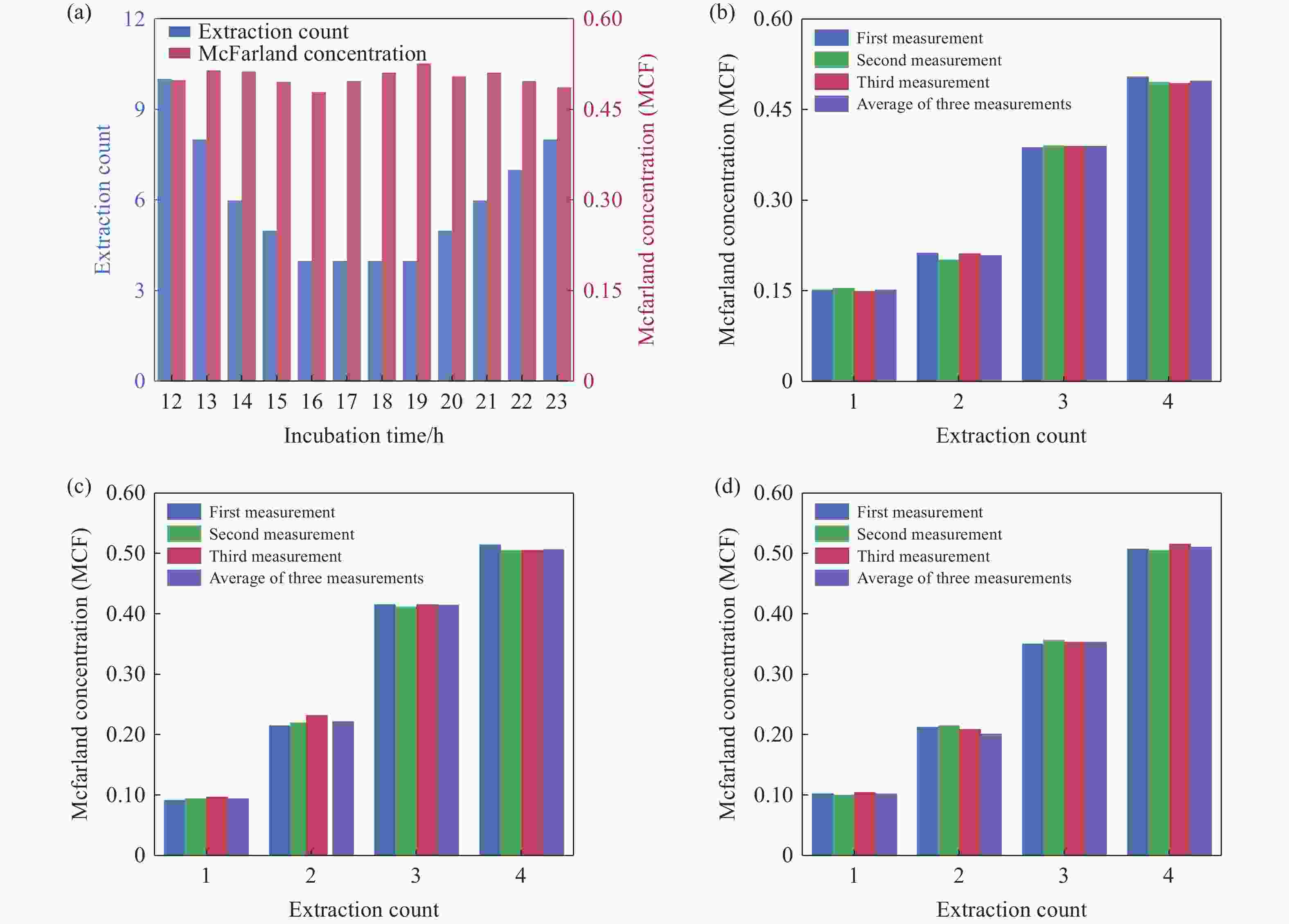

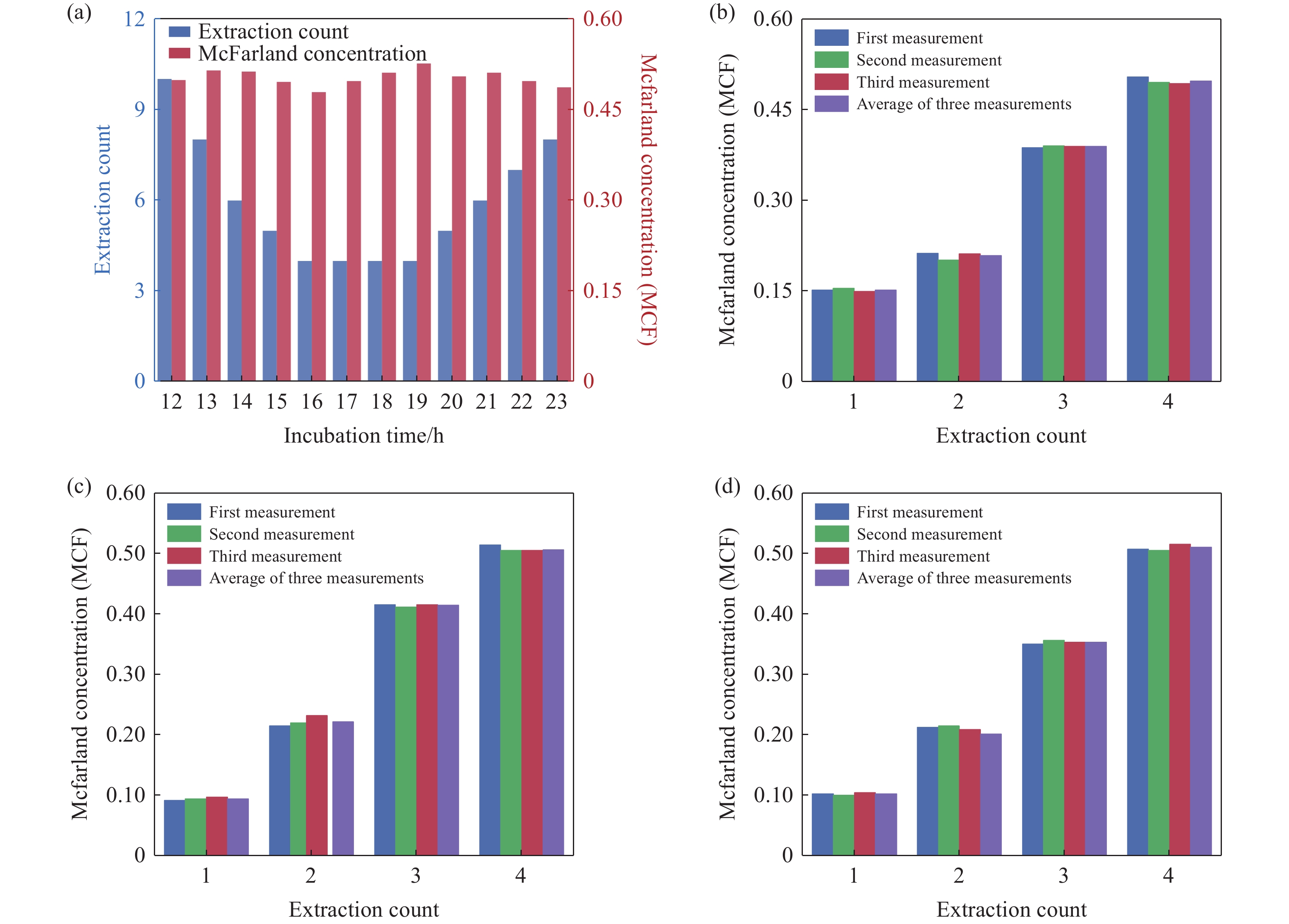

Figure 6. On-demand preparation of E. coli suspension concentration. (a) Relationship between the number of extractions and cultivation time at target concentration. (b-d) Relationship between E. coli concentration and the number of extractions after 17 hours of cultivation: (b) Group 1, (c) Group 2, (d) Group 3.

下载: 全尺寸图片幻灯片
