双向大气湍流光信道瞬时衰落相关特性测量

向磊; 陈纯毅; 姚海峰; 倪小龙; 潘石; 刘中辉; 娄岩

doi:10.3788/CO.20191205.1100

Volume 12 Issue 5

Oct. 2019

Turn off MathJax

Article Contents

Chinese Optics > 2019 > 12(5): 1100-1108.

XIANG Lei, CHEN Chun-yi, YAO Hai-feng, NI Xiao-long, PAN Shi, LIU Zhong-hui, LOU Yan. Measurement of instantaneous-fading correlation in bidirectional optical channels through atmospheric turbulence[J]. Chinese Optics, 2019, 12(5): 1100-1108. doi: 10.3788/CO.20191205.1100

Citation:

XIANG Lei, CHEN Chun-yi, YAO Hai-feng, NI Xiao-long, PAN Shi, LIU Zhong-hui, LOU Yan. Measurement of instantaneous-fading correlation in bidirectional optical channels through atmospheric turbulence[J]. Chinese Optics, 2019, 12(5): 1100-1108. doi: 10.3788/CO.20191205.1100

Citation:

XIANG Lei, CHEN Chun-yi, YAO Hai-feng, NI Xiao-long, PAN Shi, LIU Zhong-hui, LOU Yan. Measurement of instantaneous-fading correlation in bidirectional optical channels through atmospheric turbulence[J]. Chinese Optics, 2019, 12(5): 1100-1108. doi: 10.3788/CO.20191205.1100

PDF( 4107 KB)

Measurement of instantaneous-fading correlation in bidirectional optical channels through atmospheric turbulence

doi: 10.3788/CO.20191205.1100

XIANG Lei^{1, 2
,},
CHEN Chun-yi^{1, 2
,
,},
YAO Hai-feng¹,
NI Xiao-long¹,
PAN Shi³,
LIU Zhong-hui²,
LOU Yan¹

1.
Key Laboratory for Defense Discipline of Space-to-Ground Laser Communication Technology, Changchun 130022, China
2.
School of Computer Science and Technology, Changchun University of Science and Technology, Changchun 130022, China
3.
School of Electrical and Information Engineering, Changchun University of Science and Technology, Changchun 130022, China

Funds:

the National Natural Science Foundation of China 61775022

the National Natural Science Foundation of China 61475025

the Science and Technology Development Program of Jilin Province of China 20170521001HJ

the Science and Technology Development Program of Jilin Province of China 20180519012JH

China Postdoctoral Science Foundation 2017M621179

More Information

Corresponding author: CHEN Chun-yi, E-mail:chenchunyi@hotmail.com.cn
Received Date: 19 Nov 2018
Rev Recd Date: 04 Jan 2019
Publish Date: 01 Oct 2019

Abstract

Abstract

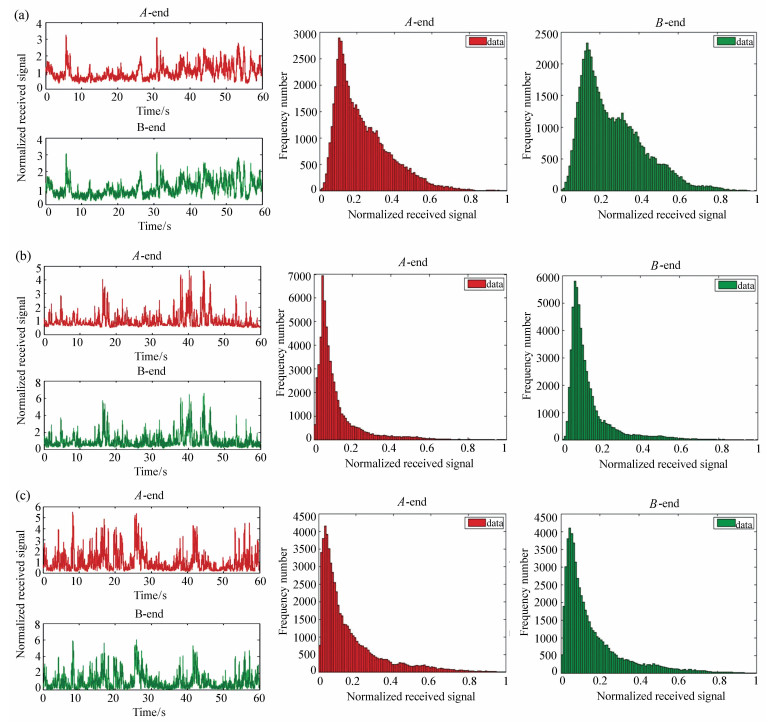

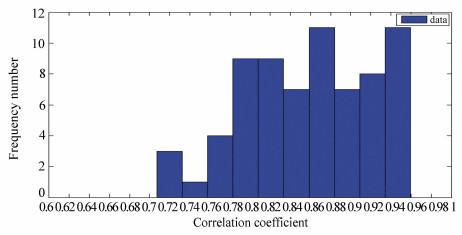

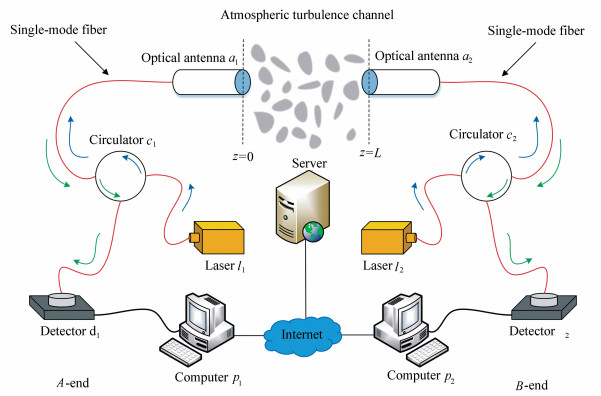

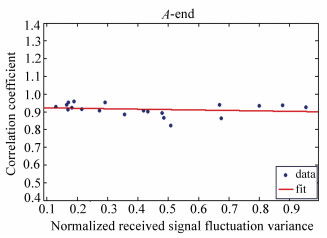

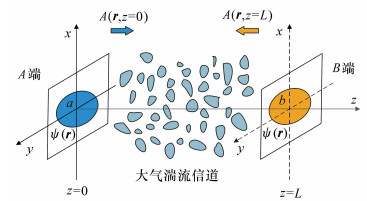

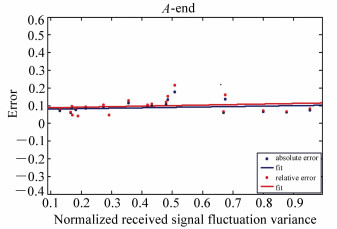

To prove the reciprocity of an atmospheric turbulent channel in bidirectional optical transmission systems, we propose a method for measuring the correlation between the fading of instantaneously received signals and establish a mathematical model for analyzing the measurement data. Experiments of bidirectional optical transmission measurements were carried out between two tall buildings separated by 883 m. According to the measured speckle image data, we verified the instantaneous-fading correlation of the channel and analyzed the effect of the normalized received signal fluctuation variance on the correlation coefficient in practical scenarios. It was shown that most of the instantaneous-fading correlation coefficients of optical channels in the two counter-directions were above 0.85 and even up to 0.95, which proves that reciprocity can be well maintained for a bidirectional turbulent optical channel. With an increasing fluctuation variance of the normalized received optical signal, the correlation coefficient is slightly descending.
- instantaneous fading,
- atmospheric turbulence,
- bidirectional optical channel,
- reciprocity

FullText(HTML)

References(20)

References

[1]	付强, 姜会林, 王晓曼, 等.空间激光通信研究现状及发展趋势[J].中国光学, 2012, 5(2):116-125. doi: 10.3969/j.issn.2095-1531.2012.02.004 FU Q, JIANG H L, WANG X M, et al.. Research status and development trend of space laser communication[J]. Chinese Optics, 2012, 5(2):116-125.(in Chinese) doi: 10.3969/j.issn.2095-1531.2012.02.004
[2]	吴从均, 颜昌翔, 高志良.空间激光通信发展概述[J].中国光学, 2013, 6(5):670-680. http://www.chineseoptics.net.cn/CN/abstract/abstract9051.shtml WU C J, YAN CH X, GAO ZH L. Overview of space laser communications[J]. Chinese Optics, 2013, 6(5):670-680.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract9051.shtml
[3]	李一芒, 高世杰, 盛磊.近海激光通信分集技术对大气湍流扰动抑制的实验[J].红外与激光工程, 2016, 45(3):0322001. http://d.old.wanfangdata.com.cn/Periodical/hwyjggc201603040 LI Y M, GAO SH J, SHENG L. Experiment of restraint of atmospheric turbulence using diversity technology based on analysis of offshore laser communication[J]. Infrared and Laser Engineering, 2016, 45(3):0322001.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/hwyjggc201603040
[4]	王玉坤, 贾娜, 张锐.激光通信成像光斑处理方法研究[J].液晶与显示, 2017, 32(9):736-740. http://d.old.wanfangdata.com.cn/Periodical/yjyxs201709010 WANG Y K, JIA N, ZHANG R. Laser communication spots imaging process method[J]. Chinese Journal of Liquid Crystals and Displays, 2017, 32(9):736-740.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/yjyxs201709010
[5]	车晓杰, 梁忠诚, 刘学明.室内MIMO可见光通信的接收特性[J].发光学报, 2016, 37(2):242-249. http://d.old.wanfangdata.com.cn/Periodical/fgxb201602019 CHE X J, LIANG ZH CH, LIU X M. Receiving characteristics of indoor MIMO visible light communication[J]. Chinese Journal of Luminescence, 2016, 37(2):242-249.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/fgxb201602019
[6]	林宏, 周朋超, 王菲菲, 等.用于光通信的高速响应有机电致发光器件[J].发光学报, 2013, 34(1):73-77. http://d.old.wanfangdata.com.cn/Periodical/fgxb201301013 LIN H, ZHOU P CH, WANG F F, et al.. Fast-response organic light-emitting devices for optical communication[J]. Chinese Journal of Luminescence, 2013, 34(1):73-77.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/fgxb201301013
[7]	陈牧, 柯熙政.大气湍流对激光通信系统性能的影响研究[J].红外与激光工程, 2016, 45(8):0822009. http://d.old.wanfangdata.com.cn/Periodical/hwyjggc201608018 CHEN M, KE X ZH. Effect of atmospheric turbulence on the performance of laser communication system[J]. Infrared and Laser Engineering, 2016, 45(8):0822009.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/hwyjggc201608018
[8]	柯熙政, 张宇.部分相干光在大气湍流中的光强闪烁效应[J].光学学报, 2015, 35(1):0106001. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201501006 KE X ZH, ZHANG Y. Scintillation of partially coherent beam in atmospheric turbulence[J]. Acta Optica Sinica, 2015, 35(1):0106001.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201501006
[9]	柯熙政, 薛瑶.大气湍流尺度对部分相干光传输特性的影响[J].光子学报, 2017, 46(1):0101002. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gzxb201701005 KE X ZH, XUE Y. Effect on the partially coherent beam propagation properties in the atmospheric turbulence considering its scales[J]. Acta Photonica Sinica, 2017, 46(1):0101002.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gzxb201701005
[10]	CHEN CH Y, YANG H M, TONG SH F, et al.. Mean-square angle-of-arrival difference between two counter-propagating spherical waves in the presence of atmospheric turbulence[J]. Optics Express, 2015, 23(19):24657-24668. doi: 10.1364/OE.23.024657
[11]	YAO H F, NI X L, CHEN CH Y, et al.. Performance of M-PAM FSO communication systems in atmospheric turbulence based on APD detector[J]. Optics Express, 2018, 26(18):23819-23830. doi: 10.1364/OE.26.023819
[12]	姚海峰, 倪小龙, 陈纯毅, 等.基于脉冲激光在大气中传输的信道补偿[J].光学学报, 2018, 38(1):0101003. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201801003 YAO H F, NI X L, CHEN CH Y, et al.. Channel compensation based on pulse laser propagating in atmosphere[J]. Acta Optica Sinica, 2018, 38(1):0101003.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201801003
[13]	刘超, 陈善球, 廖周, 等.自适应光学技术在通信波段对大气湍流的校正[J].光学精密工程, 2014, 22(10):2605-2610. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201410004 LIU CH, CHEN SH Q, LIAO ZH, et al.. Correction of atmospheric turbulence by adaptive optics in waveband of free-space coherent laser communication[J]. Opt. Precision Eng., 2014, 22(10):2605-2610.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201410004
[14]	赵海丽, 姜会林, 王晓曼, 等.空间光通信中高帧频相机动态调光技术研究[J].液晶与显示, 2012, 27(2):267-270. http://d.old.wanfangdata.com.cn/Periodical/yjyxs201202025 ZHAO H L, JIANG H L, WANG X M, et al.. Dynamic light-adjusting technology of high frame frequency CCD camera in space optical communication system[J]. Chinese Journal of Liquid Crystals and Displays, 2012, 27(2):267-270.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/yjyxs201202025
[15]	CHEN CH Y, YANG H M. Correlation between light-flux fluctuations of two counter-propagating waves in weak atmospheric turbulence[J]. Optics Express, 2017, 25(11):12779-12795. doi: 10.1364/OE.25.012779
[16]	CHEN CH Y, YANG H M. Shared secret key generation from signal fading in a turbulent optical wireless channel using common-transverse-spatial-mode coupling[J]. Optics Express, 2018, 26(13):16422-16441. doi: 10.1364/OE.26.016422
[17]	MINET J, VORONTSOV M A, POLNAU E, et al.. Enhanced correlation of received power-signal fluctuations in bidirectional optical links[J]. Journal of Optics, 2013, 15(2):022401. doi: 10.1088/2040-8978/15/2/022401
[18]	PARENTI P R, ROTH J M, SHAPIRO J H, et al.. Experimental observations of channel reciprocity in single-mode free-space optical links[J]. Optics Express, 2012, 20(19):21635-21644. doi: 10.1364/OE.20.021635
[19]	GIGGENBACH D, COWLEY W, GRANT K, et al.. Experimental verification of the limits of optical channel intensity reciprocity[J]. Applied Optics, 2012, 51(16):3145-3152. doi: 10.1364/AO.51.003145
[20]	陈纯毅, 倪小龙, 刘智, 等.大气光传输信道的闪烁与脉冲畸变测量研究[J].光学精密工程, 2016, 24(10):330-337. http://www.eope.net/EN/Y2016/V24/I10s/330 CHEN CH Y, NI X L, LIU ZH, et al.. Research on scintillation and pulse distortion measurement of atmospheric optical transmission channel[J]. Opt. Precision Eng., 2016, 24(10):330-337.(in Chinese) http://www.eope.net/EN/Y2016/V24/I10s/330
