国产化掺铥光纤激光振荡器性能研究

孟佳; 张伟; 赵开祺; 余婷; 吴闻迪; 于春雷; 李璇; 李兴冀; 叶锡生; 曹清

doi:10.3788/CO.20191205.1109

Volume 12 Issue 5

Oct. 2019

Turn off MathJax

Article Contents

Chinese Optics > 2019 > 12(5): 1109-1117.

MENG Jia, ZHANG Wei, ZHAO Kai-qi, YU Ting, WU Wen-di, YU Chun-lei, LI Xuan, LI Xing-ji, YE Xi-sheng, CAO Qing. Investigation on the performance of a homemade thulium-doped fiber laser oscillator[J]. Chinese Optics, 2019, 12(5): 1109-1117. doi: 10.3788/CO.20191205.1109

Citation:

MENG Jia, ZHANG Wei, ZHAO Kai-qi, YU Ting, WU Wen-di, YU Chun-lei, LI Xuan, LI Xing-ji, YE Xi-sheng, CAO Qing. Investigation on the performance of a homemade thulium-doped fiber laser oscillator[J]. Chinese Optics, 2019, 12(5): 1109-1117. doi: 10.3788/CO.20191205.1109

Citation:

MENG Jia, ZHANG Wei, ZHAO Kai-qi, YU Ting, WU Wen-di, YU Chun-lei, LI Xuan, LI Xing-ji, YE Xi-sheng, CAO Qing. Investigation on the performance of a homemade thulium-doped fiber laser oscillator[J]. Chinese Optics, 2019, 12(5): 1109-1117. doi: 10.3788/CO.20191205.1109

PDF( 3197 KB)

Investigation on the performance of a homemade thulium-doped fiber laser oscillator

doi: 10.3788/CO.20191205.1109

MENG Jia^{1, 2
,},
ZHANG Wei^{2, 3},
ZHAO Kai-qi^{1, 2},
YU Ting^{2, 3
,
,},
WU Wen-di²,
YU Chun-lei²,
LI Xuan²,
LI Xing-ji⁴,
YE Xi-sheng^{2, 3
,
,},
CAO Qing¹

1.
College of Science, Shanghai University, Shanghai 200444, China
2.
Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
3.
University of Chinese Academy of Sciences, Beijing 100049, China
4.
National Key Laboratory of Materials Behavior and Education Technology in Space Environment, Harbin Institute of Technology, Harbin 150001, China

Funds:

the Hundred-Talent Program of the Chinese Academy of Sciences 1505521XRO

the Foundation of the National Key Laboratory of Materials Behavior and Evaluation Technology in Space Environment 6142910030613

More Information

Corresponding author: YU Ting, E-mail:yuting@siom.ac.cn; YE Xi-sheng, Email:xsye@siom.ac.cn
Received Date: 27 Nov 2018
Rev Recd Date: 09 Jan 2019
Publish Date: 01 Oct 2019

Abstract

Abstract

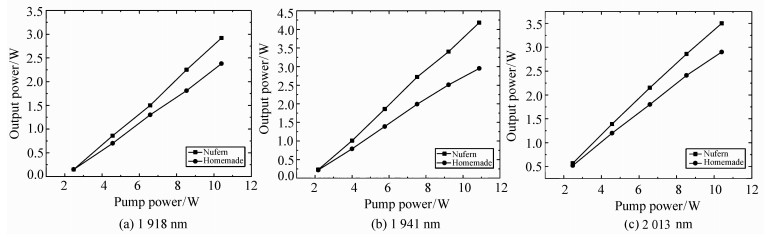

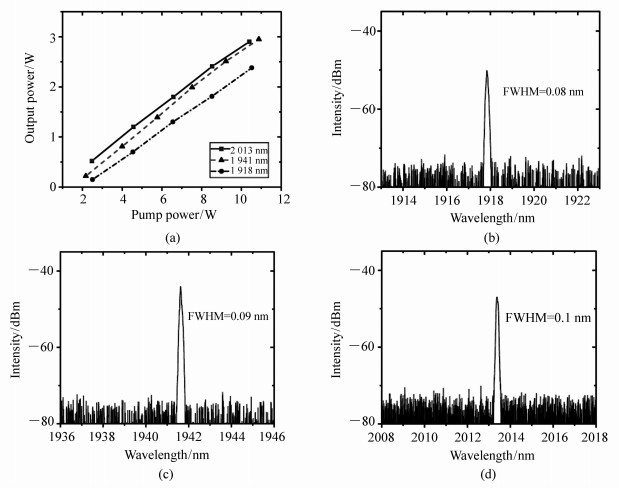

The optical fibers and devices used in thulium-doped fiber lasers(TDFL) are mostly produced by foreign companies. Therefore, it is necessary to develop TDFL based on homemade materials and devices. In this paper, the performance of continuous-wave thulium-doped fiber oscillators using a homemade gain fiber is reported. During the experiment, using a domestic thulium-doped fiber with a core diameter of 10 μm, homemade LD(laser diode) pump sources and fiber gratings, three oscillators were developed to generate laser output with central wavelengths of 1 918 nm, 1 941 nm and 2 013 nm, respectively. In addition, the laser output characteristics of the homemade and imported thulium-doped gain fibers were compared. The experimental results indicate that the output efficiency of the homemade thulium-doped fiber(TDF) is 6-11% lower than the imported TDF, but the homemade TDF has a similar spectral linewidth(about 0.1 nm) and a better near-field spot.
- Thulium-Doped Fiber Laser(TDFL) oscillator,
- homemade optical fiber materials and devices

FullText(HTML)

References(19)

References

[1]	SCHOLLE K, LAMRINI S, KOOPMANN P, et al.. 2μm Laser Sources and Their Possible Applications[M]. PAL B. Frontiers in Guided Wave Optics and Optoelectronics.Vukovar, Croatia: InTech, 2010.
[2]	顾宏灿, 黄俊斌, 程玲, 等.20~1250 Hz光纤激光加速度传感系统设计[J].中国光学, 2017, 10(4):469-476. http://www.chineseoptics.net.cn/CN/abstract/abstract9512.shtml GU H C, HUANG J B, CHENG L, et al.. 20-1250 Hz fiber laser acceleration sensing system[J]. Chinese Optics, 2017, 10(4):469-476.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract9512.shtml
[3]	张姝, 何芳, 孙伟丽, 等.应用2μm铥(Tm)激光器行前列腺手术的护理[J].全科护理, 2012, 10(36):3401-3403. doi: 10.3969/j.issn.1674-4748.2012.36.027 ZHANG SH, HE F, SUN W L, et al.. Nursing care of prostate surgery using 2μm thulium laser[J]. Chinese General Practice Nursing, 2012, 10(36):3401-3403.(in Chinese) doi: 10.3969/j.issn.1674-4748.2012.36.027
[4]	李充, 谢冀江, 潘其坤, 等.中红外光学参量振荡器技术进展[J].中国光学, 2016, 9(6):615-624. http://www.chineseoptics.net.cn/CN/abstract/abstract9438.shtml LI CH, XIE J J, PAN Q K, et al.. Progress of mid-infrared optical parametric oscillator[J]. Chinese Optics, 2016, 9(6):615-624.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract9438.shtml
[5]	WU J F, YAO ZH D, ZONG J, et al.. Highly efficient high-power thulium-doped germanate glass fiber laser[J]. Optics Letters, 2007, 32(6):638-640. doi: 10.1364/OL.32.000638
[6]	刘茵紫, 邢颍滨, 徐中巍, 等.高功率掺铥石英光纤激光器研究进展[J].激光与光电子学进展, 2018, 55(5):050004. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgygdzxjz201805003 LIU Y Z, XING Y B, XU ZH W, et al.. Research progress in high power Tm³⁺-doped silica fiber lasers[J]. Laser & Optoelectronics Progress, 2018, 55(5):050004.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgygdzxjz201805003
[7]	顾友.稀土元素铥及其应用[J].稀土信息, 2006(1):20-21. http://d.old.wanfangdata.com.cn/Periodical/xtxx200601015 GU Y. Thulium and its applications[J]. Rare Earth Information, 2006(1):20-21.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/xtxx200601015
[8]	SNITZER E. Optical master action of Nd³⁺ in a barium crown glass[J]. Physical Review Letters, 1961, 7(12):444-446. doi: 10.1103/PhysRevLett.7.444
[9]	KAO K C, HOCKHAM G A. Dielectric Fibre Surface Waveguide for Optical Frequencies[M]. BROWN J. Electromagnetic Wave Theory. Amsterdam: Elsevier, 1967: 441-444.
[10]	KAPRON F P, KECK D B, MAURER R D. Radiation losses in glass optical waveguides[J]. Applied Physics Letters, 1970, 17(10):423-425. doi: 10.1063/1.1653255
[11]	POOLE S B, PAYNE D N, FERMANN M E. Fabrication of low-loss optical fibres containing rare-earth ions[J]. Electronics Letters, 1985, 21(17):737-738. doi: 10.1049/el:19850520
[12]	SNITZER E, PO H, HAKIMI F, et al.. Double clad, offset core Nd fiber laser[C]. Proceedings of the Optical Fiber Sensors, OSA, 1988.
[13]	HILL K O, FUJⅡ Y, JOHNSON D C, et al.. Photosensitivity in optical fiber waveguides:application to reflection filter fabrication[J]. Applied Physics Letters, 1978, 32(10):647-649. doi: 10.1063/1.89881
[14]	MELTZ G, MOREY W W, GLENN W H. Formation of Bragg gratings in optical fibers by a transverse holographic method[J]. Optics Letters, 1989, 14(15):823-825. doi: 10.1364/OL.14.000823
[15]	BOCK W J, WOLINSKI T R, BARWICZ A. Development of a polarimetric optical fiber sensor for electronic measurement of high pressure[J]. IEEE Transactions on Instrumentation and Measurement, 1990, 39(5):715-721. doi: 10.1109/19.58613
[16]	PEYRILLOUX A, HARTIER T, HIDEUR A, et al.. Theoretical and experimental study of the birefringence of a photonic crystal fiber[J]. Journal of Lightwave Technology, 2003, 21(2):536-539. doi: 10.1109/JLT.2003.808793
[17]	GOODNO G D, BOOK L D, ROTHENBERG J E. Low-phase-noise, single-frequency, single-mode 608 W thulium fiber amplifier[J]. Optics Letters, 2009, 34(8):1204-1206. doi: 10.1364/OL.34.001204
[18]	EHRENREICH T, LEVEILLE R, MAJID I, et al.. 1-kW, all-glass Tm:fiber laser[J]. Proceedings of SPIE, 2010, 7580:758016. doi: 10.1117/12.842404
[19]	JACKSON S D, KING T A. Theoretical modeling of Tm-doped silica fiber lasers[J]. Journal of Lightwave Technology, 1999, 17(5):948-956. doi: 10.1109/50.762916
