Continuous fine-tunable terahertz radiation source based on L-band laser difference frequency
-
摘要:
本文提出了基于L波段激光差频的连续精调谐太赫兹辐射源，频率调谐范围为0.1~2.7 THz，调谐精度为1 GHz。设计了一种全保偏光纤链路，包括保偏隔离器、保偏耦合器和保偏掺铒光纤放大器，以保持两束光之间的偏振态一致。利用L波段双激光差频激发InGaAs高性能光电导天线，在
1568.8 ~1589.6 nm波长范围内产生0.1~2.7 THz连续太赫兹辐射。并使用高莱盒探测器和太赫兹扫描法布里-珀罗干涉仪对太赫兹波分别进行功率及频率测试。结果表明，太赫兹波在25分钟内的功率不稳定度在4%以内， 0.5 THz、1 THz处的频率测量结果与L波段双激光的间隔频率高度一致。此外，在0.9~1 THz范围内，实现了1 GHz的高精度调谐，对应0.008 nm的波长间隔。该连续精调谐太赫兹辐射源在高精度光谱检测等领域具有较高的应用潜力。Abstract:This paper presents a continuously fine-tunable terahertz radiation source based on L-band laser difference frequency generation, with a frequency tuning range of 0.1 to 2.7 THz and a tuning accuracy of 1 GHz. A fully polarization-maintaining fiber link, including polarization-maintaining isolators, polarization-maintaining couplers, and polarization-maintaining erbium-doped fiber amplifiers, was designed to keep the polarization states of the two beams consistent. By using the difference frequency of L-band dual lasers to excite the InGaAs high-performance photoconductive antenna, continuous terahertz radiation ranging from 0.1 to 2.7 THz was generated within the wavelength range of

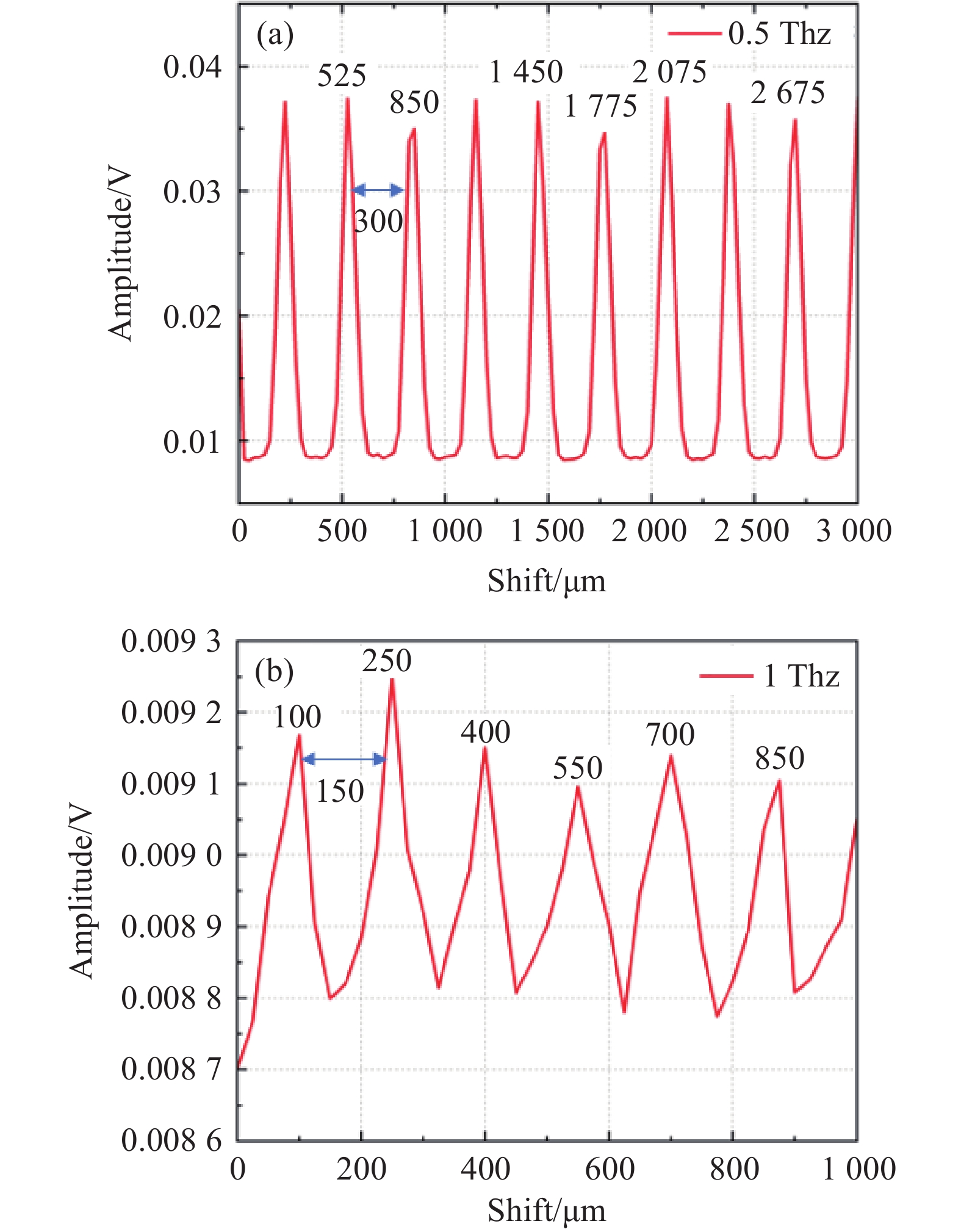

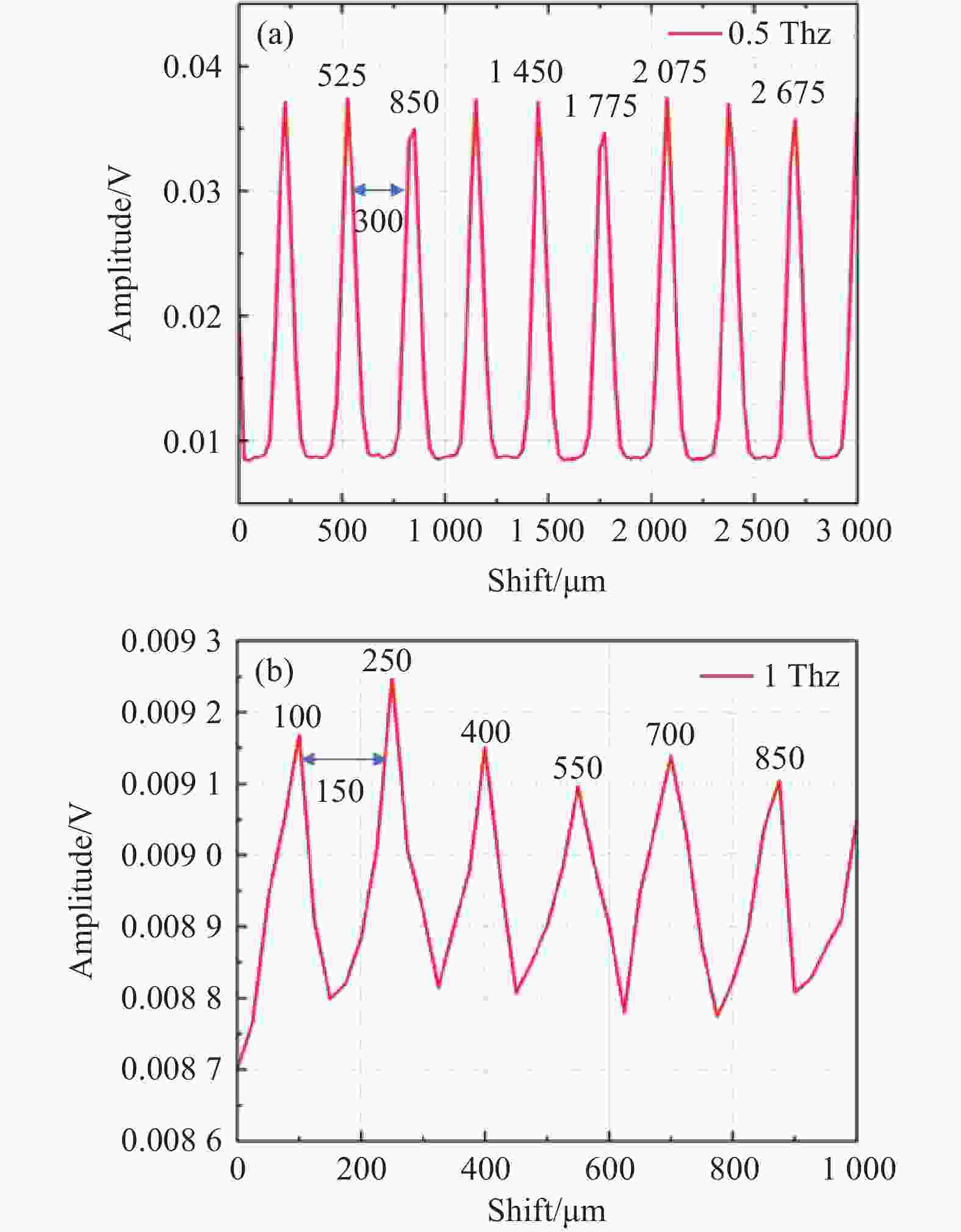

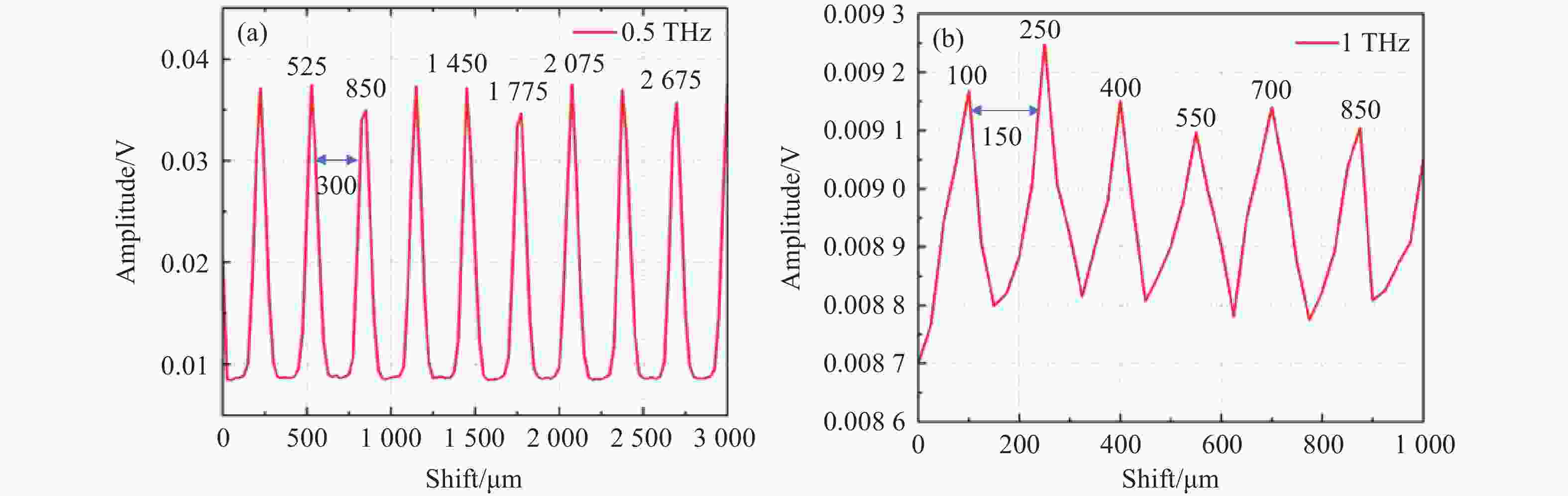

1568.8 to1589.6 nm. The power and frequency of the terahertz waves were respectively tested using a Golay cell detector and a terahertz scanning Fabry-Perot interferometer. The results show that the power instability of the terahertz wave within 25 minutes is within 4%, and the frequency measurement results at 0.5 THz and 1 THz are highly consistent with the frequency interval of the L-band dual lasers. Additionally, within the range of 0.9 to 1 THz, a high-precision tuning of 1 GHz was achieved, corresponding to a wavelength interval of 0.008 nm. This continuously fine-tunable terahertz radiation source has high application potential in high-precision spectral detection and other fields. -

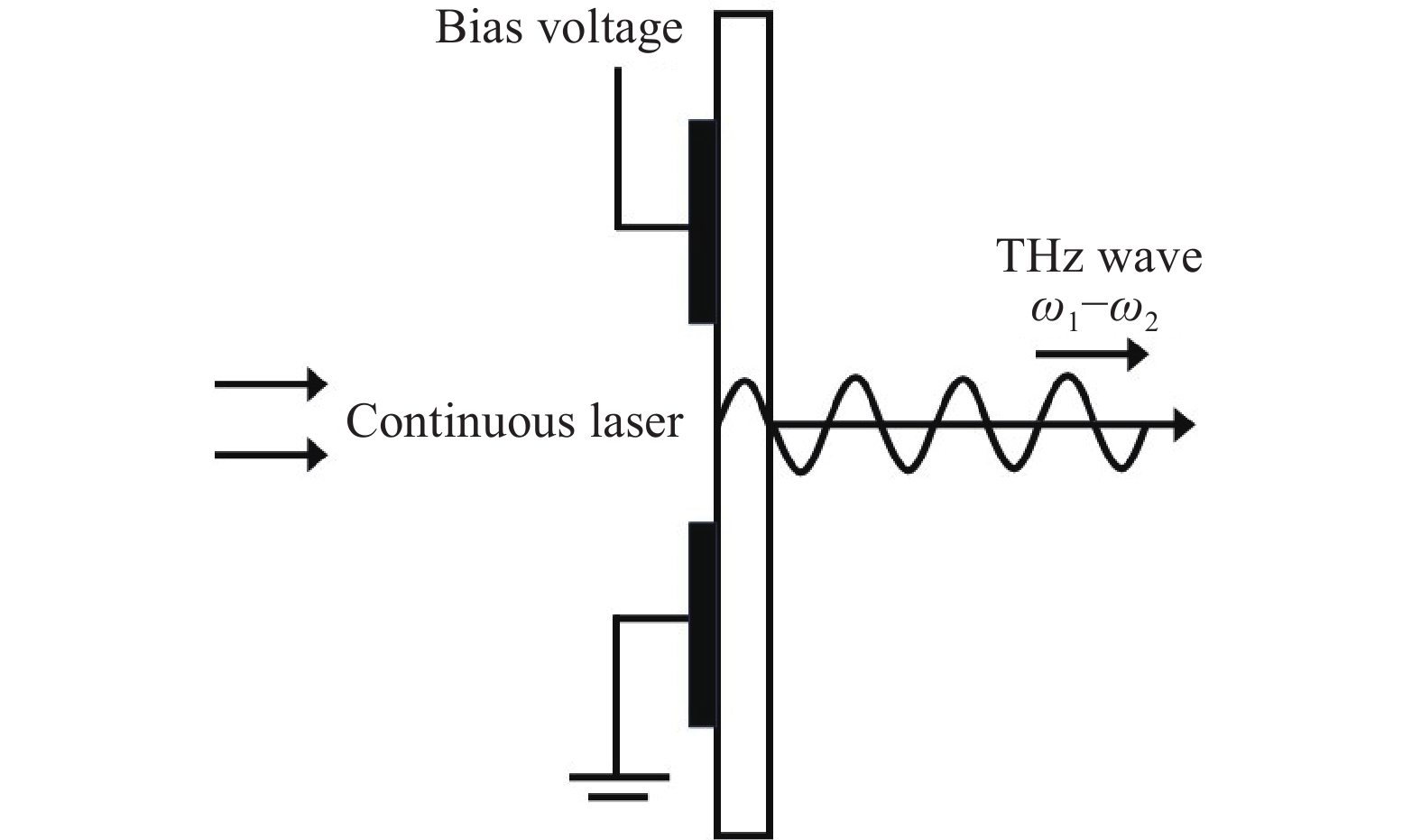

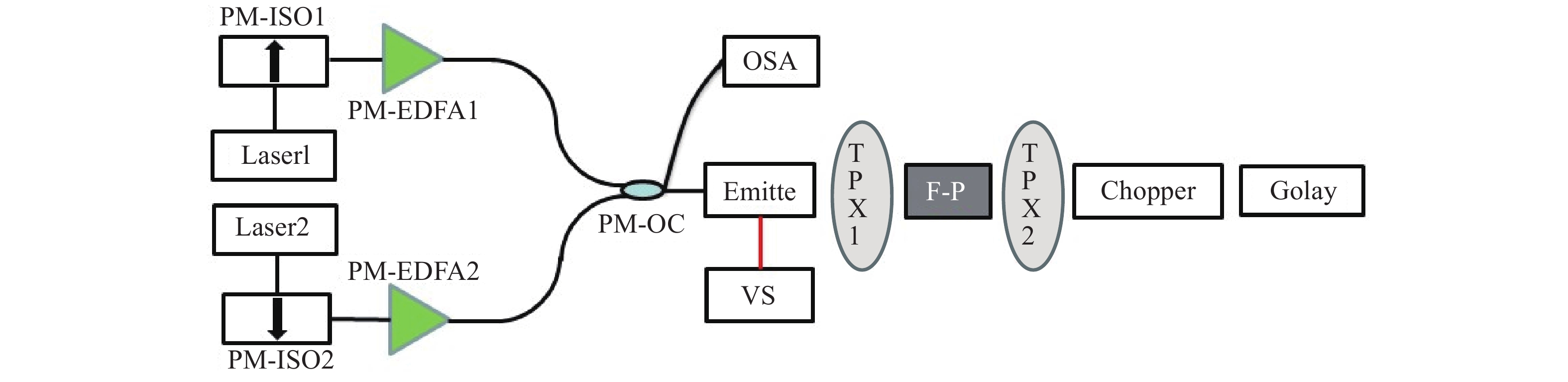

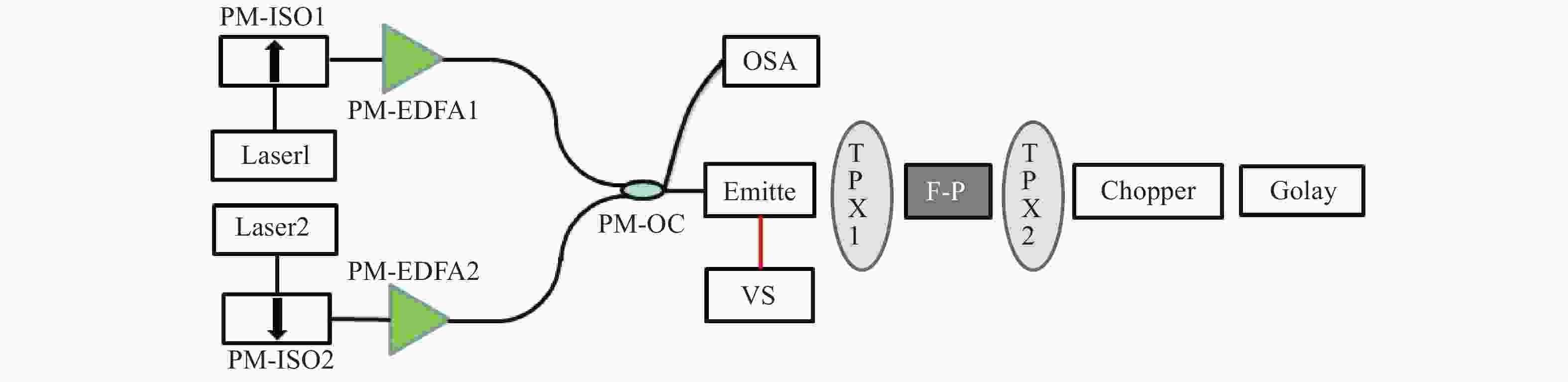

图 2 连续太赫兹辐射源结构示意图。PM：保偏；ISO：隔离器；EDFA：掺铒光纤放大器；OC：耦合器；OSA：光谱分析仪；VS：电压源；TPX：太赫兹透镜；F-P：太赫兹扫描法布里-珀罗干涉仪
Figure 2. Structural diagram of continuous THz radiation source. PM: Polarization-maintaining; ISO: Isolator; EDFA: Erbium-doped fiber amplifier; OC: Optical Coupler; OSA: Optical spectrum analyzer; VS: Voltage source; TPX: Terahertz lens; F-P: Terahertz scanning Fabry-Perot interferometer

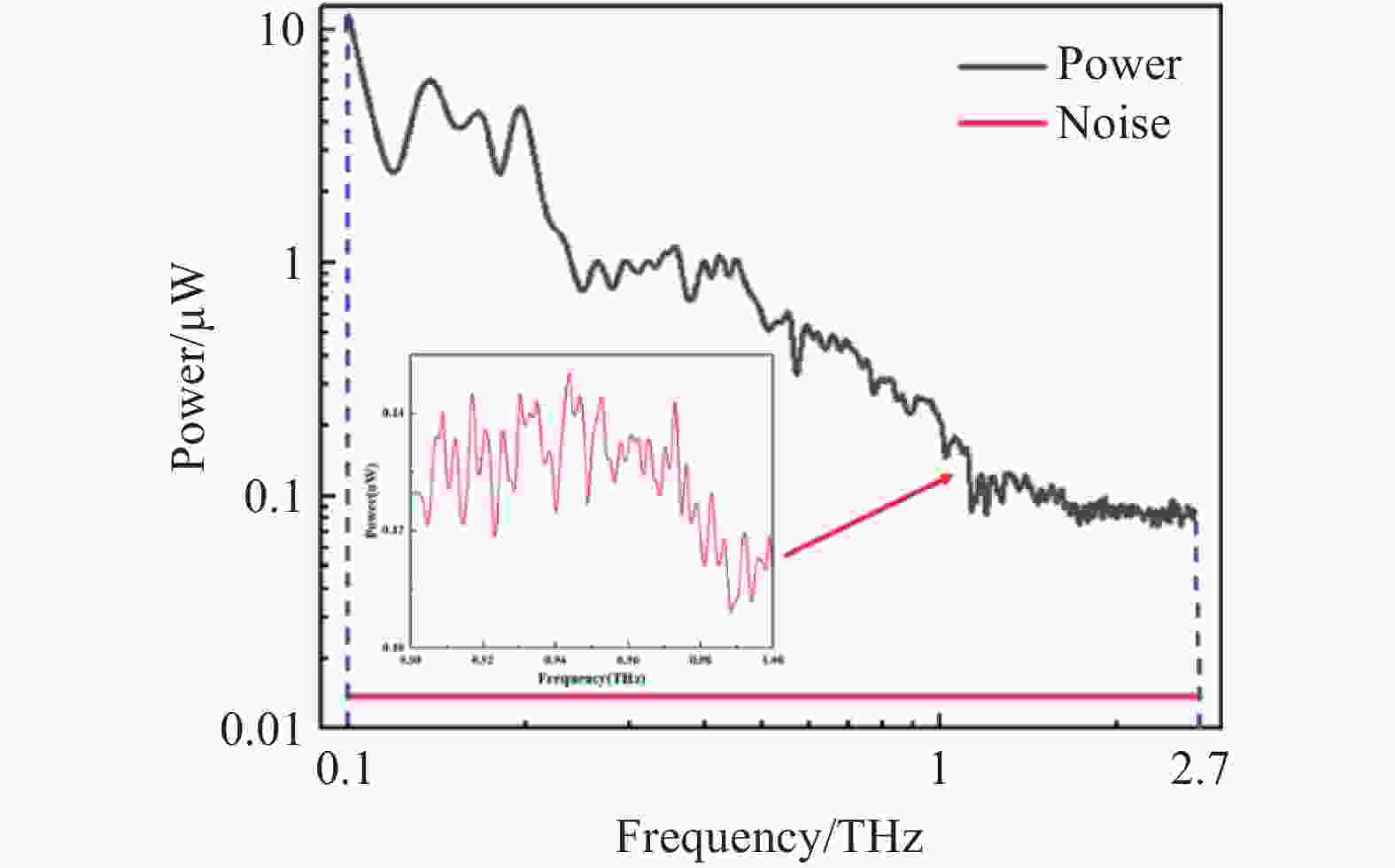

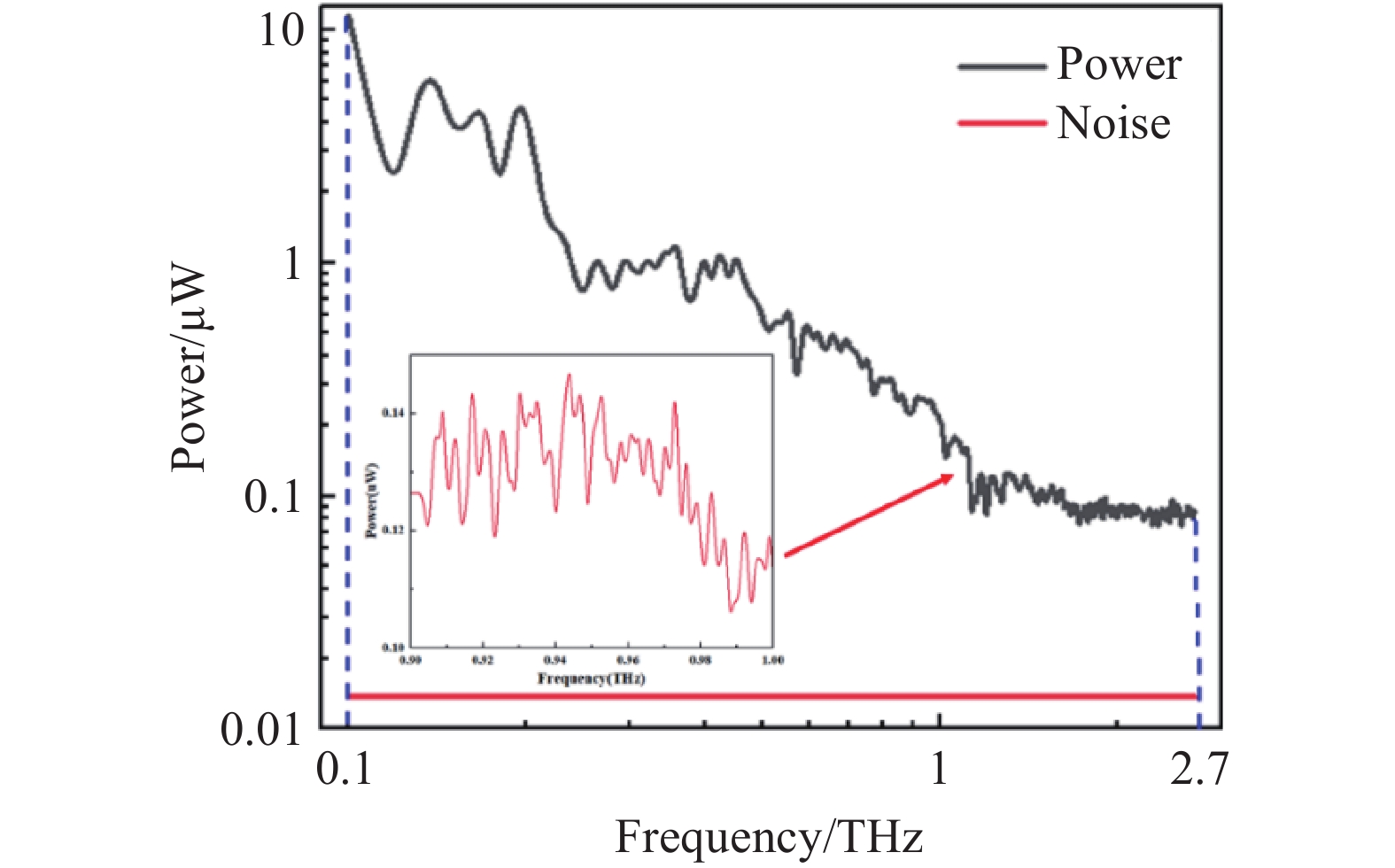

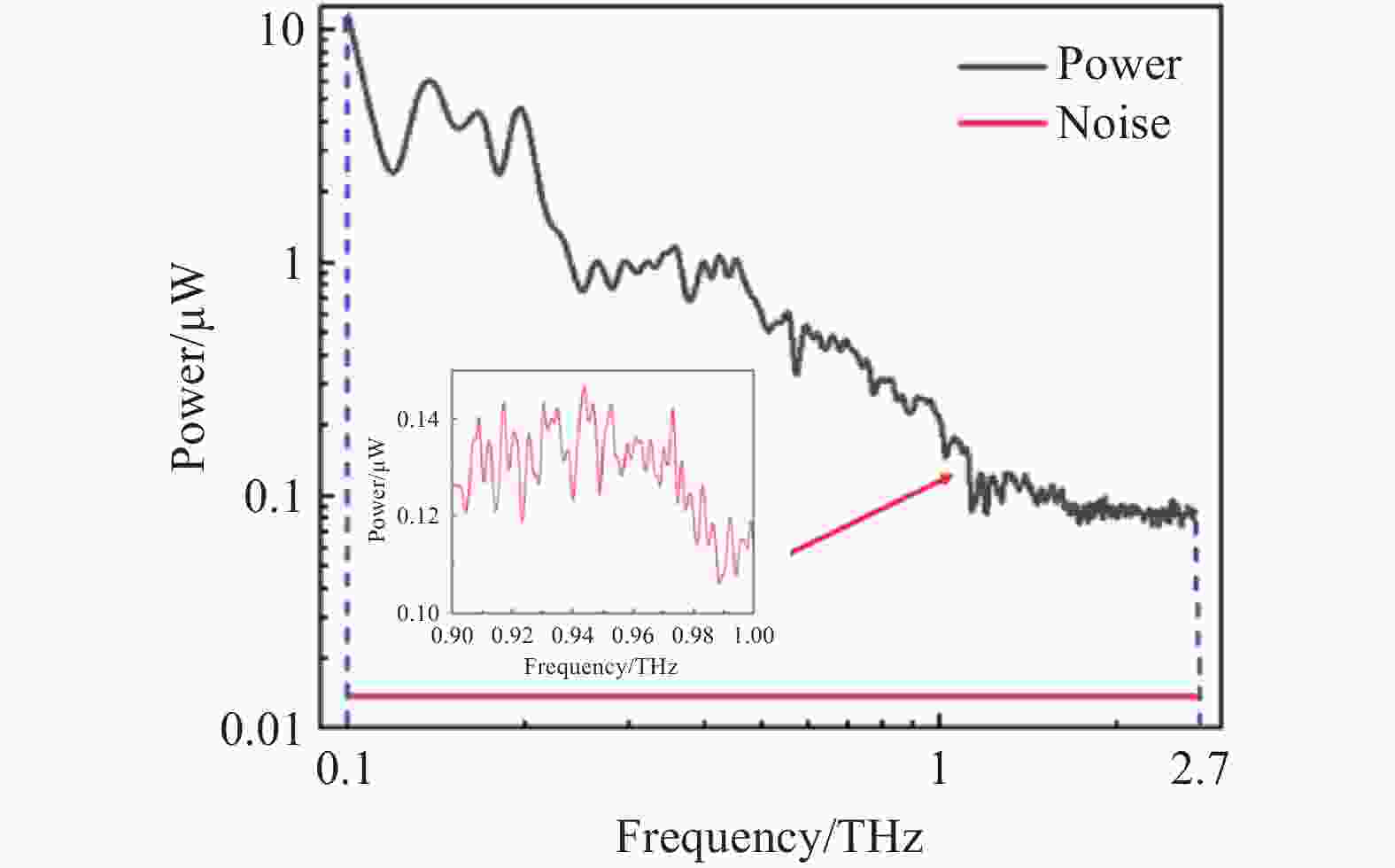

图 3 连续太赫兹辐射源系统调谐输出特性
Figure 3. Tuning output characteristics of continuous terahertz radiation sources

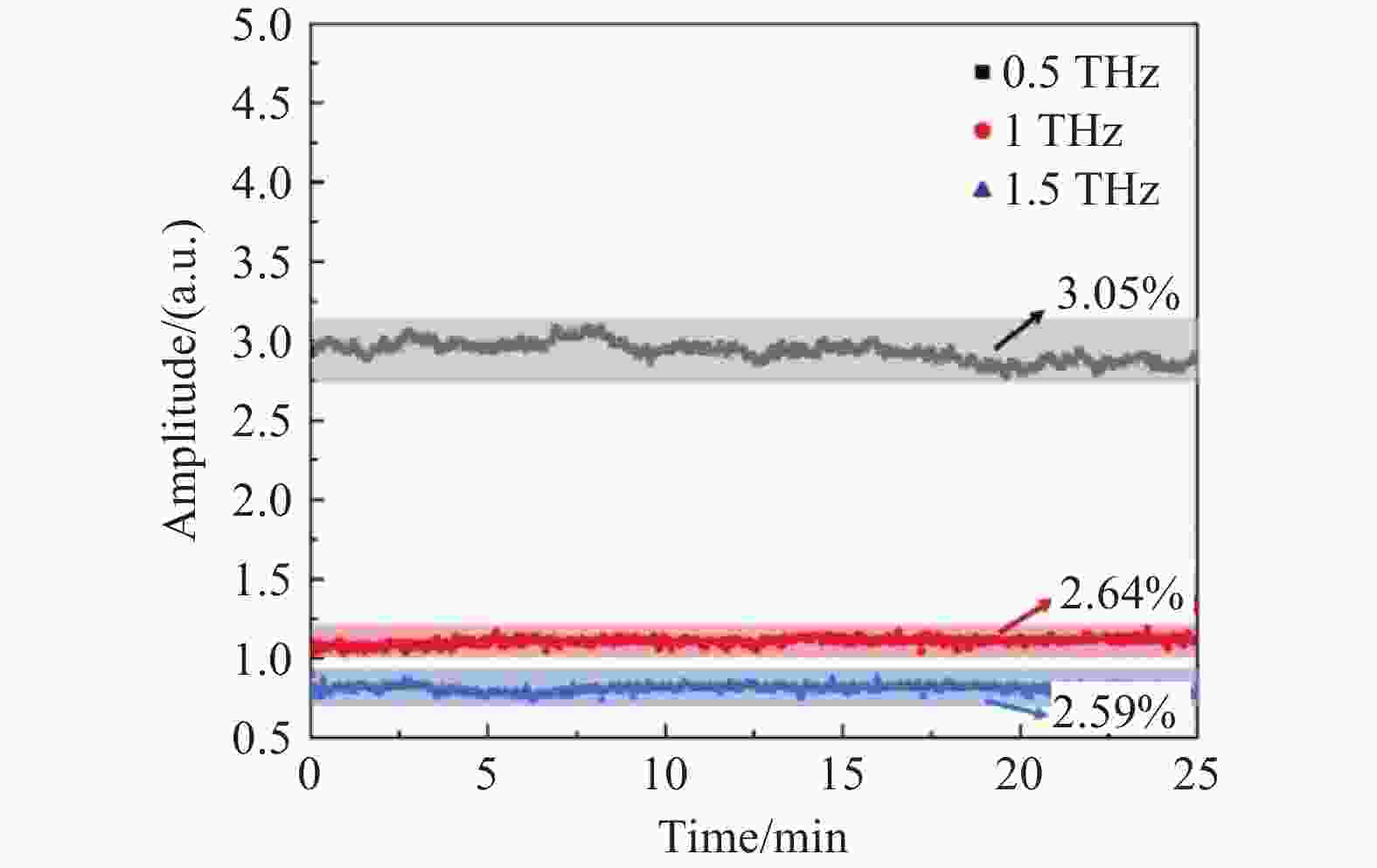

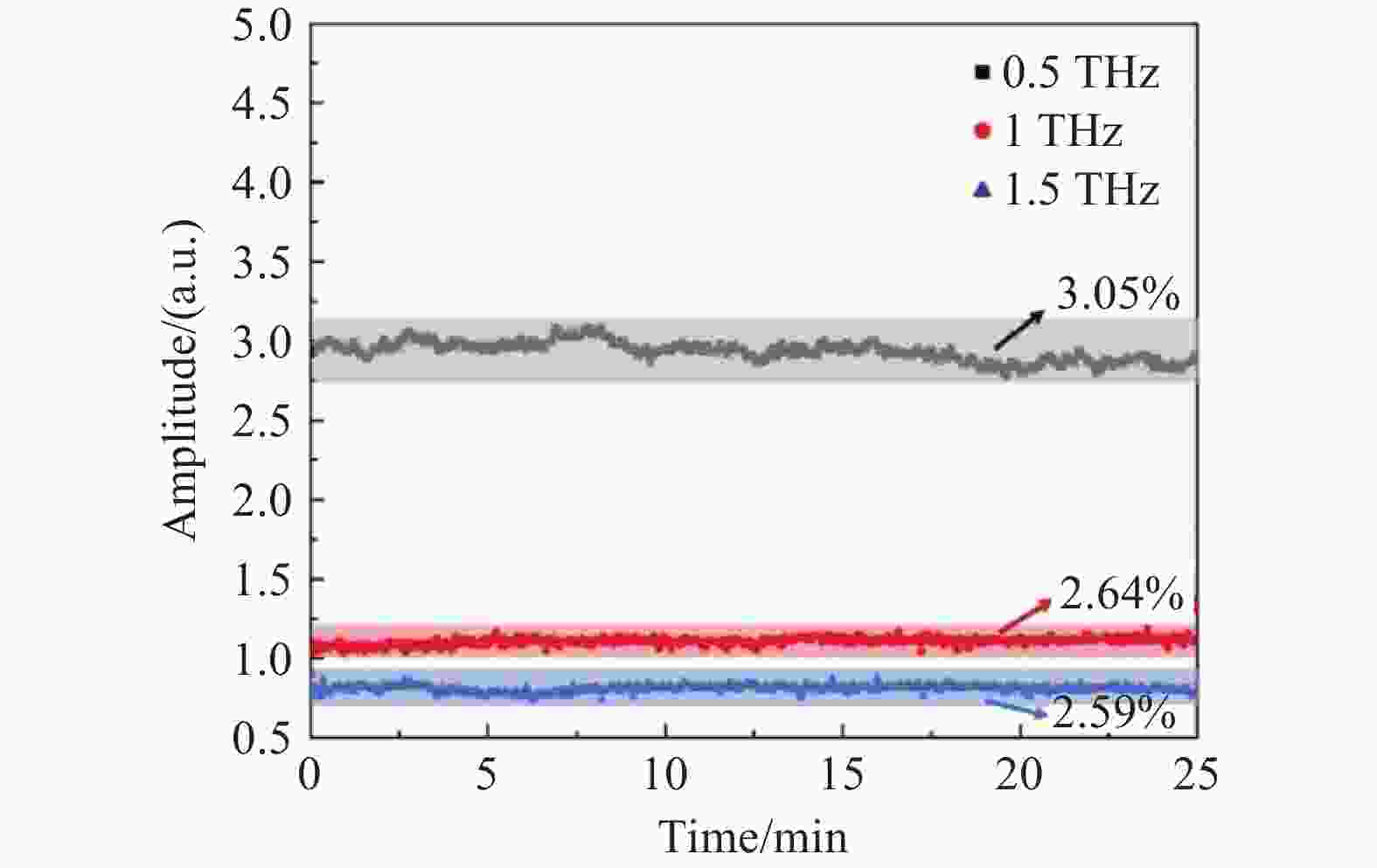

图 4 输出频率0.5 THz、1 THz、1.5 THz时太赫兹波稳定性
Figure 4. Terahertz wave stability at output frequencies of 0.5 THz, 1 THz, and 1.5 THz

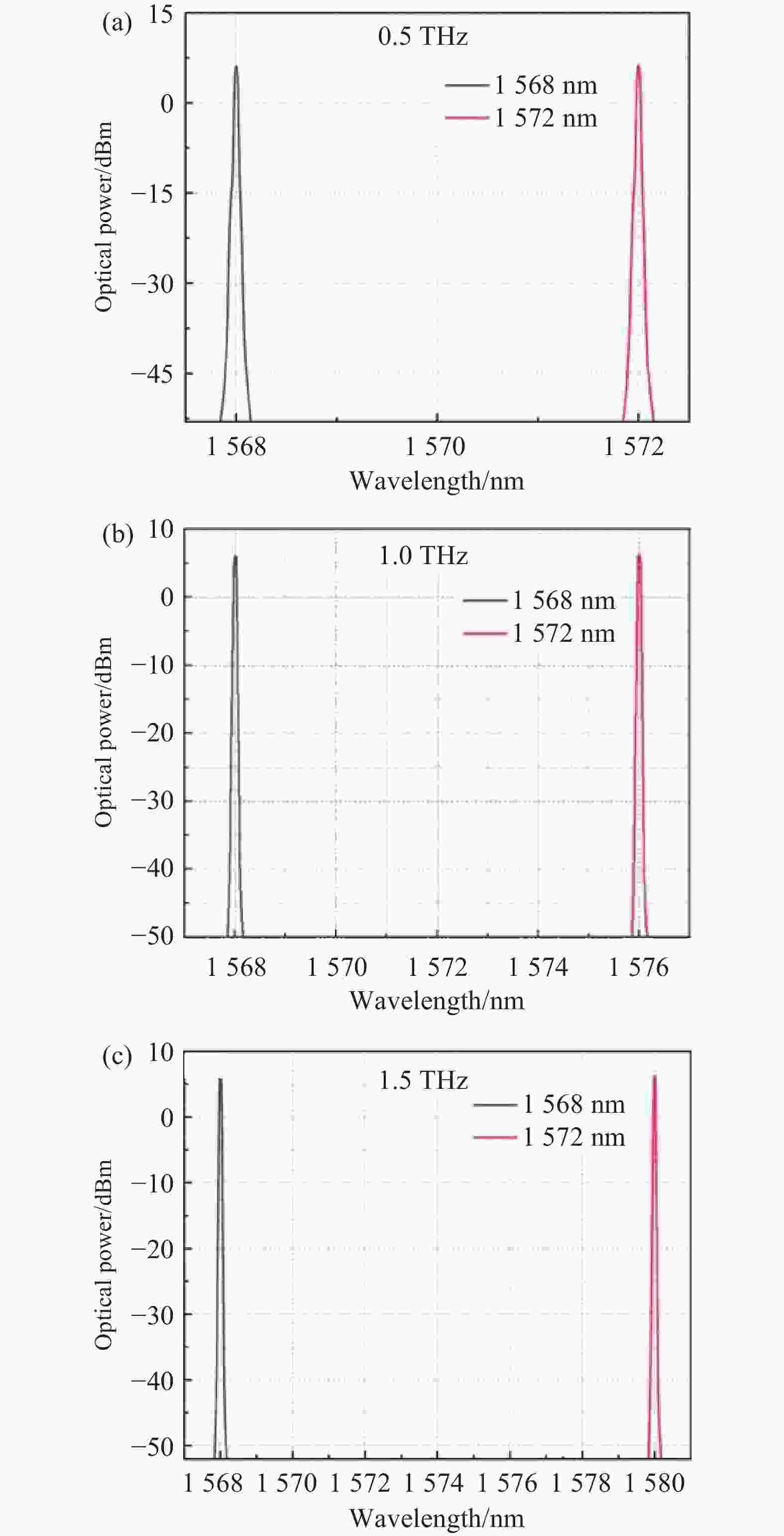

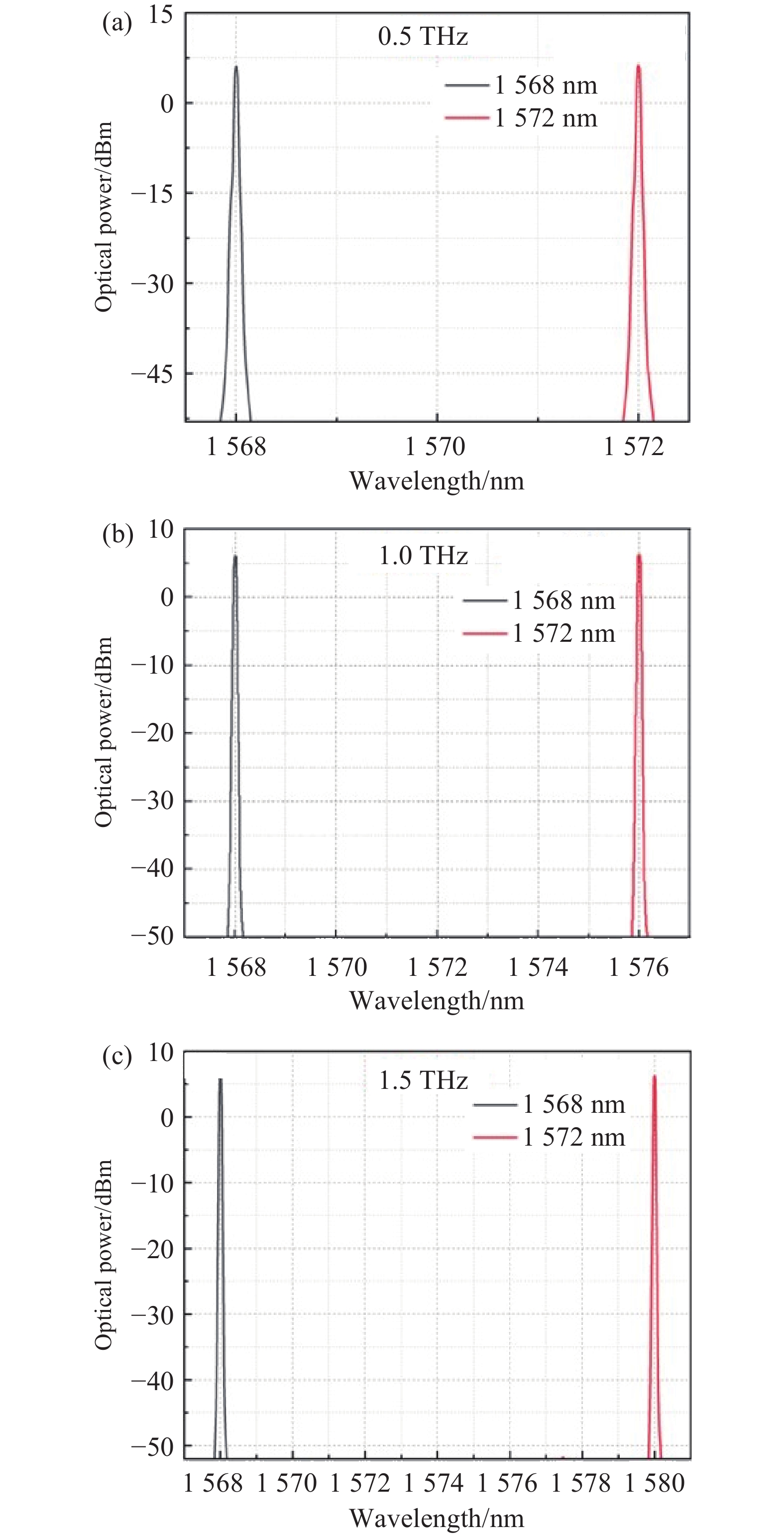

图 5 0.5 THz、1 THz、1.5 THz双波长差频信号测试结果图(a)-(c)
Figure 5. Test results graph of dual-wavelength difference frequency signals at 0.5 THz, 1 THz, and 1.5 THz (a)-(c)

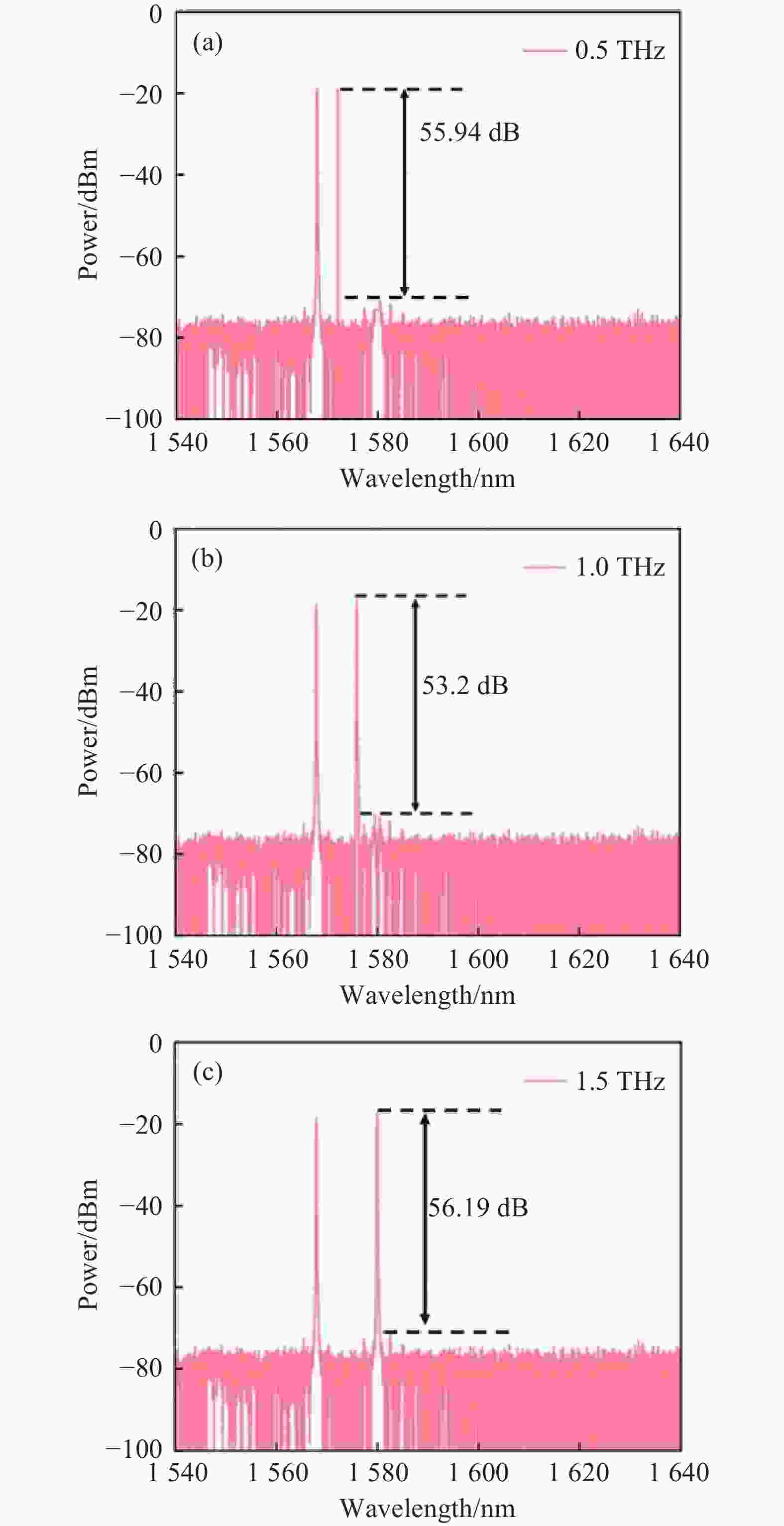

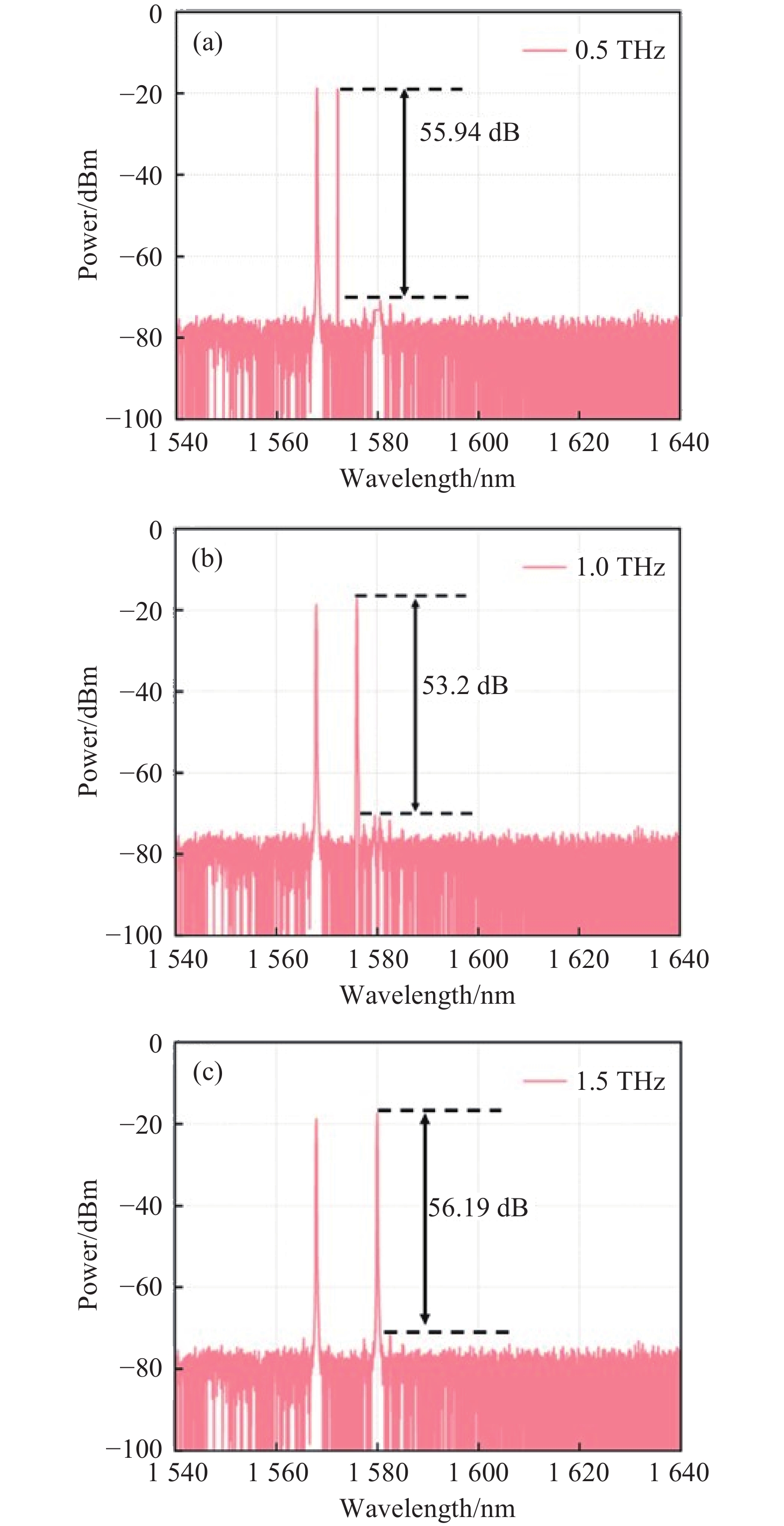

图 6 0.5 THz、1 THz、1.5 THz时信噪比测量结果(a)-(c)
Figure 6. Measurement results of signal-to-noise ratio at 0.5 THz, 1 THz, and 1.5 THz (a)-(c)

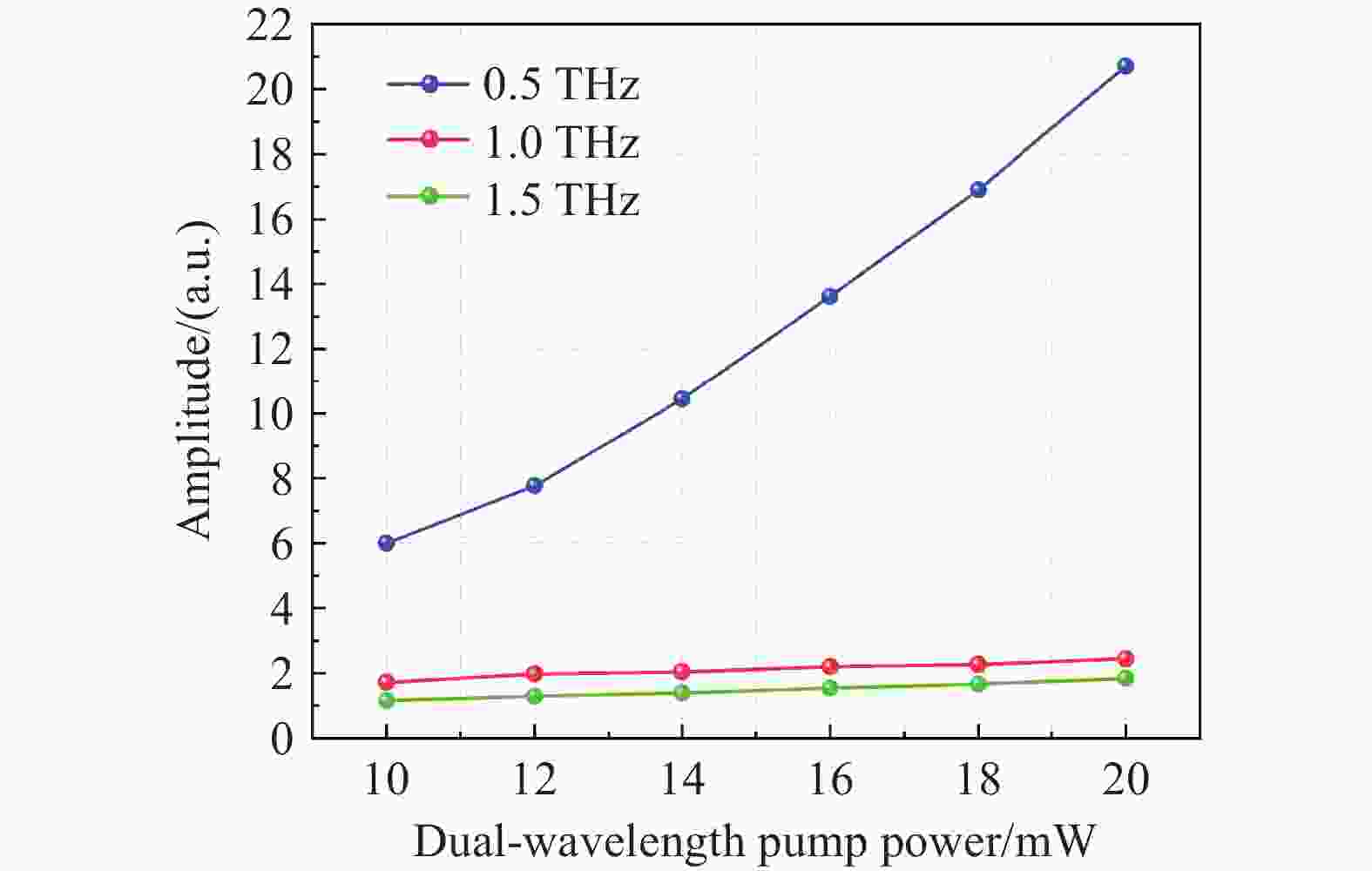

图 7 太赫兹输出强度与双波长激光泵浦总功率关系图
Figure 7. Relationship between Terahertz Output Intensity and Total Power of Dual-Wavelength Laser Pumping
-
