Precise regulation of photoluminescence properties and ligands of CdSe quantum dots based on microfluidic systems
-
摘要:
本研究提出并构建了一种基于微流控技术的CdSe量子点“合成-表面配体修饰”一体化新策略，旨在实现对量子点发光性质的精准、高效调控，以满足显示、成像及光学传感等领域对量子点光学特性的特定需求。研究工作首先构建了适用于量子点材料合成的微流控平台，通过高通量精准控制多种反应条件实现高效合成，系统探究了反应温度、时间及前体配比对CdSe量子点生长过程及其发光性能的影响规律。得益于微流控合成的高效传质与传热，反应时间从传统配体修饰方法的1小时，高效缩短至5分钟。在此基础上，针对功能化配体修饰过程中量子点发光特性（如发光颜色、半峰宽等）易发生偏移的问题，本研究首次在微流控系统中引入油酸（OA）作为表面修饰配体，通过配体的高效稳定锚定，使量子点发光效率提升3倍，有效地抑制了量子点的再生长与团聚行为，显著保持了量子点发光波长和半峰宽的稳定性。本研究创新性使用的微流控技术，不仅为量子点尺寸与发光颜色的精准调控提供了可重复、可放大的平台技术，还实现了量子点发光效率与稳定性的协同优化，为量子点材料在发光显示、量子光源等领域的实际应用奠定了坚实的技术基础。
Abstract:This research reported a novel integrated strategy based on microfluidic technology for the synthesis and surface ligand modification of CdSe quantum dots (QDs). The strategy aims to achieve precise and efficient regulation of the luminescence properties of QDs to meet the specific requirements for their optical characteristics in fields such as display, imaging, and optical sensing. Firstly, a microfluidic platform suitable for QDs synthesis was developed, enabling high-throughput and precise control of multiple reaction conditions for efficient synthesis. We systematically investigated the influence of reaction temperature, time, and precursor ligand ratios on the growth process and luminescence properties of CdSe QDs. Benefiting from the efficient mass and heat transfer of the microfluidic platform, the reaction time was significantly reduced from the 1 hours required by traditional ligand modification methods to just 5 minutes in our design. To address the issue of spectral shifts in luminescence properties (such as emission color and full width at half maximum, FWHM) during functional ligand modification, this research introduced oleic acid (OA) as a surface modification ligand in the microfluidic system. Through efficient and stable anchoring of OA ligands, the luminescence efficiency of the quantum dots was enhanced by threefold, while successfully suppressing regrowth and agglomeration behaviors, thereby maintaining the stability of the emission wavelength and FWHM. The innovative use of microfluidic technology in this research not only provides a reproducible and scalable platform technology for precise regulation of QD size and luminescence color but also achieves synergistic optimization of QD luminescence efficiency and stability. Our strategy paves a technical avenue for the practical application of QDs materials in fields such as luminescent displays and quantum light sources.
-

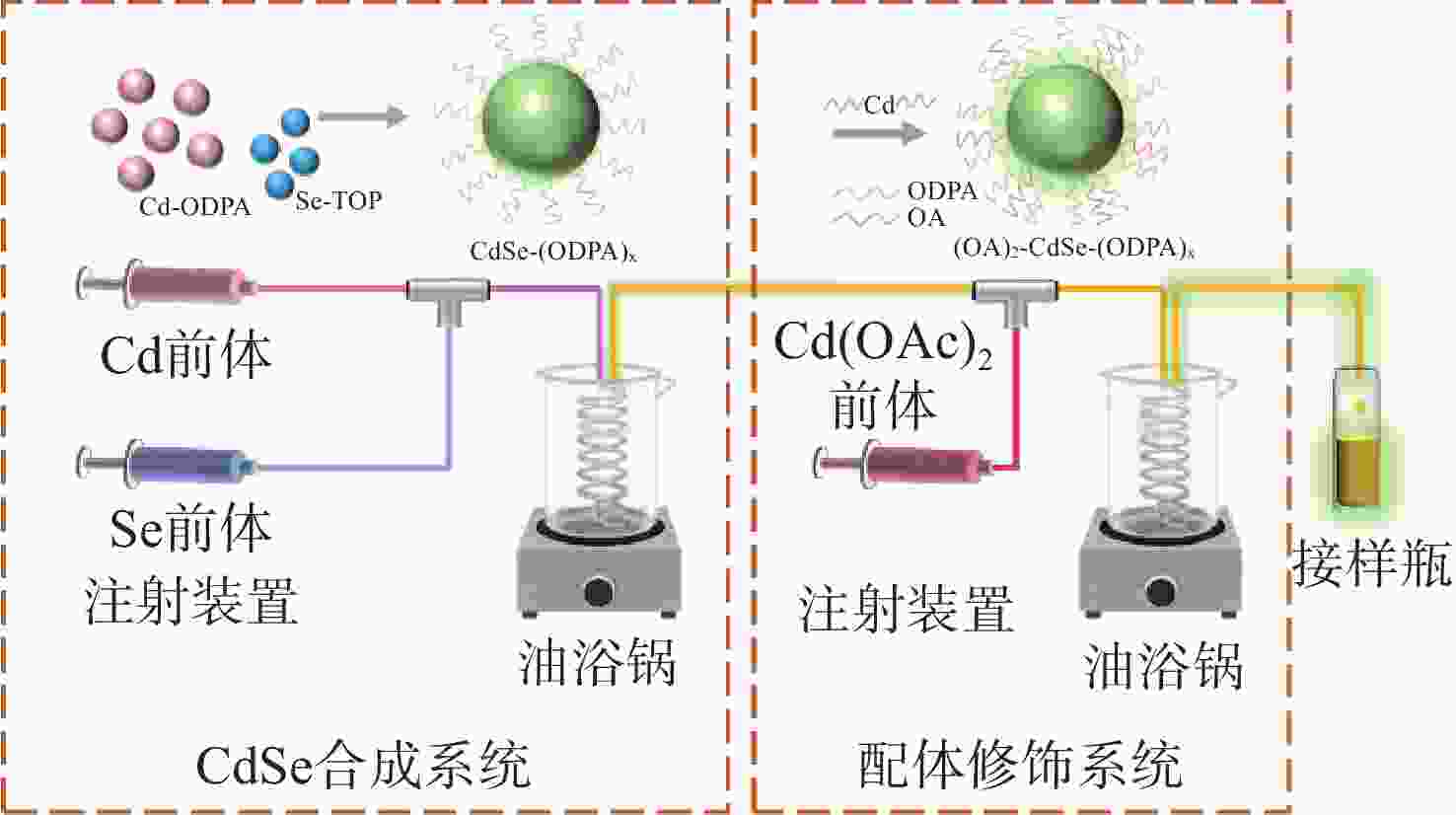

图 1 CdSe合成、配体修饰示意以及微流控反应平台系统图。
Figure 1. Synthesis process of CdSe QDs, surface modification of CdSe QDs with OA ligands and the microfluidic synthesis system.

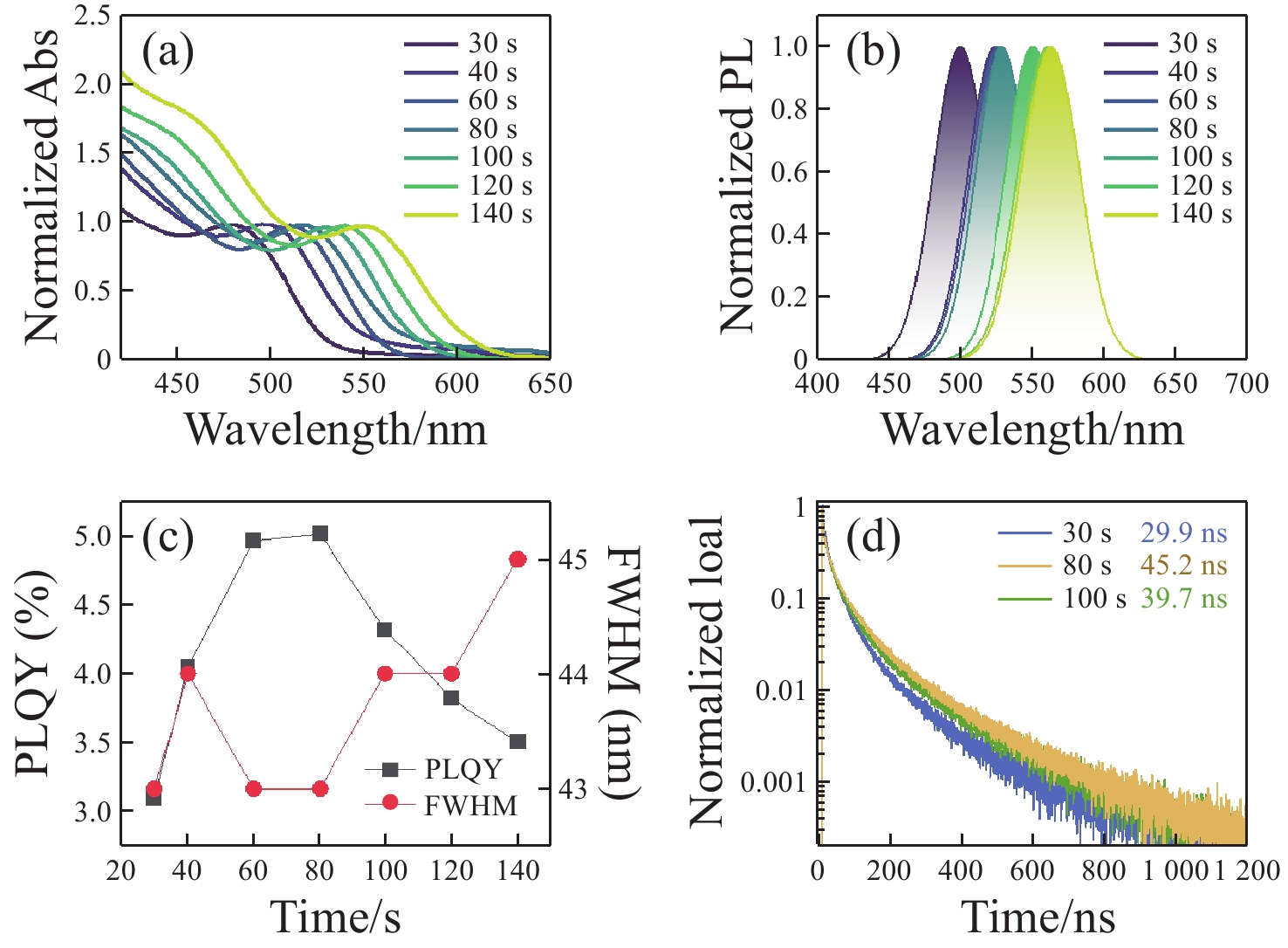

图 2 不同反应时间下，CdSe量子点的 (a) 吸收光谱 (b)发光光谱 (c) PLQY和FWHM。 (d) 加热时间为30 s、80 s和100 s的CdSe发光寿命曲线。
Figure 2. (a) Absorption spectra, (b) PL spectra (c) PLQY and FWHM of CdSe QDs at different reaction times. (d) The PL lifetime of CdSe QDs reacted of 30 s, 80 s and 100 s.

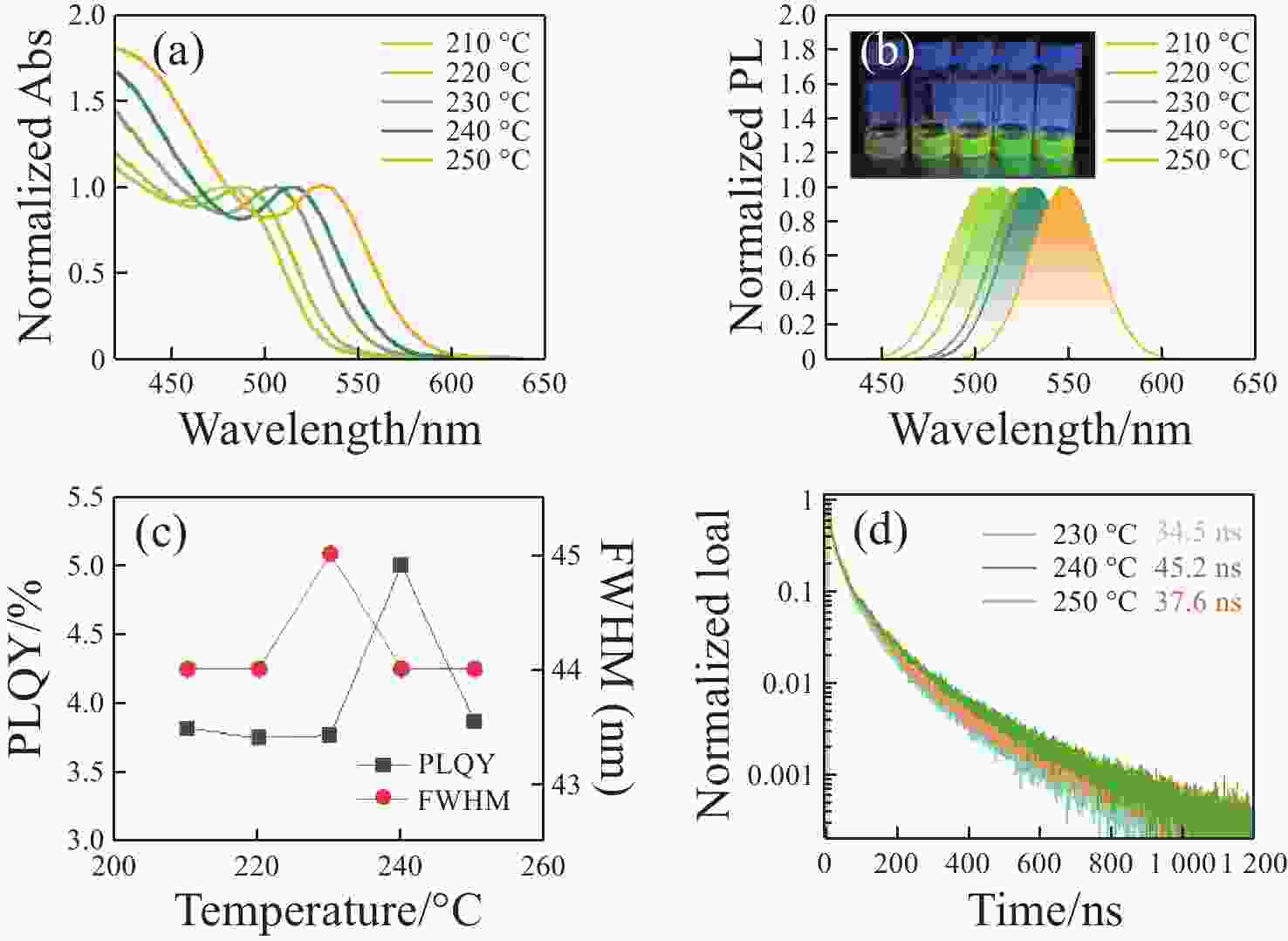

图 3 不同反应温度下，CdSe的 (a) 吸收光谱 (b) 发光光谱以及紫外光下不同粒径Cdse发光照片。 (c) PLQY和FWHM。 (d) 反应温度230 °C、240 °C和250 °C的CdSe发光寿命曲线。
Figure 3. (a) Absorption spectra, (b) PL spectra (insert photos are CdSe with varied diameters under UV light), and (c) PLQY and FWHM of CdSe QDs at different reaction times. (d) The PL lifetime of CdSe under reaction temperature at 230 °C、240 °C and 250 °C.

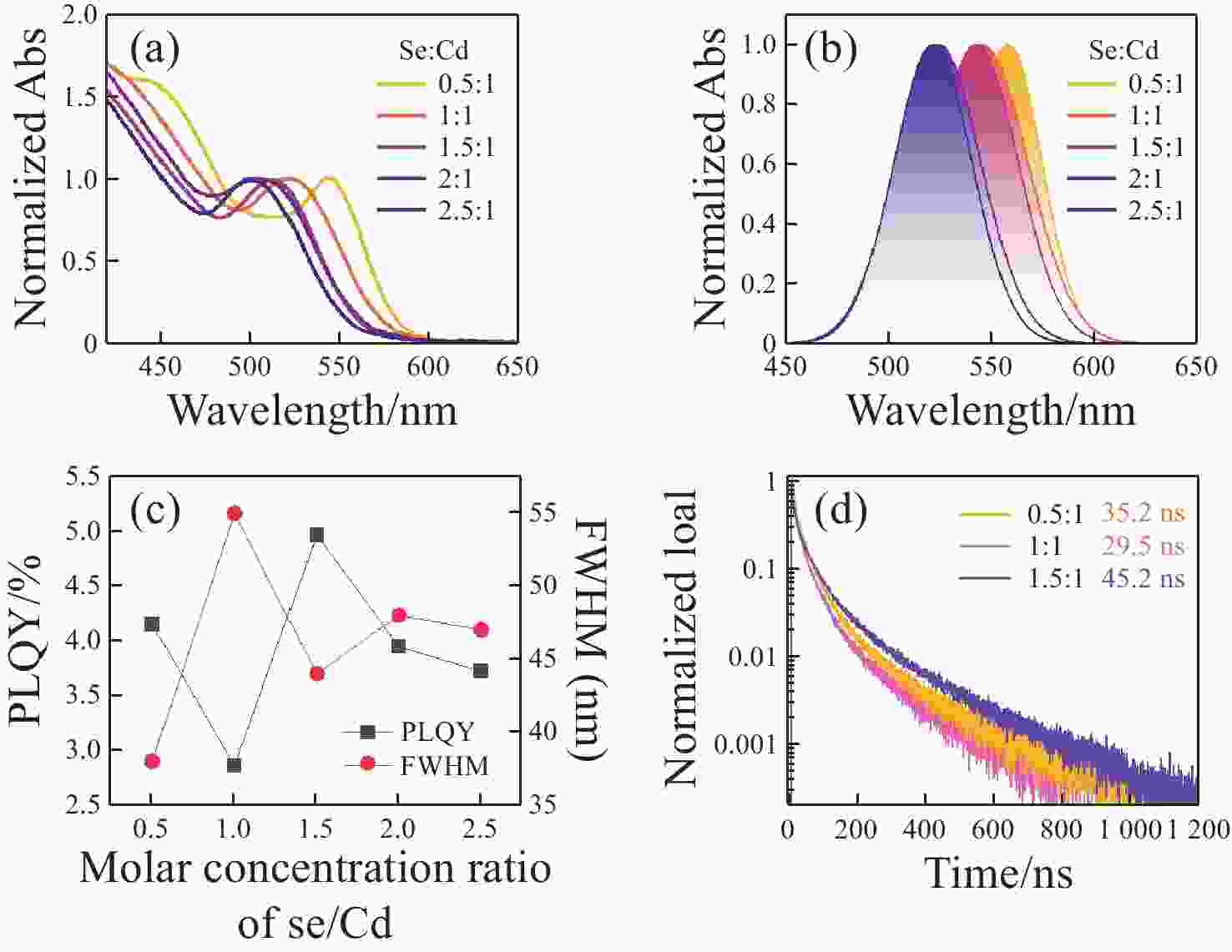

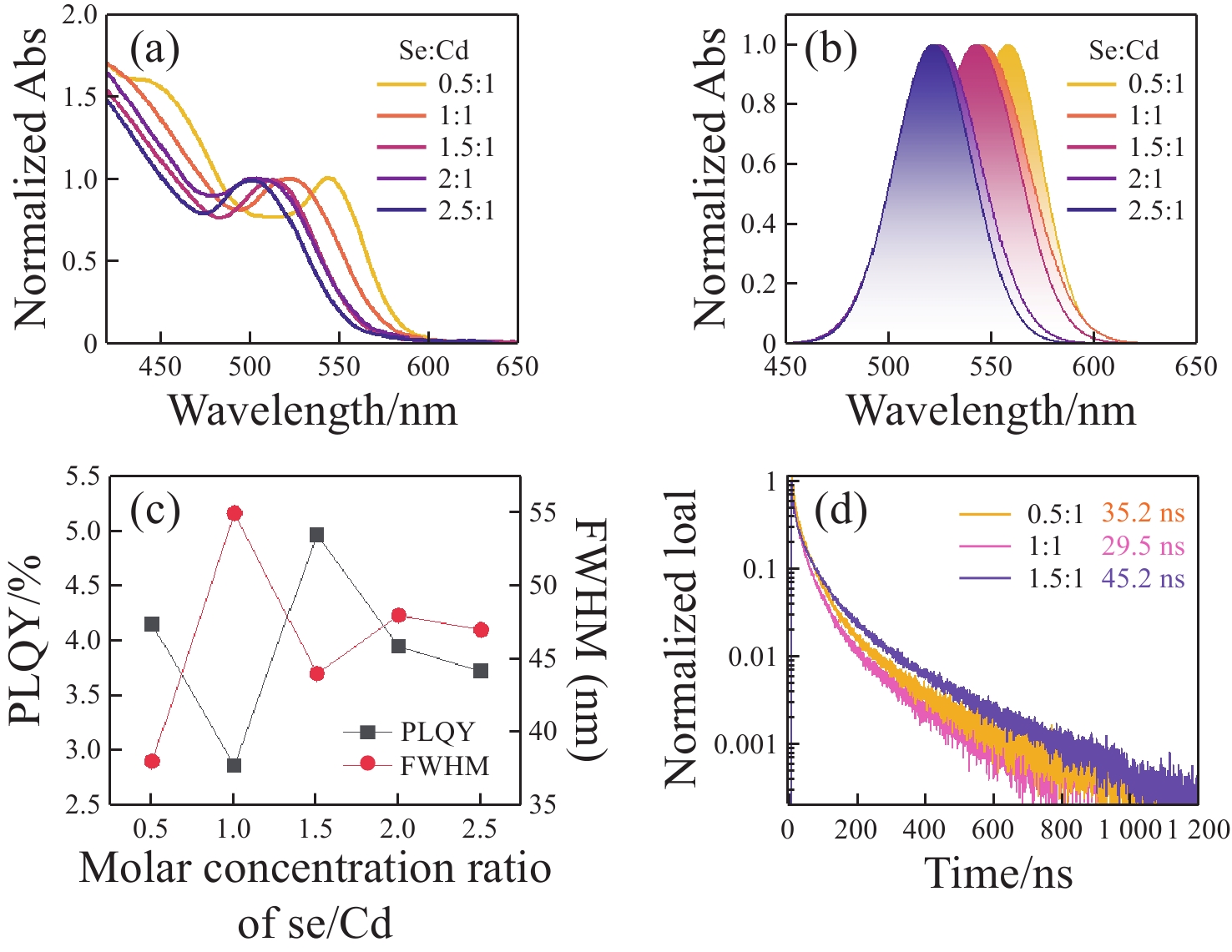

图 4 CdSe量子点 (a) 吸收光谱 (b) 发光光谱 (c) PLQY和FWHM随Se:Cd的摩尔比的变化。(d) Se/Cd 前体摩尔比值为0.5、1和1.5时的CdSe发光寿命。
Figure 4. (a) Absorption spectra, (b) photoluminescence spectra, (c) peaks position of Abs and PL and (d) The PL lifetimes of CdSe at Se/Cd molar ratios of 0.5, 1 and 1.5.

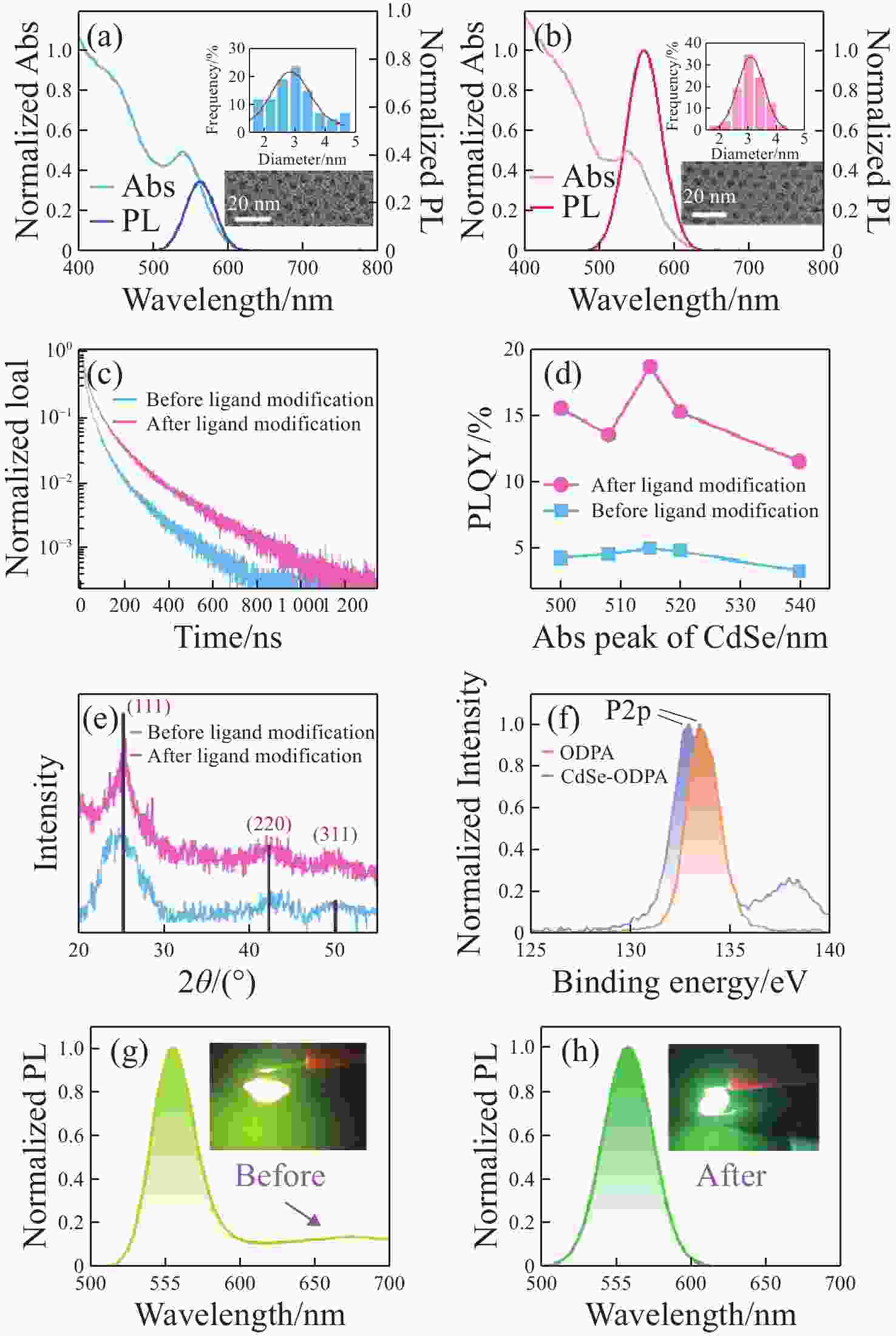

图 5 配体修饰(a) 前(b) 后CdSe 545的吸收光谱、发光光谱。插图为TEM图像以及粒径统计。(c)配体修饰前后的发光寿命。(d) 不同粒径CdSe在微流控配体修饰前后的PLQY。(e) CdSe 545配体修饰前后的XRD衍射图谱。(f) ODPA和微流控配体修饰前CdSe 545的P 2p XPS图谱。配体修饰(g)前(h)后CdSe 545的在紫外LED激发下的发光光谱图。
Figure 5. Ligand modification of (a) before and (b) after CdSe 545: Absorption spectra, photoluminescence spectra, TEM images, and particle size statistics. (c) PL lifetimes, (d) PLQYs of CdSe with different particle sizes, (e) XRD diffraction patterns of CdSe 545 before and after ligand modification. (f) P2p XPS spectra of ODPA and CdSe 545 before microfluidic ligand modification. Luminescence spectra and photos of CdSe 545 under UV LED excitation (g) before and (h) after ligand modification.
-
[1] XING W SH, ZHANG SH, AN R T, et al. Low-temperature synthesis of tetrapod CdSe/CdS quantum dots through a microfluidic reactor[J]. Nanoscale, 2021, 13(46): 19474-19483. doi: 10.1039/D1NR04070G [2] PASCUAL-ESCO A, LLEONART P, CALVO-LóPEZ A, et al. Live synthesis of selective carbon dots as fluorescent probes for cobalt determination in water with an automatic microanalyzer[J]. Microchimica Acta, 2023, 190(10): 400-410. doi: 10.1007/s00604-023-05975-w [3] 李力, 耿会娟, 张天昊, 等. 基于PbS量子点光电探测器的脉搏检测系统研究[J]. 中国光学(中英文), 2024, 17(5): 1236-1243. doi: 10.37188/CO.2024-0018LI L, GENG H J, ZANG T H, et al. Research on pulse detection system based on PbS quantum dot photodetector[J]. Chinese Optics, 2024, 17(5): 1236-1243. (in Chinese). doi: 10.37188/CO.2024-0018 [4] 袁曦, 郑金桔, 李海波, 等. Mn掺杂ZnSe量子点变温发光性质研究[J]. 中国光学, 2015, 8(5): 806-813. doi: 10.3788/CO.20150805.0806YUAN X, ZHENG J J, LI H B, et al. Temperature-dependent photoluminescence properties of Mn-doped ZnSe quantum dots[J]. Chinese Optics, 2015, 8(5): 806-813. (in Chinese). doi: 10.3788/CO.20150805.0806 [5] 李子洋, 李煊赫, 李慧珺, 等. 微流控技术制备荧光纳米材料研究进展[J]. 发光学报, 2022, 43(10): 1524-1541.LI Z Y, LI X H, LI H J, et al. Research progress in preparation of fluorescent nanomaterials by microfluidic technique[J]. Chinese Journal of Luminescence, 2022, 43(10): 1524-1541. (in Chinese). [6] CHEN ZH, MAN ZH W, RAO SH CH, et al. Rigid crosslinker-assisted nondestructive direct photolithograph for patterned QLED displays[J]. Light: Science & Applications, 2025, 14(1): 251. [7] MADKHLI A Y, SHIRBEENY W, ALWAFY R. Improvement of cobalt-doped ZnS QD emission intensity and linewidth for future diode laser application[J]. Superlattices and Microstructures, 2021, 150: 106807. doi: 10.1016/j.spmi.2021.106807 [8] KAILASA S K, MAKWANA K P, DESHPANDE M P, et al. Synthesis of trypsin-protected CsPbCl3 fluorescent nanocrystals for hydroxyl radical sensing[J]. Microchimica Acta, 2025, 192(4): 217. doi: 10.1007/s00604-025-07070-8 [9] 叶芸, 喻金辉, 林淑颜, 等. 量子点背光技术的研究进展[J]. 中国光学, 2020, 13(1): 14-27. doi: 10.3788/CO.20201301.0014YE Y, YU J H, LIN SH Y, et al. Progress of quantum dot backlight technology[J]. Chinese Optics, 2020, 13(1): 14-27. (in Chinese). doi: 10.3788/CO.20201301.0014 [10] LIU Y T, SUN Y Y, YAN X H, et al. Realizing low voltage-driven bright and stable quantum dot light-emitting diodes through energy landscape flattening[J]. Light: Science & Applications, 2025, 14(1): 50. [11] 吴加其, 王程杨, 陆红波, 等. 2-己基癸酸改性的全溶液制备的CsPbBr3量子点发光二极管[J]. 液晶与显示, 2024, 39(7): 875-882. doi: 10.37188/CJLCD.2024-0144WU J Q, WANG CH Y, LU H B, et al. All-solution-processed CsPbBr3 quantum dot light-emitting diodes modified with 2-hexyldecanoic acid ligand[J]. Chinese Journal of Liquid Crystals and Displays, 2024, 39(7): 875-882. (in Chinese). doi: 10.37188/CJLCD.2024-0144 [12] YU W W, QU L H, GUO W ZH, et al. Experimental determination of the extinction coefficient of CdTe, CdSe, and CdS nanocrystals[J]. Chemistry of Materials, 2003, 15(14): 2854-2860. doi: 10.1021/cm034081k [13] MARTINEZ M S, NOLEN M A, POMPETTI N F, et al. Controlling electronic coupling of Acene chromophores on quantum dot surfaces through variable-concentration ligand exchange[J]. ACS Nano, 2023, 17(15): 14916-14929. doi: 10.1021/acsnano.3c03498 [14] WANG J D, LI M Y, FAN W X, et al. Ligand compensation enabling efficient and stable exciton recombination in perovskite QDs for high-performance QLEDs[J]. Applied Physics Reviews, 2024, 11(3): 031405. doi: 10.1063/5.0191238 [15] YEN B K H, STOTT N E, JENSEN K F, et al. A continuous-flow microcapillary reactor for the preparation of a size series of CdSe nanocrystals[J]. Advanced Materials, 2003, 15(21): 1858-1862. doi: 10.1002/adma.200305162 [16] CAMPALANI C, PETIT G, MONBALIU J C M, et al. Aqueous continuous flow synthesis of cadmium chalcogenide quantum dots: opportunities and challenges[J]. JACS Au, 2026, 6(1): 38-58. doi: 10.1021/jacsau.5c01449 [17] CHENG R, MA K ZH, YE H G, et al. Magnetothermal microfluidic-directed synthesis of quantum dots[J]. Journal of Materials Chemistry C, 2020, 8(19): 6358-6363. doi: 10.1039/D0TC00305K [18] NING Y H, GUAN SH, CHENG CH T, et al. Microfluidic synthesis of monodispersed sharp emitting perovskite CsPbBr3 quantum dots via multidimensional parameterization[J]. Journal of Materials Chemistry C, 2025, 13(2): 758-765. doi: 10.1039/D4TC04104F [19] EPPS R W, DELGADO-LICONA F, YANG H, et al. Accelerated multi-stage synthesis of indium phosphide quantum dots in modular flow reactors[J]. Advanced Materials Technologies, 2023, 8(4): 2201845. doi: 10.1002/admt.202201845 [20] 李正顺, 岳圆圆, 张艳霞, 等. 丁胺包裹的CdSe量子点敏化的TiO2纳米晶薄膜电子转移机制[J]. 中国光学(中英文), 2015, 8(3): 428-438. doi: 10.3788/co.20150803.0428LI ZH SH, YUE Y Y, ZHANG Y X, et al. Electron transfer mechanism of butylamine-capped CdSe quantum dot sensitized nanocrystalline TiO2 films[J]. Chinese Optics, 2015, 8(3): 428-438. (in Chinese). doi: 10.3788/co.20150803.0428 [21] 蔡俊虎, 王晨辉, 胡新培, 等. CdSe/CdS量子点聚合物复合材料的水致荧光可逆特性[J]. 发光学报, 2022, 43(5): 714-724. doi: 10.37188/CJL.20210401CAI J H, WANG CH H, HU X P, et al. Water-driven photoluminescence reversibility in CdSe/CdS quantum dots polymer composite[J]. Chinese Journal of Luminescence, 2022, 43(5): 714-724. (in Chinese). doi: 10.37188/CJL.20210401 [22] KUMAR K, LIU Q, HILLER J, et al. Fast, infrared-active optical transistors based on dye-sensitized CdSe nanocrystals[J]. ACS Applied Materials & Interfaces, 2019, 11(51): 48271-48280. doi: 10.1021/acsami.9b18236 [23] HAN P P, DU T L, YANG X W, et al. Optical activity and excitonic characteristics of chiral CdSe quantum dots[J]. The Journal of Physical Chemistry Letters, 2024, 15(12): 3249-3257. doi: 10.1021/acs.jpclett.3c03554 [24] HOU L L, OLESUND A, THURAKKAL S, et al. Efficient visible-to-UV photon upconversion systems based on CdS nanocrystals modified with triplet energy mediators[J]. Advanced Functional Materials, 2021, 31(47): 2106198. doi: 10.1002/adfm.202106198 [25] LIU J Y, ZHANG SH, XI L, et al. Powering molecular motors with light across the rainbow using quantum dots[J]. Journal of the American Chemical Society, 2025, 147(39): 35255-35263. doi: 10.1021/jacs.5c05548 [26] MONGIN C, GARAKYARAGHI S, RAZGONIAEVA N, et al. Direct observation of triplet energy transfer from semiconductor nanocrystals[J]. Science, 2016, 351(6271): 369-372. doi: 10.1126/science.aad6378 [27] JEONG D W, PARK T H, LEE J H, et al. Efficient addition of desired carboxylate ligands to CdSe quantum dots passivated with phosphonic acids[J]. The Journal of Physical Chemistry C, 2021, 125(41): 22929-22936. doi: 10.1021/acs.jpcc.1c07371 [28] CARBONE L, NOBILE C, DE GIORGI M, et al. Synthesis and micrometer-scale assembly of colloidal CdSe/CdS nanorods prepared by a seeded growth approach[J]. Nano Letters, 2007, 7(10): 2942-2950. doi: 10.1021/nl0717661 [29] YU W W, WANG Y A, PENG X G. Formation and stability of size-, shape-, and structure-controlled CdTe nanocrystals: ligand effects on monomers and nanocrystals[J]. Chemistry of Materials, 2003, 15(22): 4300-4308. doi: 10.1021/cm034729t [30] 王佳彤, 黄启章, 高剑峤, 等. CdSe量子点滤光片尺寸、温度依赖的光学特性[J]. 中国光学, 2021, 14(1): 163-169.WANG J T, HUANG Q ZH, GAO J Q, et al. Size and temperature dependence of spectral transmittance for CdSe colloidal quantum dot film filters[J]. Chinese Optics, 2021, 14(1): 163-169. (in Chinese). [31] SOWERS K L, SWARTZ B, KRAUSS T D. Chemical mechanisms of semiconductor nanocrystal synthesis[J]. Chemistry of Materials, 2013, 25(8): 1351-1362. doi: 10.1021/cm400005c [32] WUISTER S F, VAN DRIEL F, MEIJERINK A. Luminescence and growth of CdTe quantum dots and clusters[J]. ChemInform, 2003, 34(23): 1253-1258. (查阅网上资料, 未找到对应的页码信息, 请确认补充). [33] PENG Z A, PENG X G. Formation of high-quality CdTe, CdSe, and CdS nanocrystals using CdO as precursor[J]. Journal of the American Chemical Society, 2001, 123(1): 183-184. doi: 10.1021/ja003633m [34] OWEN J S, CHAN E M, LIU H T, et al. Precursor conversion kinetics and the nucleation of cadmium selenide nanocrystals[J]. Journal of the American Chemical Society, 2010, 132(51): 18206-18213. doi: 10.1021/ja106777j [35] MURRAY C B, NORRIS D J, BAWENDI M G. Synthesis and characterization of nearly monodisperse CdE (E = sulfur, selenium, tellurium) semiconductor nanocrystallites[J]. Journal of the American Chemical Society, 1993, 115(19): 8706-8715. doi: 10.1021/ja00072a025 [36] GERVAIS T, JENSEN K F. Mass transport and surface reactions in microfluidic systems[J]. Chemical Engineering Science, 2006, 61(4): 1102-1121. doi: 10.1016/j.ces.2005.06.024 [37] SHESTOPALOV I, TICE J D, ISMAGILOV R F. Multi-step synthesis of nanoparticles performed on millisecond time scale in a microfluidic droplet-based system[J]. Lab on a Chip, 2004, 4(4): 316-321. doi: 10.1039/b403378g [38] BHAND G R, CHAURE N B. Synthesis of CdTe, CdSe and CdTe/CdSe core/shell QDs from wet chemical colloidal method[J]. Materials Science in Semiconductor Processing, 2017, 68: 279-287. doi: 10.1016/j.mssp.2017.06.033 [39] OSWALD S. X-Ray Photoelectron Spectroscopy in Analysis of Surfaces[M]. Hoboken: John Wiley & Sons, 2013. -
