双功能超表面成像处理器
-
摘要:
光学图像处理具有运算速度快、可并行操作等优势。本研究设计了一种单层超表面结构，用于实现图像光学成像与边缘检测功能。该双功能图像处理无需借助4F系统，仅通过改变入射圆偏振光的手性即可实现切换。所设计的超表面由硅纳米柱构成，优化后的硅纳米柱可等效为透过率达87%的半波片。仿真与实验结果验证了超表面的性能表现。这种集成式光学超表面不仅简化了图像处理系统，更为超表面在并行图像处理与光学集成领域的应用开辟了新路径。
Abstract:Optical image processing has the advantages of fast and parallel operation. One single-layered metasurface is designed to implement the optical imaging and edge detection of image. The dual-functional image processing is conducted without the aid of 4f system and it is switched only by the handedness of incident circularly polarized light. The designed metasurface consists of silicon nanopillars and the optimized nanopillars are equivalent to half-wave plates with the transmittance of 87%. The simulation and experimental results verify the performance of metasurface. The integrated optical metasurface enables the extremely simple image processing system and it paves the way for the applications of metasurfaces in parallel image processing and optical integrating.
-
Key words:
- Metasurface /
- Optical imaging /
- Edge detection of image /
- Optical image processing
-

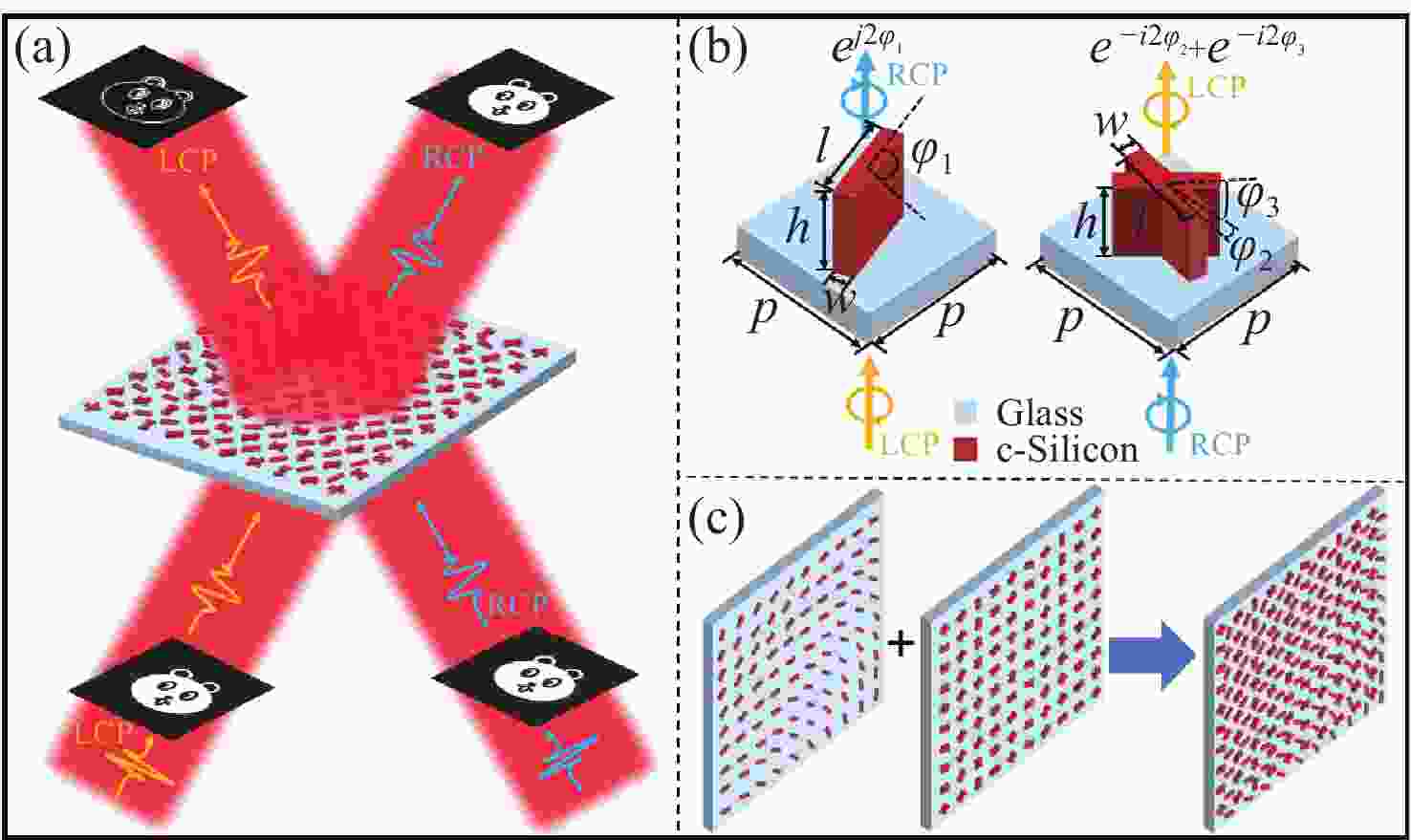

Figure 1. Schematic diagram of metasurface image processing (a), structure parameters of diatoms (b), and metasurface consisting of two interlaced nanostructures (c)

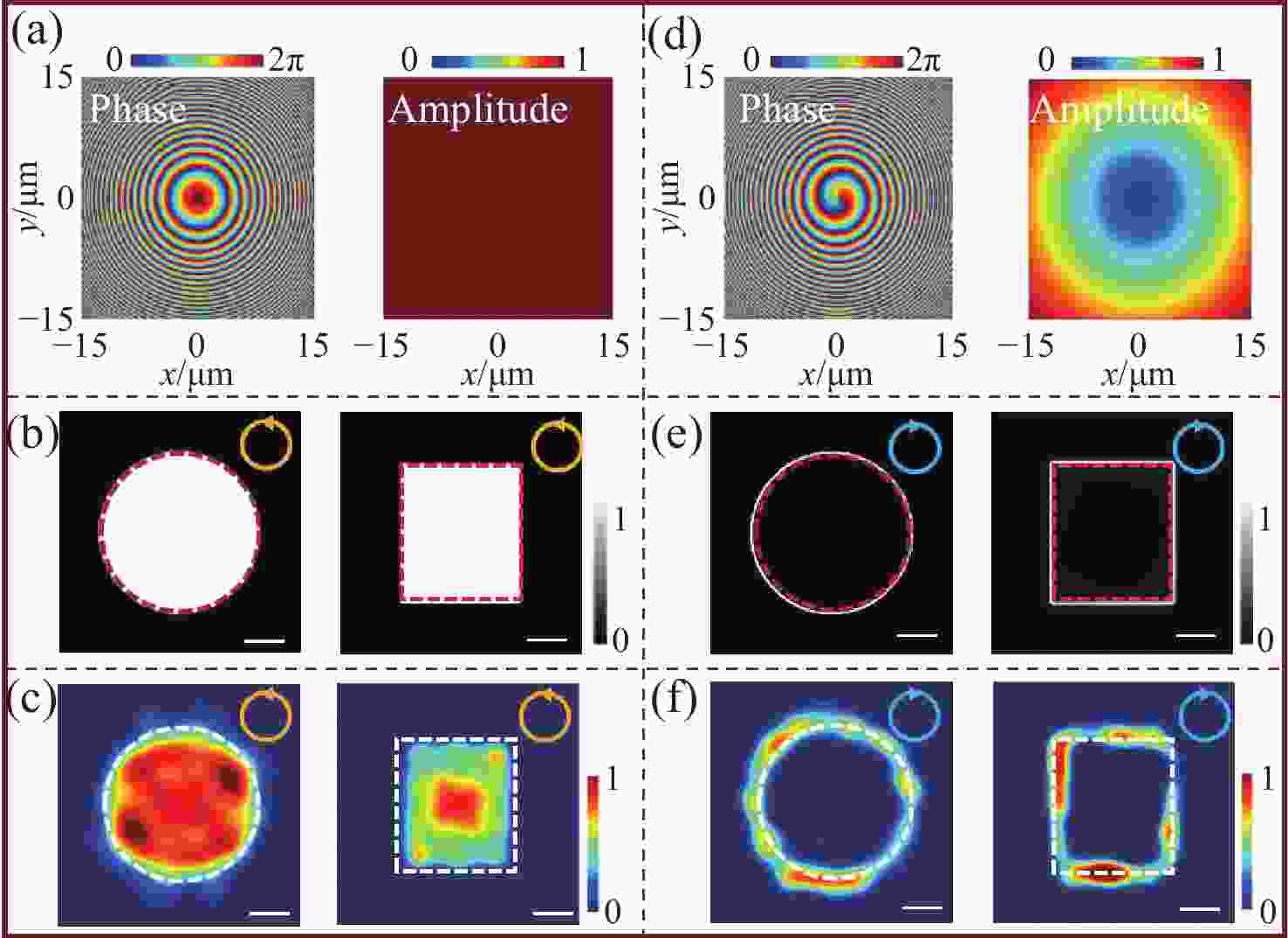

Figure 2. Amplitude and phase distributions of metasurface for optical imaging (a) and edge detecting (d), theoretical (b, e) and simulated (c, f) imaging (b, c) and edge detection (e, f) of two objects, where the inserted scale bars denote 1μm.

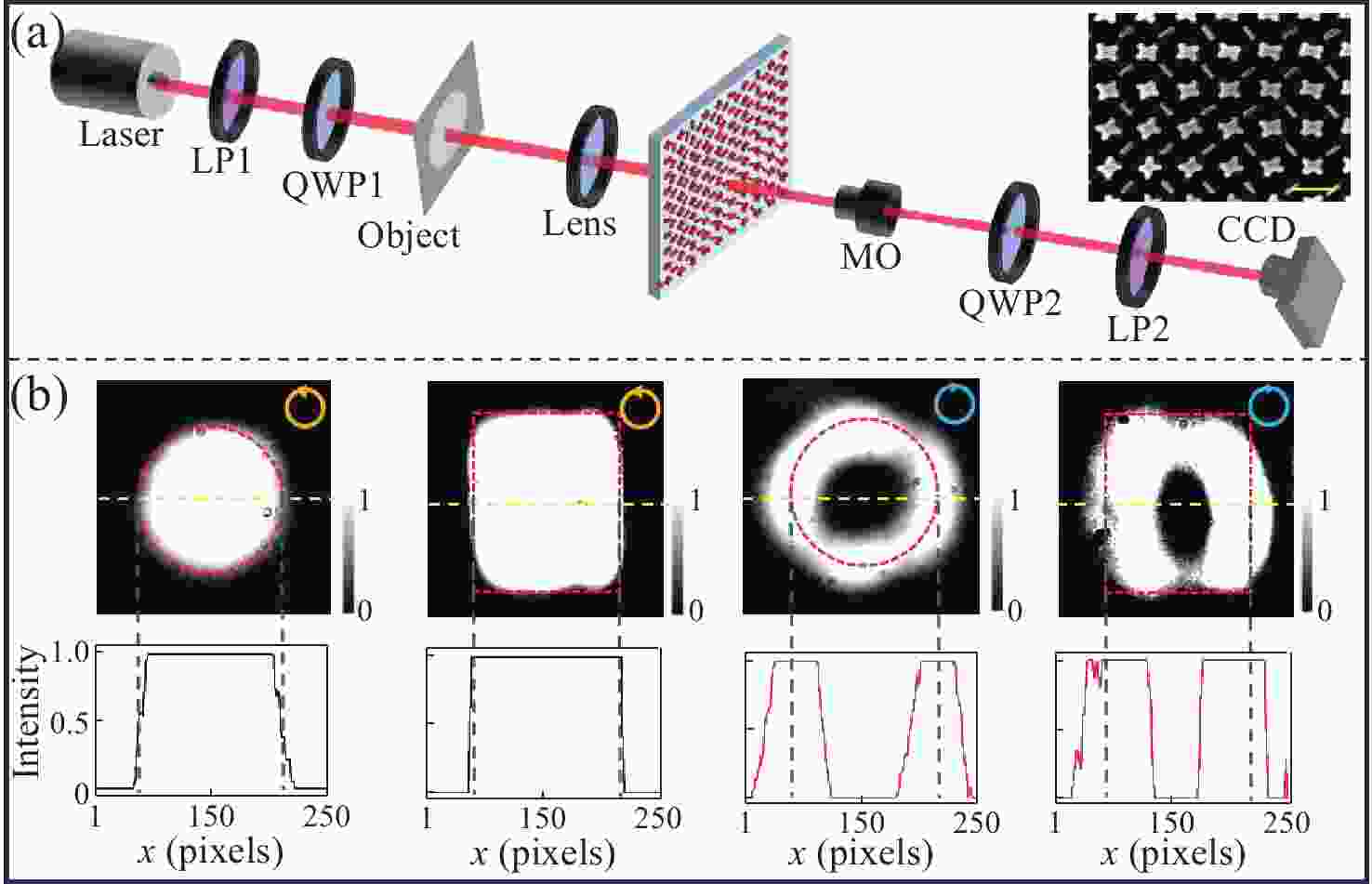

Figure 3. Schematic diagram for the experiment setup and SEM image of sample (a), the measured one- and two-dimensional diffraction intensity distributions with objects illuminated by LCP and RCP light illumination (b)
-
[1] HE CH, LI SH L, XIONG D H, et al. Remote sensing image semantic segmentation based on edge information guidance[J]. Remote Sensing, 2020, 12(9): 1501. doi: 10.3390/rs12091501 [2] CHAKARESKI J. Viewport-adaptive scalable multi-user virtual reality mobile-edge streaming[J]. IEEE Transactions on Image Processing, 2020, 29: 6330-6342. [3] LIANG S Y, WU H, ZHEN L, et al. Edge YOLO: real-time intelligent object detection system based on edge-cloud cooperation in autonomous vehicles[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(12): 25345-25360. doi: 10.1109/TITS.2022.3158253 [4] CHERRI A K, KARIM M A. Optical symbolic substitution: edge detection using Prewitt, Sobel, and Roberts operators[J]. Applied Optics, 1989, 28(21): 4644-4648. doi: 10.1364/AO.28.004644 [5] HE SH SH, ZHOU J X, CHEN SH ZH, et al. Spatial differential operation and edge detection based on the geometric spin Hall effect of light[J]. Optics Letters, 2020, 45(4): 877-880. doi: 10.1364/OL.386224 [6] XU D Y, HE SH SH, ZHOU J X, et al. Optical analog computing of two-dimensional spatial differentiation based on the Brewster effect[J]. Optics Letters, 2020, 45(24): 6867-6870. doi: 10.1364/OL.413104 [7] XU D Y, HE SH SH, ZHOU J X, et al. Goos-Hänchen effect enabled optical differential operation and image edge detection[J]. Applied Physics Letters, 2020, 116(21): 211103. doi: 10.1063/5.0006483 [8] JIN CH Q, YANG Y M. Transmissive nonlocal multilayer thin film optical filter for image differentiation[J]. Nanophotonics, 2021, 10(13): 3519-3525. doi: 10.1515/nanoph-2021-0313 [9] MA Y G, GAO Y B. Metasurfaces: design principles and application challenges (invited)[J]. Chinese Journal of Lasers, 2024, 51(1): 0103001. (in Chinese). doi: 10.3788/CJL231405 [10] ZHANG Q, WANG H, LIU L X, et al. Generation of vector beams using spatial variation nanoslits with linearly polarized light illumination[J]. Optics Express, 2018, 26(18): 24145-24153. doi: 10.1364/OE.26.024145 [11] TENG SH Y, ZHANG Q, WANG H, et al. Conversion between polarization states based on a metasurface[J]. Photonics Research, 2019, 7(3): 246-250. doi: 10.1364/PRJ.7.000246 [12] JIANG X Q, WU R, JIANG K, et al. Phase compensation enables the generation of near-field perfect structured light[J]. Optics Letters, 2025, 50(14): 4574-4577. doi: 10.1364/OL.562378 [13] MOU ZH, ZHOU CH D, LU P Y, et al. Structured vortices generated by metasurface holography[J]. Photonics Research, 2021, 9(10): 2125-2131. doi: 10.1364/PRJ.427745 [14] XU J L, YUE ZH Y, LU P Y, et al. Wavelength and polarization dual-multiplexed imaging based on holographic metasurfaces[J]. Chinese Optics Letters, 2023, 21(10): 100501. doi: 10.3788/COL202321.100501 [15] CHEN Q K, ZHOU J CH, PIAN S J, et al. Hybrid meta-optics enabled compact augmented reality display with computational image reinforcement[J]. ACS Photonics, 2024, 11(9): 3794-3803. doi: 10.1021/acsphotonics.4c00989 [16] LI Q Y, YANG H, WANG Y, et al. Surface topography detection based on an optical differential metasurface[J]. Optics Letters, 2023, 48(18): 4801-4804. doi: 10.1364/OL.497090 [17] HUO P CH, ZHANG CH, ZHU W Q, et al. Photonic spin-multiplexing metasurface for switchable spiral phase contrast imaging[J]. Nano Letters, 2020, 20(4): 2791-2798. doi: 10.1021/acs.nanolett.0c00471 [18] TANRIOVER I, DERESHGI S A, AYDIN K. Metasurface enabled broadband all optical edge detection in visible frequencies[J]. Nature Communications, 2023, 14(1): 6484. doi: 10.1038/s41467-023-42271-w [19] FU W W, ZHAO D, LI Z Q, et al. Ultracompact meta-imagers for arbitrary all-optical convolution[J]. Light: Science & Applications, 2022, 11(1): 62. [20] ZHOU J X, ZHAO J X, WU Q Y, et al. Nonlinear computational edge detection metalens[J]. Advanced Functional Materials, 2022, 32(34): 2204734. doi: 10.1002/adfm.202204734 [21] KIM Y, LEE G Y, SUNG J, et al. Spiral metalens for phase contrast imaging[J]. Advanced Functional Materials, 2022, 32(5): 2106050. doi: 10.1002/adfm.202106050 [22] GUO CH SH, HAN Y J, XU J B, et al. Radial Hilbert transform with Laguerre-Gaussian spatial filters[J]. Optics Letters, 2006, 31(10): 1394-1396. doi: 10.1364/OL.31.001394 [23] WU R, JIANG K, JIANG X Q, et al. Metasurface-based circular polarizer with a controllable phase and its application in holographic imaging[J]. Optics Letters, 2024, 49(3): 774-777. doi: 10.1364/OL.511135 [24] CHEN Q K, GAO Y B, PIAN S J, et al. Theory and fundamental limit of quasiachromatic metalens by phase delay extension[J]. Physical Review Letters, 2023, 131(19): 193801. doi: 10.1103/PhysRevLett.131.193801 -
