| Citation: | XU Shou-long, WANG Zhi-lin, HUANG You-Jun, LI Qing-Xin, ZOU Shu-liang. Ionizing particle discrimination and extraction based on morphological imaging features[J]. Chinese Optics. doi: 10.37188/CO.2025-0134
|

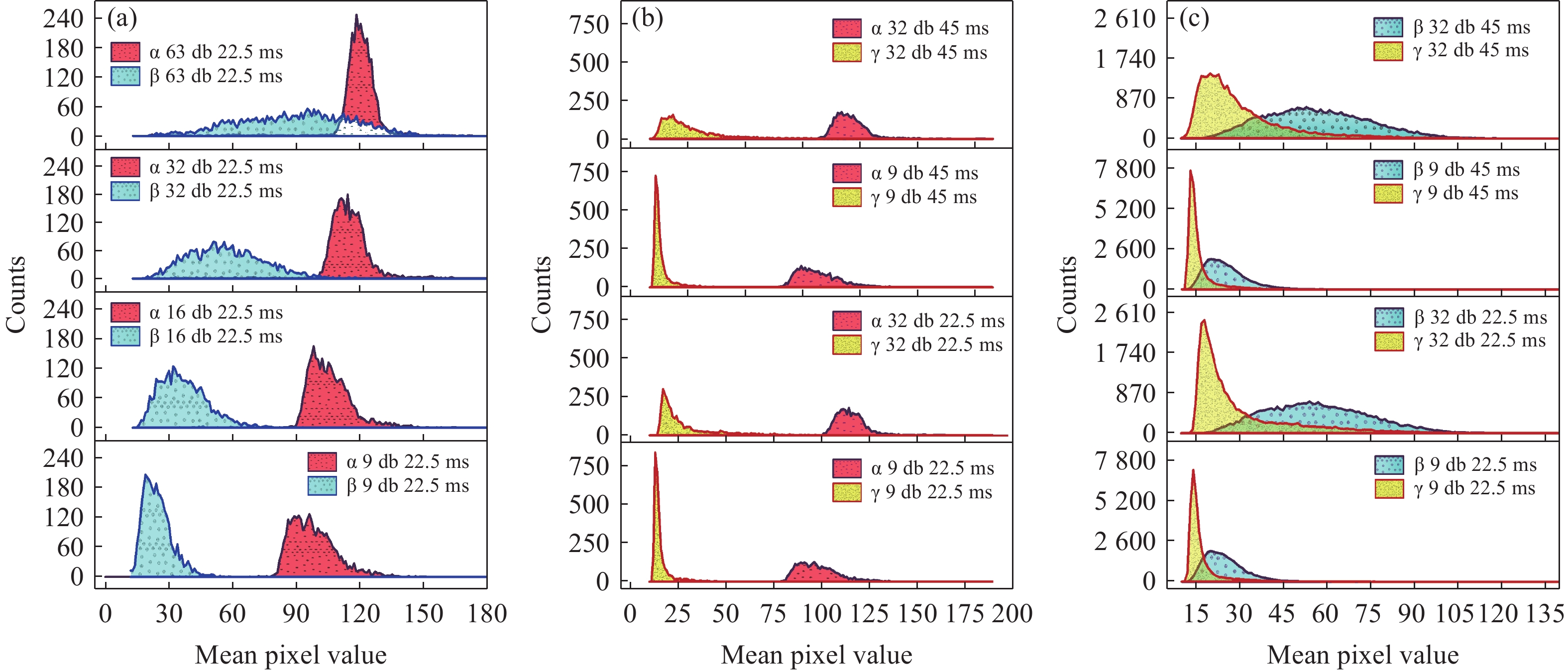

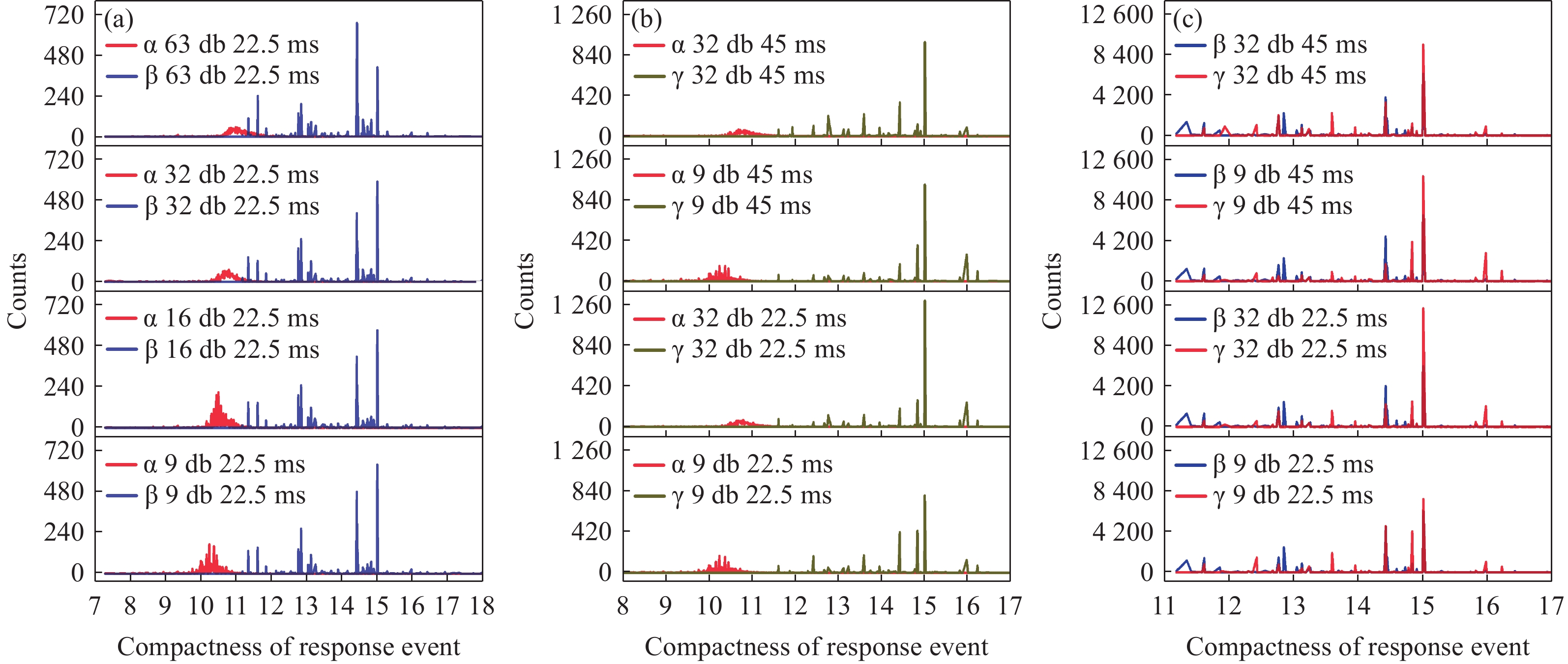

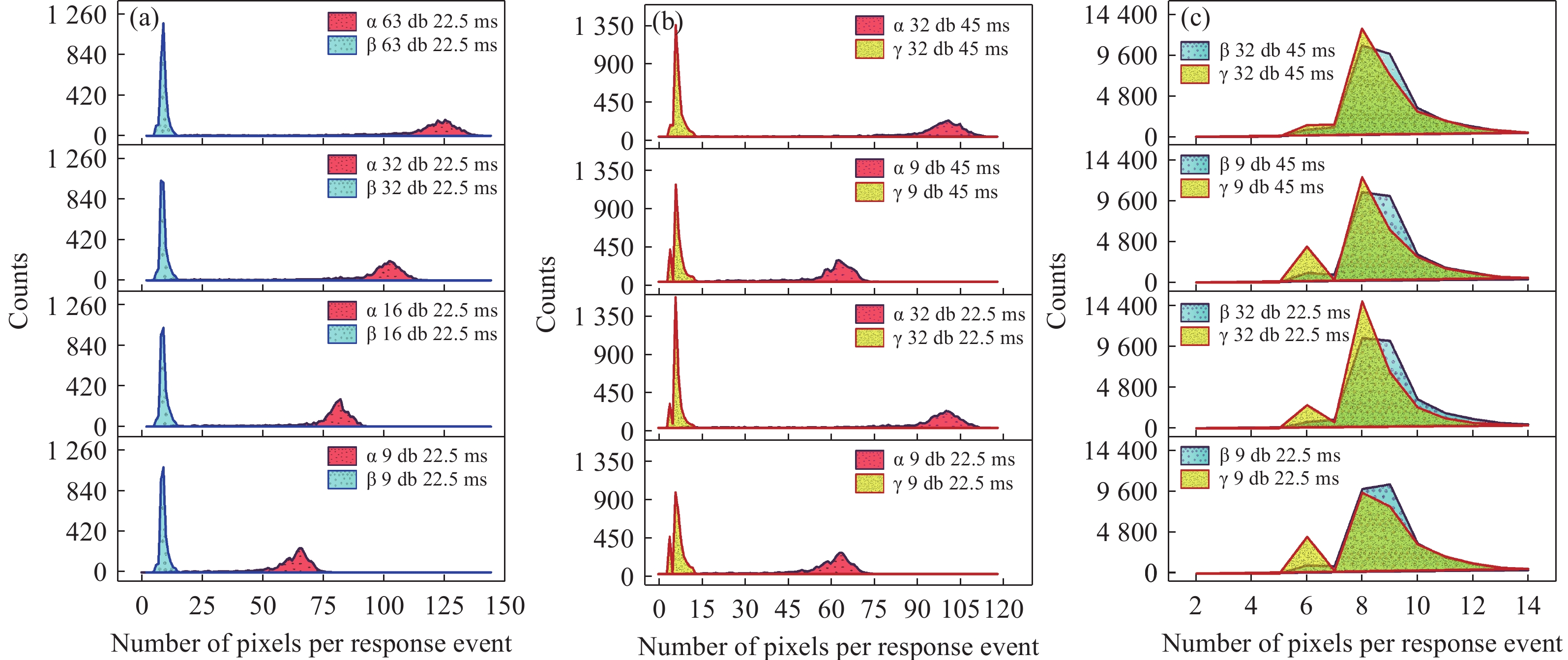

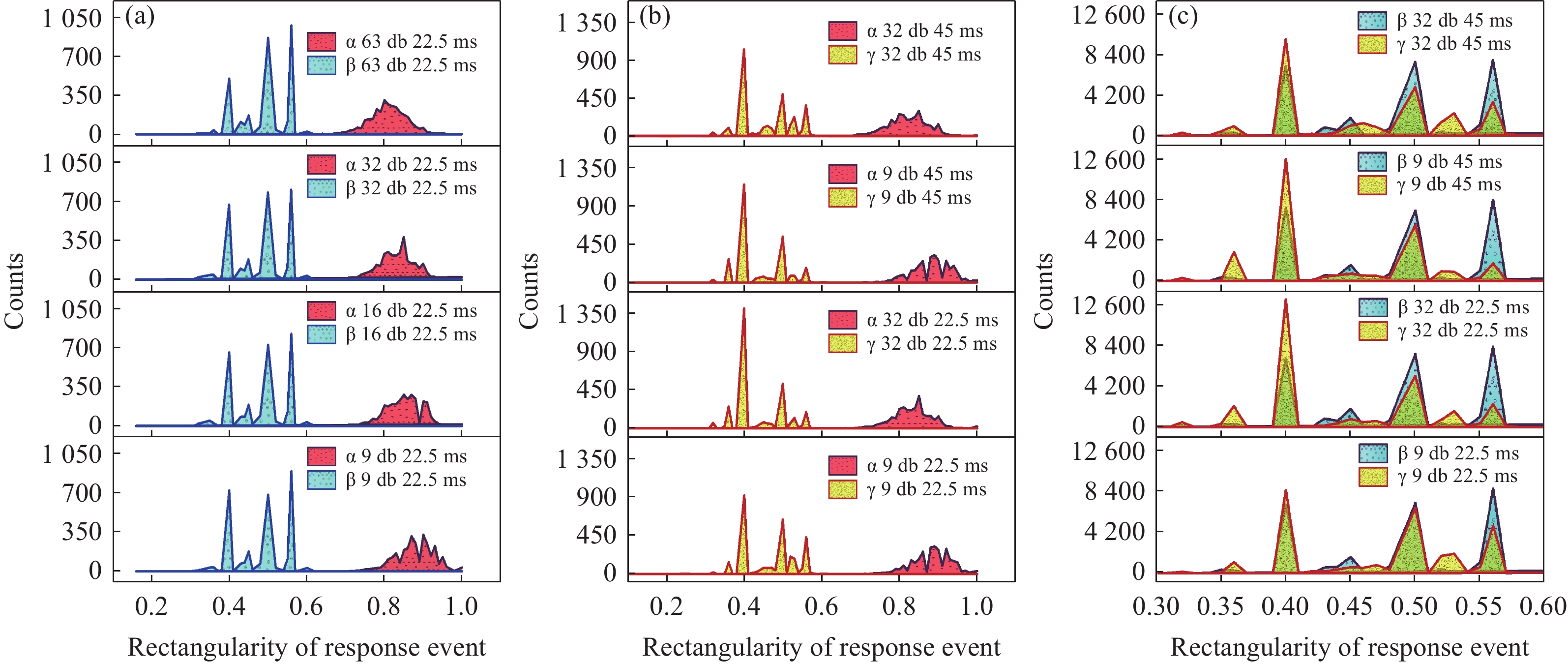

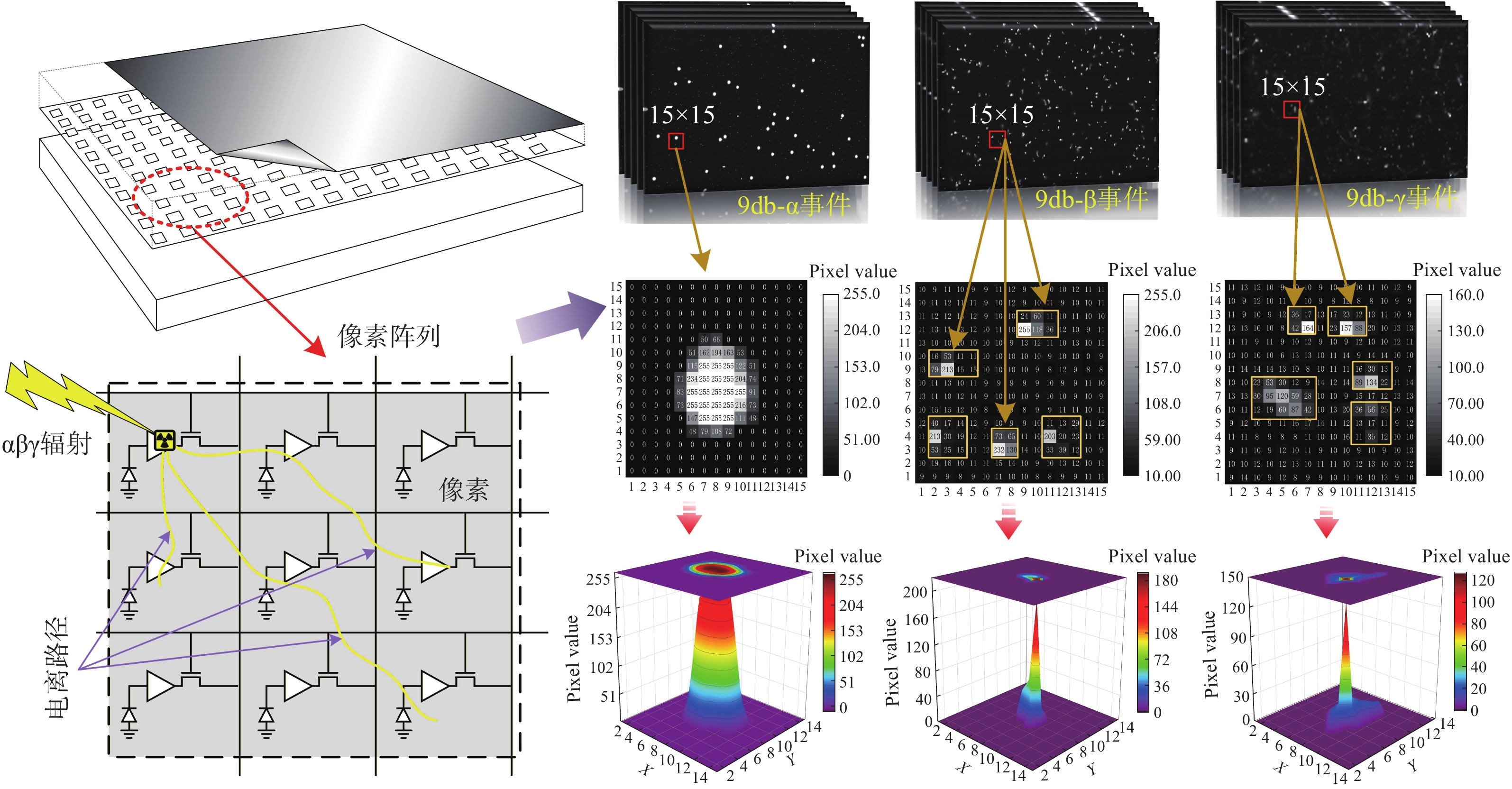

To reduce pulse pile-up and improve ionizing particle discrimination efficiency. We use a CMOS active pixel sensor to analyze ionizing particle optical responses and propose morphology-based discrimination. Pry comparing the characteristics of response events of different ionizing particles, the regulating mechanisms influenced by gain and integration time are elucidated, and the discrimination effectiveness is verified. Results show α events differ significantly from β and γ events in pixel count, mean pixel value, rectangularity, convexity, and compactness. β and γ events are similar in pixel count, rectangularity, and convexity, but differ in mean pixel value or compactness. Using pixel count, α events were identified with over 99% accuracy. β and γ events were discriminated by mean pixel value with over 82% accuracy. The results provide a new method and basis for ionizing particle identification in mixed radiation fields. It supports nuclear particle discrimination and noise mitigation, providing new approaches and theoretical guidance.
| [1] |
HADFIELD R H, LEACH J, FLEMING F, et al. Single-photon detection for long-range imaging and sensing[J]. Optica, 2023, 10(9): 1124-1141. doi: 10.1364/OPTICA.488853
|
| [2] |
DUTTON N A W, GYONGY I, PARMESAN L, et al. A SPAD-based QVGA image sensor for single-photon counting and quanta imaging[J]. IEEE Transactions on Electron Devices, 2016, 63(1): 189-196. doi: 10.1109/TED.2015.2464682
|
| [3] |
MADONINI F, SEVERINI F, ZAPPA F, et al. Single photon avalanche diode arrays for quantum imaging and microscopy[J]. Advanced Quantum Technologies, 2021, 4(7): 2100005. doi: 10.1002/qute.202100005
|
| [4] |
MA J J, ZHANG D X, ROBLEDO D, et al. Ultra-high-resolution quanta image sensor with reliable photon-number-resolving and high dynamic range capabilities[J]. Scientific Reports, 2022, 12(1): 13869. doi: 10.1038/s41598-022-17952-z
|
| [5] |
GUO X D, HE P, LV X J, et al. Material decomposition of spectral CT images via attention-based global convolutional generative adversarial network[J]. Nuclear Science and Techniques, 2023, 34(3): 45. doi: 10.1007/s41365-023-01184-5
|
| [6] |
YANG J ZH, LI M F, CHEN X X, et al. Single-photon quantum imaging via single-photon illumination[J]. Applied Physics Letters, 2020, 117(21): 214001. doi: 10.1063/5.0021214
|
| [7] |
CHENG Q Q, MA CH W, YUAN Y ZH, et al. X-ray detection based on complementary metal-oxide-semiconductor sensors[J]. Nuclear Science and Techniques, 2019, 30(1): 9. doi: 10.1007/s41365-018-0528-4
|
| [8] |
HE R, NIU X Y, WANG Y, et al. Advances in nuclear detection and readout techniques[J]. Nuclear Science and Techniques, 2023, 34(12): 205. doi: 10.1007/s41365-023-01359-0
|
| [9] |
CHAKRABORTY A, PARASHAR N, PANDEY D K, et al. Radiological complexity of nuclear facilities: an information complexity approach to workplace monitoring[J]. Journal of Radiological Protection, 2024, 44(2): 021511. doi: 10.1088/1361-6498/ad42a5
|
| [10] |
罗智文, 冯婕, 郭旗, 等. 质子辐照下动态星敏感器质心定位[J]. 光学 精密工程, 2025, 33(13): 2089-2107.
LUO ZH W, FENG J, GUO Q, et al. Centroid localization of dynamic star sensors under proton irradiation[J]. Optics and Precision Engineering, 2025, 33(13): 2089-2107. (in Chinese).
|
| [11] |
LUO D W, WU H Y, LI ZH H, et al. Performance of digital data acquisition system in gamma-ray spectroscopy[J]. Nuclear Science and Techniques, 2021, 32(8): 79. doi: 10.1007/s41365-021-00917-8
|
| [12] |
GU Z, PROUT D L, TASCHEREAU R, et al. A new pulse pileup rejection method based on position shift identification[J]. IEEE Transactions on Nuclear Science, 2016, 63(1): 22-29. doi: 10.1109/TNS.2015.2495169
|
| [13] |
LIU X H, LIU B Q, LIU M ZH, et al. An optimized SVR algorithm for pulse pile-up correction in pulse shape discrimination[J]. Sensors, 2024, 24(23): 7545. doi: 10.3390/s24237545
|
| [14] |
NEUBÜSER C, CORRADINO T, DALLA BETTA G F, et al. ARCADIA FD-MAPS: simulation, characterization and perspectives for high resolution timing applications[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2023, 1048: 167946. doi: 10.1016/j.nima.2022.167946
|
| [15] |
YOO S, PARK S, YUN S, et al. Impact of the fiber-optic faceplate on the imaging performance of a CMOS X-ray detector[J]. Journal of Instrumentation, 2024, 19(12): P12003. doi: 10.1088/1748-0221/19/12/P12003
|
| [16] |
ALMEIDA B D, AMARO F D, ANTONIETTI R, et al. Noise assessment of CMOS active pixel sensors for the CYGNO Experiment[J]. Measurement Science and Technology, 2023, 34(12): 125145. doi: 10.1088/1361-6501/acf7e1
|
| [17] |
刘塔拉, 任同阳, 于勇, 等. 地基大型光学望远镜大靶面相机成像电路设计[J]. 光学 精密工程, 2025, 33(21): 3373-3382. doi: 10.37188/OPE.20253321.3373
LIU T L, REN T Y, YU Y, et al. Design of imaging circuit for large-format camera of ground-based large optical telescope[J]. Optics and Precision Engineering, 2025, 33(21): 3373-3382. (in Chinese). doi: 10.37188/OPE.20253321.3373
|
| [18] |
ZHOU ZH, ZHOU SH Q, WANG D, et al. Low-noise and low-power pixel sensor chip for gas pixel detectors[J]. Nuclear Science and Techniques, 2024, 35(3): 58. doi: 10.1007/s41365-024-01418-0
|
| [19] |
LIU SH H, GAO C S, ZHANG X, et al. CMOS direct conversion X-ray detector coupled with fluorinated liquid[J]. Nuclear Science and Techniques, 2025, 36(1): 1. doi: 10.1007/s41365-024-01529-8
|
| [20] |
XU R, HSU C K, KALANI S, et al. Single-event upset responses of metal-oxide-metal capacitors and diodes used in bulk 65-nm CMOS analog circuits[J]. IEEE Transactions on Nuclear Science, 2020, 67(4): 698-707. doi: 10.1109/TNS.2020.2974229
|
| [21] |
HU M D, PADGETT F, MCCURDY M W, et al. Probing the single-event sensitivity of a COTS 3D-integrated imager with alpha particle irradiation[J]. IEEE Transactions on Nuclear Science, 2023, 70(4): 410-417. doi: 10.1109/TNS.2022.3222099
|
| [22] |
XU SH L, ZOU SH L, HAN Y C, et al. Study on the availability of 4T-APS as a video monitor and radiation detector in nuclear accidents[J]. Sustainability, 2018, 10(7): 2172. doi: 10.3390/su10072172
|
| [23] |
PÉREZ M, LIPOVETZKY J, HARO M S, et al. Particle detection and classification using commercial off the shelf CMOS image sensors[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2016, 827: 171-180. doi: 10.1016/j.nima.2016.04.072
|
| [24] |
BAR O, BIBRZYCKI Ł, NIEDŹWIECKI M, et al. Zernike moment based classification of cosmic ray candidate hits from CMOS sensors[J]. Sensors, 2021, 21(22): 7718. doi: 10.3390/s21227718
|
| [25] |
HARO M S, BESSIA F A, PÉREZ M, et al. Soft X-rays spectroscopy with a commercial CMOS image sensor at room temperature[J]. Radiation Physics and Chemistry, 2020, 167: 108354. doi: 10.1016/j.radphyschem.2019.108354
|
| [26] |
XUE Y Y, WANG Z J, MA W Y, et al. Comparison of displacement damage effects on the dark signal in CMOS image sensors induced by CSNS back-n and XAPR neutrons[J]. Nuclear Science and Techniques, 2024, 35(10): 169. doi: 10.1007/s41365-024-01513-2
|
| [27] |
LIU J, ZHOU ZH, WANG D, et al. Prototype of single-event effect localization system with CMOS pixel sensor[J]. Nuclear Science and Techniques, 2022, 33(11): 136. doi: 10.1007/s41365-022-01128-5
|
| [28] |
LIANG B, LIU J H, ZHANG X P, et al. Total ionizing dose effect modeling method for CMOS digital-integrated circuit[J]. Nuclear Science and Techniques, 2024, 35(2): 26. doi: 10.1007/s41365-024-01378-5
|
| [29] |
TIWARI M K, DIWAN J, SINGH S K, et al. Study of TID & dose rate effect of gamma radiation on COTS CMOS camera[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2025, 563: 165700. doi: 10.1016/j.nimb.2025.165700
|
| [30] |
任同群, 曹润嘏, 张国锐, 等. 星敏感器CMOS电路板靶面自动装调系统[J]. 光学 精密工程, 2024, 32(16): 2513-2522.
REN T Q, CAO R G, ZHANG G R, et al. Automatic assembly and adjustment system for target surface of CMOS circuit board of star sensor[J]. Optics and Precision Engineering, 2024, 32(16): 2513-2522.
|
| [31] |
YANG M Y, QIAN Y, PU T L, et al. Edims: an event-driven internal memory synchronized readout prototype ASIC chip developed for HFRS-TPC[J]. Nuclear Science and Techniques, 2023, 34(12): 196. doi: 10.1007/s41365-023-01341-w
|
| [32] |
INAGAKI Y, MATSUYA Y. A method for detecting timing of photodiode saturation without in-pixel TDC for high-dynamic-range CMOS image sensor[J]. IEICE Transactions on Electronics, 2021, E104. C(10): 607-616.
|
