| Citation: | SU Bo-hao, LIU Jian-li, WANG Wei, BAYANHESHIG. Design of a paraboloid-prism echelle spectrometer[J]. Chinese Optics, 2026, 19(2): 308-316. doi: 10.37188/CO.2025-0140
|

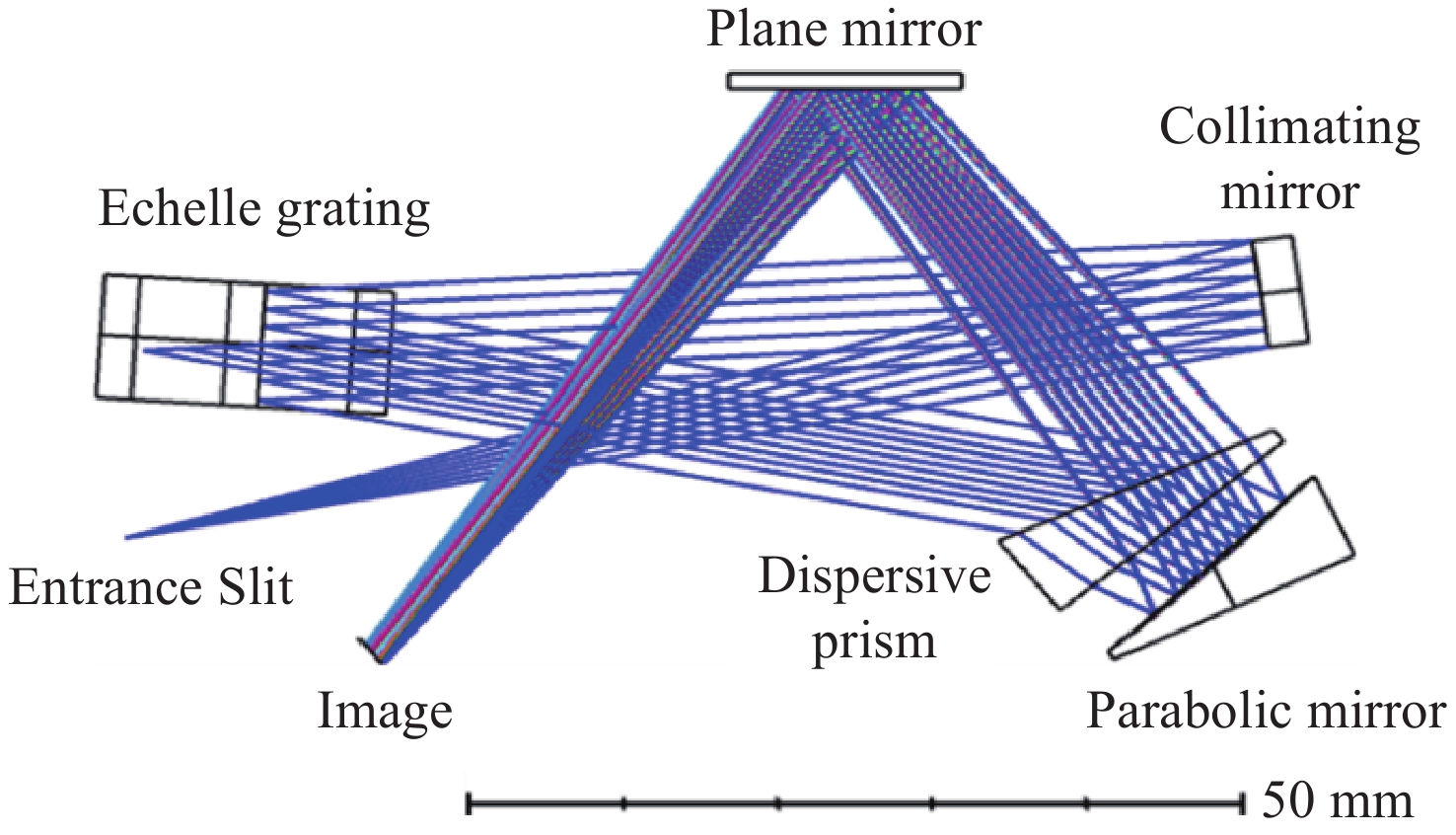

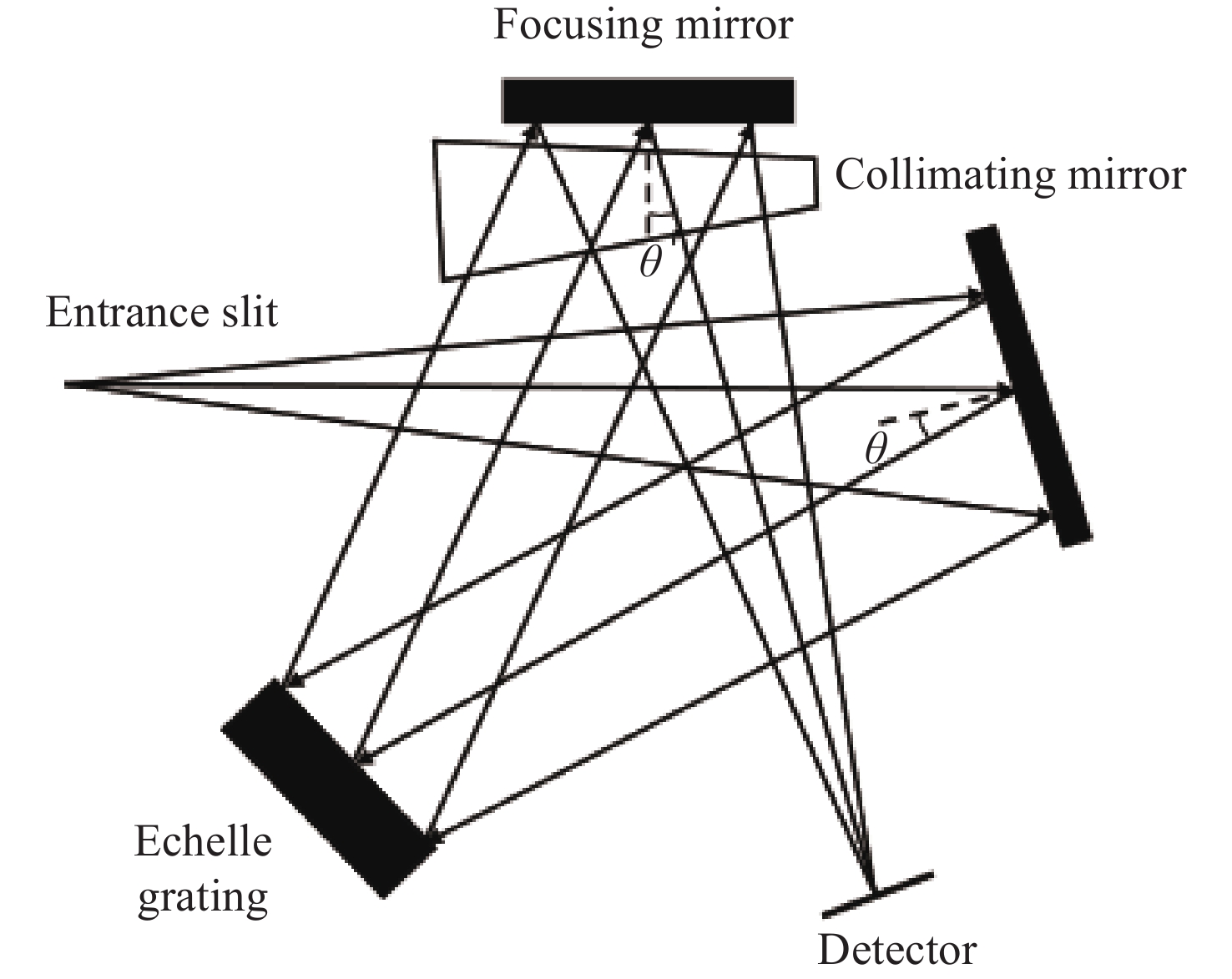

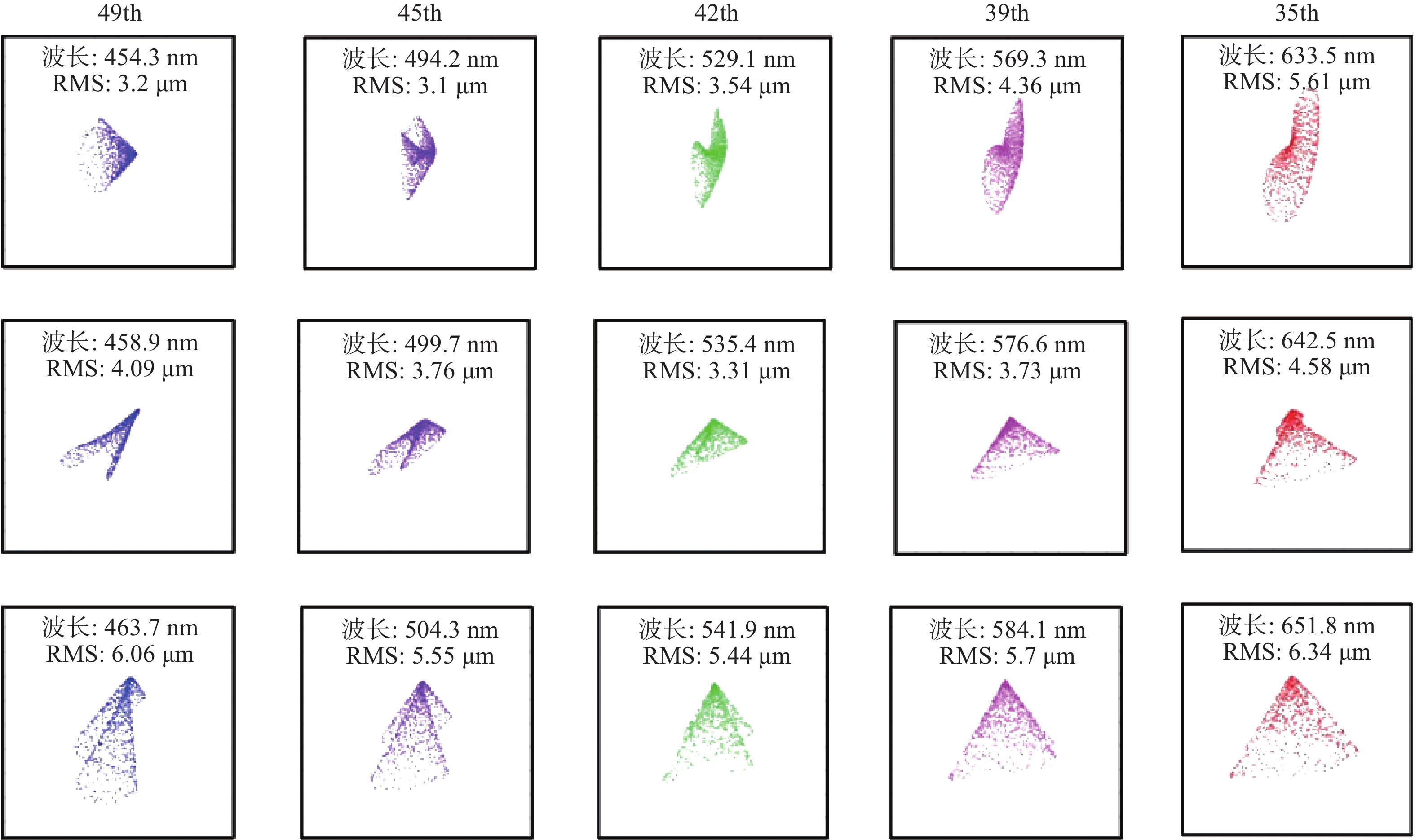

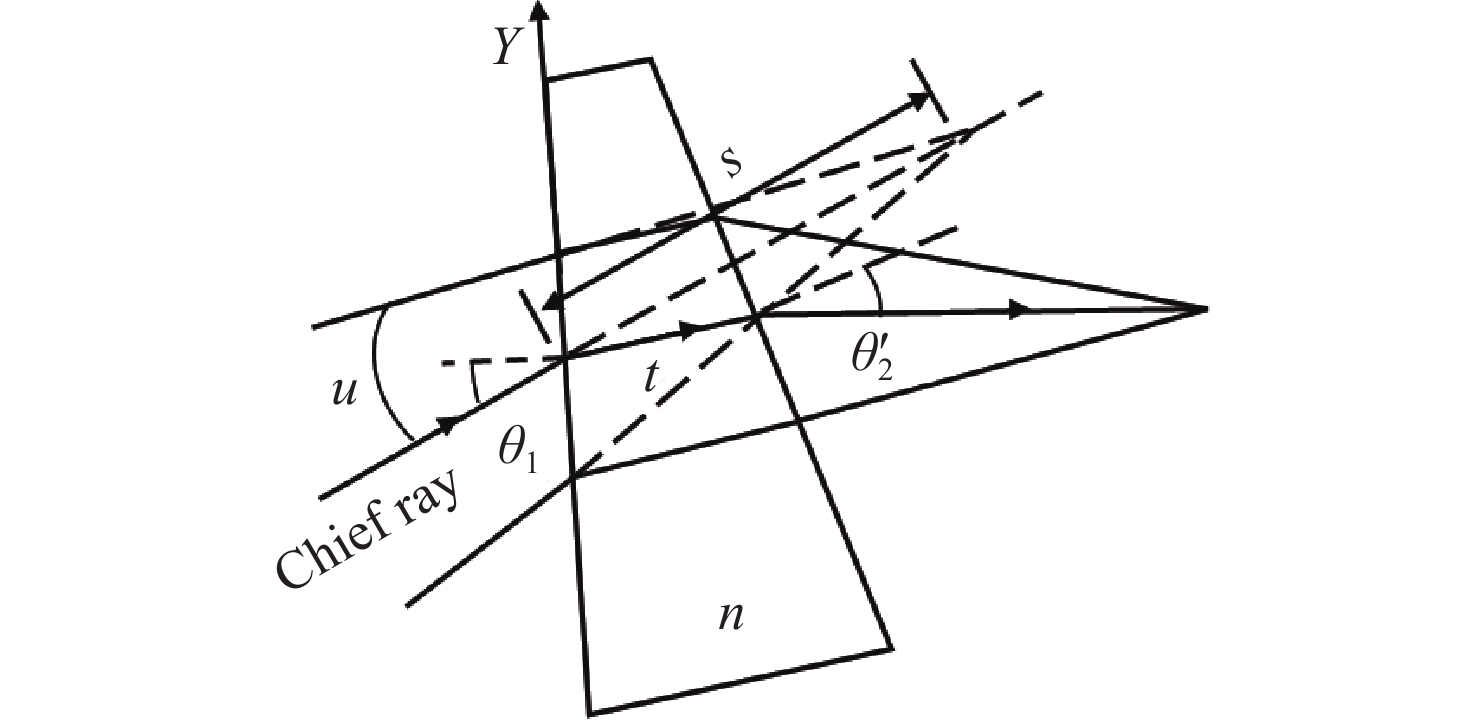

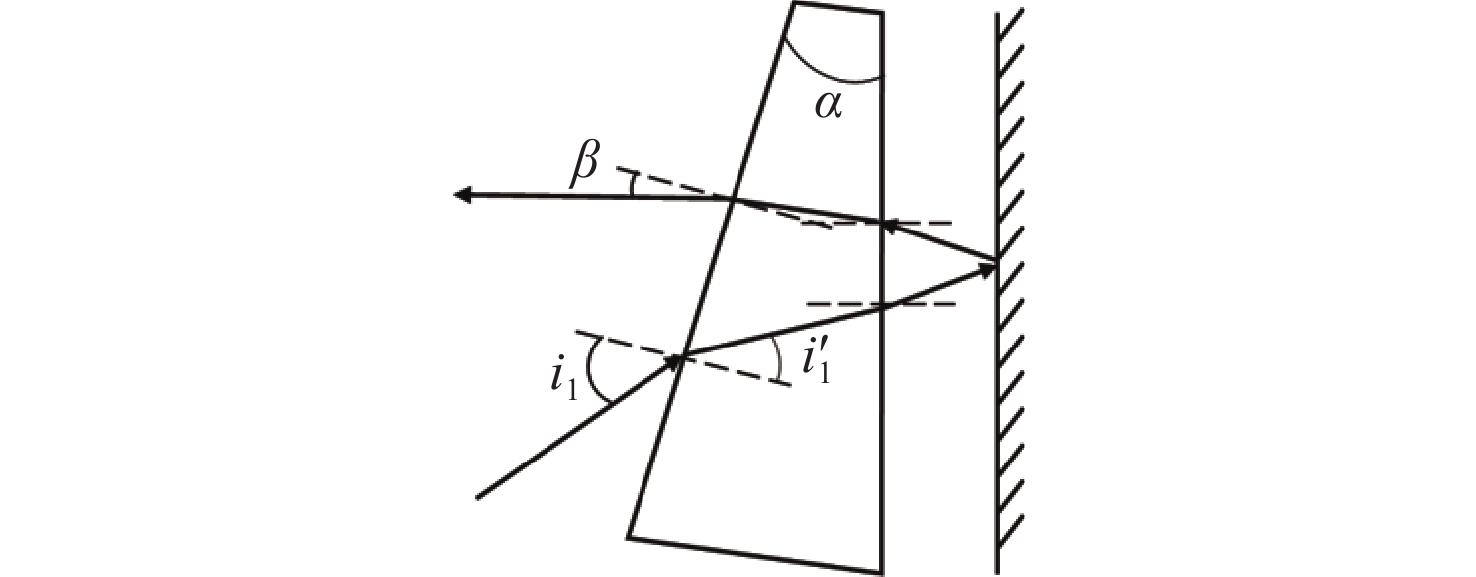

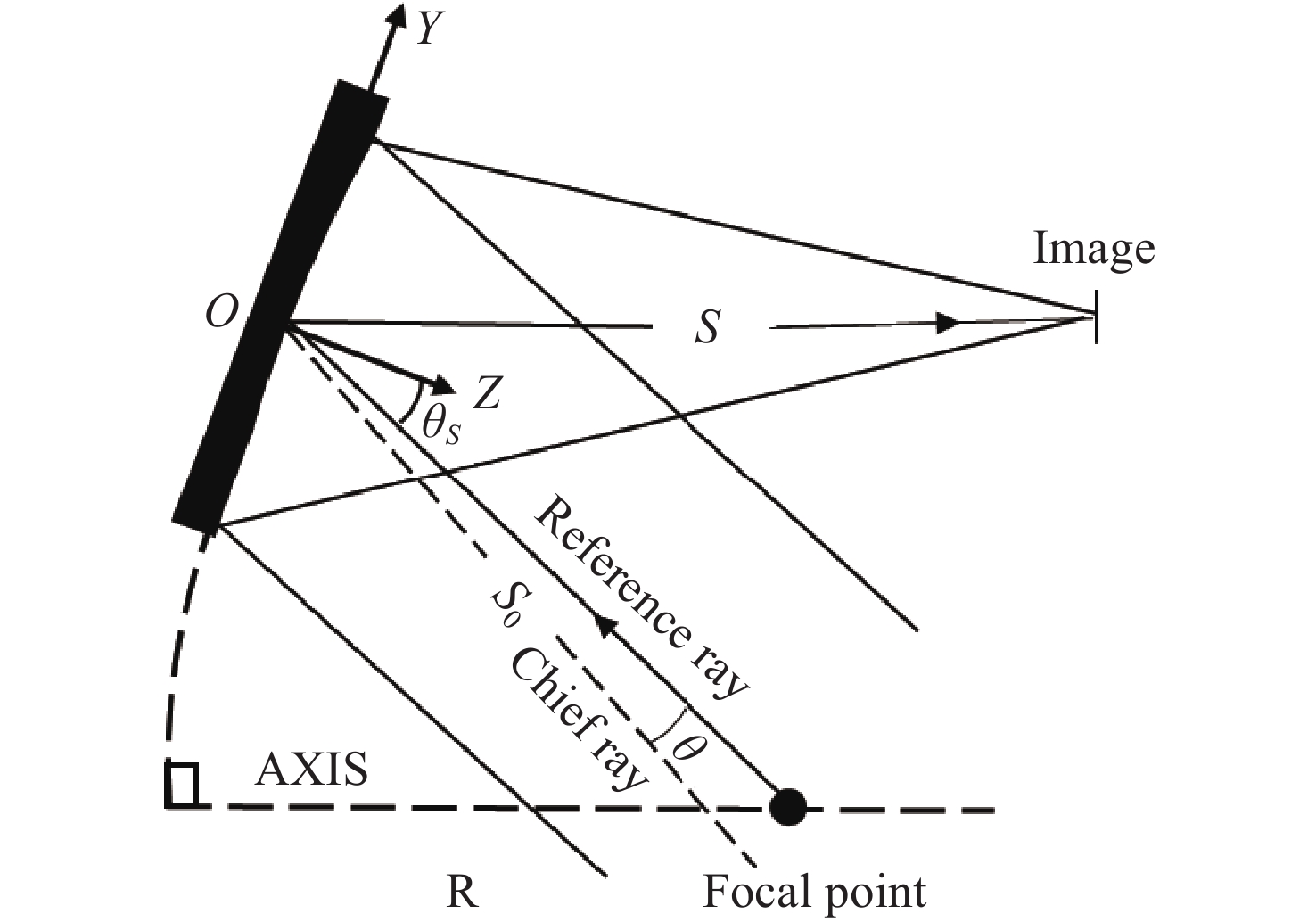

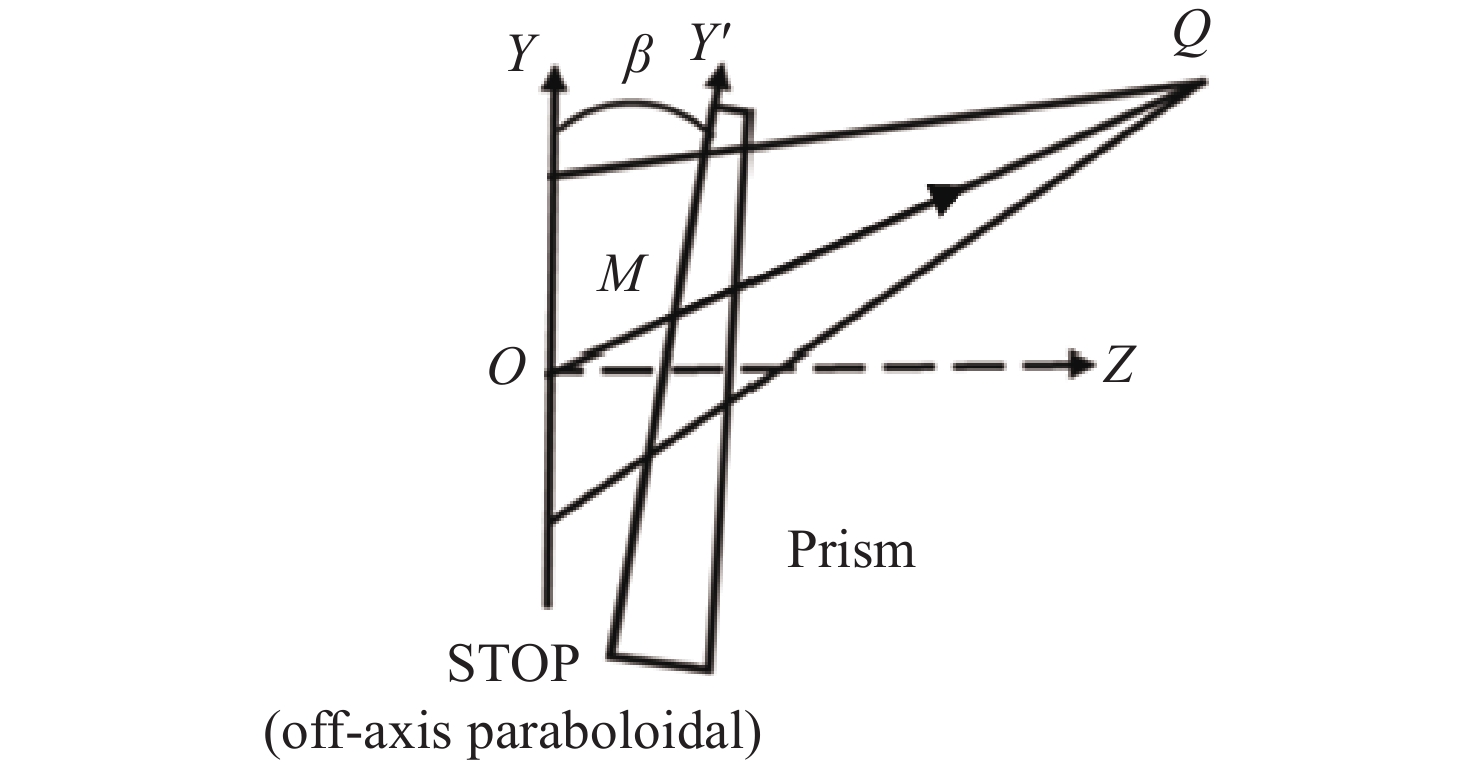

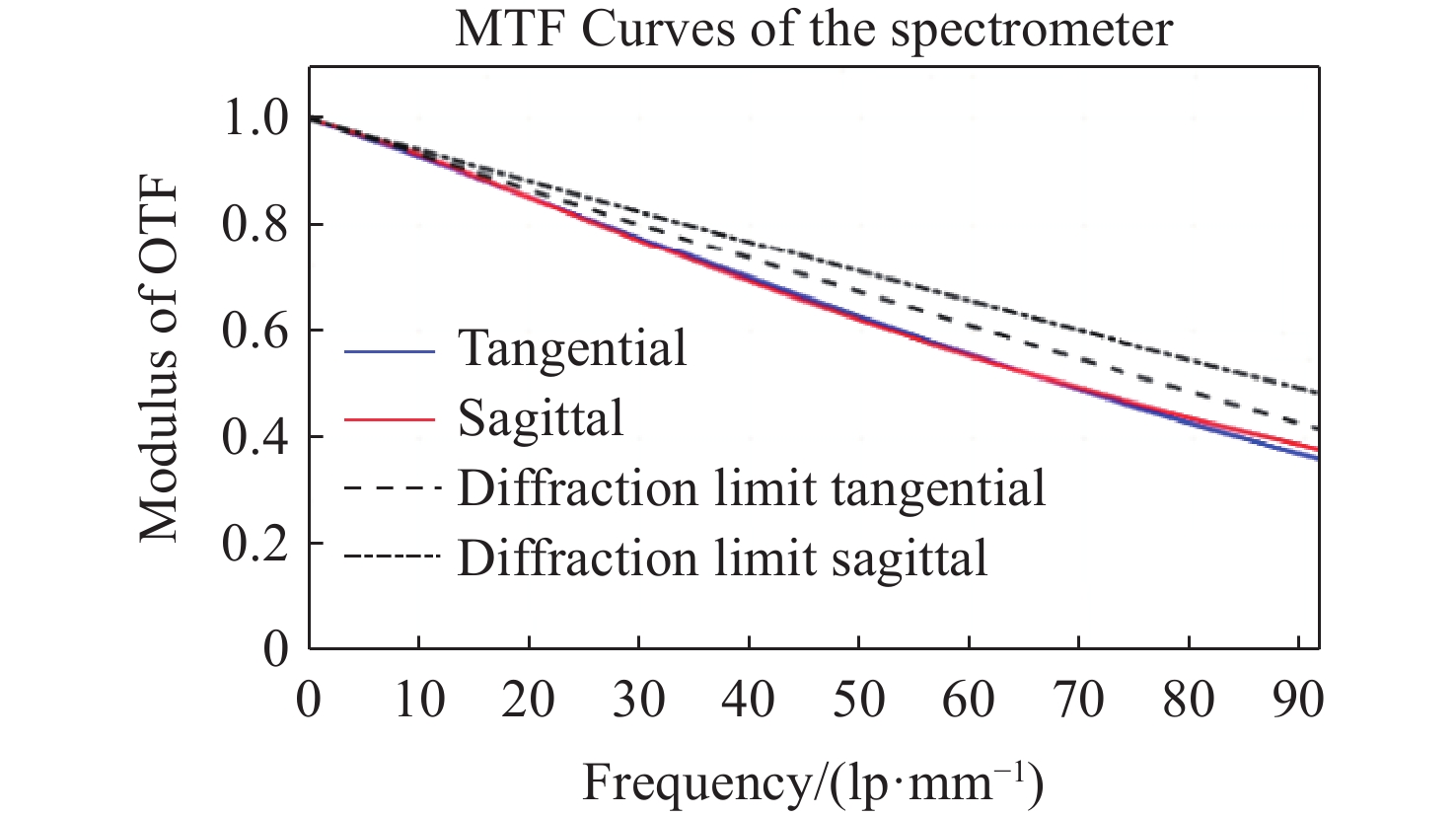

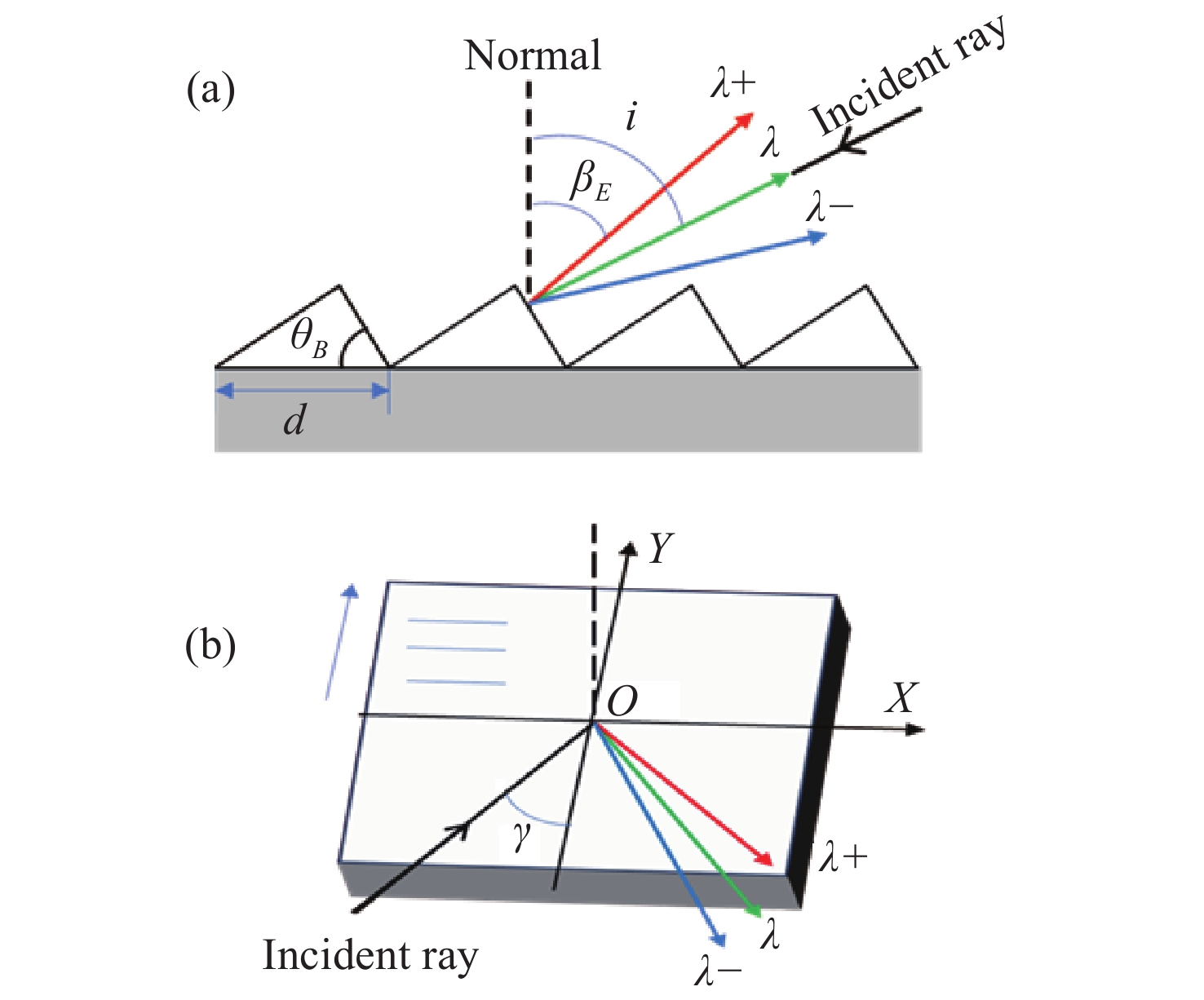

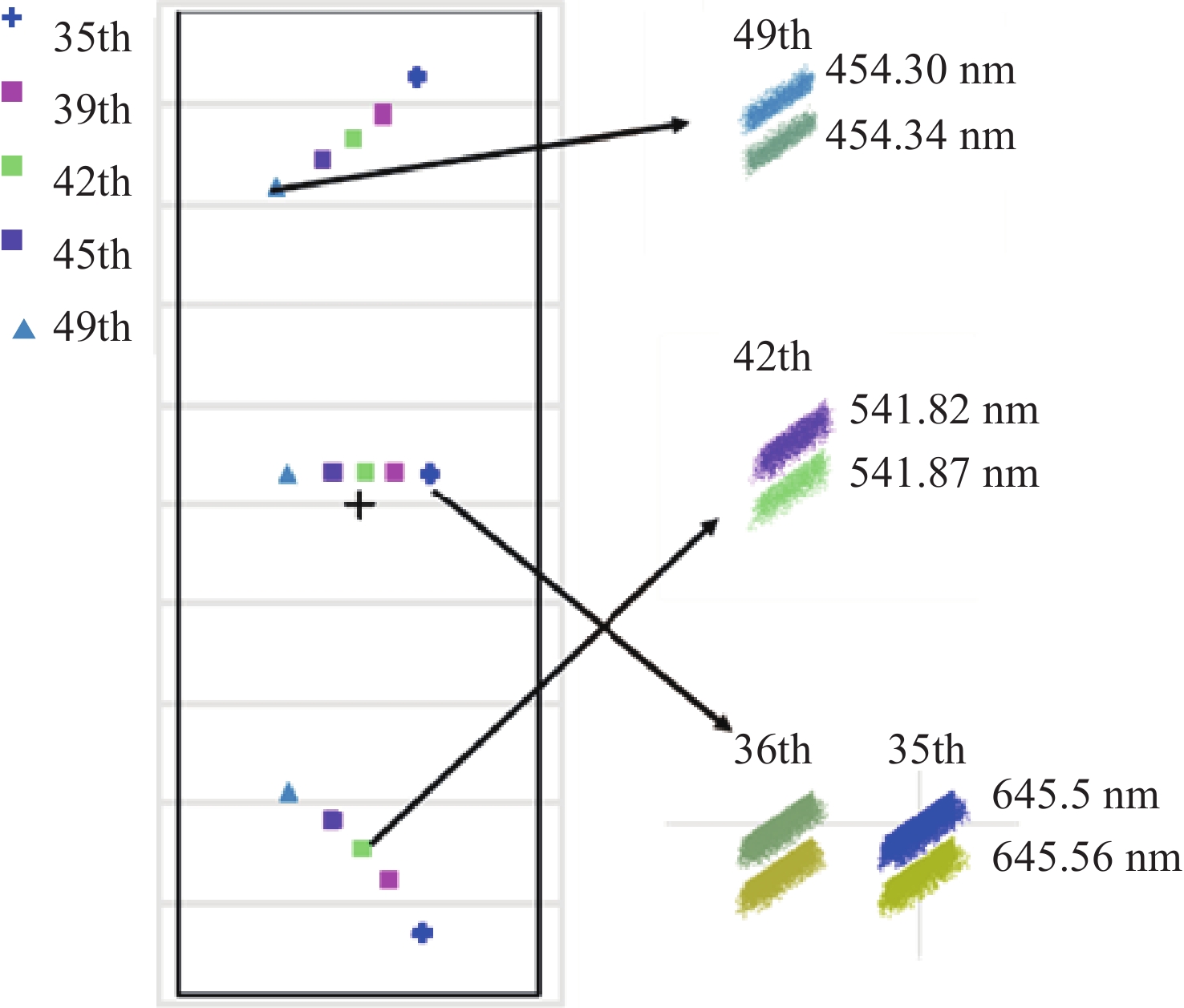

Aiming at the technical challenge of reconciling high resolution with miniaturization in traditional echelle spectrometers, this paper presents a novel optical design for a compact echelle spectrometer. First, based on the crossed Czerny-Turner structure, the design adopts a transmission prism as the cross-dispersing element to separate spectra with different orders and a reverse off-axis parabolic focusing mirror is primarily used to eliminate the aberrations introduced by the prism, thereby enabling the miniaturization of the spatial layout. In this paper, we briefly describe the design methods for echelle gratings and dispersive prisms. Additionally, the aberration characteristics of the focusing optical path are analyzed using the theory of optical path aberration. The simulation results show that the parabolic-prism type echelle spectrometer has a spectral range of 450~650 nm, a numerical aperture of 0.05, and a resolution up to 0.06 nm. Moreover, under the condition of reasonable tolerance range, the system volume is only 80 mm × 44 mm × 18 mm. It can satisfy the application requirements of portable and high-precision spectral detection.
| [1] |
AMANDA D, NICOLE M, GRUBBS G S. Low-cost, balle-flygare-type cavity Fourier transform microwave spectrometer and pure rotational spectroscopy laboratory for teaching physical chemistry and astronomy[J]. Journal of Chemical Education, 2021, 98(3): 1008-1016.
|
| [2] |
陈瀑, 杨健, 褚小立, 等. 近五年我国近红外光谱分析技术的研究与应用进展[J]. 分析化学, 2024, 52(9): 1213-1224.
CHEN P, YANG J, CHU X L, et al. Research and application progress of near infrared spectroscopy analytical technology in China in the past five years[J]. Chinese Journal of Analytical Chemistry, 2024, 52(9): 1213-1224. (in Chinese).
|
| [3] |
于水, 宦克为, 王磊, 等. 基于卷积神经网络的近红外光谱多组分定量分析模型研究[J]. 分析化学, 2024, 52(5): 695-705.
YU SH, HUAN K W, WANG L, et al. Multicomponent quantitative analysis model of near infrared spectroscopy based on convolution neural network[J]. Chinese Journal of Analytical Chemistry, 2024, 52(5): 695-705. (in Chinese).
|
| [4] |
曹海霞, 赵英飞, 何淼, 等. 小型分段式高分辨率中阶梯光栅光谱仪的设计[J]. 光学学报, 2018, 38(11): 1105002. doi: 10.3788/AOS201838.1105002
CAO H X, ZHAO Y F, HE M, et al. Design of small-size high resolution echelle grating spectrometer with divided spectral coverage[J]. Acta Optica Sinica, 2018, 38(11): 1105002. (in Chinese). doi: 10.3788/AOS201838.1105002
|
| [5] |
任文心, 杨亮, 赵韩, 等. 激光诱导击穿光谱定量分析全血中的锂元素[J]. 分析化学, 2024, 52(4): 559-565.
REN W X, YANG L, ZHAO H, et al. Quantitative analysis of lithium element in whole blood using laser-induced breakdown spectroscopy[J]. Chinese Journal of Analytical Chemistry, 2024, 52(4): 559-565. (in Chinese).
|
| [6] |
谷艳红, 李凡丁, 年福东. 基于半监督度量学习的激光诱导击穿光谱检测白芍中的重金属含量[J]. 分析化学, 2025, 53(4): 669-679.
GE C H, LIU Y J, CHEN M S, et al. Detection of heavy metal content in white peony by laser-induced breakdown spectroscopy combined with semi-supervised metric learning[J]. Chinese Journal of Analytical Chemistry, 2025, 53(4): 669-679. (in Chinese).
|
| [7] |
裴佳欢, 齐小花, 邹明强, 等. 表面增强拉曼光谱在动物源性食品兽药残留检测的研究进展[J]. 应用化学, 2024, 41(4): 459-471.
PEI J H, QI X H, ZOU M Q, et al. Advances in surface-enhanced Raman spectroscopy for the detection of veterinary drug residues in foods of animal origin[J]. Chinese Journal of Applied Chemistry, 2024, 41(4): 459-471. (in Chinese).
|
| [8] |
陈韶云, 张行颖, 刘奔, 等. 表面增强拉曼光谱基底的种类及其应用进展[J]. 分析化学, 2024, 52(7): 910-924.
CHEN S Y, ZHANG X Y, LIU B, et al. Classification and application of surface-enhanced Raman spectroscopy substrates[J]. Chinese Journal of Analytical Chemistry, 2024, 52(7): 910-924. (in Chinese).
|
| [9] |
ACEITUNO J, SÁNCHEZ S F, GRUPP F, et al. CAFE: Calar alto fiber-fed echelle spectrograph[J]. Astronomy & Astrophysics, 2013, 552(1): A31. doi: 10.1051/0004-6361/201220361
|
| [10] |
ZHOU Y D, YIN L, SUN Y A, et al. A uniform dispersion design method for echelle spectrometer[J]. Optics Communications, 2025, 582: 131657.
|
| [11] |
FU X, DUAN F J, JIANG J J, et al. Optical design of a broadband spectrometer with compact structure based on echelle and concave gratings[J]. Optics and Lasers in Engineering, 2022, 151: 106926. doi: 10.1016/j.optlaseng.2021.106926
|
| [12] |
KRAUS M, HÖNLE T, FÖRSTER E, et al. Compact double-pass echelle spectrometer employing a crossed diffraction grating[J]. Optics Express, 2022, 30(17): 31336-31353. doi: 10.1364/OE.465208
|
| [13] |
THOMAE D, HÖNLE T, KRAUS M, et al. Compact echelle spectrometer employing a cross-grating[J]. Applied Optics, 2018, 57(25): 7109-7116. doi: 10.1364/AO.57.007109
|
| [14] |
BAGUSAT V, KRAUS M, FÖRSTER E, et al. Concept and optical design of a compact cross-grating spectrometer[J]. Journal of the Optical Society of America A, 2019, 36(3): 345-352. doi: 10.1364/JOSAA.36.000345
|
| [15] |
陈少杰. 宽波段叶阶梯光栅光谱仪设计与标定方法研究[D]. 长春: 中国科学院研究生院(长春光学精密机械与物理研究所), 2013.
CHEN SH J. Method for wide spectral coverage echelle spectrograph design and clibration[D]. Changchun: University of Chinese Academy of Sciences (Changchun Institute of Optics, Fine Mechanics and Physics), 2013. (in Chinese).
|
| [16] |
SCHROEDER D J. Astronomical Optics[M]. New York: Academic Press, 2000.
|
| [17] |
CHEN T A, TANG Y, ZHANG L J, et al. Correction of astigmatism and coma using analytic theory of aberrations in imaging spectrometer based on concentric off-axis dual reflector system[J]. Applied Optics, 2014, 53(4): 565-576. doi: 10.1364/AO.53.000565
|
| [18] |
HOWARD J W. Formulas for the coma and astigmatism of wedge prisms used in converging light[J]. Applied Optics, 1985, 24(23): 4265-4268. doi: 10.1364/AO.24.004265
|
| [19] |
CHANG S, PRATA A. Geometrical theory of aberrations near the axis in classical off-axis reflecting telescopes[J]. Journal of the Optical Society of America A, 2005, 22(11): 2454-2464. doi: 10.1364/JOSAA.22.002454
|
| [20] |
EVERSBERG T, VOLLMANN K. Fundamentals of echelle spectroscopy[M]//EVERSBERG T, VOLLMANN K. Spectroscopic Instrumentation. Berlin, Heidelberg: Springer, 2014: 193-227.
|
