一种散热型发光二极管阵列结构光源设计方法

吴福培; 谢晓扬; 李昇平

doi:10.37188/CO.2020-0211

一种散热型发光二极管阵列结构光源设计方法

汕头大学机械工程系，广东汕头 515063

详细信息

中图分类号: TM923.34
计量
- 文章访问数: 743
- HTML全文浏览量: 397
- PDF下载量: 70
- 被引次数: 0
出版历程
- 收稿日期: 2020-12-03
- 修回日期: 2021-01-08
- 网络出版日期: 2021-03-27
- 刊出日期: 2021-05-14

A thermal dissipation design method for LED array structure illumination

doi: 10.37188/CO.2020-0211

Department of Mechanical Engineering, Shantou University, Shantou 515063, China

Funds: Supported by National Natural Science Foundation of China (No. 61573233); Natural Science Foundation of Guangdong, China (No. 2021A1515010661; No. 2018A0303130188); Guangdong Science and Technology Special Funds Project (No. 190805145540361); Special Projects in Key Fields of Colleges and Universities in Guangdong Province (No. 2020ZDZX2005)

More Information

Author Bio:
WU Fu-pei (1980—), male, was born in Yulin, Guangxi province. He received the Ph.D. in mechanical engineering from South China University of Technology, Guangzhou, China, in 2009, and now he works in Department of Mechanical Engineering as an associate professor, Shantou University, Shantou, China. His research interests include illumination design, automated optical inspection, and machine vision. E-mail: fpwu@stu.edu.cn

LI Sheng-ping (1966—), male, was born in Yongzhou, Hunan province. He received a bachelor's degree from Wuhan University of Technology in 1987, a master's degree from Beijing University of Technology in 1992 and a doctorate from Huazhong University of Science and Technology in 1995. He is now a professor at Shantou University. His main research fields are adaptive control, robust control, robust design theory and application, machine vision. E-mail: spli@stu.edu.cn. Corresponding author

Corresponding author: spli@stu.edu.cn

摘要

摘要: 在主动式自动光学检测系统中，获取高质量的图像具有重要意义。除相机外，光源热稳定性对获取的图像质量也会产生重要影响。为了确保光学检测系统光源的热稳定性以获取高质量的图像，论文提出了一种散热型LED阵列结构光源设计方法。首先，基于单个LED热阻特性建立单个LED的热阻模型。其次，以两个相邻的LED为例，分析同色光LED在单一阵列中的结温特性，并建立LED阵列结构光源的结温模型。最后，基于建立的结温模型，提出散热型LED阵列结构光源设计方法。特别地，论文提出了将散热型结构光源设计问题分解为两个相对简单子问题的方法，进而简化结构光源设计过程。实验结果表明，该设计方法的仿真结温偏差在−0.33%~0.33%之间，实验结温偏差为2.28%，验证了该方法的有效性。
- 自动光学检测 /
- LED光源 /
- 散热 /
- 结温特性 /
- 热阻模型 /
- 光源热稳定性
Abstract: Obtaining high-quality images plays an important role in active automatic optical inspection systems. Besides cameras, image quality is significantly affected by the illumination thermal stability. To ensure the illumination thermal stability and capture high-quality images in optical inspection systems, a thermal dissipation design method for LED array structure illumination is proposed in this paper. Firstly, the thermal resistance model of a single LED is built by analyzing its thermal resistance characteristics. Secondly, a setup with two adjacent LEDs is taken as an example to analyze junction temperature characteristics of the same color light in a LED array, and then the junction temperature model of the LED array structure illumination is developed. Finally, the thermal dissipation design method for LED array structure illumination is illustrated based on the proposed junction temperature model. Especially, the thermal design method is decomposed into two sub-problems to simplify the design process. Experimental results show that the junction temperature deviation is within −0.33%~0.33% by simulation and is 2.28% by experiment, which validates the effectiveness of the proposed method.
- automatic optical inspection /
- LED illumination /
- thermal dissipation /
- junction temperature characteristics /
- thermal resistance model /
- illumination thermal stability

HTML全文

Figure 1. The 3D model of a single LED

下载: 全尺寸图片幻灯片

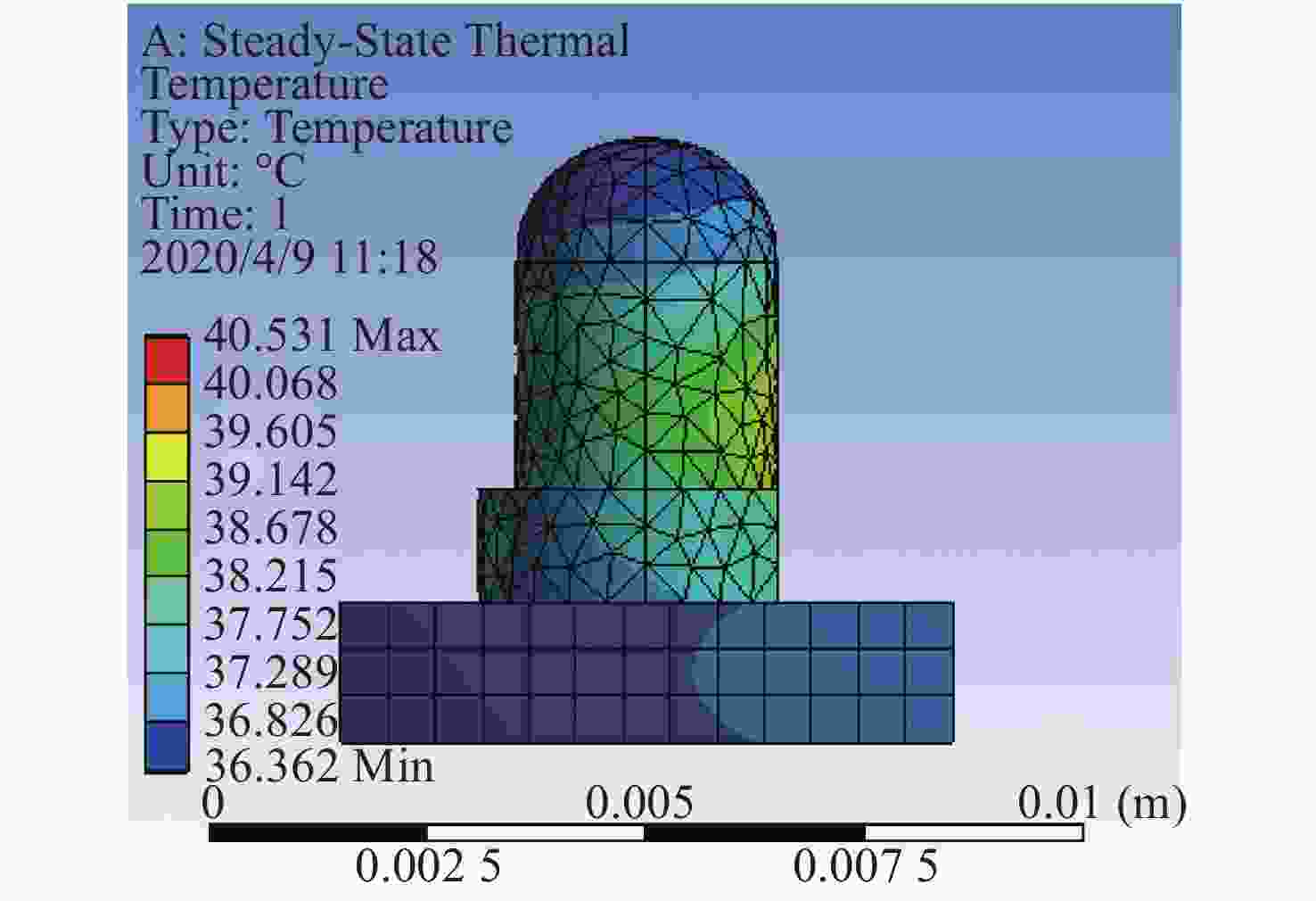

Figure 2. Surface temperature distribution of a single LED model

下载: 全尺寸图片幻灯片

Figure 3. Simulation results of the model with two adjacent LEDs

下载: 全尺寸图片幻灯片

Figure 4. The model of LED ring structure illumination

下载: 全尺寸图片幻灯片

Figure 5. Top view for the zeroth layer LED array of ring illumination

下载: 全尺寸图片幻灯片

Figure 6. The thermal dissipation design process of multi-layer LED arrays

下载: 全尺寸图片幻灯片

Figure 7. The 3D model of strip-type structure illumination

下载: 全尺寸图片幻灯片

Figure 8. The thermal model of strip-type structure illumination

下载: 全尺寸图片幻灯片

Figure 9. The details of one LED in strip-type structure illumination

下载: 全尺寸图片幻灯片

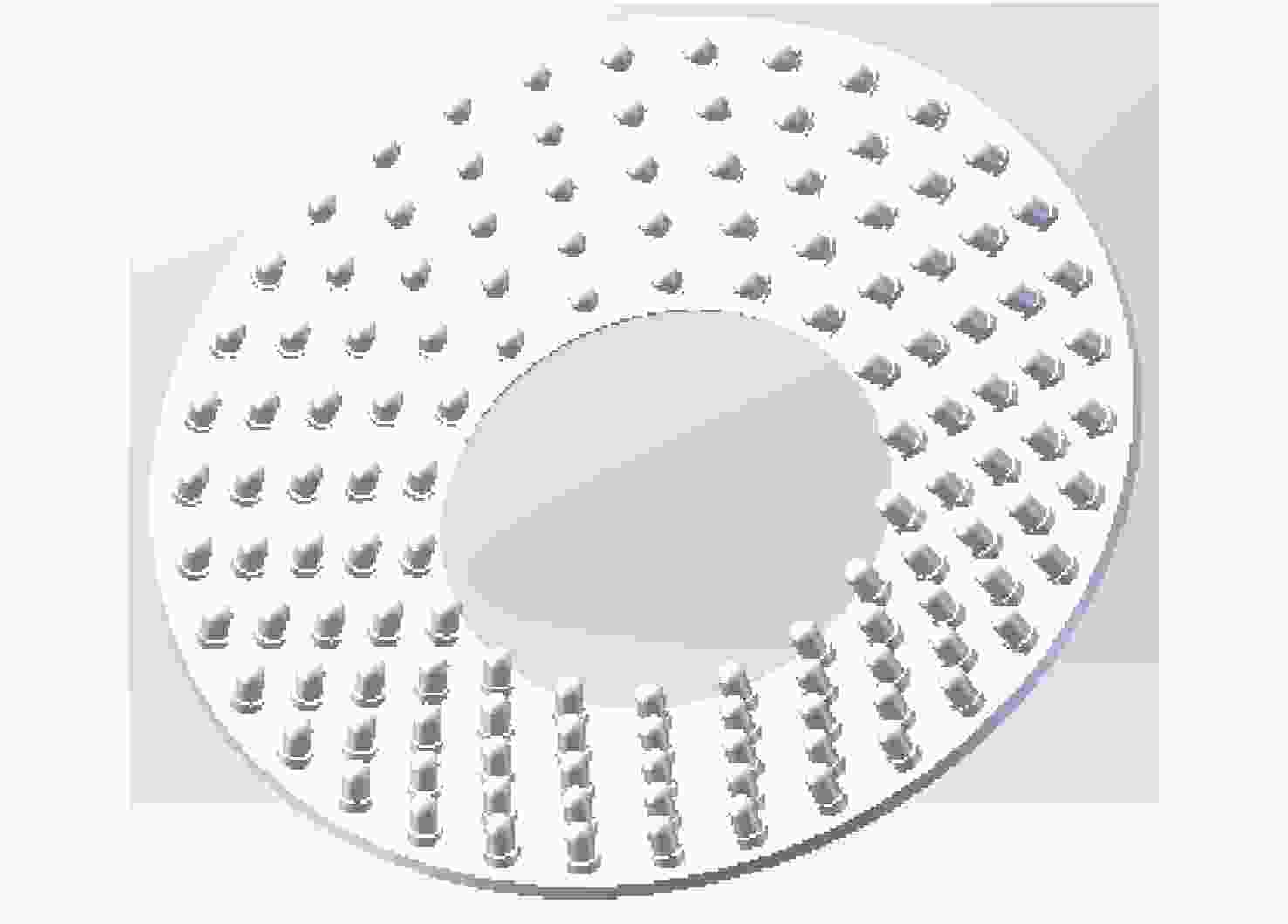

Figure 10. The 3D model of ring structure illumination

下载: 全尺寸图片幻灯片

Figure 11. The thermal model of ring structure illumination

下载: 全尺寸图片幻灯片

Figure 12. The details of one LED in ring structure illumination

下载: 全尺寸图片幻灯片

Figure 13. The zeroth layer lighting of the LED array ring structure illumination

下载: 全尺寸图片幻灯片

Table 1. Thermal conductivity of LED packaging material

Structural assembly	Thermal conductivity (W·m⁻¹·K⁻¹)
Chip	130
Reflector	155
Bracket and pin	73
External encapsulation	0.2
Substrate	0.8

下载: 导出CSV

Table 2. LED’s working parameters

Parameters	Values
$ {h}_{a} $	$10\;{\rm{W} }/({ {\rm{m} } }^{2}\cdot {\rm{K} })$
${T}_{{\rm{sur}}}$	27 ℃
$ P $	$0.022\;8\;{\rm{W}}$
${P}_{{\rm{th}}}$	$0.018\;24\;{\rm{W}}$
$ V $	$9.439\times {10}^{-12}\;{{\rm{m}}}^{3}$
$ H $	$1\;932\;418\;560\;{\rm{W}}/{{\rm{m}}}^{3}$

下载: 导出CSV

Table 3. Surface temperatures of a single LED model in experiments

Group	Maximum temperature (°C)	Minimum temperature (°C)
Group 1	40.90	39.70
Group 2	39.80	38.50
Group 3	38.50	37.60
The average	39.73	38.60

下载: 导出CSV

Table 4. Average temperature of the LED surface with different center distances in simulations

Center distance/mm	4.0	4.2	4.4	4.6	4.8	5.0	5.2	5.4	5.6	5.8	6.0
Average temperature/℃	40.42	40.08	39.65	39.28	38.75	38.40	38.03	37.63	37.35	37.26	36.79

下载: 导出CSV

Table 5. The measurement and analysis of LEDs surface temperatures

Groups	LEDs	Minimum temperature from experiments/°C	Maximum temperature from experiments/°C	Average surface temperature from experiments/°C	Temperature obtained by fitting equation/°C	Fitting error
Group 1	LED1	37.20	38.50	38.05	38.46	1.08%
Group 1	LED2	37.10	39.40	38.05	38.46	1.08%
Group 2	LED3	36.50	38.00	37.45	38.46	2.70%
Group 2	LED4	37.00	38.30	37.45	38.46	2.70%
Group 3	LED5	36.60	38.10	37.80	38.46	1.75%
Group 3	LED6	37.20	39.30	37.80	38.46	1.75%

下载: 导出CSV

Table 6. Junction temperature properties of three and four adjacent LEDs

Center distance/mm	Three LEDs			Four LEDs
Center distance/mm	Temperature obtained by fitting equation/°C	Temperature from simulation/°C	Fitting error	Temperature obtained by fitting equation/°C	Temperature from simulation/°C	Fitting error
4.2	42.88	44.25	3.10%	42.88	44.54	3.73%
4.6	42.17	43.22	2.43%	42.17	43.45	2.95%
5.0	41.47	42.26	1.87%	41.47	42.51	2.45%
5.4	40.76	41.49	1.76%	40.76	41.70	2.25%
5.8	40.06	40.71	1.60%	40.06	40.92	2.10%

下载: 导出CSV

Table 7. The number of LEDs in each layer array for ring structure illumination

The $ i $th layer array	Number of LEDs
0	18
1	22
2	26
3	30
4	34

下载: 导出CSV
