氧化型垂直腔面发射激光器的静电放电失效特性

张玉岐; 阚强; 赵佳

doi:10.37188/CO.2021-0226

氧化型垂直腔面发射激光器的静电放电失效特性

doi: 10.37188/CO.2021-0226

张玉岐^{1, 2,},
阚强³,
赵佳^{1, 4, ,}

1.
山东大学激光与红外系统集成技术教育部重点实验室, 山东青岛 266237
2.
厦门市三安集成电路有限公司, 福建厦门 361000
3.
中国科学院半导体研究所, 北京 100083
4.
山东大学信息科学与工程学院, 山东青岛 266237

基金项目: 国家重点研发计划纳米专项课题（No. 2018YFA0209001）；国家重点研发计划课题（No. 2018YFA0209002，No. 2018YFB2200700）

详细信息

作者简介:
张玉岐（1991—），男，辽宁辽阳人，博士研究生，工程师，2015年于哈尔滨工业大学获得硕士学位，主要从事半导体激光器的可靠性和失效分析等方面的研究。E-mail：zyxzyq@163.com

赵　佳（1984—），男，山东济南人，博士，教授，博士生导师，2011年于山东大学获得博士学位，主要从事光电子器件与系统设计、计算电磁学等方面的研究。E-mail：zhaojia@sdu.edu.cn

中图分类号: TN365
计量
- 文章访问数: 1066
- HTML全文浏览量: 343
- PDF下载量: 217
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-20
- 修回日期: 2022-01-24
- 录用日期: 2022-03-23
- 网络出版日期: 2022-04-27

Electrostatic discharge failure characteristics of oxide vertical cavity surface emitting lasers

ZHANG Yu-qi^{1, 2
,},
KAN Qiang³,
ZHAO Jia^{1, 4
, ,}

1.
Key Laboratory of Laser & Infrared System, Ministry of Education, Shandong University, Qingdao 266237, China
2.
Xiamen San 'An Integrated Circuit Co., LTD, Xiamen 361000, China
3.
Institute of Semiconductors, University of Chinese Academy of Sciences, Beijing 100083, China
4.
School of Information Science and Engineering, Shandong University, Qingdao 266237, China

Funds: Supported by Nano Special Project of National Key Research and Development Program (No. 2018YFA0209001); National Key Research and Development Project (No. 2018YFA0209002, No. 2018YFB2200700)

More Information

Corresponding author: zhaojia@sdu.edu.cn

摘要

摘要:
氧化型垂直腔面发射激光器（VCSEL）在数据通信等领域具有广泛的应用，然而氧化型VCSEL是一种静电敏感型器件，静电放电(ESD)是导致其失效的主要原因之一，并且器件失效后很难判断问题的原因。本文对氧化型VCSEL进行了包括人体模式(HBM)、机器模式(MM)和元件充电模式(CDM)3种不同的ESD模式和过度电应力(EOS)冲击，以分析其具体失效原因。其中，在HBM模式中研究了不同极性的电压冲击对应的失效特征，然后分别采用反向I-V、正向L-I-V测试、发光显微镜（EMMI)和透射电子显微镜(TEM)等手段进行表征。结果表明，不同ESD模式表现出截然不同的损伤电压阈值，氧化型VCSEL容易遭受HBM和MM损伤，而对CDM模式不敏感。研究发现和ESD失效关联的特性及缺陷特征包括反向漏电增加、出光功率衰减、EMMI亮点等，而TEM作为最为直接有效的分析手段，不同ESD模式表现出不同的缺陷大小和位置等性质。这些研究结果有助于区分ESD故障和其它故障机制，并且能够精确地判断出引起失效的具体ESD模式，具有重要的意义。
- 垂直腔面发射激光器 /
- 静电放电(ESD) /
- 失效分析
Abstract:
Oxide Vertical Cavity Surface-Emitting Lasers (VCSELs) are widely used in data communication. However, VCSELs are sensitive to ElectroStatic Discharge (ESD), which is one of the main reasons for their failure. It is difficult to identify the root cause of this problem. Therefore, 3 different ESD models including Human Body Model (HBM), Machine Model (MM) and Charge Device Model (CDM) and Electrical OverStress (EOS) shocks were applied to carry out the failure analysis of oxide VCSELs. Among them, voltage shocks of different polarities were used for HBM while reverse I-V, forward L-I-V scan, emission microscopy (EMMI) and Transmission Electron Microscopy (TEM) were used for characterization. The results show that different ESD models show significantly different damage voltage thresholds, and the oxide VCSEL is susceptible to damage in the HBM and MM models but insensitive in the CDM model. Defect characteristics associated with ESD failure were found including increased reverse leakage, degradation of optical output power, and bright spots in the EMMI. TEM was the most direct and effective method where different ESD events showed different defect sizes and locations. These research results are of great significance to confirm whether the failure mode is caused by ESD and to judge the specific ESD models in detail.
- vertical cavity surface emitting lasers /
- electrostatic discharge /
- failure analysis

HTML全文

图 1 典型的ESD测试电路模型。（a）HBM；（b）MM；（c）CDM及相应的（d）电流波形

Figure 1. Typical test circuit models of an ESD. (a) HBM; (b) MM; (c) CDM and (d) corresponding current waveforms

下载: 全尺寸图片幻灯片

图 2 （a）正向HBM模式冲击前后L-I-V曲线对比（插图为700 V冲击电压下对应的EMMI图像）；（b）正向HBM 700 V冲击后失效样品的PV-TEM（插图为白色虚框部分的放大图）和（c）XS-TEM（插图为未经ESD冲击样品的氧化层尖端附近的XS-TEM）

Figure 2. (a) Comparison of L-I-V curve before and after forward HBM shock. Inset is an EMMI image under 700 V impulse voltage. (b) PV-TEM, the insert is an enlarged view of the white dotted part and (c) XS-TEM after forward HBM shock under 700 V impulse voltage, the insert is XS-TEM near the oxide tip of sample without an ESD shock

下载: 全尺寸图片幻灯片

图 3 （a）反向HBM模式冲击前后L-I-V曲线对比，插图为180 V冲击电压对应的EMMI图像；反向HBM 180 V冲击电压下的（b）PV-TEM和（c）XS-TEM结果

Figure 3. (a) Comparison of L-I-V curve before and after reverse HBM shock. The insert is an EMMI image under 180 V impulse voltage. (b) PV-TEM and (c) XS-TEM after reverse HBM shock under 180 V impulse voltage

下载: 全尺寸图片幻灯片

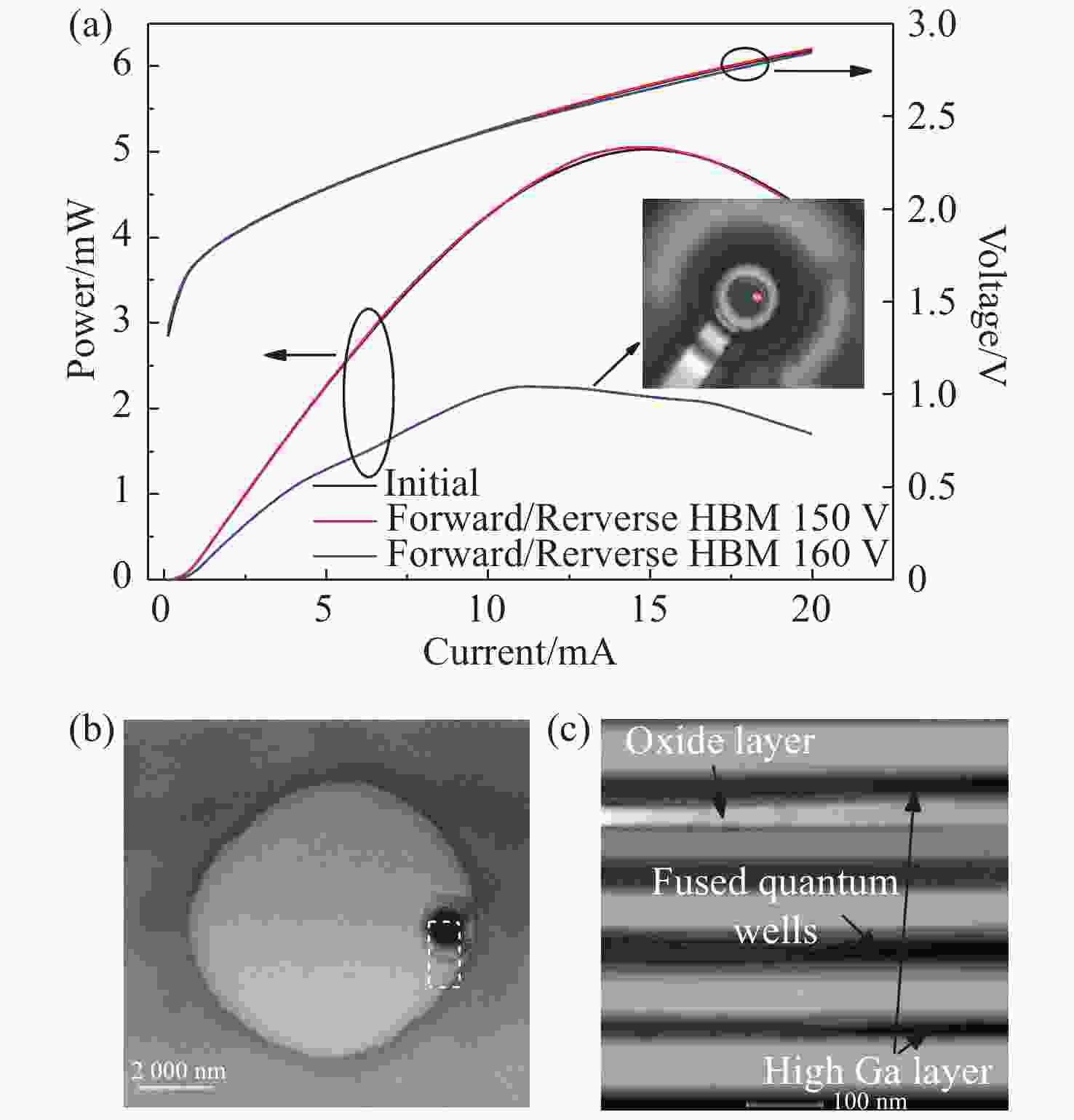

图 4 （a）正/反向HBM模式冲击前后L-I-V曲线对比，插图为160 V冲击电压对应的EMMI图像；正反向HBM 160 V冲击电压下（b）PV-TEM和（c）XS-TEM结果

Figure 4. (a) Comparison of L-I-V curve before and after forward/reverse HBM shock. The insert is an EMMI image under 160 V impulse voltage. (b) PV-TEM and (c) XS-TEM after forward/reverse HBM shock under an 160 V impulse voltage

下载: 全尺寸图片幻灯片

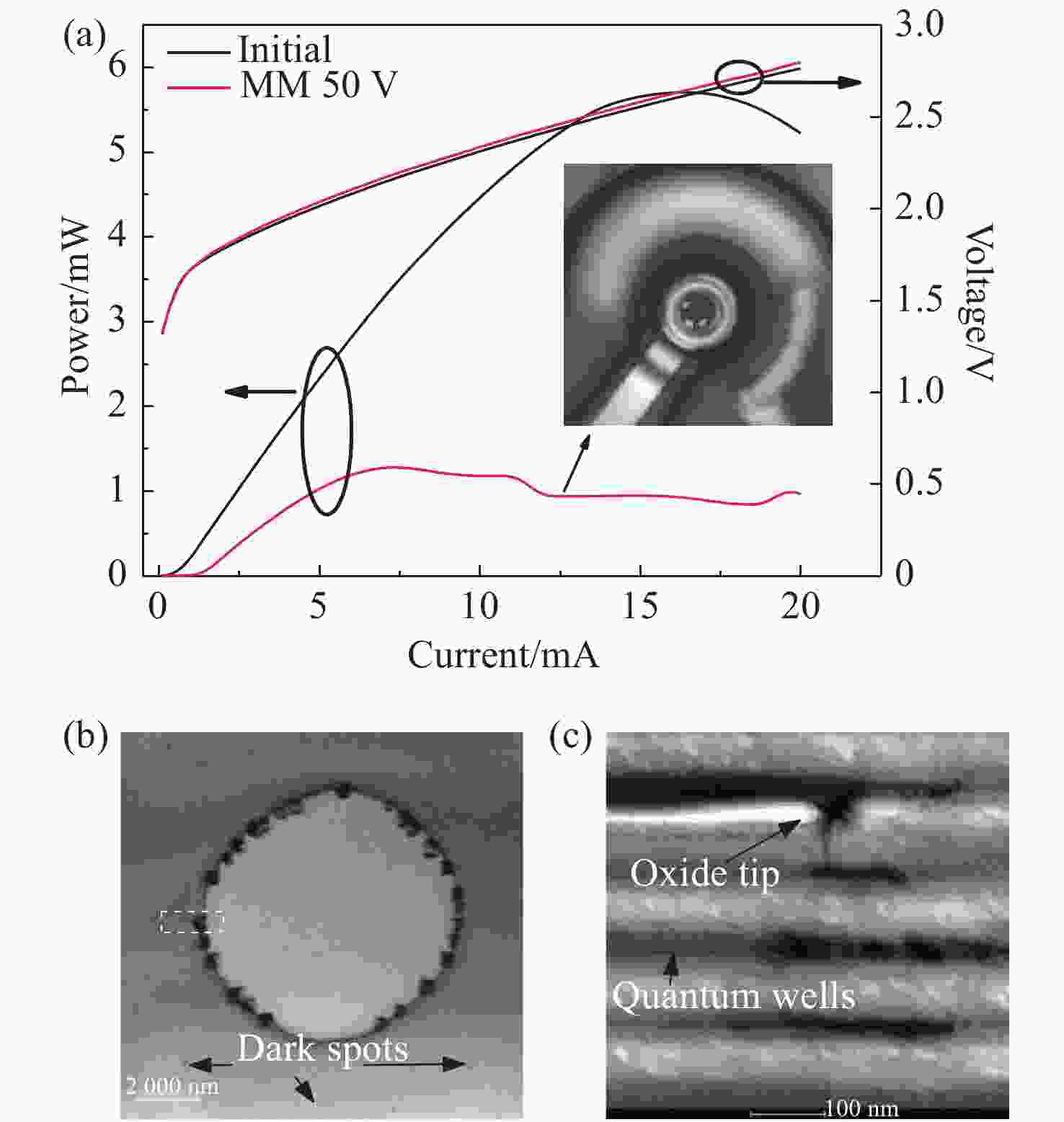

图 5 （a）MM模式冲击前后L-I-V曲线对比，插图为损伤电压对应的EMMI图像以及相应的（b）PV-TEM和（c）XS-TEM

Figure 5. (a) Comparison of L-I-V curve before and after MM shock. The insert is an EMMI image under a damaging impulse voltage. (b) PV-TEM and (c) XS-TEM after MM shock

下载: 全尺寸图片幻灯片

图 6 （a）CDM模式冲击前后L-I-V曲线对比，插图为损伤电压对应的EMMI图像以及相应的（b）PV-TEM和（c）XS-TEM结果

Figure 6. (a) Comparison of L-I-V curve before and after CDM shock. The insert is an EMMI image under a 2000 V impulse voltage; (b) PV-TEM and (c) XS-TEM after CDM shock

下载: 全尺寸图片幻灯片

图 7 （a）EOS模式冲击前后L-I-V曲线对比，插图为45 mA 960 s对应的EMMI图像以及相应的（b）PV-TEM和（c）XS-TEM，插图为局部放大图

Figure 7. (a) Comparison of L-I-V curve before and after EOS shock. The inset is an EMMI image under a 45 mA 960 s surge; (b) PV-TEM and (c) XS-TEM after EOS shock under a 45 mA 960 s surge. The inserts are partial enlarged views.

下载: 全尺寸图片幻灯片

表 1 氧化型VCSEL中不同ESD模式的失效特征汇总

Table 1. Summary of failure characteristics corresponding to different ESD models in oxide VCSELs

ESD模式	损伤阈值	光电特性	EMMI和TEM失效特征	可能的失效机理
正向HBM	700 V	出光功率逐渐下降，阈值小幅度增加，反向漏电不变，高电流下电压微降	EMMI无亮点；器件内部无集中的击穿位错，在氧化孔边缘出现位错，有源区未出现明显的损伤	焦耳热产生的过量热应力导致在应力集中的氧化尖端出现位错；氧化层对该ESD模式的脉冲表现为电阻特性
反向HBM	−180 V	出光功率快速下降，阈值增加，反向漏电变大，正向I-V特性无明显变化	EMMI有亮点，和TEM集中的击穿位错位置吻合；比正向HBM模式的位错密度高，击穿位错出现在靠近氧化孔边缘的出光孔内，有源区出现局部融合现象，DBR中含高镓层的缺陷较为严重	隧道击穿效应；氧化层对该ESD模式的脉冲表现为电阻特性
正/反向HBM	±160 V	出光功率快速下降，阈值增加，反向漏电变大，高电流下电压微增	EMMI有亮点，和TEM集中的击穿位错位置吻合；与反向HBM失效特征相似，位错大小为微米量级，氧化孔边缘和有源区出现永久性损伤	隧道击穿和热的累积效应；氧化层对该ESD模式的脉冲表现为电阻特性
MM	50 V	出光功率快速下降，阈值增加，反向漏电变大，正向电压增加	EMMI有亮点，和TEM集中的击穿位错位置吻合；氧化孔边缘的两侧出现大量位错，直径大小为数百纳米量级。位错从氧化层以上延伸到有源区，高镓含量层位错密度较高。有时会出现轻微的氧化层介质击穿现象	隧道击穿效应；氧化层相对于该ESD模式的脉冲表现为部分电容特性部分电阻特性
CDM	2000 V	L-I-V特性基本不变，高电流时出光功率微降，阈值不变，反向漏电微增，正向电压下降	EMMI无亮点；器件内部无集中的击穿位错，整个氧化层出现介质击穿，分布在氧化孔的周围，并呈现出环状图案。在氧化孔边缘和有源区未观察到明显的缺陷	介质击穿；氧化层相对于该ESD模式的脉冲等效为电容特性
EOS	/	出光功率逐渐下降，阈值增加，反向漏电增大，正向电压下降	EMMI无亮点；器件内部无集中的击穿位错，高电流密度的应力驱动下，氧化孔边缘出现暗点缺陷和分层现象	焦耳热产生的过量热应力

下载: 导出CSV
