摘要:
为满足实验室条件下长时间、高精度的热流密度测量要求，基于电替代测量原理研制了一种新型辐射热流计，该型辐射热流计可通过自校准的方式溯源至国际单位制单位。本文简述了辐射热流计的系统构成，结合辐射热流计的测量原理，分析并计算了辐射热流计自校准过程中9项影响量的测量不确定度和合成标准不确定度。通过与中国计量科学院所标定的标准探测器比对，计算了辐射热流计的不确定度，最后根据实验数据及分析结果为该型热流计的优化设计提供了参考。实验结果表明：辐射热流计的相对标准不确定度优于0.26%，与标准探测器的归一化偏差为0.60，验证了不确定度评估结果。实验结果将为辐射热流计下一阶段的研制提供有效参考。
Abstract:In order to meet the requirements of long and highly precise heat flux measurement under laboratory conditions, a new radiative heat flux meter was developed based on the principle of electrical substitution measurement. The radiative heat flux meter can be traced to the International System of Units through self-calibration. Firstly, the system structure of the radiative heat flux meter is briefly described. Combining with the measuring principle of the radiative heat-flux meter, the measurement uncertainty of nine uncertainty components and their combined standard uncertainty in the process of radiative heat-flux meter self-calibration are analyzed and calculated. Then, the uncertainty of a radiometric heat-flux meter is verified by direct comparison with a standard detector calibrated by the National Institute of Metrology of China. Finally, according to the experimental data and analysis results, this paper provides a reference for the optimization design of the heat-flux meter. The experimental results show that the relative standard uncertainty of the radiative heat-flux meter is better than 0.26%, and the normalized error is 0.60, which verifies the validity of the uncertainty evaluation results. The experimental results will guide the development of radiative heat flow meters in the next stage and further improve its performance.
-
Key words:
- radiation heat flux /
- heat-flux meter /
- self-calibration /
- uncertainty /
- comparison
-
图 2 辐射热流计工作原理图
Figure 2. Schematic diagram of the measurement principle of a radiometric heat-flux meter
图 3 吸收比测试光路原理图
Figure 3. Schematic diagram of optical path for absorptance measurement
图 5 热流计衍射效应示意图
Figure 5. Schematic diagram of the diffraction effect on the heat-flux meter
表 1 吸收比测量结果
Table 1. Measurement results of absorptance
黑体腔信号电压UC/V 白板信号电压US/V 背景信号电压UB/V 白板反射率${\rho _{\rm{S}}}$ 均值 不确定度 均值 不确定度 均值 不确定度 均值 不确定度 0.03753 4×10−5 8.87058 1.284×10−4 0.02479 4×10−5 0.95 0.05
下载: 导出CSV
表 2 光阑直径测量结果
Table 2. Measurement results of the aperture’s diameter
项目 D/mm 方向1 2.220 方向2 2.221 方向3 2.219 方向4 2.220 均值 2.220
下载: 导出CSV
表 3 加热电压采样值的不确定度
Table 3. Uncertainty of the sampling value of the heating voltage
加热电压 u(ADr)/V u(Vrefm)/V u(VerfT)/V u(ADS)/V u(Verfs)/V 均值/V u(U)/V ur(U)/V 第一阶段 0.0001635 5×10−6 4×10−6 0.000542 4.5571×10−6 0.69 0.000566 0.082% 第二阶段 0.0001635 5×10−6 4×10−6 0.000438 4.5571×10−6 2.19 0.000468 0.021%
下载: 导出CSV
表 4 加热丝电阻的不确定度
Table 4. Uncertainty of resistance of the heating wire
u(Rm)/Ω u(RS)/Ω 均值/Ω u(R)/Ω ur(R)/Ω 0.000015 0.00314 477.8 0.00314 0.00066%
下载: 导出CSV
表 5 热电采样码值的不确定度
Table 5. Uncertainty of the thermoelectric sampling code value
Mstatei Mstatei+1 Mtext 均值 172.1429 1731.18 513.9392 标准不确定度 0.15498 0.24591 0.0017 相对不确定度 0.09% 0.014% 0.003%
下载: 导出CSV
表 6 衍射参数定义
Table 6. Diffraction parameter definitions
r/mm ds/mm rd/mm dd/mm R/mm v0 σ u v vs vd 175 100 4 2 1 $ {\rm{Max} }\left( { {v_{\rm{s}}},{v_{\rm{d}}} } \right)$ $\dfrac{ { {\rm{Min} }\left( { {v_{\rm{s}}},{v_{\rm{d}}} } \right)} }{ { {\rm{Max} }\left( { {v_{\rm{s}}},{v_{\rm{d}}} } \right)} }$ $u = \dfrac{ {2\text{π} } }{\lambda }{R^2}\left( {\dfrac{1}{ { {d_{\rm{d} } } } } - \dfrac{1}{ { {d_{\rm{s} } } } } } \right)$ $ {v_0}(1 + \sigma x) $ $ \dfrac{ {2{\text{π}} } }{\lambda }\dfrac{ {R{r_{\rm{s}}} } }{ { {d_{\rm{s}}} } }$ ${v_d} = \dfrac{ {2{\text{π}} } }{\lambda }\dfrac{ {R{r_{\rm{d}}} } }{ { {d_{\rm{d}}} } }$
下载: 导出CSV

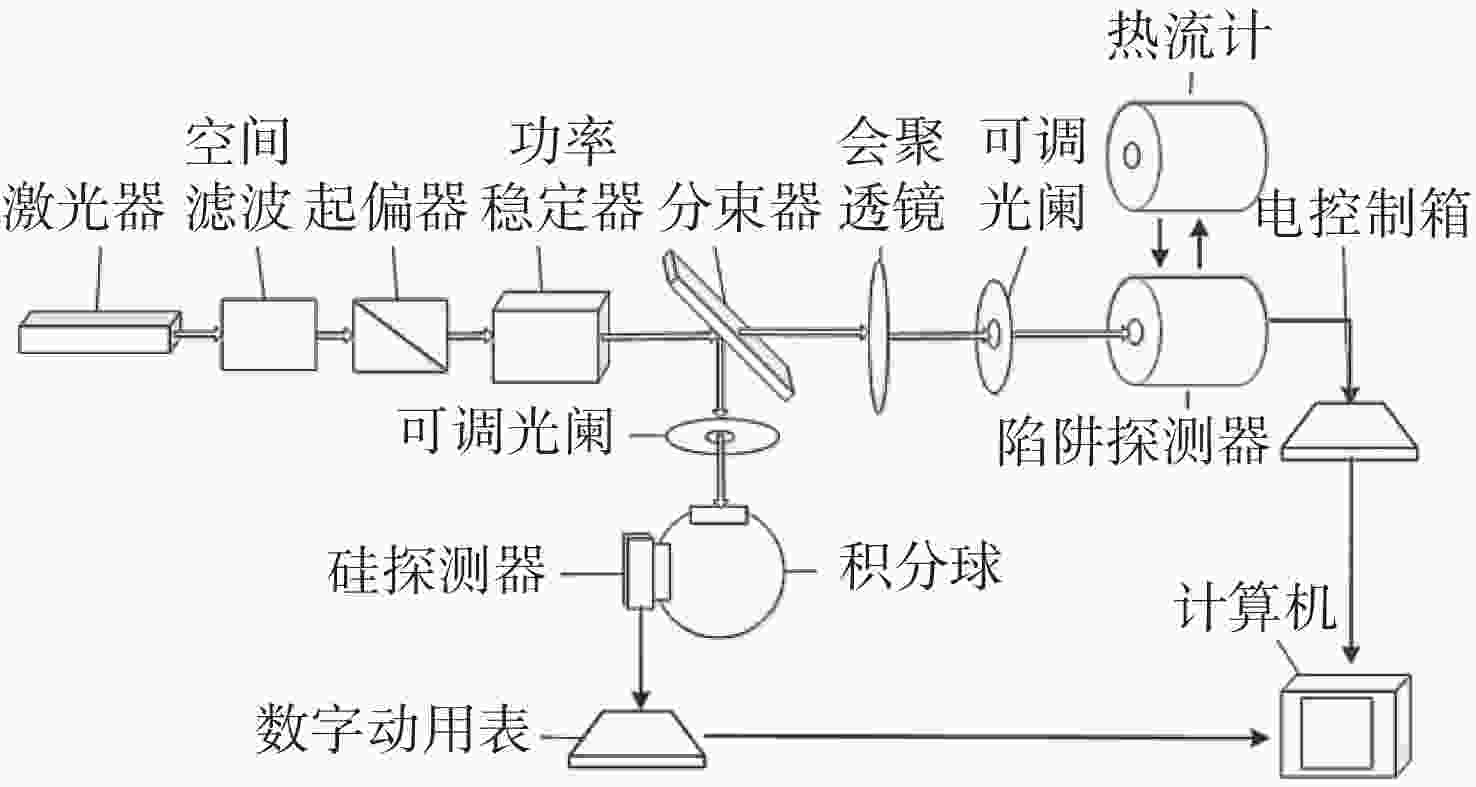

表 7 功率测试结果
Table 7. Test results of power
测量次数 辐射热流计样机功率
测量结果/mW标准探测器功率
测量结果/mW1 0.98081 0.98886 2 0.98070 0.98889 3 0.98012 0.98885 4 0.98006 0.98887 5 0.97908 0.98890 6 0.97942 0.98893 7 0.97931 0.98890 8 0.98024 0.98891 9 0.97977 0.98891 10 0.97884 0.98891 11 0.97931 0.98890 12 0.97832 0.98890 均值 0.97967 0.98889
下载: 导出CSV
-
