基于多尺度特征与通道特征融合的脑肿瘤良恶性分类模型

姜林奇 宁春玉 余海涛

姜林奇, 宁春玉, 余海涛. 基于多尺度特征与通道特征融合的脑肿瘤良恶性分类模型[J]. 中国光学(中英文). doi: 10.37188/CO.2022-0067
引用本文: 姜林奇, 宁春玉, 余海涛. 基于多尺度特征与通道特征融合的脑肿瘤良恶性分类模型[J]. 中国光学(中英文). doi: 10.37188/CO.2022-0067
JIANG Lin-qi, NING Chun-yu, YU Hai-tao. Classification model based on fusion of multi-scale feature and channel feature for benign and malignant brain tumors[J]. Chinese Optics. doi: 10.37188/CO.2022-0067
Citation: JIANG Lin-qi, NING Chun-yu, YU Hai-tao. Classification model based on fusion of multi-scale feature and channel feature for benign and malignant brain tumors[J]. Chinese Optics. doi: 10.37188/CO.2022-0067

基于多尺度特征与通道特征融合的脑肿瘤良恶性分类模型

doi: 10.37188/CO.2022-0067
基金项目: 吉林省科技发展计划项目(No. 20200404219YY)
详细信息
    作者简介:

    姜林奇(1999—),女,内蒙古自治区呼伦贝尔市人,硕士研究生,2019年于南华大学获得学士学位,主要从事深度学习、图像分类等方面的研究。E-mail:631540532@qq.com

    宁春玉(1976—),女,吉林农安县人,硕士,副教授,硕士生导师,2005年于吉林大学获得计算机应用技术硕士学位,主要从事图像处理、模式识别的研究。E-mail:yeningcy@163.com

Classification model based on fusion of multi-scale feature and channel feature for benign and malignant brain tumors

Funds: Supported by the science and technology development project of Jilin province under grant number (No. 20200404219YY)
More Information
  • 摘要:

    针对脑肿瘤良恶性分类过程复杂、分类准确率不高等问题,提出了一种基于多尺度特征与通道特征融合的分类模型。该模型以ResNeXt网络为主干网络,首先,将基于空洞卷积的多尺度特征提取模块代替第一层卷积层,利用膨胀率获取不同感受野的图像信息,将全局特征与局部显著特征结合;其次,添加通道注意力机制模块,融合特征通道信息,提高对肿瘤区域的关注度,降低对冗余信息的关注度;最后,采用学习率的线性衰减策略、图像的标签平滑策略以及基于医学图像的迁移学习策略的组合优化策略提高模型的学习能力和泛化能力。在BraTS2017和BraTS2019数据集中进行实验,准确率分别达到98.11%和98.72%。与经典模型和其他先进方法相比,该分类模型能够有效地减少分类过程的复杂度,提高脑肿瘤良恶性分类的准确率。



  • 图 1  MDCA-ResNeXt网络结构

    Figure 1.  MDCA-ResNeXt network structure

    图 2  $ C = 32 $的ResNeXt结构[20]

    Figure 2.  ResNeXt structure with $ C = 32 $[20]

    图 3  不同膨胀率的空洞卷积

    Figure 3.  Dilated convolution with different dilation rates

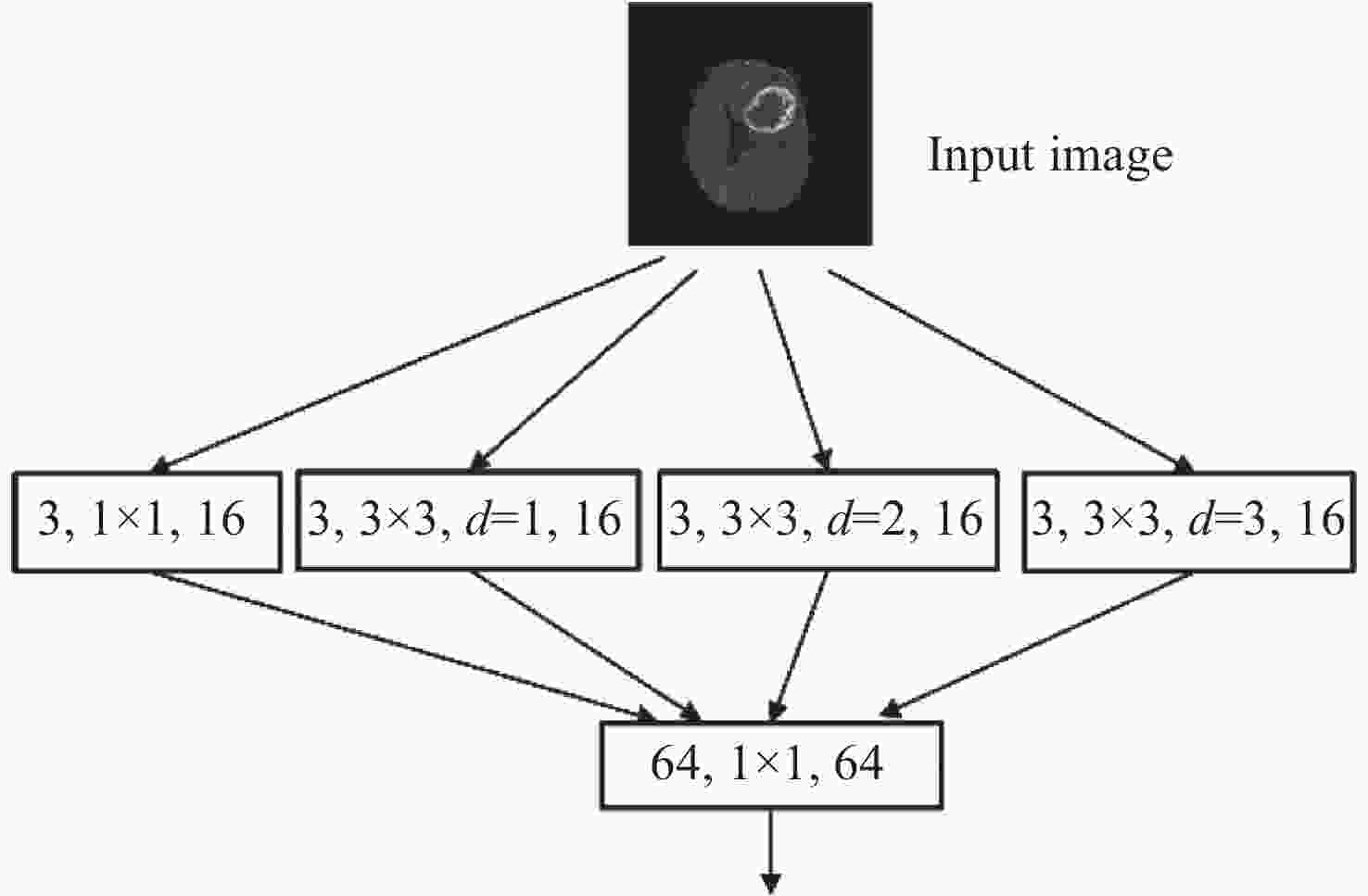

    图 4  MD模块

    Figure 4.  MD module

    图 5  CA模块

    Figure 5.  CA module

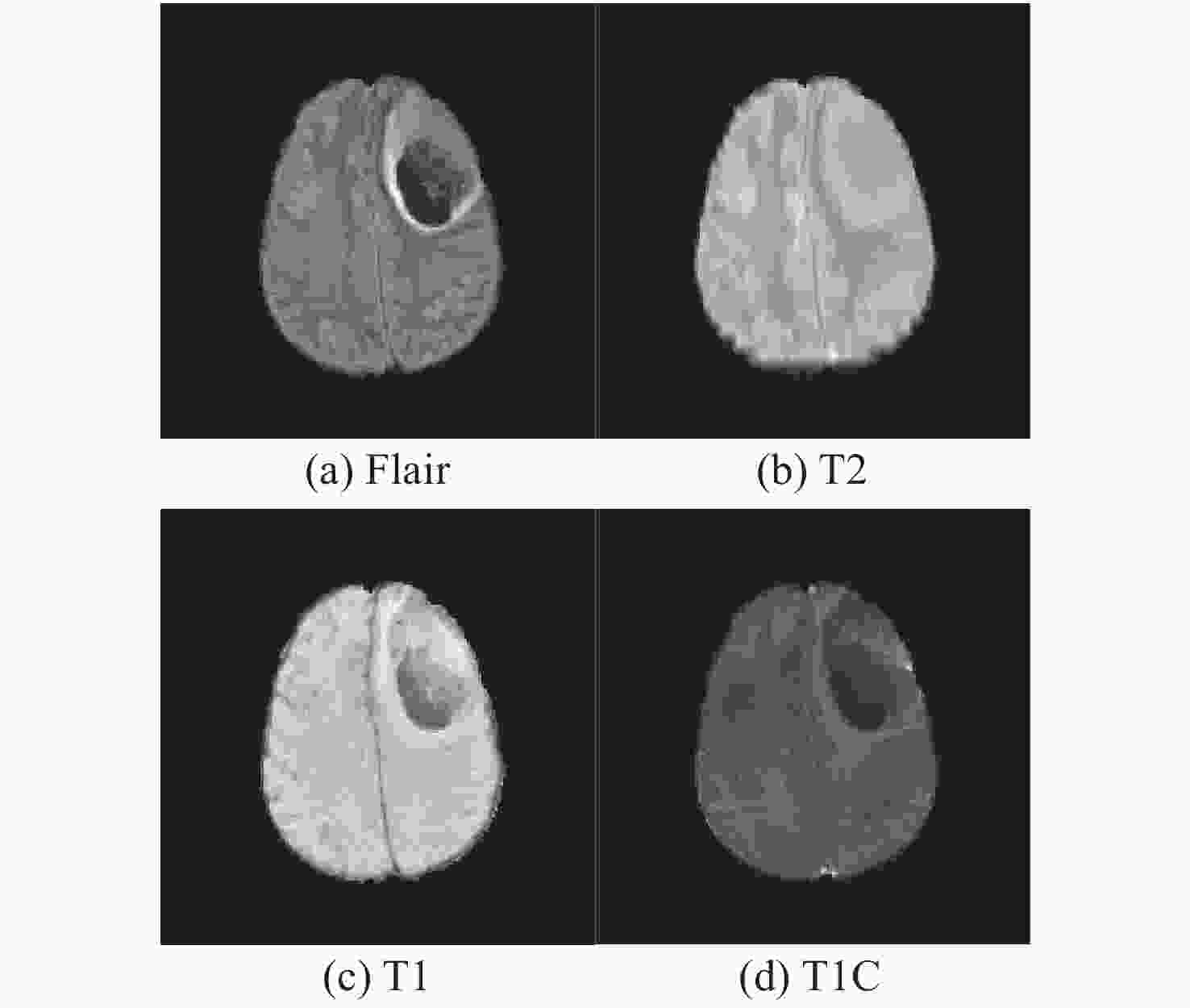

    图 6  四种模态下的HGG图像

    Figure 6.  HGG images in four modalities

    图 7  四种模态下的LGG图像

    Figure 7.  LGG images in four modalities

    图 8  去除噪声前后对比图

    Figure 8.  Comparison before and after preprocessing

    图 9  分类结果评价图

    Figure 9.  Evaluation diagram of classification results

    图 10  HGG的原始图像和特征可视化图

    Figure 10.  Original image and feature visualization of HGG

    图 11  LGG的原始图像和特征可视化图

    Figure 11.  Original image and feature visualization of LGG

    表  1  实验数据集分布

    Table  1.   Distribution of experimental Datasets

    数据集肿瘤
    类别
    数据分布总数
    训练集测试集
    BraTS2017
    数据集
    HGG8402101050
    LGG9002251125
    BraTS2019
    数据集
    HGG10352601295
    LGG9152251140
    下载: 导出CSV

    表  2  优化前BraTS2017数据集的分类结果评价表

    Table  2.   Evaluation table of classification results on BraTS2017 before optimization

    网络ACC(%)SEN(%)SPE(%)PPV(%)NPV(%)
    ResNet89.15±1.8388.76±3.3889.51±3.3888.92±3.6789.60±2.58
    SENet90.44±3.2593.05±2.0989.25±7.4188.21±5.6993.19±1.77
    ResNeXt90.34±1.1489.23±3.3692.53±2.1891.85±1.9690.22±2.57
    MDCA-ResNeXt93.19±0.3593.05±1.6793.33±1.6992.91±1.5493.54±1.36
    下载: 导出CSV

    表  3  优化前BraTS2019数据集的分类结果评价表

    Table  3.   Evaluation table of classification results on BraTS2019 before optimization

    网络ACC(%)SEN(%)SPE(%)PPV(%)NPV(%)
    ResNet91.83±2.7393.31±2.1290.13±4.5991.71±3.6592.10±2.51
    SENet91.91±2.4290.54±5.6391.74±4.8393.00±3.7693.25±2.54
    ResNeXt93.57±1.5094.23±2.0292.80±2.9993.85±2.3193.35±2.15
    MDCA-ResNeXt94.10±1.4094.38±1.6793.78±2.3394.76±2.1293.60±1.59
    下载: 导出CSV

    表  4  优化后BraTS2017数据集的分类结果评价表

    Table  4.   Evaluation table of classification results on BraTS2017 after optimization

    网络ACC(%)SEN(%)SPE(%)PPV(%)NPV(%)
    Improved ResNet96.87±1.4996.76±0.7196.98±2.9096.84±2.9796.98±0.64
    Improved SENet97.56±1.0496.67±0.8998.40±1.4398.27±1.5296.94±0.83
    Improved ResNeXt97.98±1.3397.43±2.0698.49±1.2898.38±1.3997.63±1.88
    Improved MDCA-ResNeXt98.11±0.4197.43±0.2698.76±0.9198.66±0.9797.63±0.22
    下载: 导出CSV

    表  5  优化后BraTS2019数据集的分类结果评价表

    Table  5.   Evaluation table of classification results on BraTS2019 after optimization

    网络ACC(%)SEN(%)SPE(%)PPV(%)NPV(%)
    Improved ResNet97.03±1.9597.31±2.0296.62±3.0497.20±2.5596.91±2.23
    Improved SENet96.69±0.8894.38±1.8998.74±0.9398.62±1.0194.99±1.57
    Improved ResNeXt97.98±0.5797.69±0.4798.31±0.7398.53±0.6497.36±0.54
    Improved MDCA-ResNeXt98.72±0.3198.62±0.6498.85±0.5199.00±0.4498.41±0.73
    下载: 导出CSV

    表  6  先进方法分类结果对比表

    Table  6.   Comparison of classification results of advanced methods

    文献方法肿瘤分割数据集准确率(%)
    文献[7]HCS+ Multi-SVNNBraTs201493.00
    文献[15]Inception V3+POSBraTs201796.90
    文献[16]VGG16+ELMBraTs201796.90
    文献[17]3D CNN+VGG19+FNNBraTs201796.97
    文献[8]FBSOBraTs201893.85
    文献[19]3D U-NetBraTs201891.67
    本文方法Improved MDCA-ResNeXtBraTs201798.11
    本文方法Improved MDCA-ResNeXtBraTs201998.72
    下载: 导出CSV
