紧凑型波长自动调谐脉冲CO2激光器

潘其坤 苗昉晨 司红利 沈辉 高飞 于德洋 张阔 张冉冉 赵崇霄 陈飞 郭劲

潘其坤, 苗昉晨, 司红利, 沈辉, 高飞, 于德洋, 张阔, 张冉冉, 赵崇霄, 陈飞, 郭劲. 紧凑型波长自动调谐脉冲CO2激光器[J]. 中国光学(中英文), 2022, 15(5): 1007-1012. doi: 10.37188/CO.2022-0107
引用本文: 潘其坤, 苗昉晨, 司红利, 沈辉, 高飞, 于德洋, 张阔, 张冉冉, 赵崇霄, 陈飞, 郭劲. 紧凑型波长自动调谐脉冲CO2激光器[J]. 中国光学(中英文), 2022, 15(5): 1007-1012. doi: 10.37188/CO.2022-0107
PAN Qi-kun, MIAO Fang-chen, SI Hong-Li, SHEN Hui, GAO Fei, YU De-Yang, ZHANG Kuo, ZHANG Ran-ran, ZHAO Chong-Xiao, CHEN Fei, GUO Jin. Compact pulsed CO2 laser with wavelength automatic tuning[J]. Chinese Optics, 2022, 15(5): 1007-1012. doi: 10.37188/CO.2022-0107
Citation: PAN Qi-kun, MIAO Fang-chen, SI Hong-Li, SHEN Hui, GAO Fei, YU De-Yang, ZHANG Kuo, ZHANG Ran-ran, ZHAO Chong-Xiao, CHEN Fei, GUO Jin. Compact pulsed CO2 laser with wavelength automatic tuning[J]. Chinese Optics, 2022, 15(5): 1007-1012. doi: 10.37188/CO.2022-0107

紧凑型波长自动调谐脉冲CO2激光器

doi: 10.37188/CO.2022-0107
基金项目: 国家重点研发计划(No. 2018YFE0203200);吉林省与中科院科技合作项目(No. 2021SYHZ0028);激光与物质相互作用国家重点实验室基金项目(No. SKLLIM1914, SKLLIM2114);中国科学院青年创新促进会(No. 2021216)
详细信息
    作者简介:

    潘其坤(1985—),男,河南开封人,博士,副研究员,中国科学院青年创新促进会会员,2014 年于中国科学院大学获得博士学位,主要从事中长波激光器及激光等离子体极紫外光源方面的研究。E-mail:panqikun2005@163.com

  • 中图分类号: TN248.5

Compact pulsed CO2 laser with wavelength automatic tuning

Funds: Supported by National Key R&D Program of China (No. 2018YFE0203200); Science and Technology Cooperation Project between Jilin Province and Chinese Academy of Sciences (No. 2021SYHZ0028); State Key Laboratory of Laser Interaction with Matter Project (No. SKLLIM1914, SKLLIM2114); Youth Innovation Promotion Association, CAS (No. 2021216)
More Information
  • 摘要:

    面向机载激光差分吸收雷达对小型轻量化激光光源的应用需求,研制了紧凑型自动调谐脉冲CO2激光器。首先,研究了射频波导腔内光束和自由空间光学斩波光束孔径匹配关系,设计了具有实焦点的腔内光束变换系统,实验验证了斩波器通光孔径对激光脉冲波形的影响。其次,研究了CO2激光器的波长调谐特性,分析了相邻激光谱线光栅衍射角度差,并基于高精度电动转台和金属闪耀光栅,实现了CO2激光器波长自动调谐输出。最后,基于小型轻量化模块设计,完成了紧凑型自动调谐脉冲CO2激光器集成。实验结果表明,该激光器在1 kHz条件下运转稳定,脉冲宽度为350 ns,峰值功率为3.7 kW,在9.2~10.7 μm范围内测试到30条激光谱线,重量为18 kg,本文研究为机载激光差分吸收雷达提供了一种小型化探测光源。

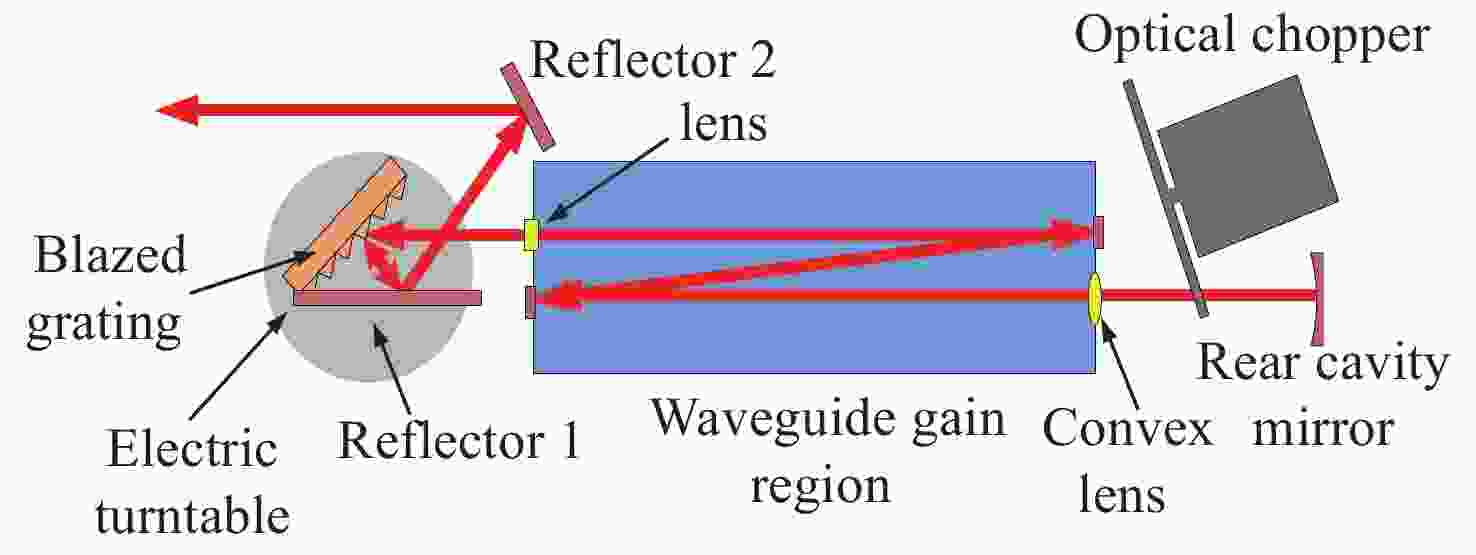

  • 图 1  可调谐脉冲CO2激光器原理示意图

    Figure 1.  Schematic diagram of a tunable pulsed CO2 laser

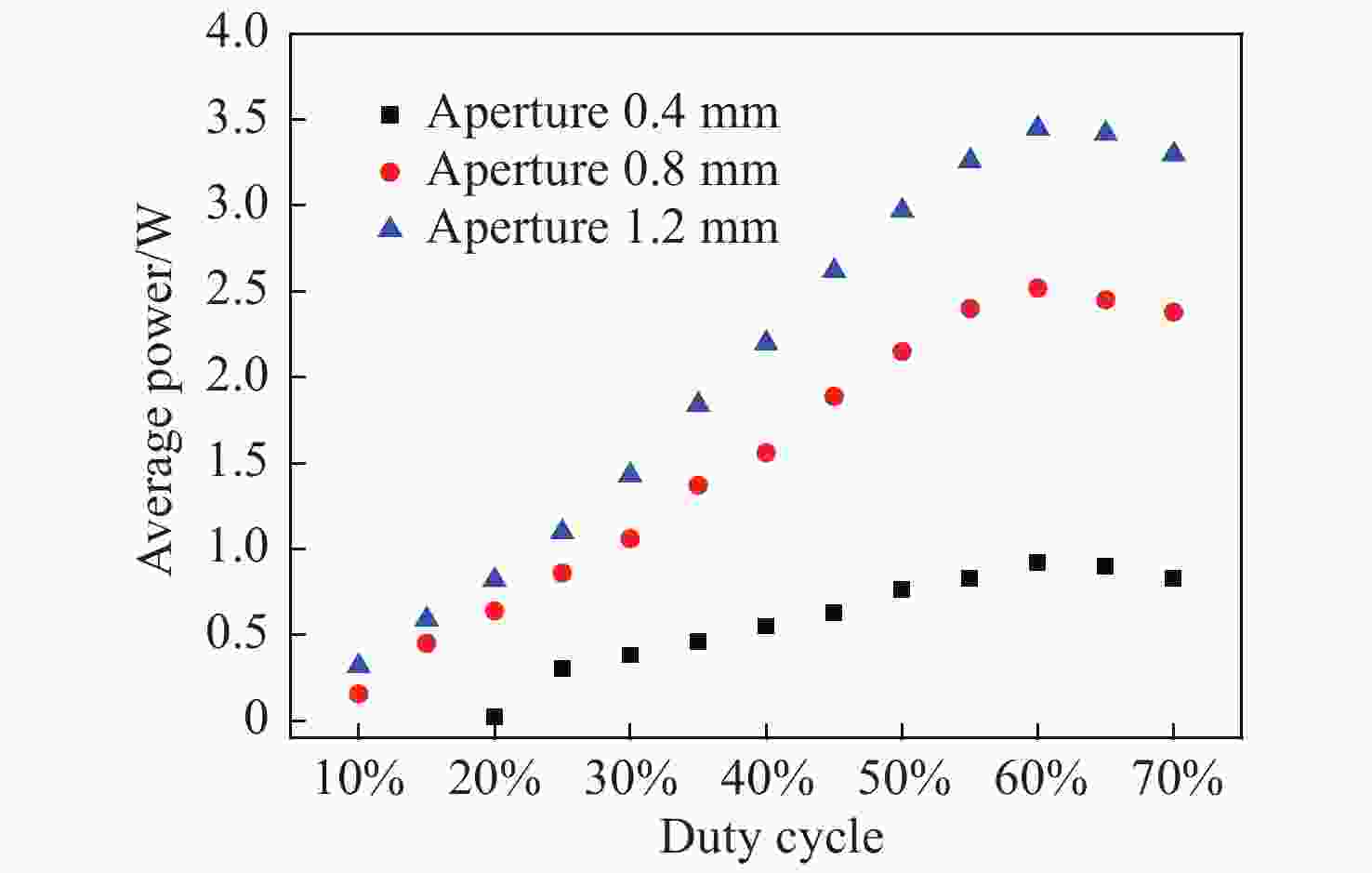

    图 2  脉冲CO2激光平均功率随射频激励占空比变化关系

    Figure 2.  Relationship between the average power of a pulsed CO2 laser and the RF excitation duty cycle

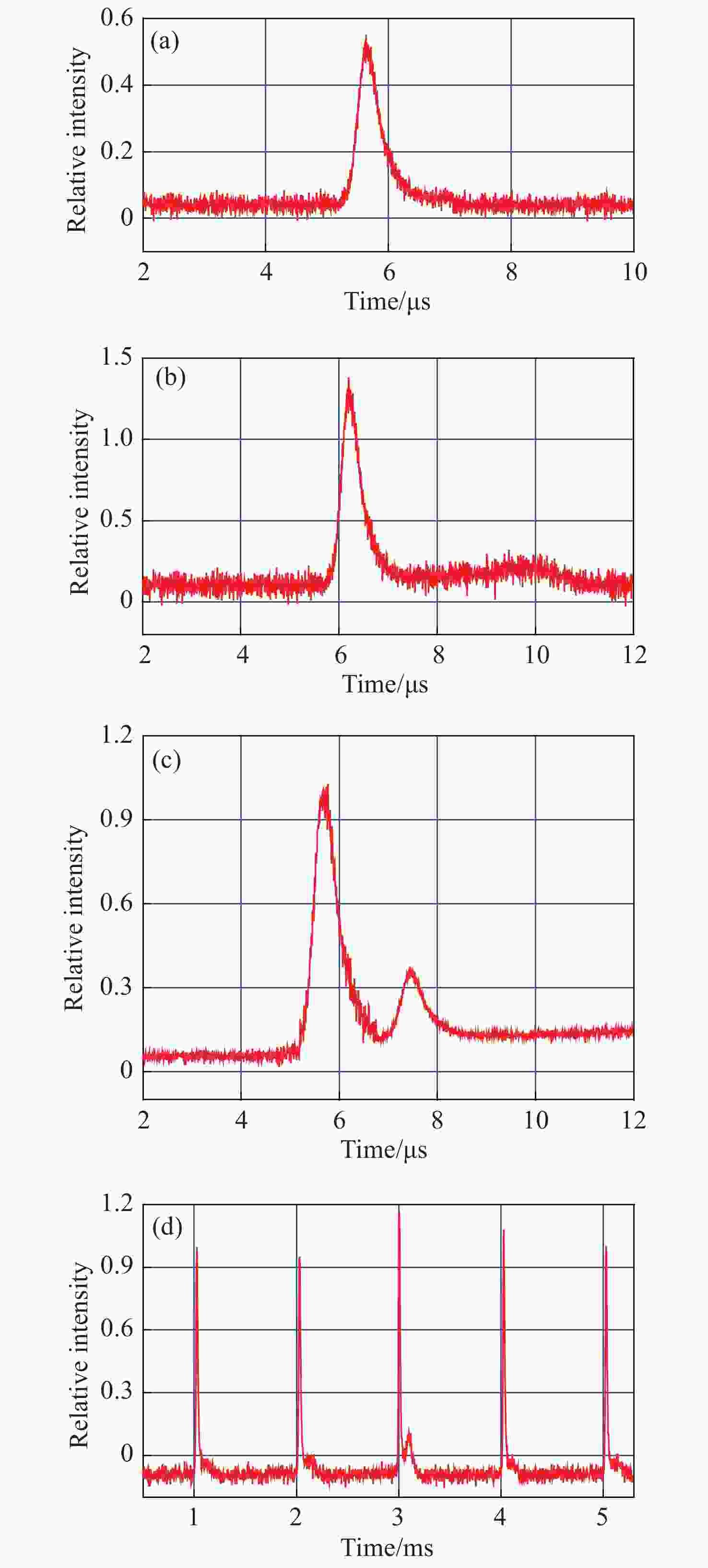

    图 3  采用不同通光孔径斩波扇机械调Q获得的CO2激光脉冲波形:(a)0.4 mm,(b)0.8 mm,(c) 1.2 mm。(d)0.8 mm孔径1 kHz脉冲串波形

    Figure 3.  CO2 pulse waveforms obtained by mechanical Q-switching of chopper fans with different optical apertures. (a) 0.4 mm, (b) 0.8 mm, (c) 1.2 mm. (d) Pulse train at 1 kHz with slits width of 0.8 mm

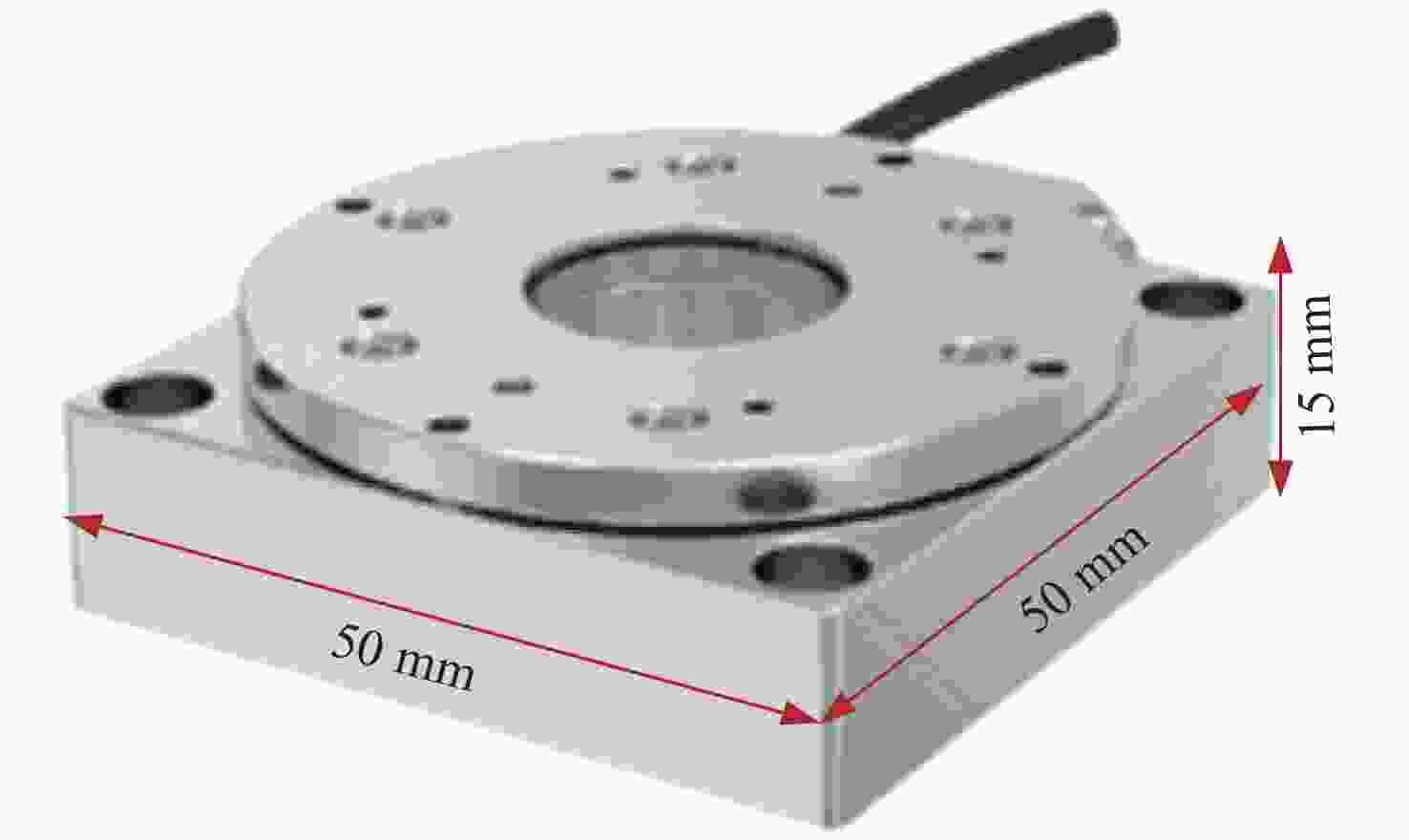

    图 4  小型、轻量化高精度电动转台

    Figure 4.  Small lightweight high precision electric turntable

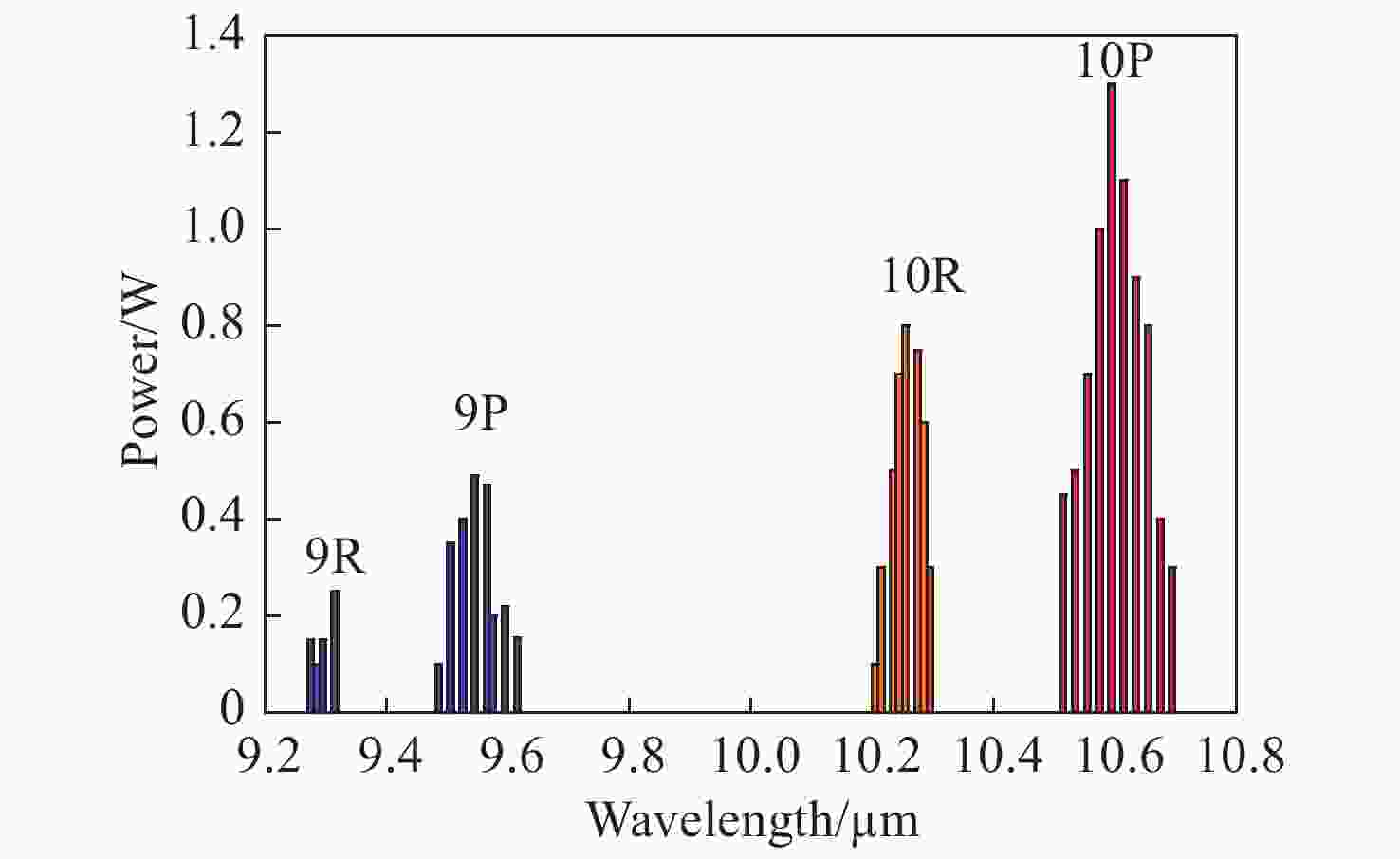

    图 5  机械调Q脉冲CO2激光器输出谱线

    Figure 5.  Output spectrum of mechanical Q-switched pulsed CO2 lasers

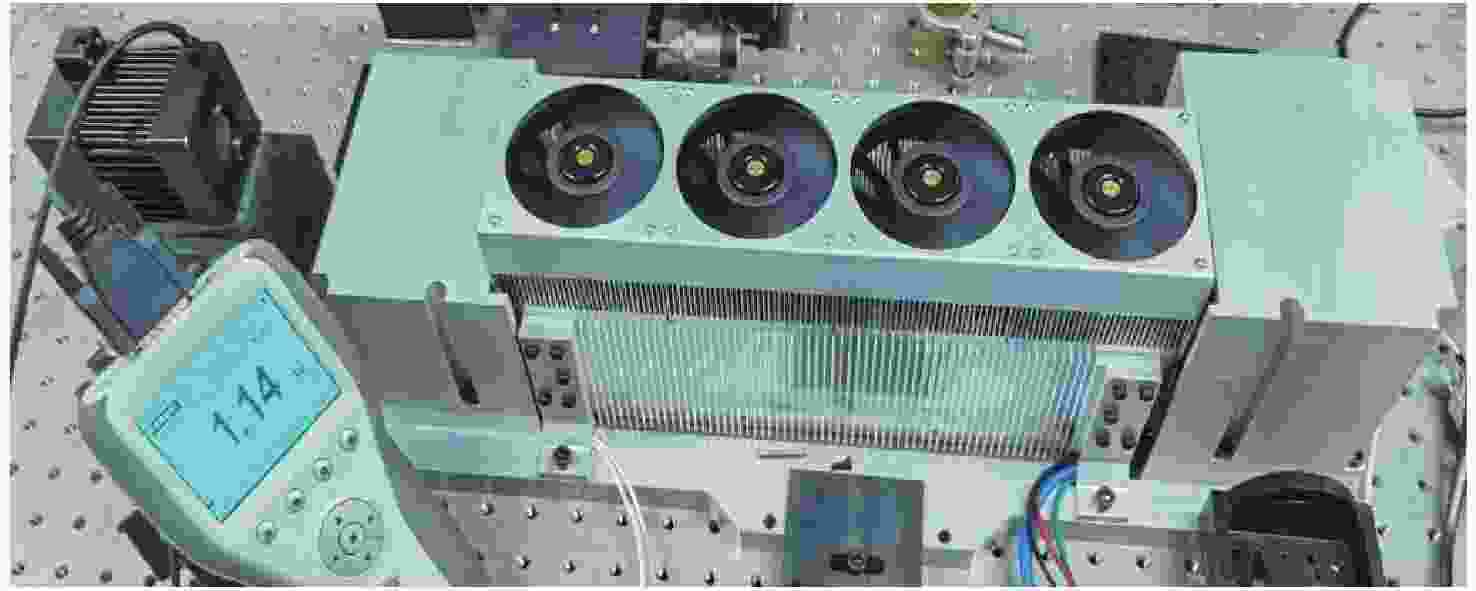

    图 6  紧凑型波长自动调谐脉冲CO2激光器实物图

    Figure 6.  Photo of compact pulsed CO2 laser with wavelength automatic tuning

  • [1] CAO ZH, WEI CH Y, CHENG X, et al. Ground fused silica processed by combined chemical etching and CO2 laser polishing with super-smooth surface and high damage resistance[J]. Optics Letters, 2020, 45(21): 6014-6017. doi: 10.1364/OL.409857
    [2] 高月娟, 陈飞, 潘其坤, 等. 用于超短脉冲CO2激光的半导体光开关理论建模与数值分析[J]. 中国光学,2020,13(3):577-585.

    GAO Y J, CHEN F, PAN Q K, et al. Modeling and numerical simulation of a semiconductor switching device applied in an ultra-short pulse CO2 laser[J]. Chinese Optics, 2020, 13(3): 577-585. (in Chinese)
    [3] 袁志国, 马修真, 刘晓楠, 等. 利用可调谐激光吸收光谱技术的柴油机排放温度测试研究[J]. 中国光学,2020,13(2):281-289. doi: 10.3788/co.20201302.0281

    YUAN ZH G, MA X ZH, LIU X N, et al. Testing on diesel engine emission temperature using tunable laser absorption spectroscopy technology[J]. Chinese Optics, 2020, 13(2): 281-289. (in Chinese) doi: 10.3788/co.20201302.0281
    [4] FAN S Y, HEALY N. CO2 laser-based side-polishing of silica optical fibers[J]. Optics Letters, 2020, 45(15): 4128-4131. doi: 10.1364/OL.397939
    [5] HE T, WEI CH Y, JIANG ZH G, et al. Numerical model and experimental demonstration of high precision ablation of pulse CO2 laser[J]. Chinese Optics Letters, 2018, 16(4): 041401. doi: 10.3788/COL201816.041401
    [6] POLYANSKIY M N, POGORELSKY I V, BABZIEN M, et al. Demonstration of a 2 ps, 5 TW peak power, long-wave infrared laser based on chirped-pulse amplification with mixed-isotope CO2 amplifiers[J]. OSA Continuum, 2020, 3(3): 459-472. doi: 10.1364/OSAC.381467
    [7] 曾庆栋, 袁梦甜, 朱志恒, 等. 便携式激光诱导击穿光谱最新研究进展[J]. 中国光学,2021,14(3):470-486. doi: 10.37188/CO.2020-0093

    ZENG Q D, YUAN M T, ZHU ZH H, et al. Research progress on portable laser-induced breakdown spectroscopy[J]. Chinese Optics, 2021, 14(3): 470-486. (in Chinese) doi: 10.37188/CO.2020-0093
    [8] RUAN P, PAN Q K, XIE J J, et al. Rapidly tunable pulsed CO2 laser based on acoustic-optic modulator[J]. Infrared Physics &Technology, 2018, 92: 299-303.
    [9] TEHRANI M K, MOHAMMAD M M, JAAFARI E, et al. Setting up a mobile Lidar (DIAL) system for detecting chemical warfare agents[J]. Laser Physics, 2015, 25(3): 035701. doi: 10.1088/1054-660X/25/3/035701
    [10] PAL A, CLARK C D, SIGMAN M, et al. Differential absorption lidar CO2 laser system for remote sensing of TATP related gases[J]. Applied Optics, 2009, 48(4): B145-B150. doi: 10.1364/AO.48.00B145
    [11] KARAPUZIKOV A I, PTASHNIK I V, SHERSTOV I V, et al. Modeling of helicopter-borne tunable TEA CO2 DIAL system employment for detection of methane and ammonia leakages[J]. Infrared Physics &Technology, 2000, 41(2): 87-96.
    [12] SZINICZ L. History of chemical and biological warfare agents[J]. Toxicology, 2005, 214(3): 167-181. doi: 10.1016/j.tox.2005.06.011
    [13] BANDINI F, SUNDING T P, LINDE J, et al. Unmanned Aerial System (UAS) observations of water surface elevation in a small stream: comparison of radar altimetry, LIDAR and photogrammetry techniques[J]. Remote Sensing of Environment, 2020, 237: 111487. doi: 10.1016/j.rse.2019.111487
    [14] PODOSKI J H, SMITH T D, FINNEGAN D C, et al. Unmanned aerial system lidar survey of two breakwaters in the Hawaiian islands[J]. Coastal Engineering Proceedings, 2018, 1(36): 23. doi: 10.9753/icce.v36.structures.23
    [15] XIE J J, PAN Q K, GUO R H, et al. Dynamical analysis of acousto-optically Q-switched CO2 laser[J]. Optics and Lasers in Engineering, 2012, 50(2): 159-164. doi: 10.1016/j.optlaseng.2011.09.014
    [16] ZHANG Y CH, TIAN ZH SH, SUN ZH H, et al. Study of frequency stabilization for electro-optical Q-switched radio-frequency-excited waveguide CO2 laser using build-up time method[J]. Applied Optics, 2013, 52(16): 3732-3736. doi: 10.1364/AO.52.003732
    [17] 潘其坤, 陈飞, 石宁宁, 等. 声光调Q CO2激光器波长调谐理论分析与实验研究[J]. 红外与激光工程,2017,46(7):0705002. doi: 10.3788/IRLA201746.0705002

    PAN Q K, CHEN F, SHI N N, et al. Theoretical analysis and experimental research on tunable acousto-optic Q-switched CO2 laser[J]. Infrared and Laser Engineering, 2017, 46(7): 0705002. (in Chinese) doi: 10.3788/IRLA201746.0705002
