Calculation of orbit external heat flow and radiation characteristics of space target
-
摘要:
本文针对空间目标受到的太阳辐射、地球辐射、地球反照辐射，采用蒙特卡洛（Monte Carlo）法，基于非结构四面体网格编写了仿真程序，并对计算结果进行了对比验证。进一步地，对太阳同步轨道卫星受到的轨道外热流，采用带帆板的网格对有无遮挡情况下各表面受到的轨道外热流进行了分析。结果显示，在对地模式下考虑遮挡后，−
Y 表面平均热流值降低了53.79 W/m2，+Y −Z 侧帆板表面平均热流值降低了32.05 W/m2。结合表面材料属性，分析了各表面的温度特性，并结合帆板温度的在轨遥测数据，验证了计算的准确性。最后，计算了两种模式下各方向的红外辐射强度。结果表明，不同观测模式下各表面受热流的影响不同，对地模式下各表面温度随时间变化较大，而对日模式下各表面热流较为稳定。两种模式下，太阳能帆板的温度较高，辐射强度较大，具有明显的红外特征，便于开展红外观测。Abstract:In this paper, the solar radiation, the earth radiation and the earth albedo radiation received by the space target are simulated by Monte Carlo simulation method, and the simulation program is written based on the unstructured tetrahedral grid, and the calculation results are compared and verified. Furthermore, for the orbit external heat flow received by the sun-synchronous orbit satellite, the grid with solar panels is used to analyze the orbit external heat flow received by each surface with or without occlusion. The results show that the average heat flow value of −
Y surface decreases by 53.79 W/m2 after considering occlusion in the earth-pointing mode. The average surface heat flow value of +Y −Z side panel decreased by 32.05 W/m2. The temperature characteristics of each surface are given combined with the properties of surface materials, and the accuracy of the calculation is verified by combining with the on-orbit telemetry data of the solar panel temperature. Finally, the infrared radiation intensity in each direction of the two modes is calculated. The results show that the influence of heat flow on the surface is different under different observation modes. The temperature of each surface varies greatly over time in the earth-pointing mode, while the heat flow on each surface is relatively stable in the sun-pointing mode. Under both modes, the temperature of the solar panel is higher, the radiation intensity is larger, and it has obvious infrared characteristics, which facilitates infrared observation. -
图 1 地球红外辐射及反照外热流示意图
Figure 1. Schematic diagram of earth’s infrared radiation and albedo external heat flow

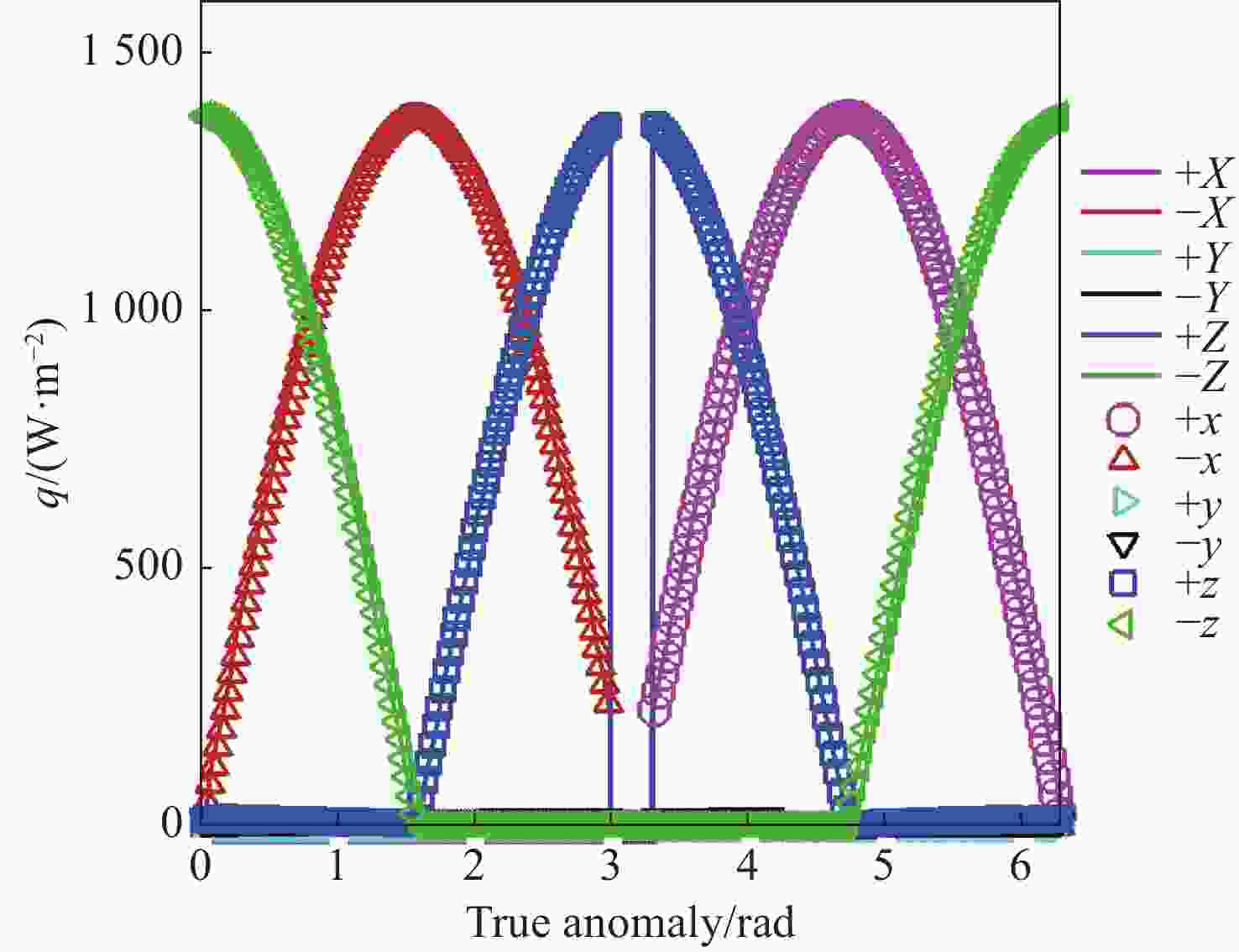

图 2 800 km太阳同步轨道外热流对比
Figure 2. Comparison of external heat flow of the 800 km sun-synchronous orbit
图 3 地球同步轨道外热流对比
Figure 3. Comparison of external heat flow of the geosynchronous orbit
图 11 外热流分布及遮挡影响示意图
Figure 11. Schematic diagram of external heat flow distribution and occluding effects
图 15 对地模式下的各方向辐射强度（3~5 μm）
Figure 15. Radiation intensity in each direction in the earth-pointing mode (3~5 μm)
图 16 对日模式下的各方向辐射强度（3~5 μm）
Figure 16. Radiation intensity in each direction in the sun-pointing mode (3~5 μm)
图 17 对地模式下的各方向辐射强度（8~14 μm）
Figure 17. Radiation intensity in each direction in the earth-pointing mode (8~14 μm)
图 18 对日模式下的各方向辐射强度（8~14 μm）
Figure 18. Radiation intensity in each direction in the sun-pointing mode (8~14 μm)
表 1 表面材料热参数[15]
Table 1. Thermal parameters of surface material
表面 材料 吸收率 发射率 本体 氟46 0.35 0.68 太阳帆板 电池片 0.82 0.81 背板 0.88 0.86
下载: 导出CSV
表 2 典型位置地球红外角系数随平板俯仰角变化对比
Table 2. Comparison of earth infrared angular coefficients varying with plate pitch angle at typical positions
$\beta $/(°) 本文结果 Ref [16]结果 0 0.9129 0.9118 30 0.7961 0.7961 60 0.5673 0.5639 90 0.3139 0.3125 120 0.1107 0.1100 150 0.0081 0.0077 180 0.0000 0.0000
下载: 导出CSV
表 3 各平面一个轨道周期内的平均外热流
Table 3. Average external heat fluxes of each surface in one orbital period
W/m2 Surface Mode 1 Mode2 +X 390.51 87.92 −X 373.86 116.75 +Y 89.96 100.83 −Y 408.43 120.34 +Z 346.37 148.28 −Z 399.60 972.33 +Y+Z solar panel 342.52 148.17 +Y−Z solar panel 367.55 972.22 −Y+Z solar panel 346.43 148.29 −Y−Z solar panel 399.60 972.23
下载: 导出CSV
-
