Research on optical transfer function measurement based on Hartmann wavefront sensor
-
摘要:

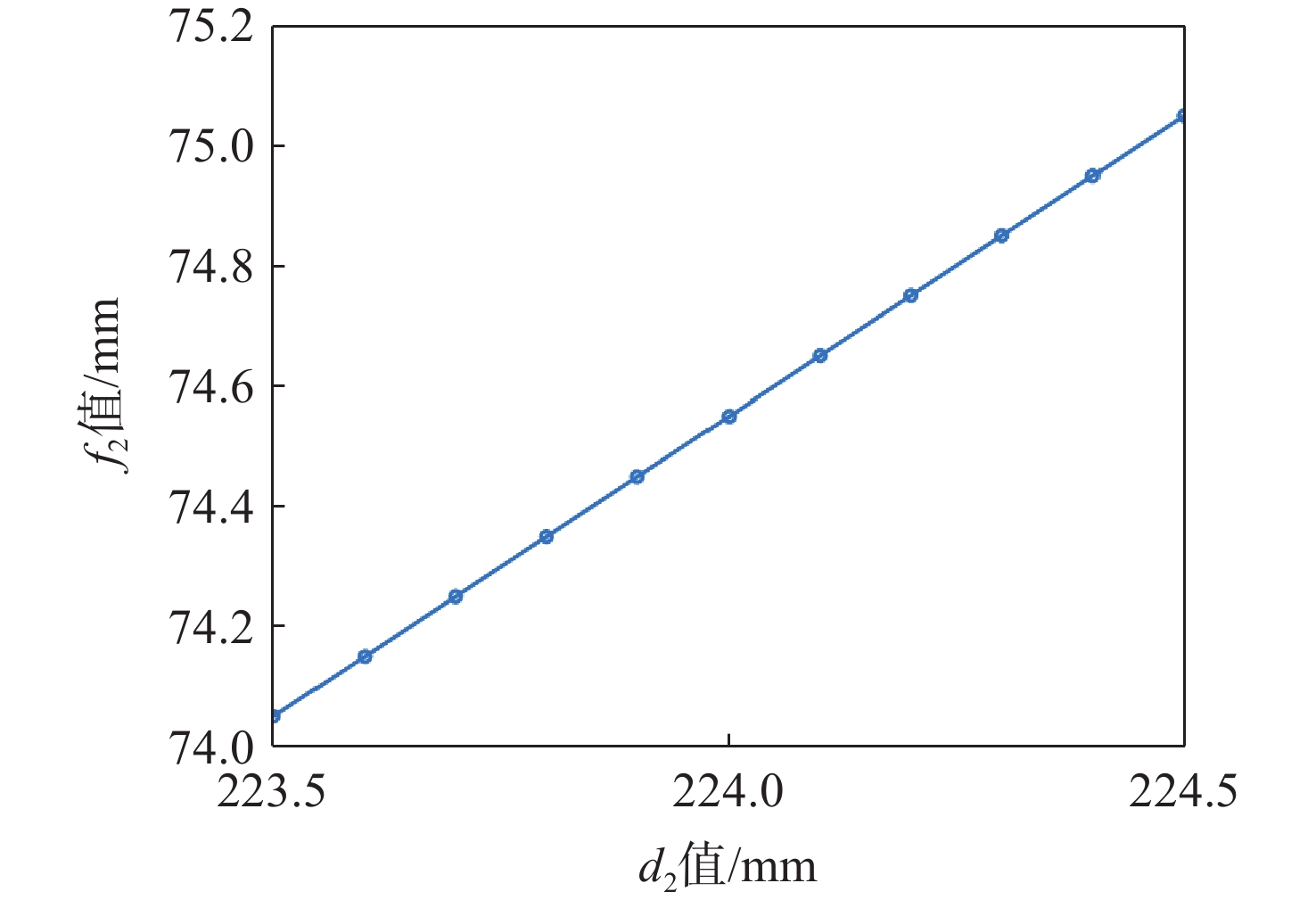

为实现光学传递函数的低成本、实时测量，本文提出基于哈特曼探测器的光学传递函数测量方法。首先，基于哈特曼探测器的测量波面，给出光学传递函数的测量方法。然后，设计传函测量光路，并给出焦深、像差和焦距的测量方法。同时，设计了物镜像差的标定光路，并给出标定方法。最后，搭建实验光路，实现了单透镜的调制传递函数（MTF）、像差、焦距、焦深及色差的测量。结果显示，该方法实现了0~1° 视场透镜的MTF测量；透镜的像散、慧差及球差分别为0.114 λ、0.128 λ和0.02 λ；0°视场下透镜的色差在红、绿、蓝三个波长下分别为0.047 λ、0.055 λ、0.048 λ，1°视场下增长到0.117 λ、0.176 λ和0.154 λ；焦深为0.454 mm，误差2%，焦距为74.6 mm，误差0.8%。结果表明该测量方法能够实现透镜的传函测量，为光学系统传函的低成本、实时测量提供技术途径。
Abstract:This study proposes a Hartmann wavefront sensor-based method for cost-effective, real-time measurement of Optical Transfer Function (OTF). First, an OTF measurement framework is established using wavefront data acquired through the Hartmann wavefront sensor. Subsequently, we design an optical configuration for OTF measurement, incorporating methodologies to determine depth of focus, characterize aberrations, and measure focal length. A dedicated calibration optical path is developed for objective lens aberration quantification, accompanied by systematic calibration procedures. Finally, an experimental setup is implemented to comprehensively assess lens performance, including Modulation Transfer Function (MTF), aberration, focal length, depth of focus, and chromatic aberration. The measurement results show that this method can achieve MTF measurement for the lens within a 0−1° field of view. The measured aberrations include astigmatism (0.114 λ), coma (0.128 λ), and spherical aberration (0.02 λ). At 0° field angle, the chromatic aberration values for red, green, and blue wavelengths are 0.047 λ, 0.055 λ, and 0.048 λ, respectively, increasing to 0.117 λ, 0.176 λ, and 0.154 λ at 1° field angle. The depth of focus is measured at 0.454 mm with a 2% error, while the focal length is determined to be 74.6 mm with a 0.8% error. These results confirm that the proposed measurement method enables accurate MTF characterization of optical lenses, providing a low-cost and real-time technical solution for the evaluation of MTF in optical systems.
-

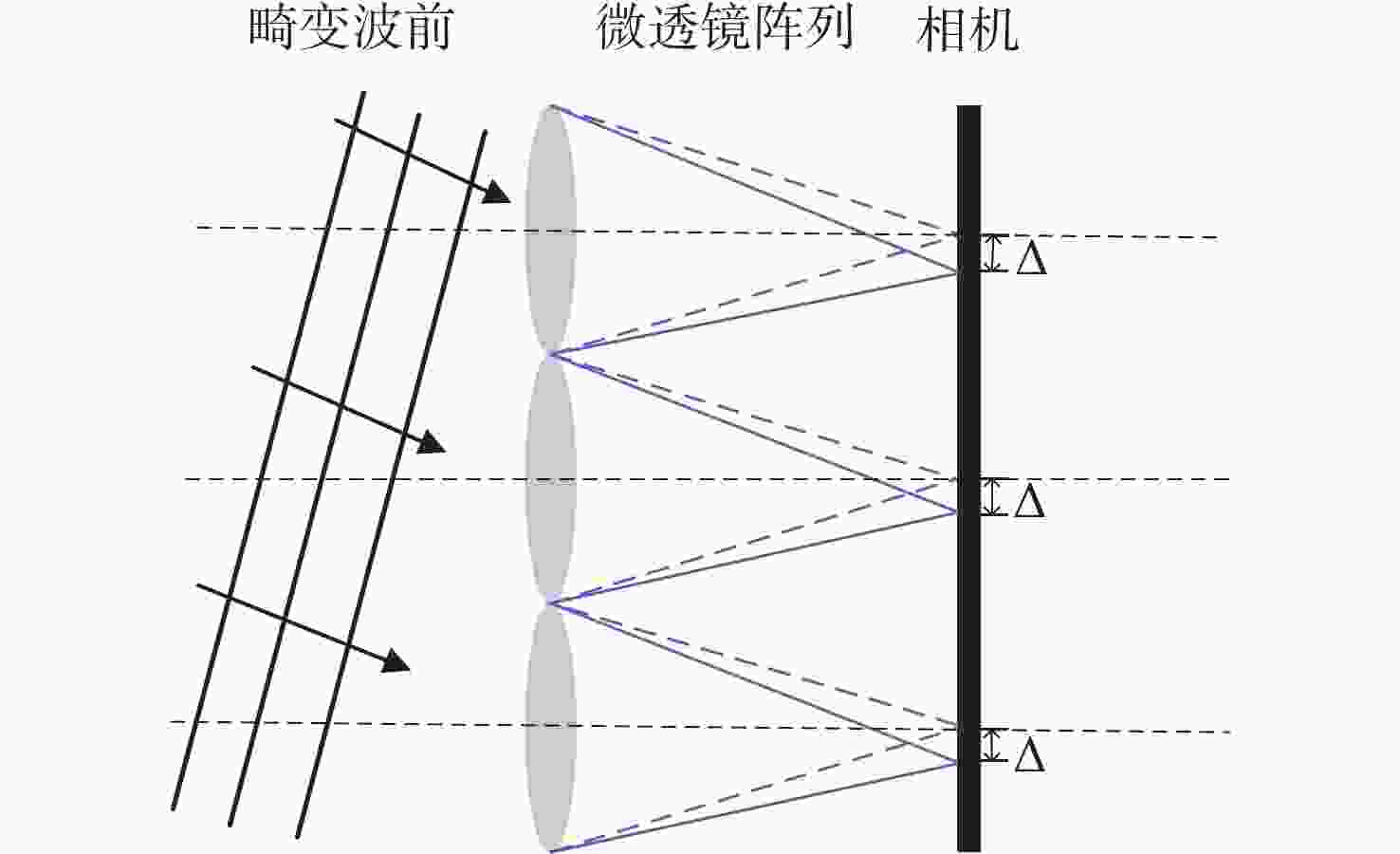

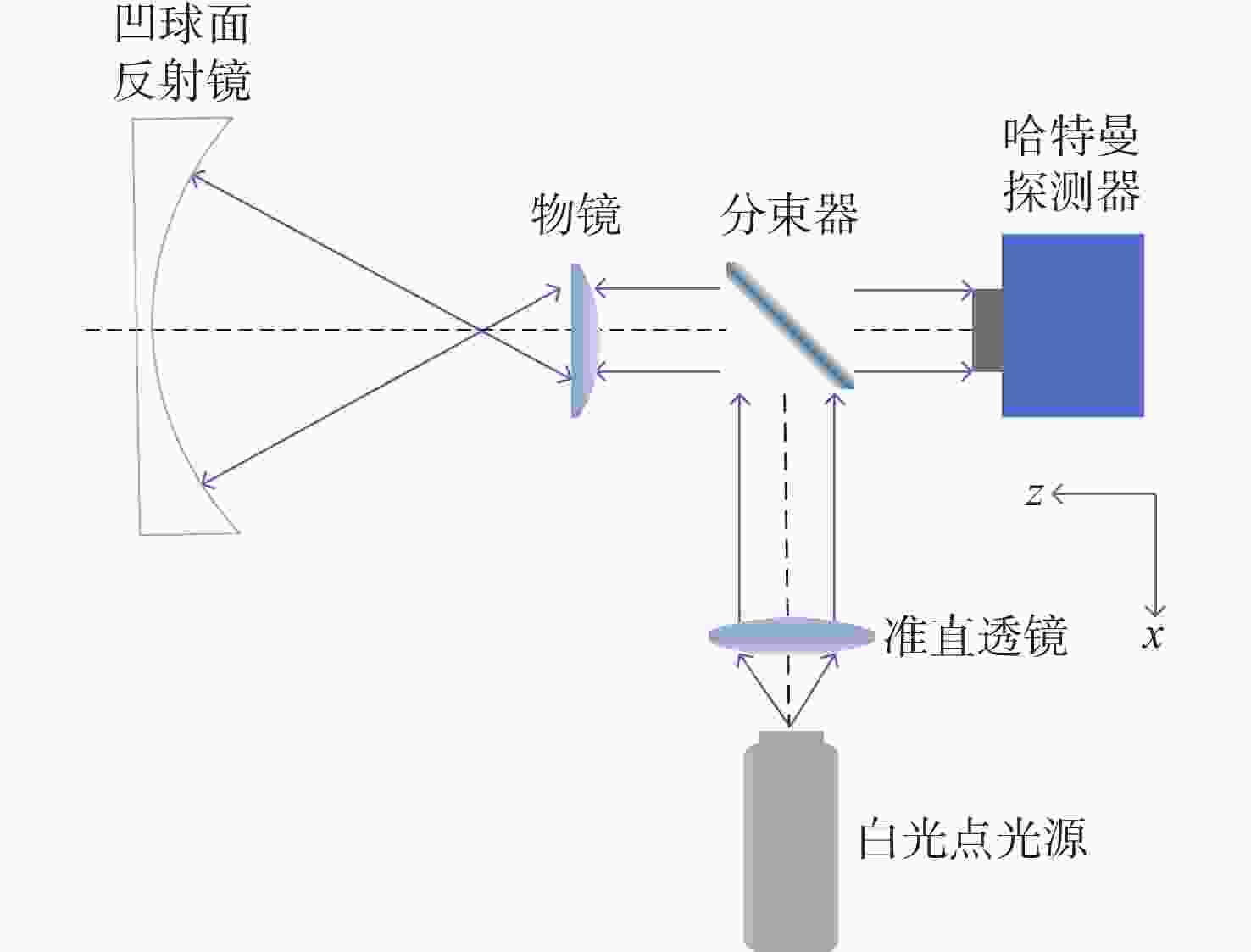

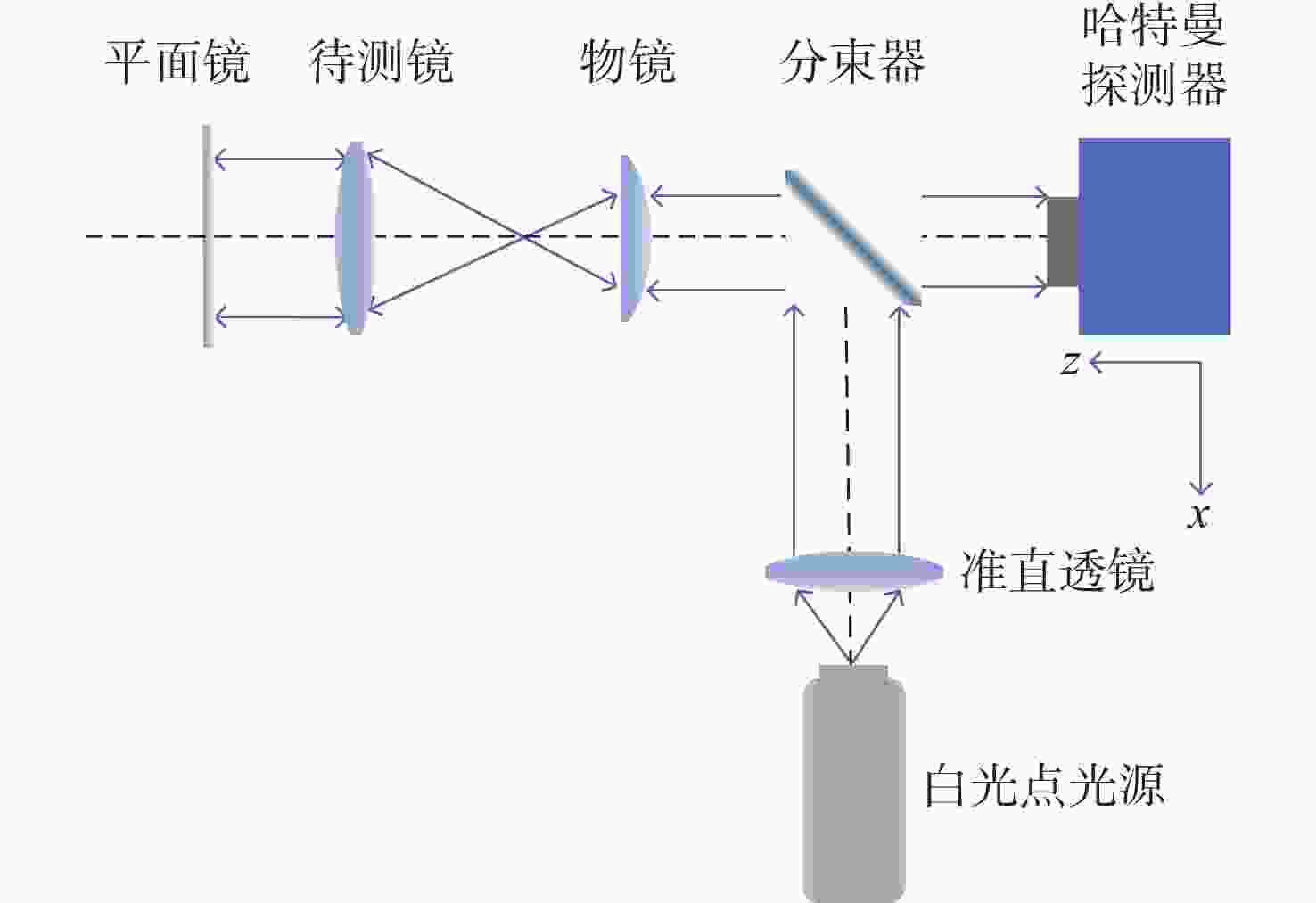

图 2 传函仪系统光路示意图
Figure 2. Schematic diagram of optical layout of the OTF measurement system

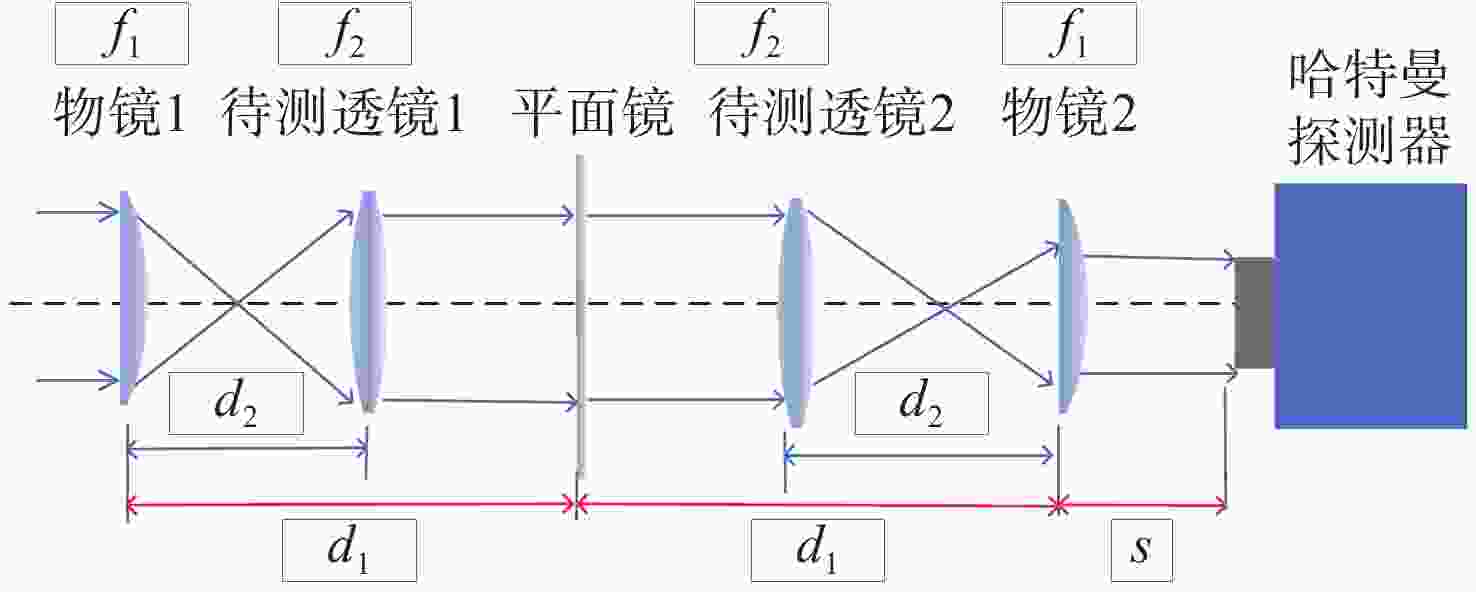

图 3 系统光路的等效光路示意图
Figure 3. Equivalent optical path diagram of the system configuration
图 4 物镜像差标定光路示意图
Figure 4. Schematic of the calibration optical path for objective lens aberration

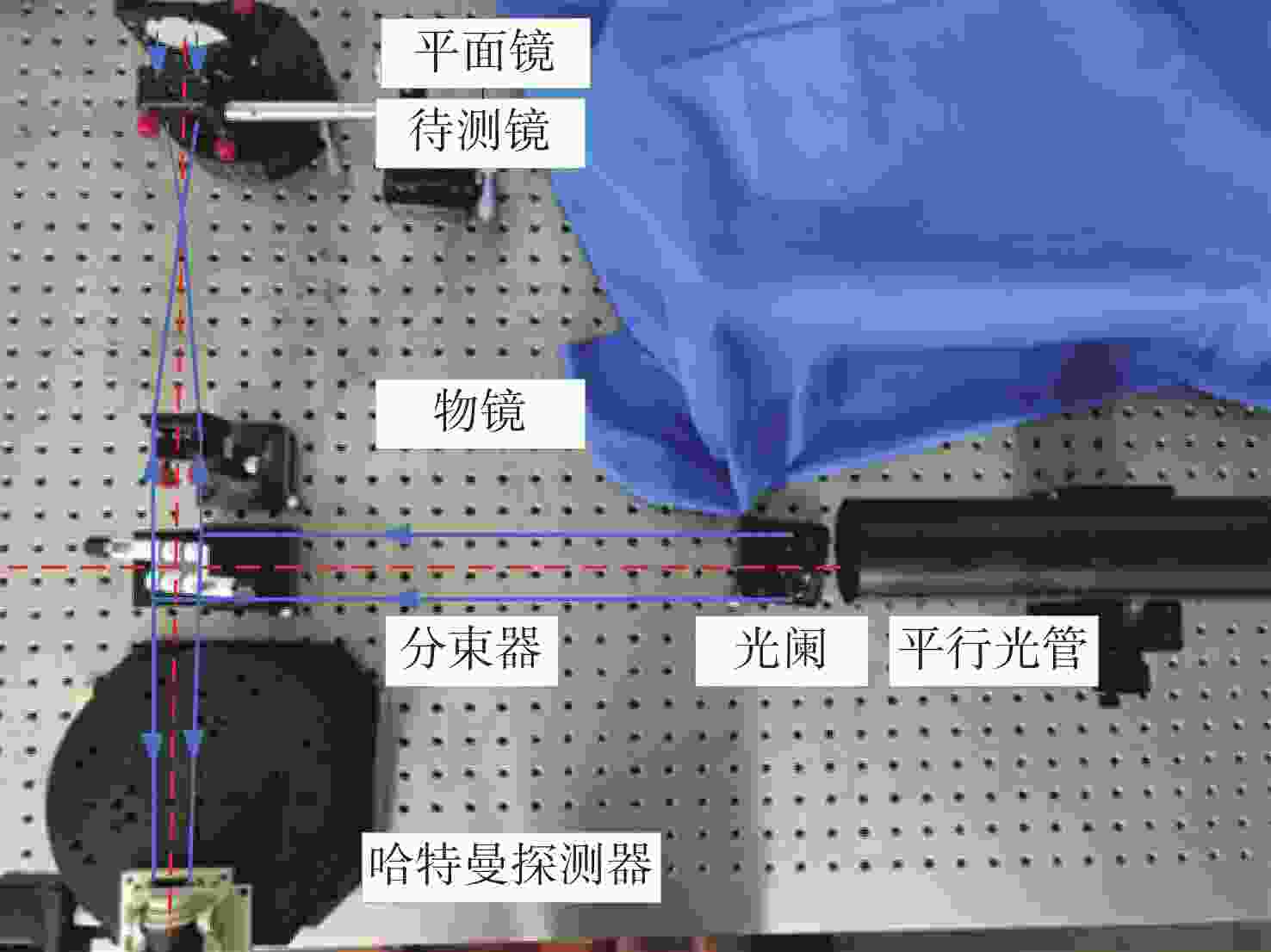

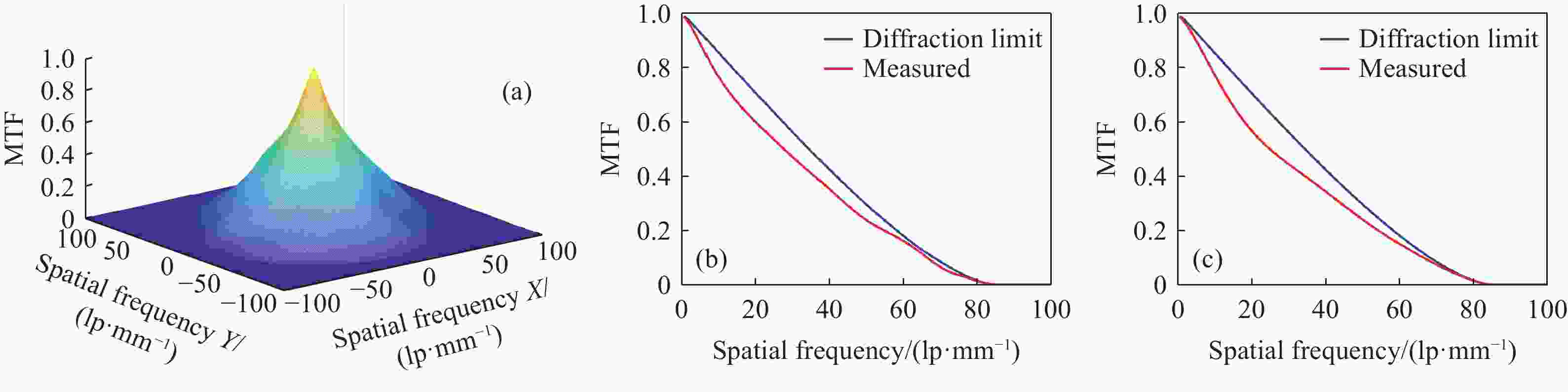

图 8 0°视场下透镜的MTF。(a) MTF的三维分布；(b) x方向及(c) y方向的MTF分布
Figure 8. MTF of the lens at 0° field of view. (a) 3D MTF; (b) MTF in x direction, and (c) MTF in y direction

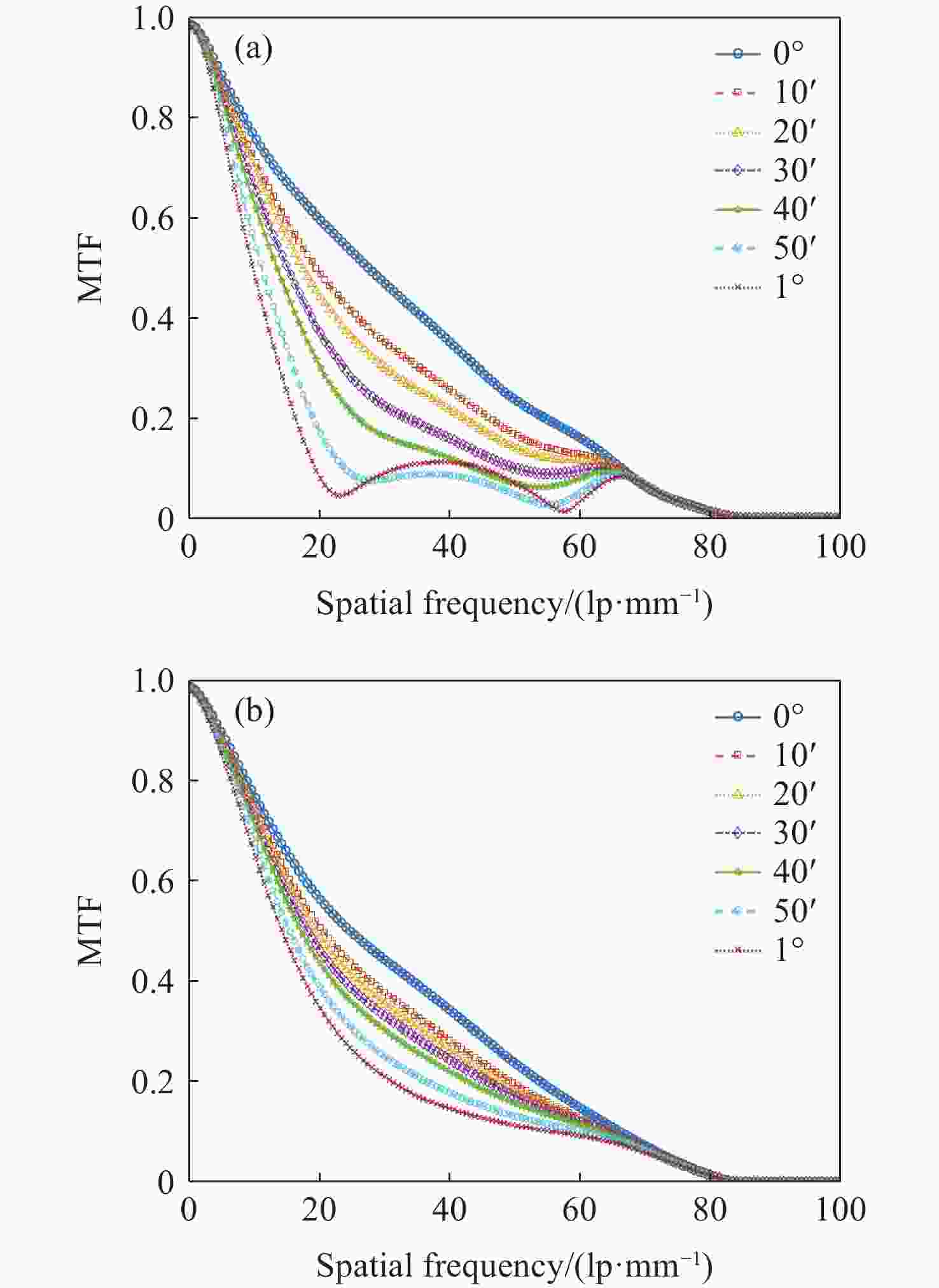

图 9 不同视场的MTF测量结果。(a) x方向，(b) y方向
Figure 9. MTF measurement results for different fields of view: (a) in the x direction, and (b) in the y direction

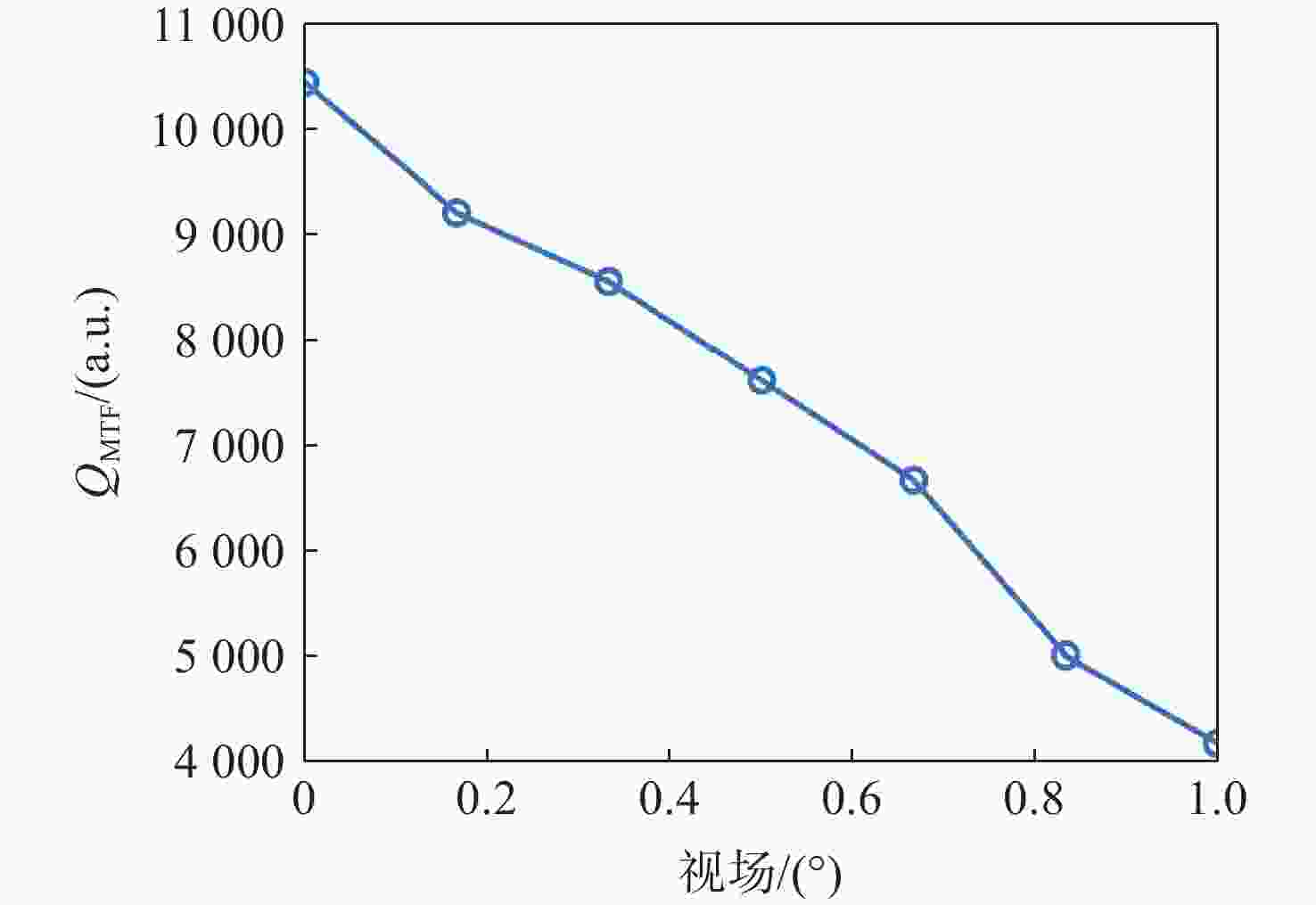

图 10 不同视场的镜头传函质量
Figure 10. MTF performance characterization of the lens under different fields of view

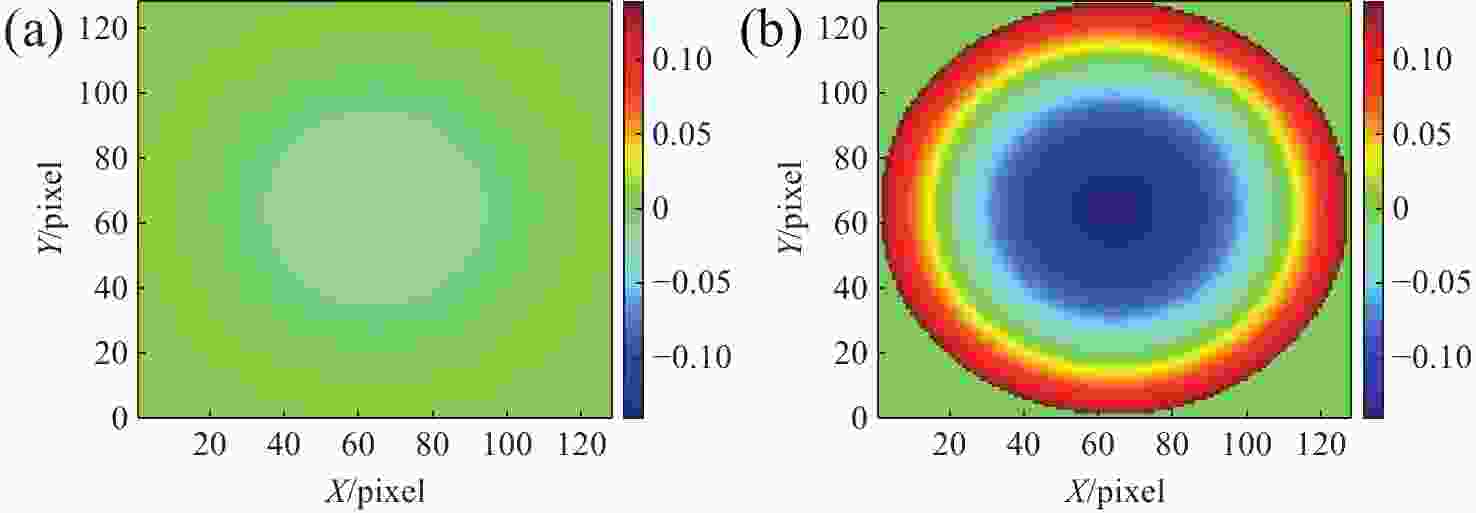

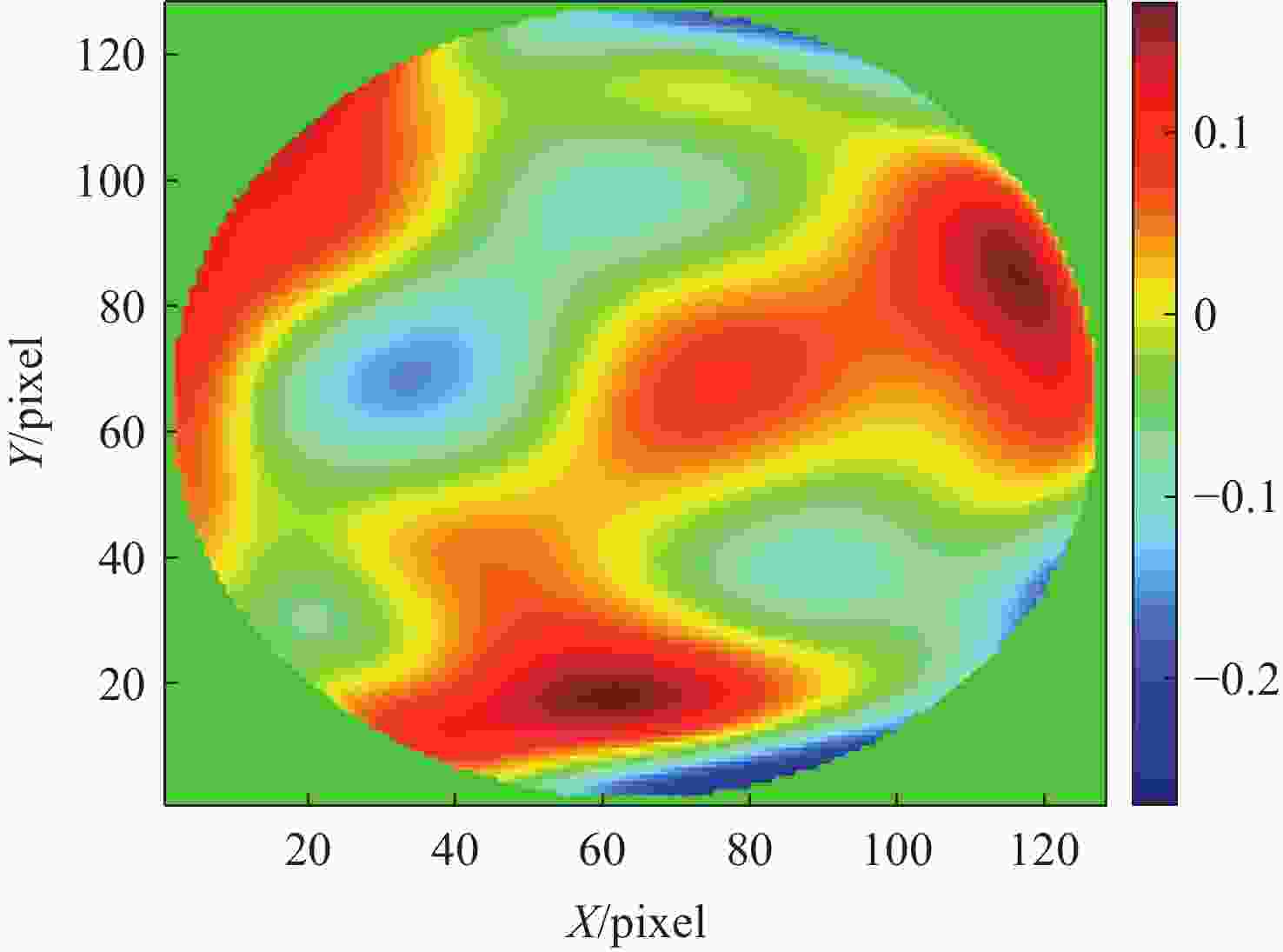

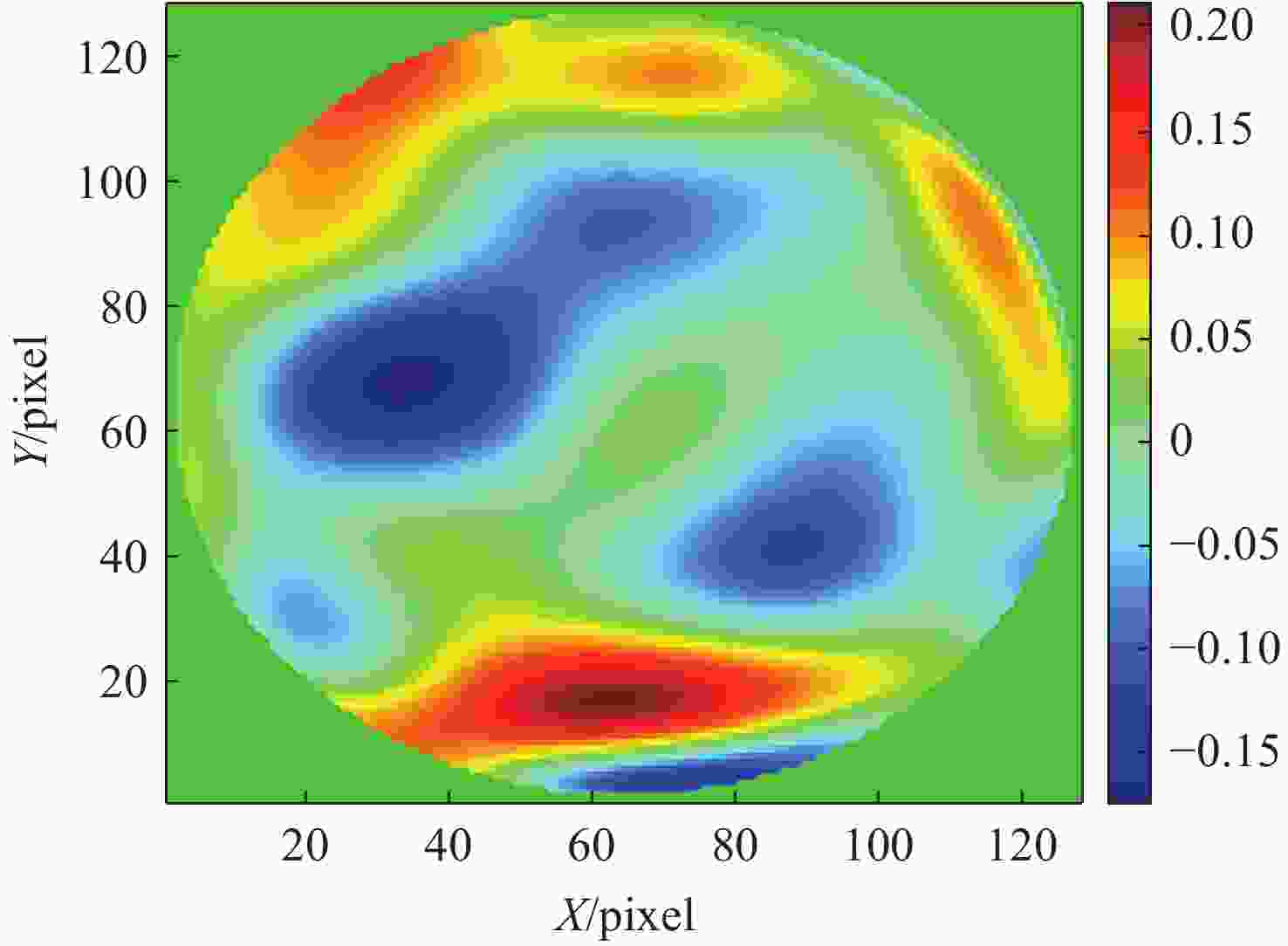

图 11 焦深测量波面。(a) 原始波面, (b) 离焦波面
Figure 11. Defocus-dependent wavefront characterization. (a) Original wavefront and (b) defocus wavefront

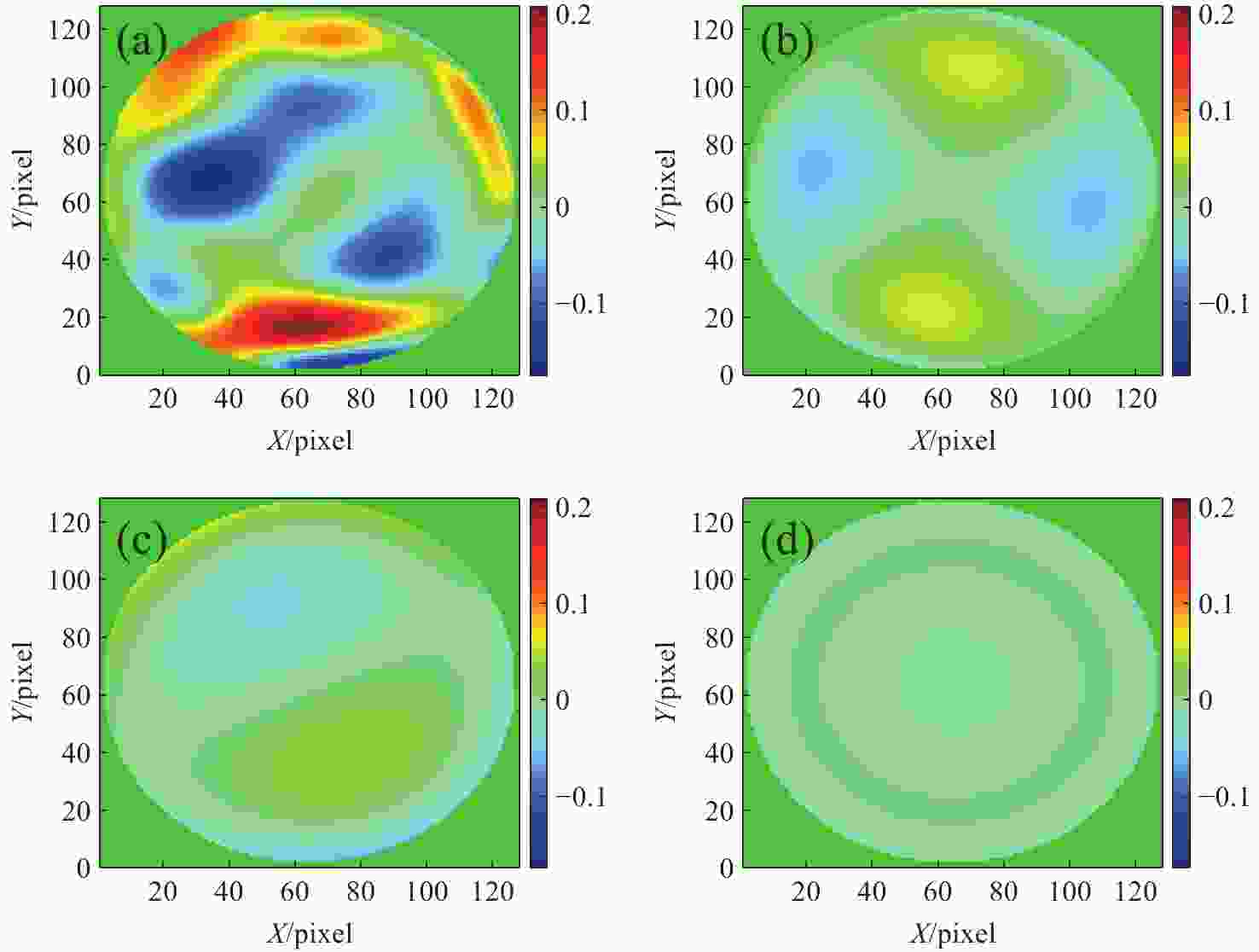

图 12 透镜的像差测量结果。(a) 总像差, (b) 像散, (c) 彗差, (d) 球差
Figure 12. Aberration measurement results of the lens. (a) Total aberration, (b) astigmatism, (c) comma, and (d) spherical aberration

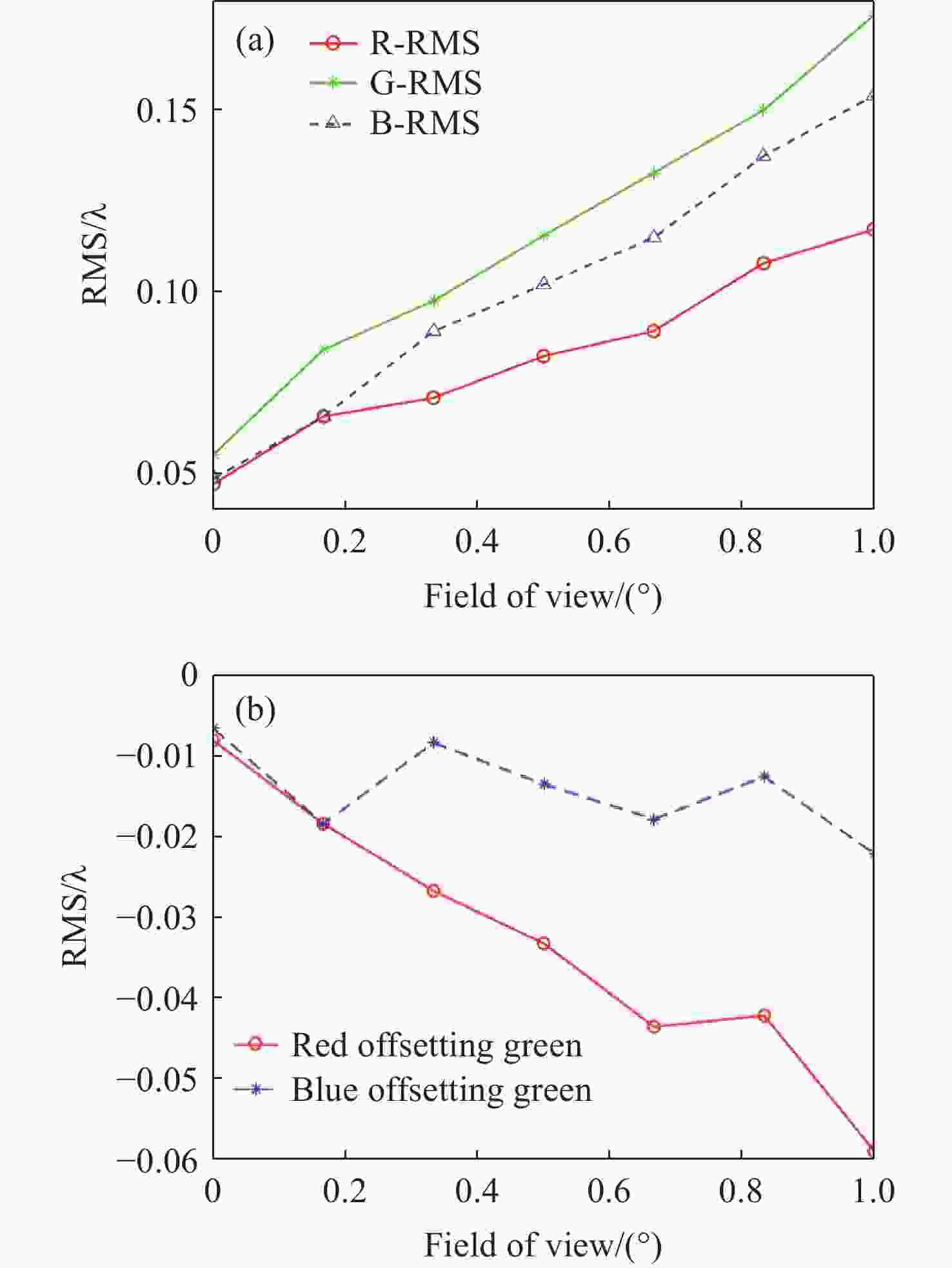

图 13 色差测量结果。(a) 红、绿、蓝波长的色差；(b) 红、蓝偏移绿波长的色差
Figure 13. Chromatic aberration measurement results. (a) Chromatic aberration at red, green, and blue wavelengths; (b) Chromatic aberration with red/blue wavelengths shifted relative to the green
表 1 前8项Zernike表达式
Table 1. The first 8 terms of Zernike polynomials
Zernike序号 描述 1 倾斜（X方向） 2 倾斜（Y方向） 3 离焦 4 初级像散（X方向） 5 初级像散（Y方向） 6 初级彗差（X方向） 7 初级彗差（Y方向） 8 初级球差
