利用级联超构表面同时测量径向角位移和纵向线位移

张振宇; 张伟; 刘睿; 张婧英; 李文昊

doi:10.37188/CO.2025-0033

利用级联超构表面同时测量径向角位移和纵向线位移

doi: 10.37188/CO.2025-0033

cstr: 32171.14.CO.2025-0033

张振宇^{1, 2,},
张伟¹,
刘睿^{1, 2},
张婧英^{1, 2},
李文昊^1, ,

1.
中国科学院长春光学精密机械与物理研究所, 吉林长春 130033
2.
中国科学院大学, 北京 100049

基金项目: 中国科学院稳定支持基础研究领域青年团队项目（No. YSBR-103）；中国科学院青年创新促进会（No. 2021220）；吉林省与中国科学院科技合作高技术产业化专项（No. 2024SYHZ0018）；吉林省科技发展计划科技条件与平台建设计划（No. 20220505001ZP）

详细信息

作者简介:
张振宇(2000—)，男，山东济宁人，硕士研究生，2022年于山东科技大学获得学士学位，主要从事微纳器件设计方面的研究。E-mail：phy_zhang@foxmail.com

李文昊(1980—)，男，内蒙古赤峰人，博士，研究员，2008年于中国科学院长春光学精密机械与物理研究所获博士学位，主要研究方向为平面、凹面全息光栅的理论设计及光栅精密位移测量技术。E-mail：liwh@ciomp.ac.cn

中图分类号: TP394.1;TH691.9
计量
- 文章访问数: 103
- HTML全文浏览量: 23
- PDF下载量: 6
- 被引次数: 0
出版历程
- 收稿日期: 2025-03-03
- 录用日期: 2025-04-14
- 网络出版日期: 2025-05-21

Simultaneous measurement of radial angular displacement and longitudinal linear displacement with cascade metasurfaces

ZHANG Zhen-yu^{1, 2
,},
ZHANG Wei¹,
LIU Rui^{1, 2},
ZHANG Jing-ying^{1, 2},
LI Wen-hao^{1
, ,}

1.
Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun Jilin 130033, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds: Supported by CAS Project for Young Scientists in Basic Research (No. YSBR-103); Chinese Academy of Sciences Youth Innovation Promotion Association (No. 2021220); Jilin Province and CAS science and technology cooperation in high-tech industrialization of special projects (No. 2024SYHZ0018); Jilin Provincial Science and Technology Development Program of Science and Technology Conditions and Platform Construction Program (No. 20220505001ZP)

More Information

Corresponding author: liwh@ciomp.ac.cn

摘要

摘要:
为了解决现有超构表面位移测量技术无法同时测量多个物理量的问题，本文设计了一种超构表面级联结构，可用于同时测量径向角位移和纵向线位移。首先，根据级联超构表面对圆偏振光的联合相位调制阐述了位移测量的工作原理。接着，以琼斯传输矩阵分析了相位延迟携带的位移信息，推导了角位移与线位移的数学表征。然后，以设计目标作为约束条件优化单元结构参数，构建超构表面的模型。最后，采用时域有限差分法对超构表面结构进行模拟，验证方法可行性并分析器件测量性能。结果表明，在633 nm的工作波长下，角位移灵敏度为0.9716，理论分辨率34.27 μrad，线位移灵敏度为0.0041，理论分辨率8.12 nm。该方法提高了超构表面位移测量技术的测量自由度，并有希望进一步扩展到六维，以此实现对待测目标的完全姿态确定。
- 超构表面 /
- 角位移 /
- 线位移 /
- 位移测量 /
- 二自由度
Abstract:
To solve the problem of existing metasurface displacement measurement techniques unable to measure multiple physical quantities simultaneously, this paper proposes a metasurface cascade structure that can measure radial angular displacement and longitudinal line displacement simultaneously. First, the working principle of displacement measurement is described according to the joint phase modulation of circular polarized light by a cascade metasurface. Second, the displacement information carried by the phase delay is analyzed using the Jones transport matrix, and the angular and linear displacements are mathematically characterized. Then, the design objective is used as a constraint to optimize unit structure parameters and create metasurface models. Finally, the finite-difference time-domain method is used to simulate the metasurface structures, validate the method's feasibility, and evaluate the device's measurement performance. The results show that the angular displacement sensitivity was 0.9716 with a theoretical resolution of 34.27 μrad, and the linear displacement sensitivity was 0.0041 with a theoretical resolution of 8.12 nm at the working wavelength of 633 nm. The measurement freedom of metasurface displacement measurement technology is improved by this method. It is hoped that it can be further expanded to six dimensions so that the measured target's entire attitude can be determined.
- metasurface /
- angular displacement /
- linear displacement /
- displacement measurement /
- two degrees of freedom

HTML全文

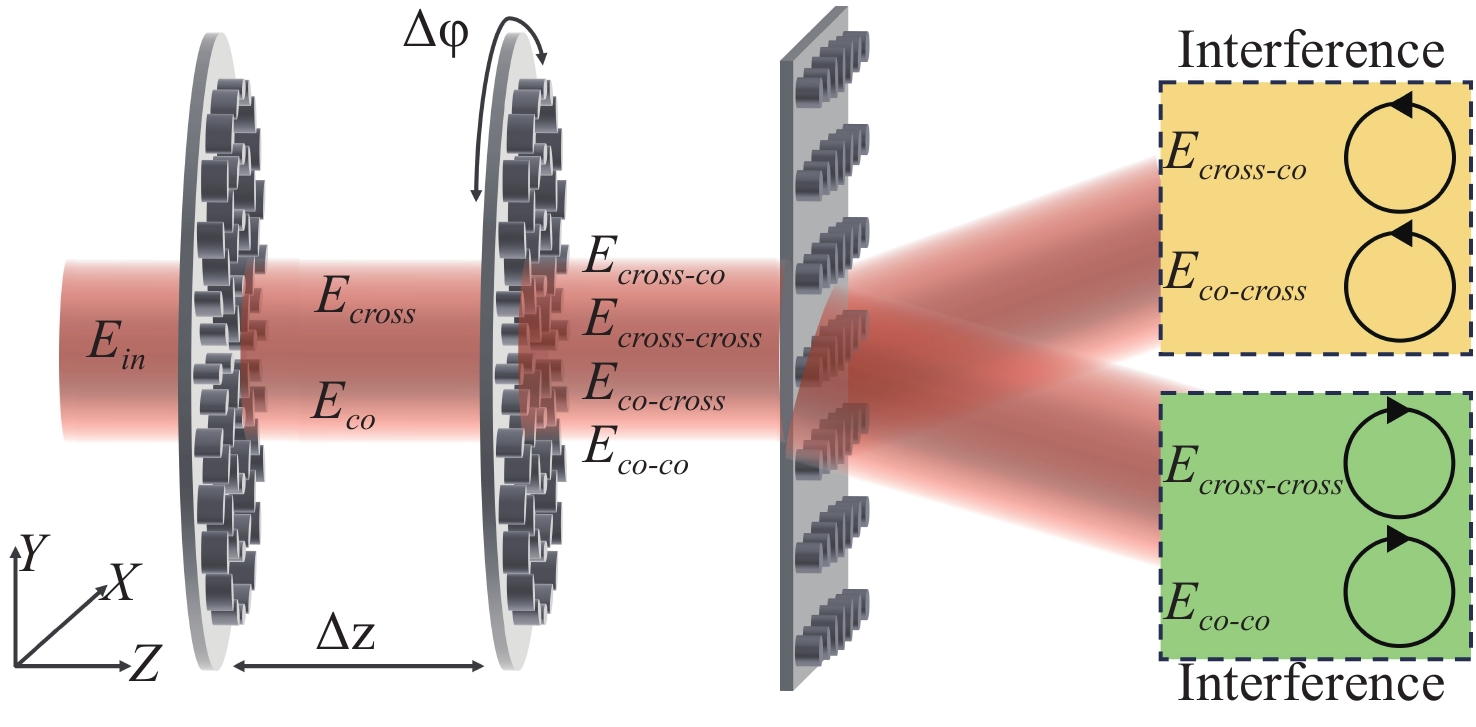

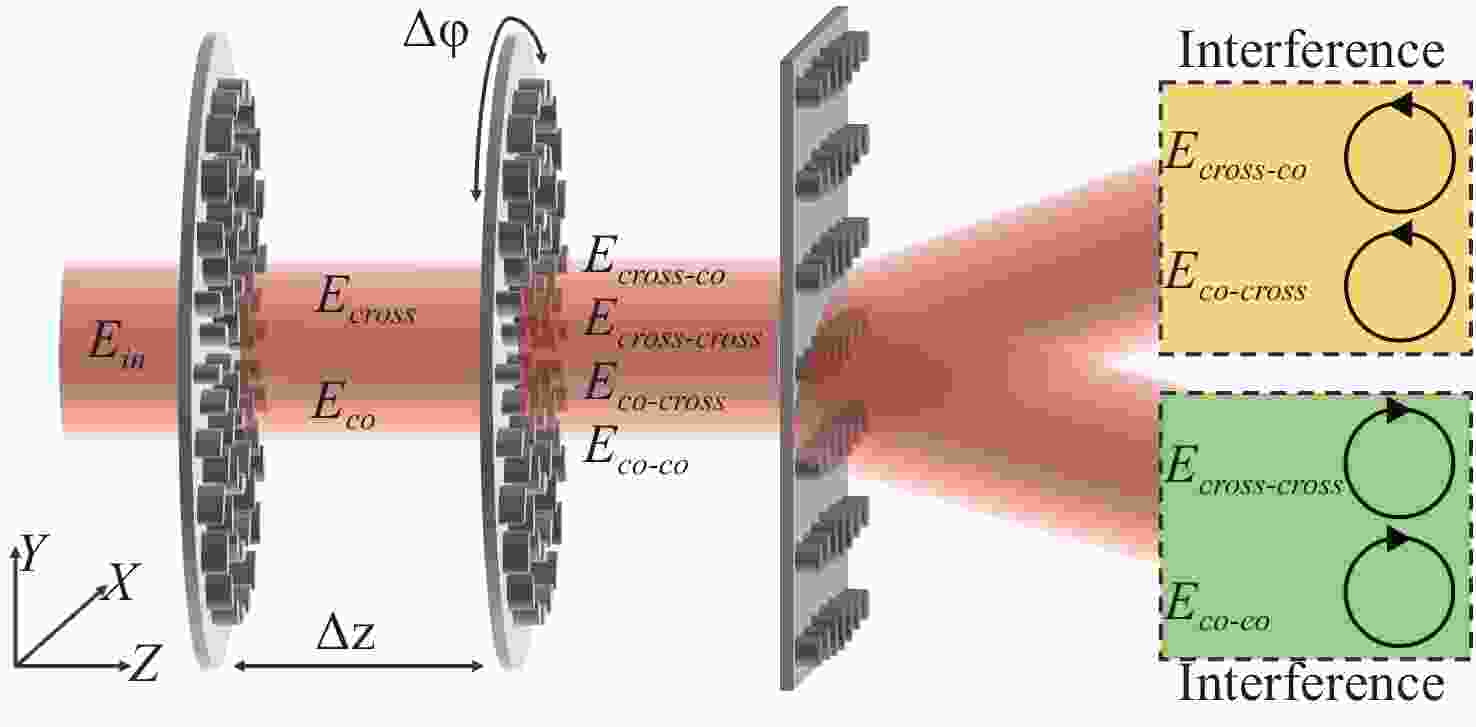

图 1 超构表面位移传感装置的示意图

Figure 1. Schematic diagram of the metasurface displacement sensing device

下载: 全尺寸图片幻灯片

图 2 位移测量超构表面的工作原理图

Figure 2. Working principle diagram of the metasurface for displacement measurement

下载: 全尺寸图片幻灯片

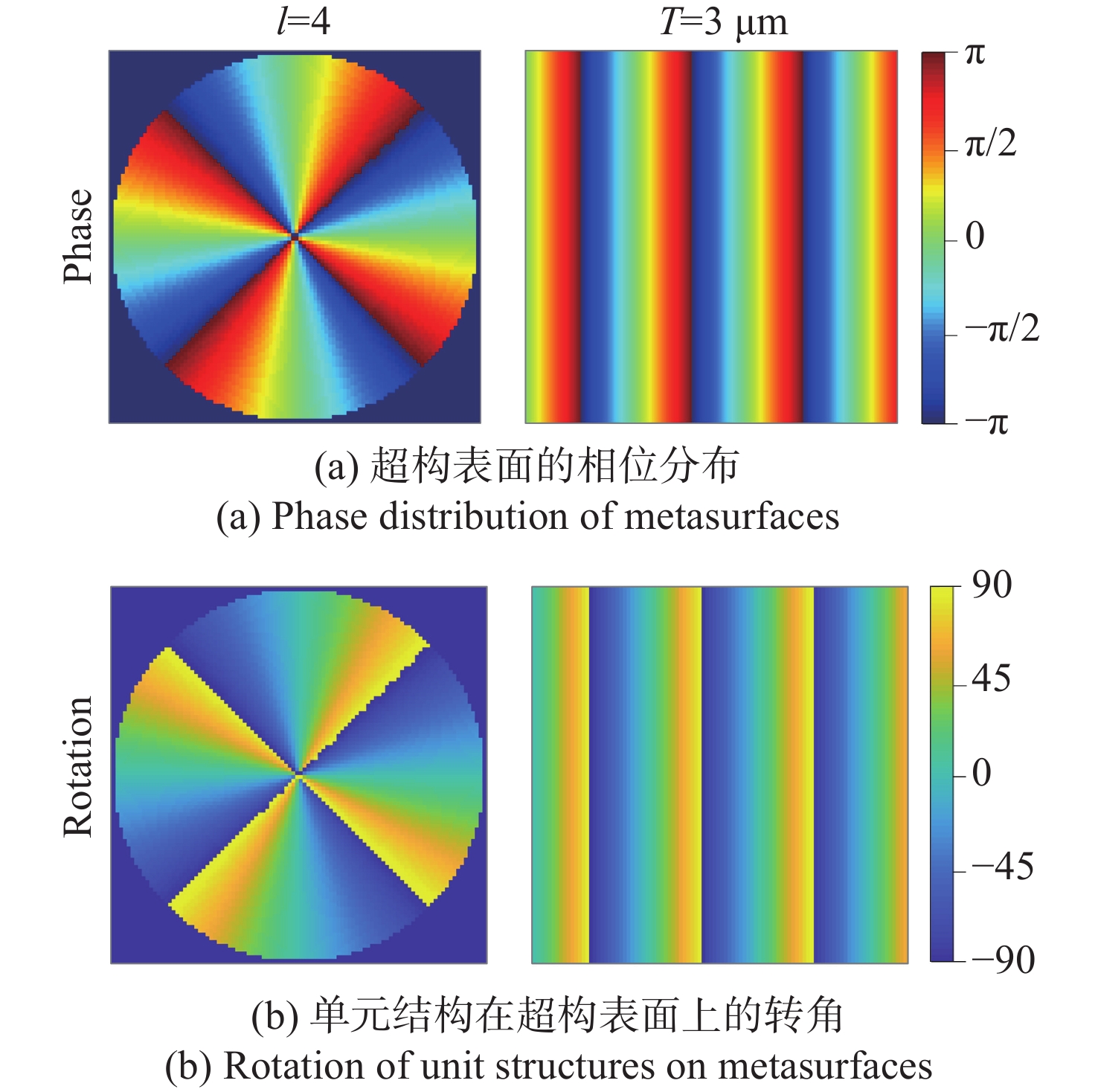

图 3 两种超构表面的设计

Figure 3. Design of two types of metasurfaces

下载: 全尺寸图片幻灯片

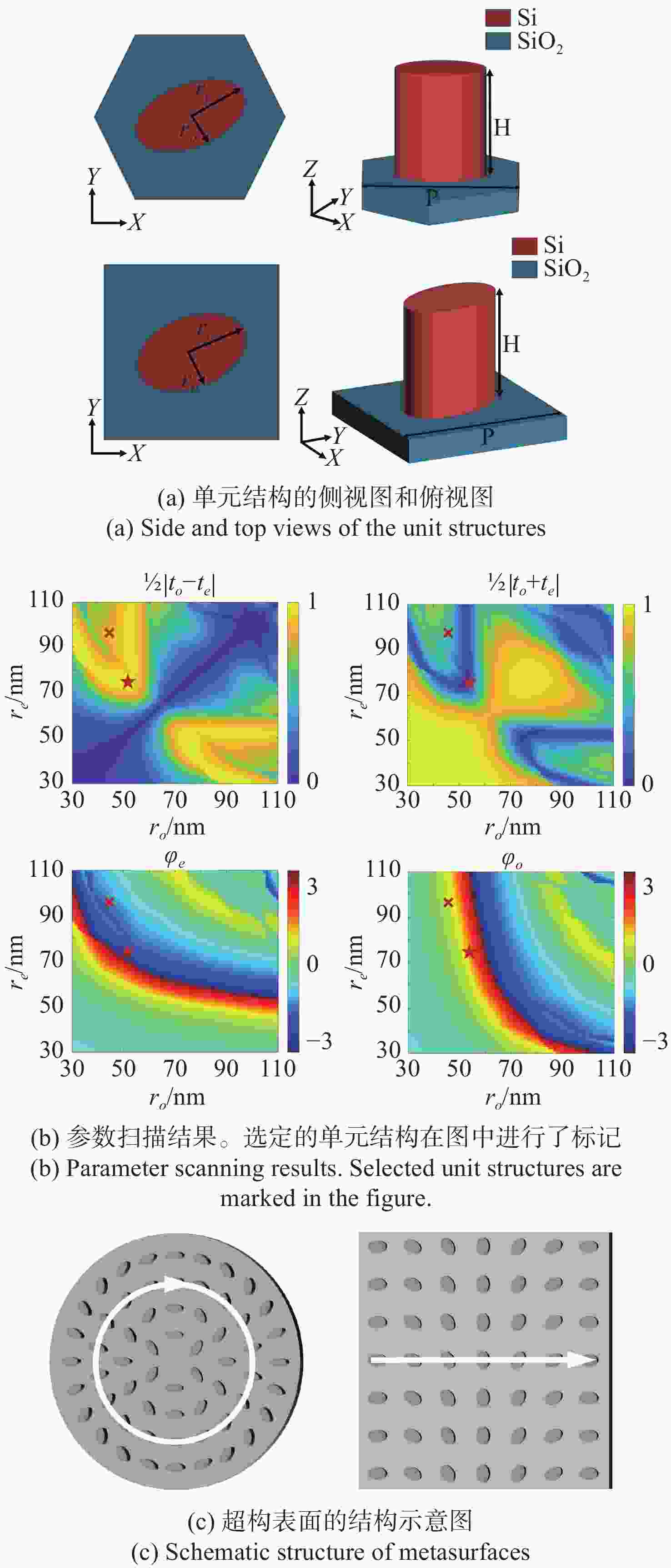

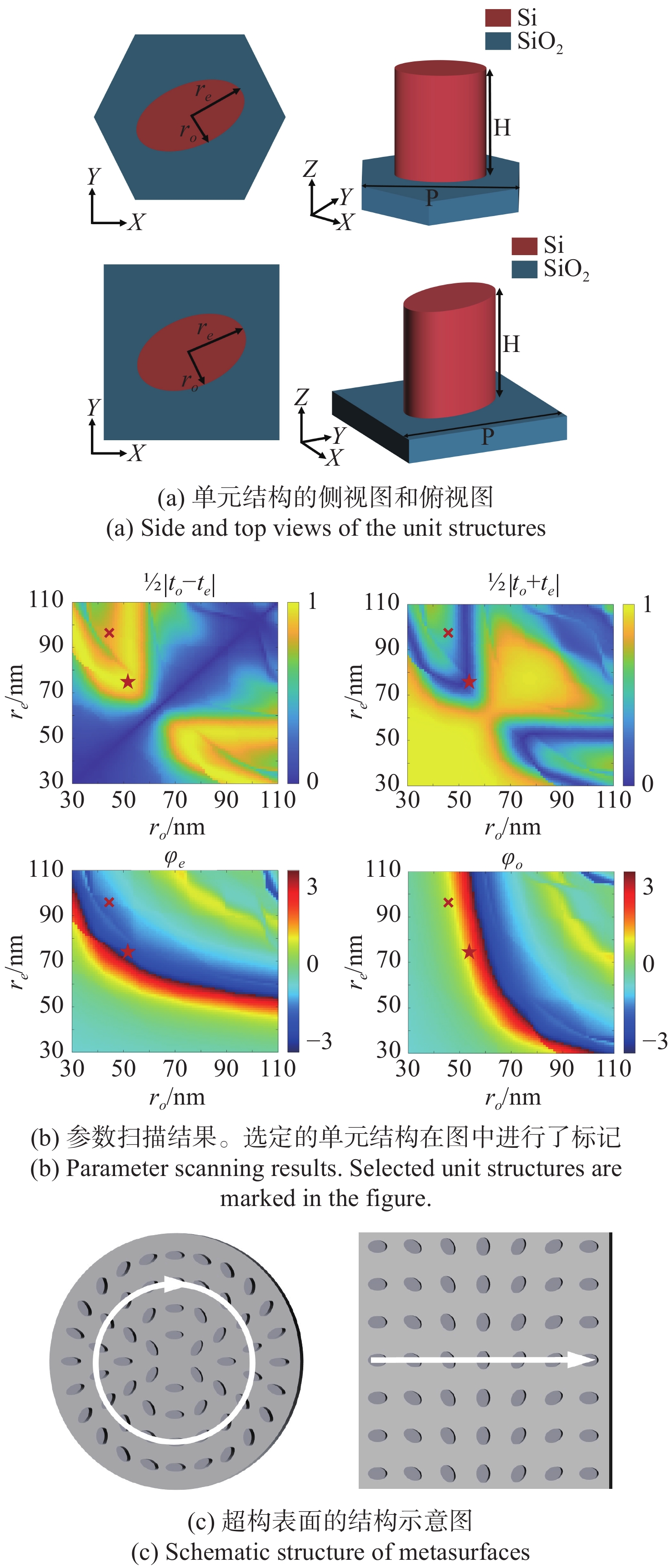

图 4 超构表面的设计与优化

Figure 4. Design and optimization of metasurfaces

下载: 全尺寸图片幻灯片

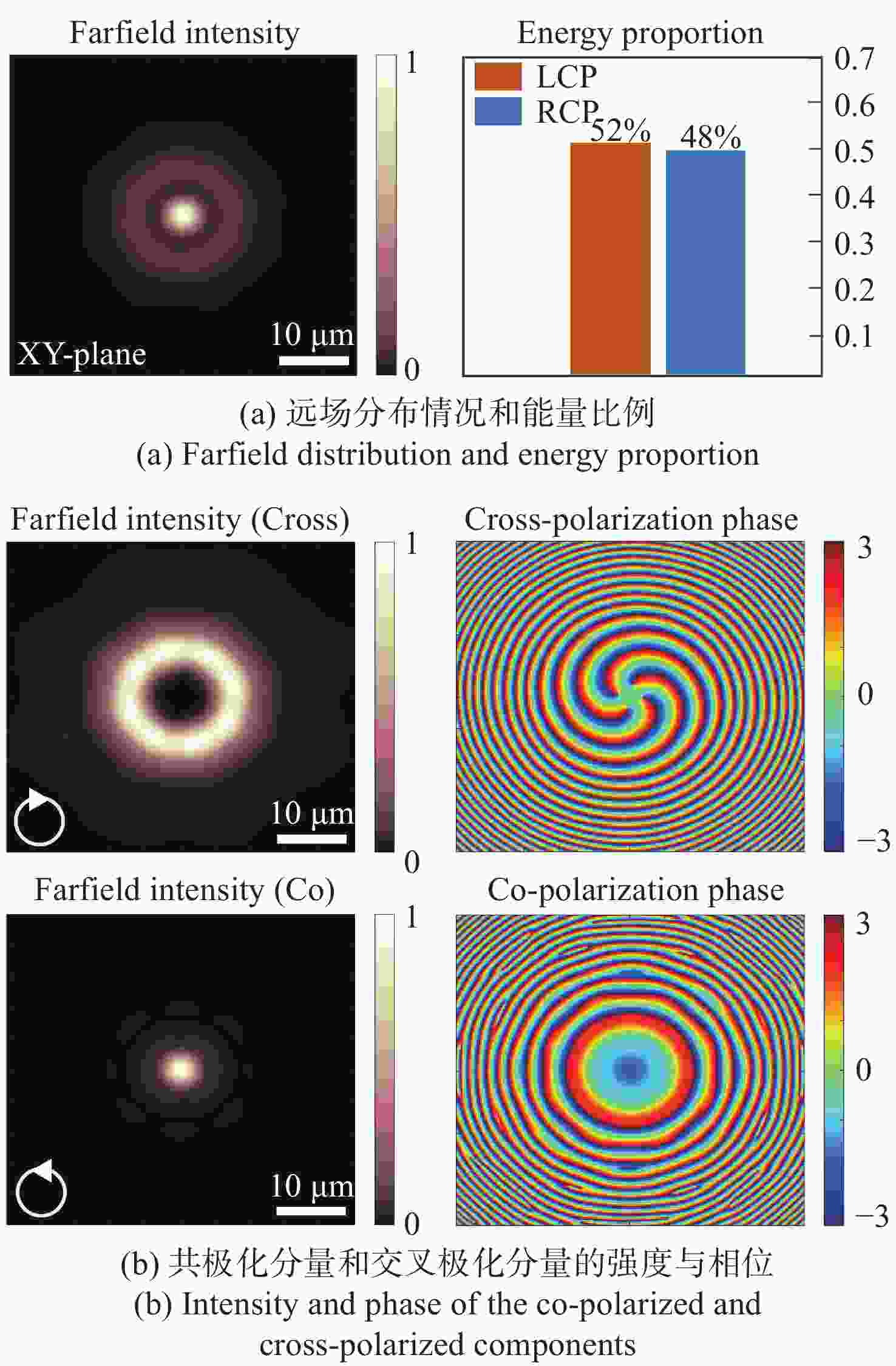

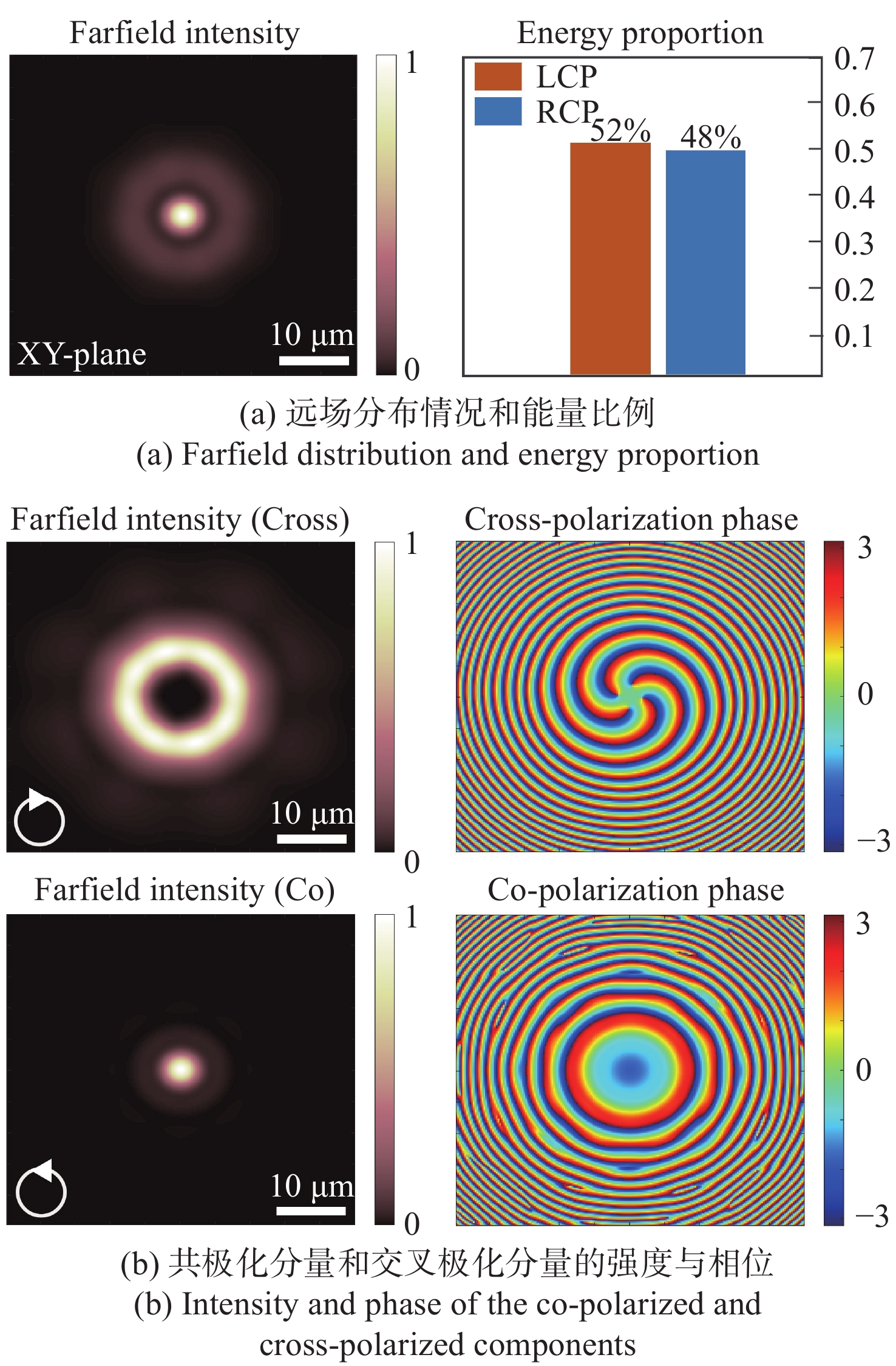

图 5 编码超构表面的仿真结果

Figure 5. Simulation results of encoding metasurface

下载: 全尺寸图片幻灯片

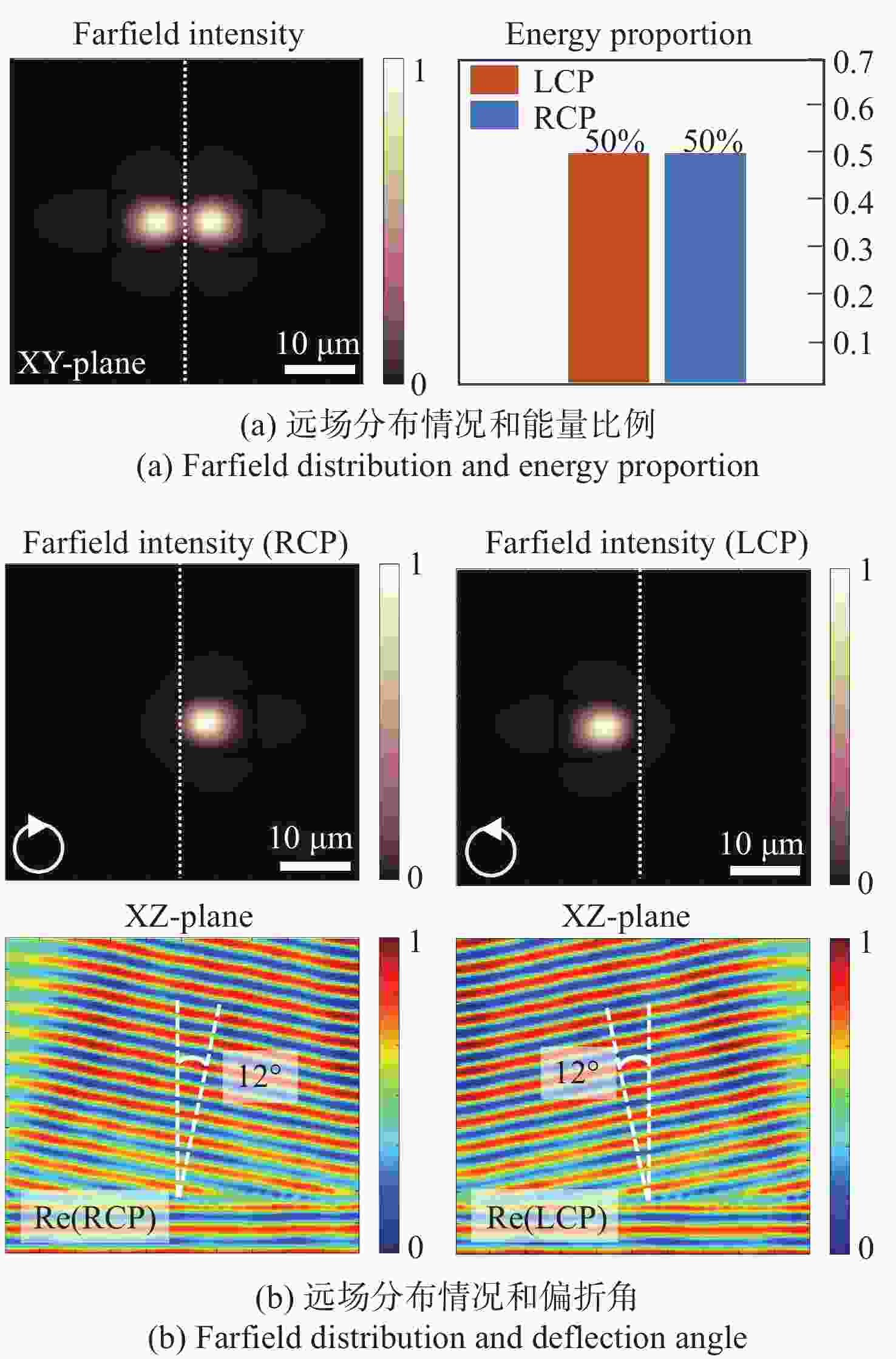

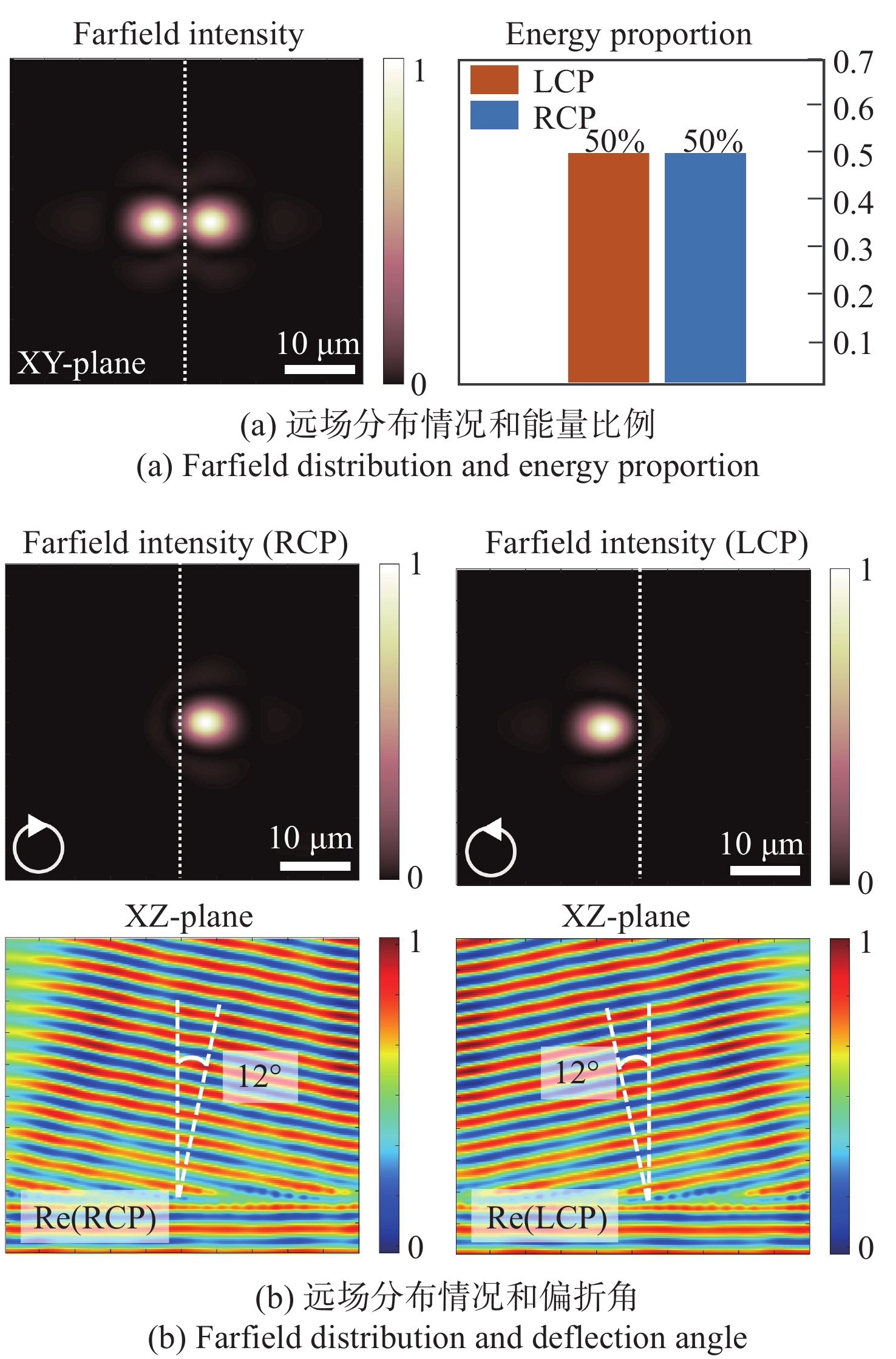

图 6 圆偏振分束超构表面的仿真结果

Figure 6. Simulation results of circular polarization beam splitter metasurface

下载: 全尺寸图片幻灯片

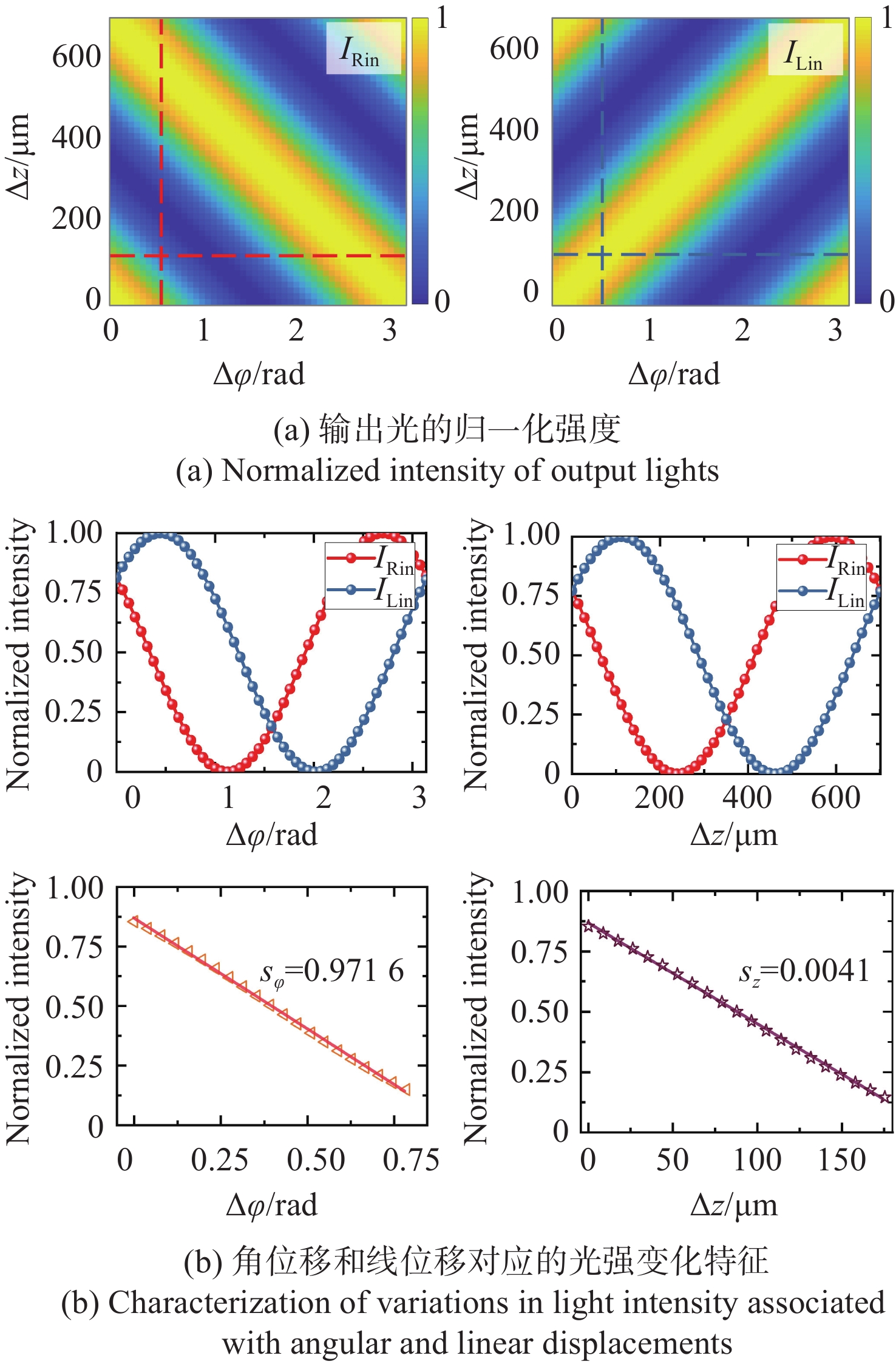

图 7 超构表面的位移测量特性

Figure 7. Displacement measurement characterization of metasurfaces

下载: 全尺寸图片幻灯片

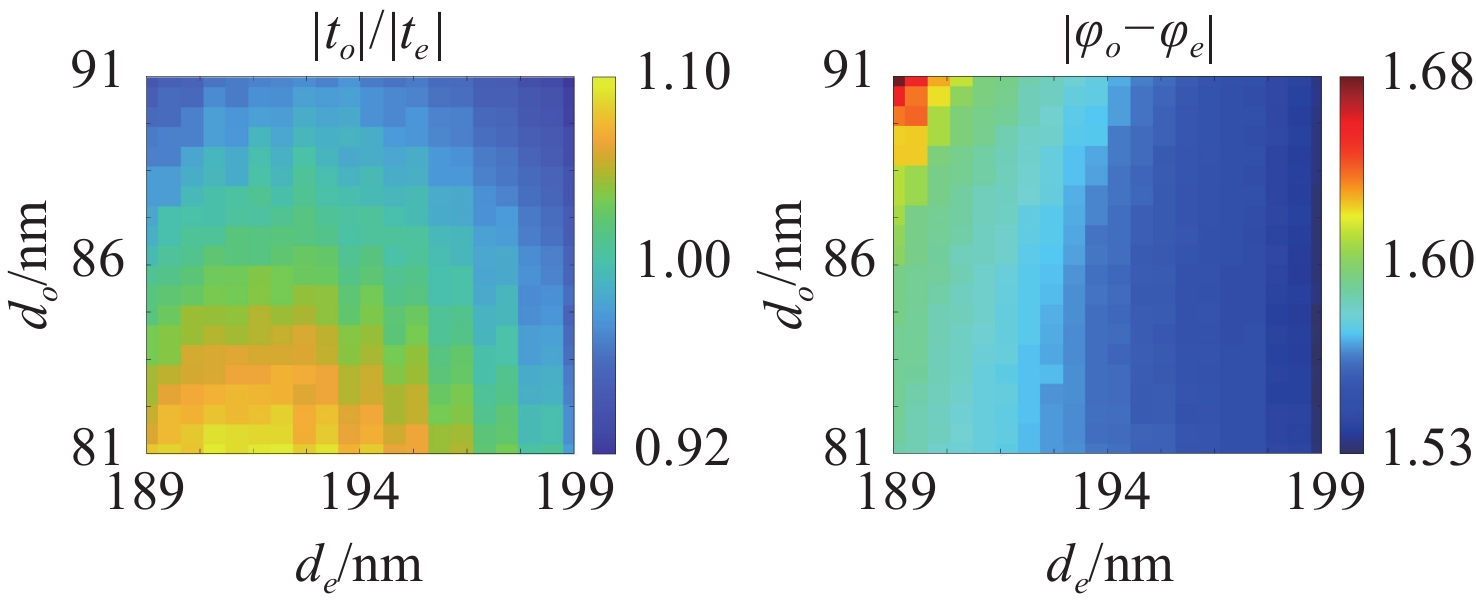

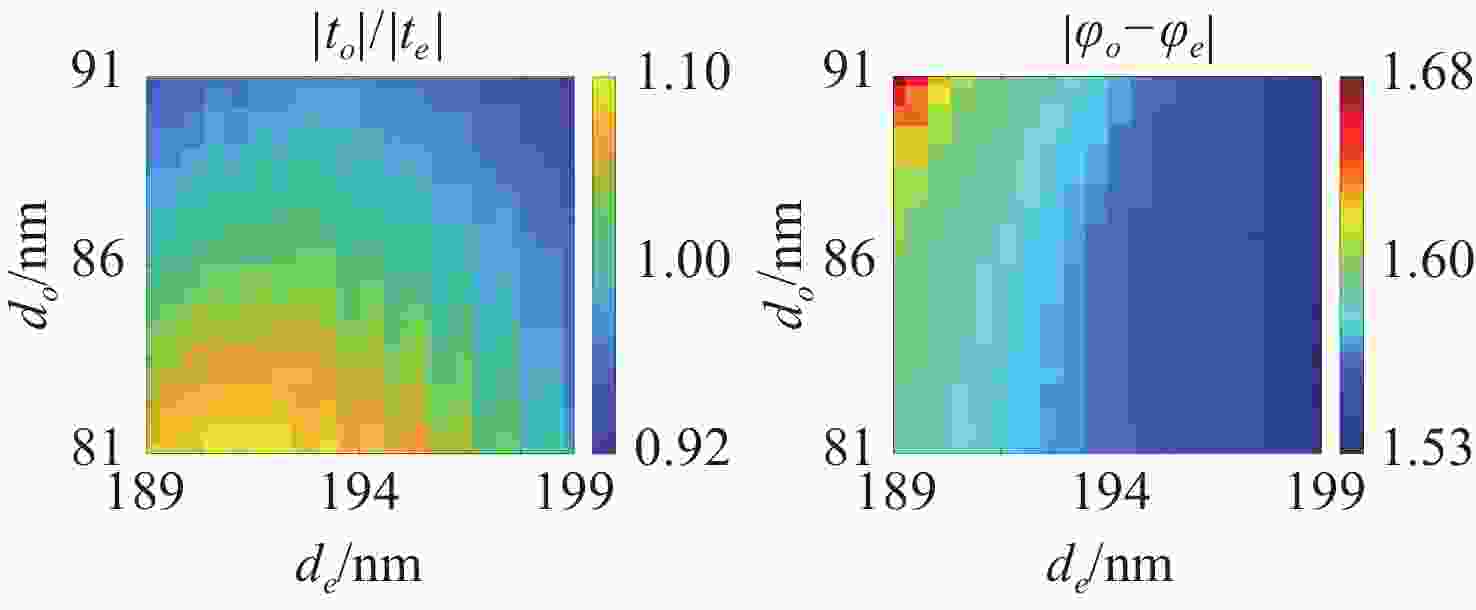

图 8 编码超构表面的制造容差

Figure 8. Fabrication tolerances of encoding metasurface

下载: 全尺寸图片幻灯片

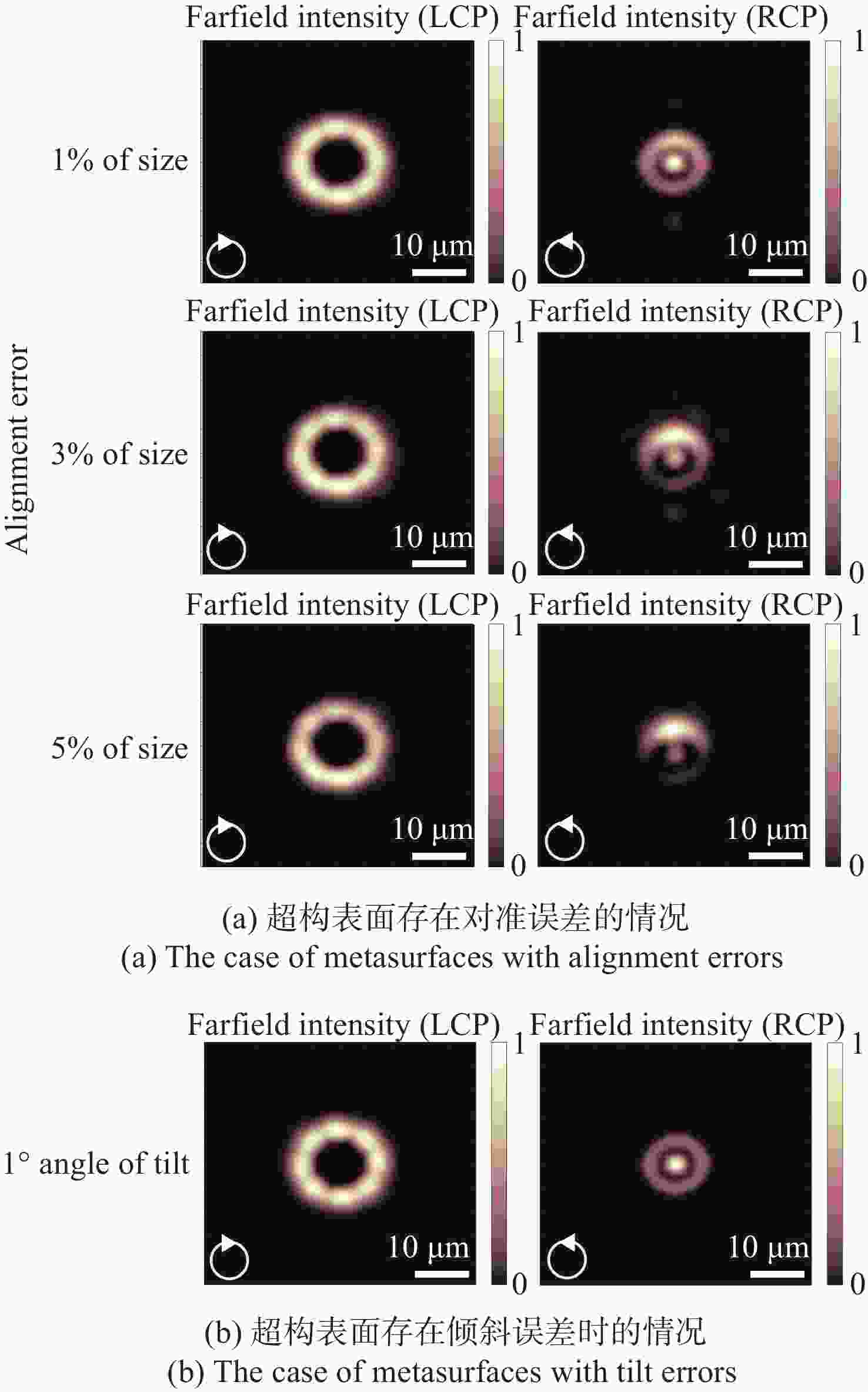

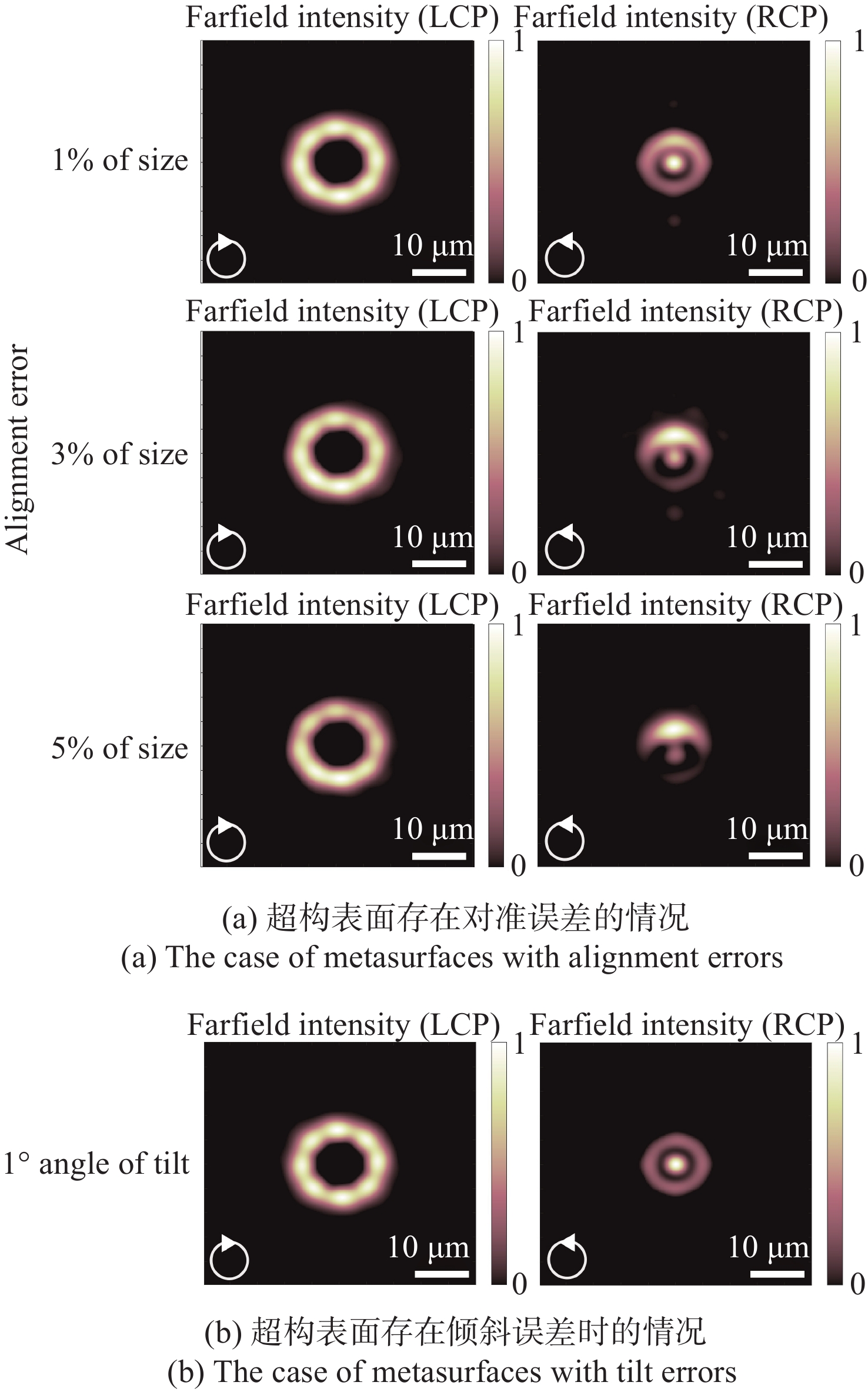

图 9 超构表面的对准精度

Figure 9. Alignment accuracy of the metasurfaces

下载: 全尺寸图片幻灯片
