Double-slot ultra-compact polarization beam splitter based on asymmetric hybrid plasmonic structure

WANG Fang LIU Hua MA Tao MA Shou-dao LIU Yu-fang

王芳, 刘花, 马涛, 马首道, 刘玉芳. 基于非对称混合等离子体结构的双槽超紧凑偏振分束器[J]. 中国光学(中英文), 2023, 16(5): 1215-1225. doi: 10.37188/CO.EN.2022-0028
引用本文: 王芳, 刘花, 马涛, 马首道, 刘玉芳. 基于非对称混合等离子体结构的双槽超紧凑偏振分束器[J]. 中国光学(中英文), 2023, 16(5): 1215-1225. doi: 10.37188/CO.EN.2022-0028
WANG Fang, LIU Hua, MA Tao, MA Shou-dao, LIU Yu-fang. Double-slot ultra-compact polarization beam splitter based on asymmetric hybrid plasmonic structure[J]. Chinese Optics, 2023, 16(5): 1215-1225. doi: 10.37188/CO.EN.2022-0028
Citation: WANG Fang, LIU Hua, MA Tao, MA Shou-dao, LIU Yu-fang. Double-slot ultra-compact polarization beam splitter based on asymmetric hybrid plasmonic structure[J]. Chinese Optics, 2023, 16(5): 1215-1225. doi: 10.37188/CO.EN.2022-0028

基于非对称混合等离子体结构的双槽超紧凑偏振分束器

详细信息
  • 中图分类号: O436.3

Double-slot ultra-compact polarization beam splitter based on asymmetric hybrid plasmonic structure

doi: 10.37188/CO.EN.2022-0028
Funds: Supported by National Natural Science Foundation of China (NSFC) (No. 62075057)
More Information
    Author Bio:

    WANG Fang (1972—), female, born in Xinxiang, Henan Province, Ph.D, professor, doctoral supervisor, graduated from Henan Normal University in 2013 and is mainly engaged in the research of optical fiber sensing and new microelectronic device design. E-mail: 021034@htu.edu.cn

    LIU Hua (1995—), female, born in Anyang, Henan Province, master’s student, and is mainly engaged in the design of photoelectric integrated devices. E-mail: lh18237269109@163.com

    Corresponding author: lh18237269109@163.com
  • 摘要:

    为了提高偏振分束器的消光比,提出了一种由混合等离子体水平狭缝波导(HSW)和氮化硅混合垂直狭缝波导(VSW)组成的双槽超紧凑偏振分束器(PBS)。同时,包层材料为二氧化硅,既能防止混合等离子体氧化,又便于与其他器件集成。采用有限元方法仿真HSW和VSW的模态特性。HSW和VSW波导在特定的宽度下TE偏振模式是满足相位匹配的,而TM偏振模式相位不匹配。因此,HSW波导中的TE模式与VSW波导发生强耦合,而TM模式直接通过HSW波导。结果表明:在1.55 μm的TE模式下,PBS的消光比(ER)为35.1 dB,插入损耗(IL)为0.34 dB,在TM模式下,PBS的ER和IL分别为40.9 dB和2.65 dB。所设计的PBS有100 nm的工作带宽,具有高ER,低IL的特点,适用于光子集成电路(PICs)。

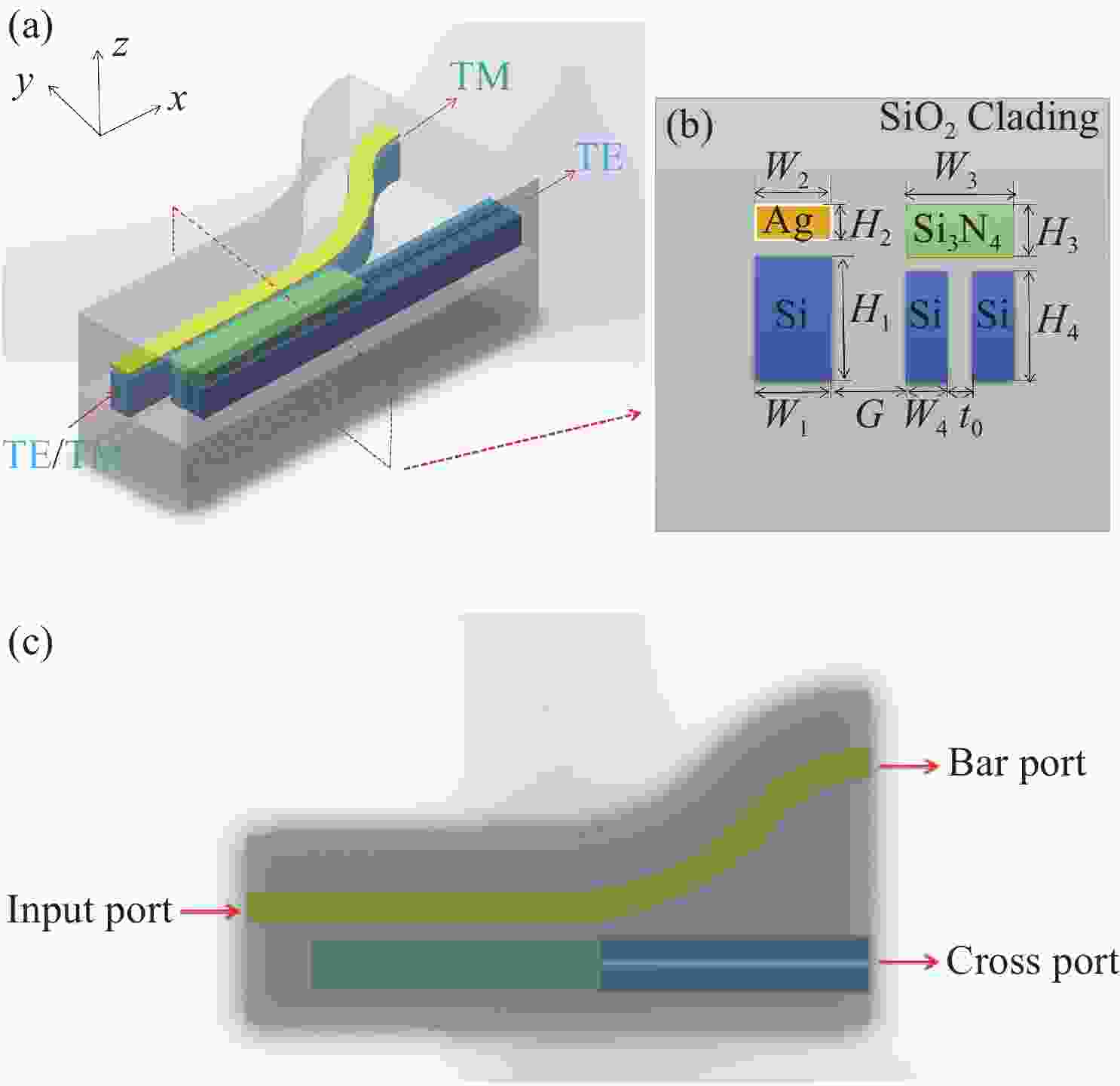

  • Figure 1.  (a) 3D schematic diagram, (b) cross-section and (c) top-view of the proposed PBS device

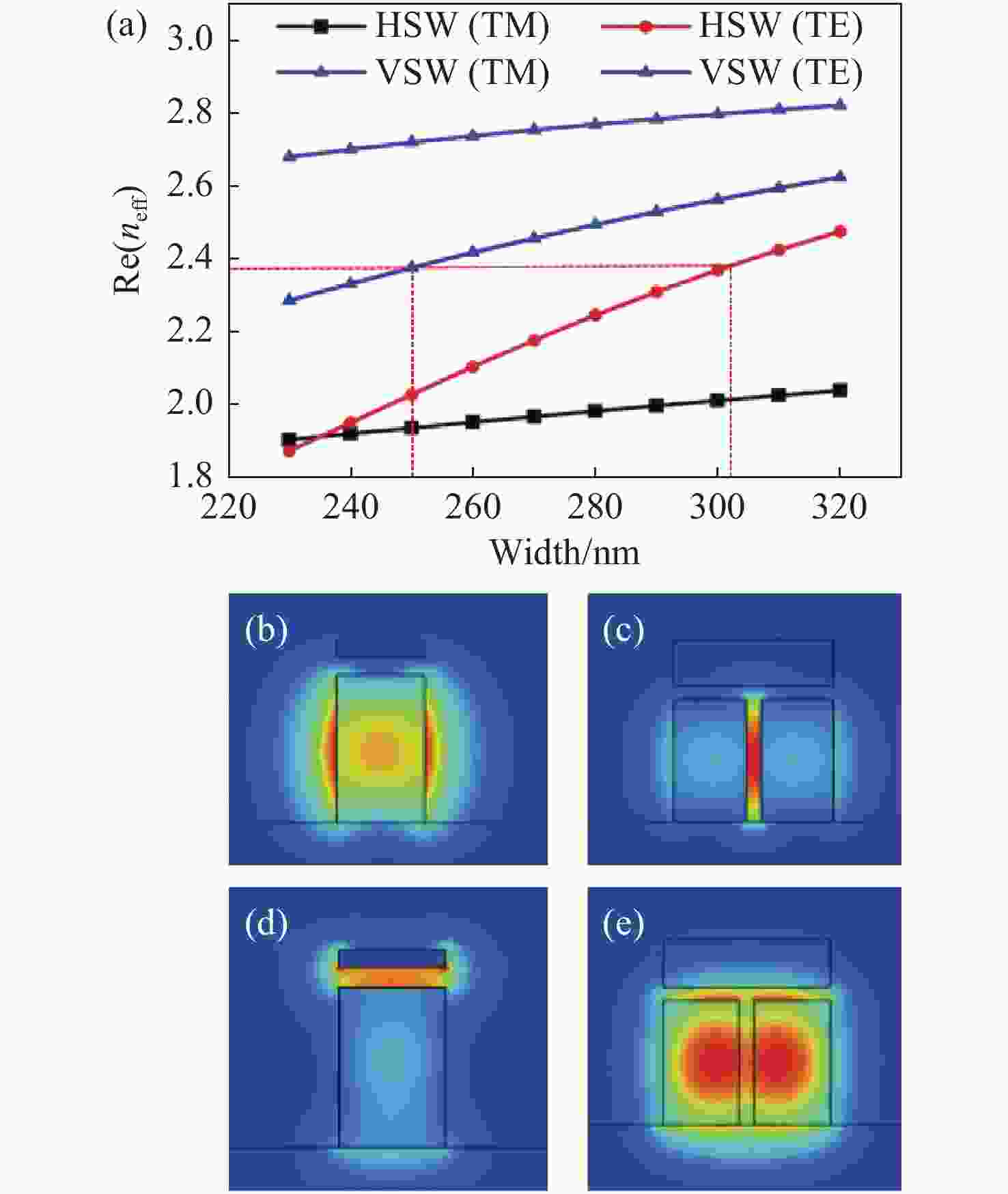

    Figure 2.  Influence of waveguide width on the effective refractive index. (a) The real part of the refractive index of TE mode and TM mode varying with width in the HSW and VSW; the field distribution of the TE mode in the (b) HSW and (c) VSW, and the field distribution of the TM mode in the (d) HSW and (e) VSW

    Figure 3.  Effect of waveguide spacing G. The effect of G on (a) the effective refractive index and (b) the coupling length p. Electric field profile of supermodes at 90 nm of G, (c) TE0, and (d) TE1

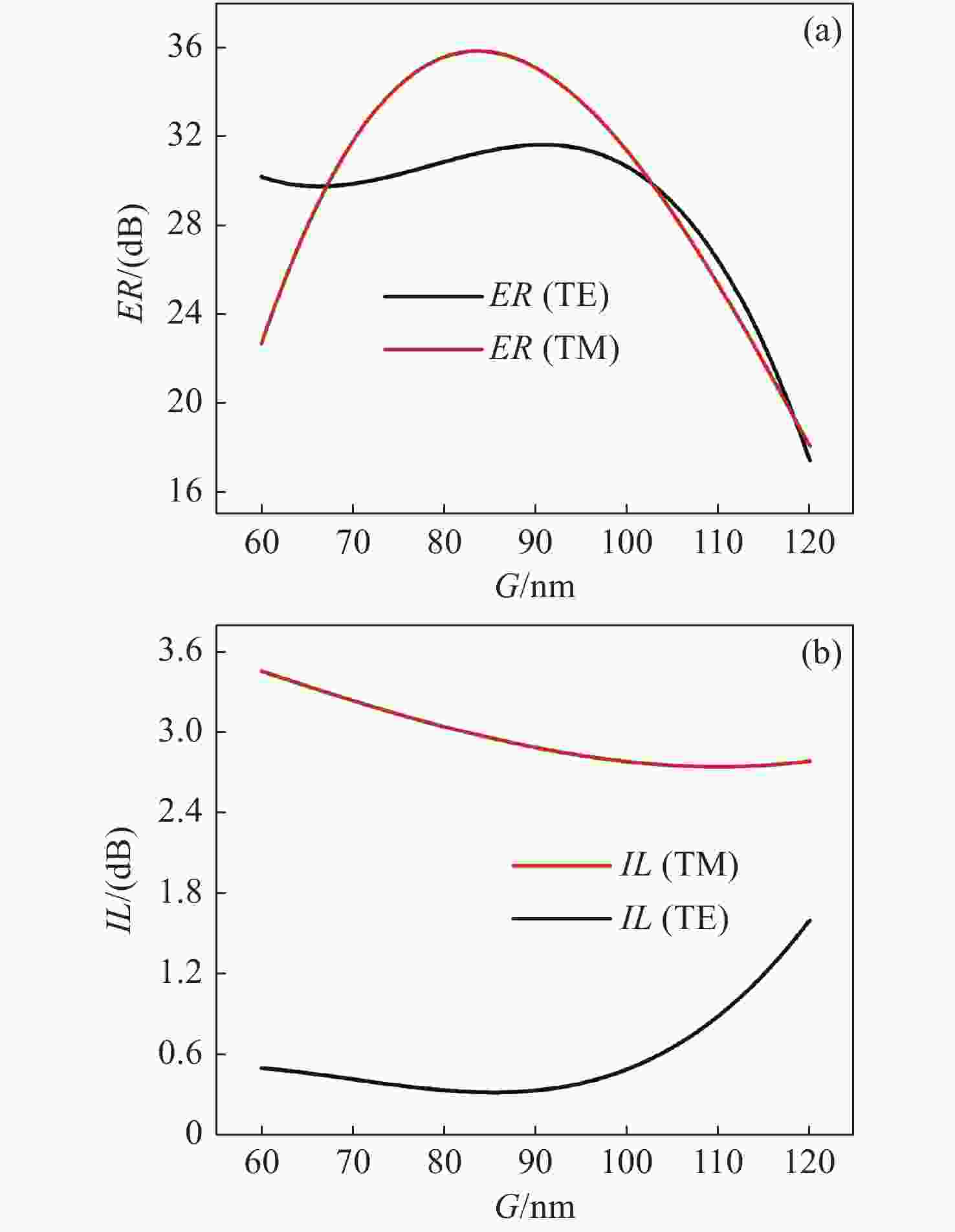

    Figure 4.  The influence of G on ER and IL at the cross and bar ports. Here, W2 = 302 nm, W3 = 550 nm, r1 =4 μm, λ=1.55 μm and G= 90 nm

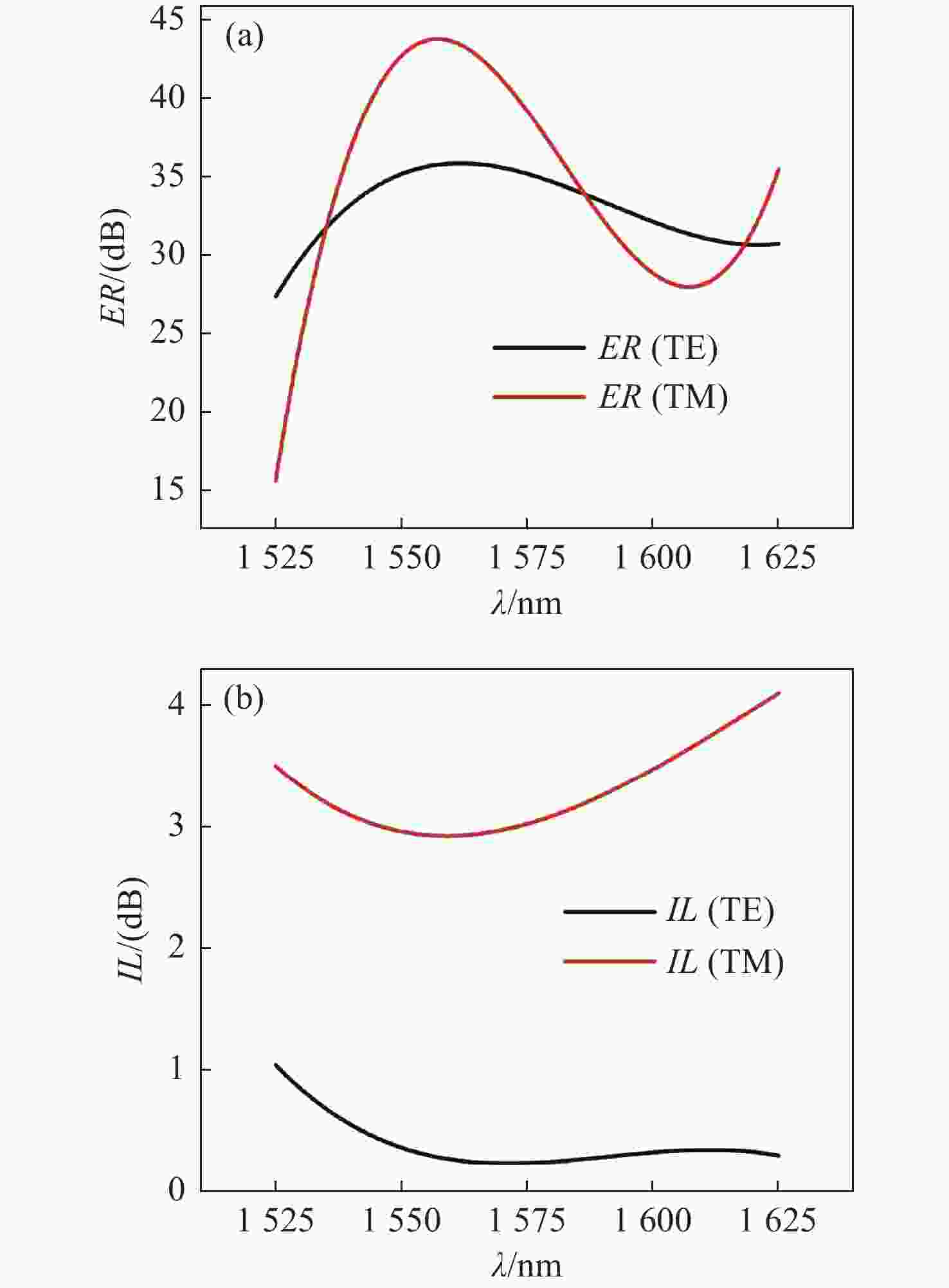

    Figure 6.  The influence of λ on ER and IL at the cross and bar ports. Here, W2=302 nm, W3=550 nm, r1=4 μm, λ=1.55 μm and G= 90 nm

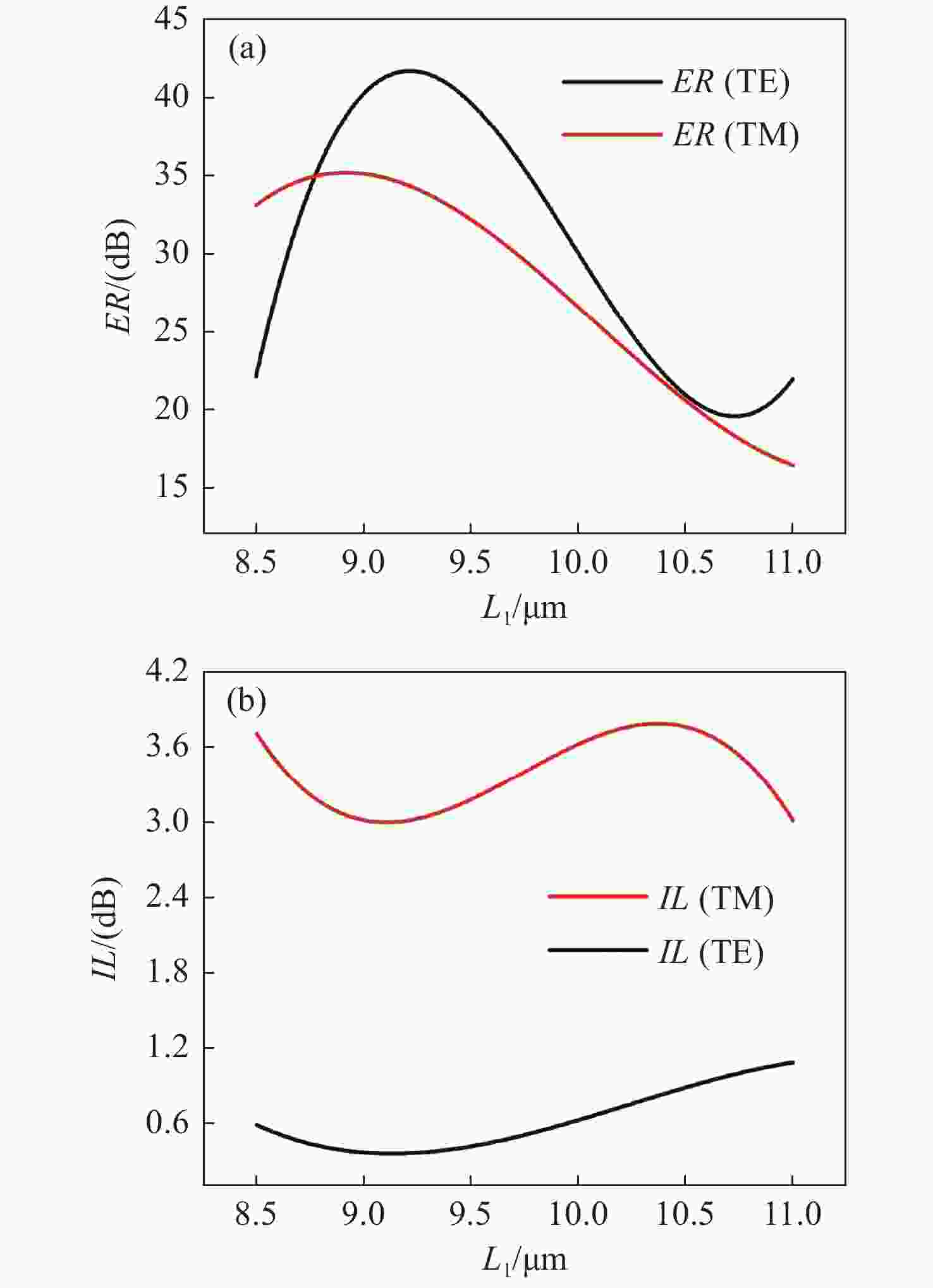

    Figure 5.  The influence of L1 on ER and IL at the cross and bar ports. Here, W2=302 nm, W3=550 nm, r1=4 μm, λ=1.55 μm and G= 90 nm

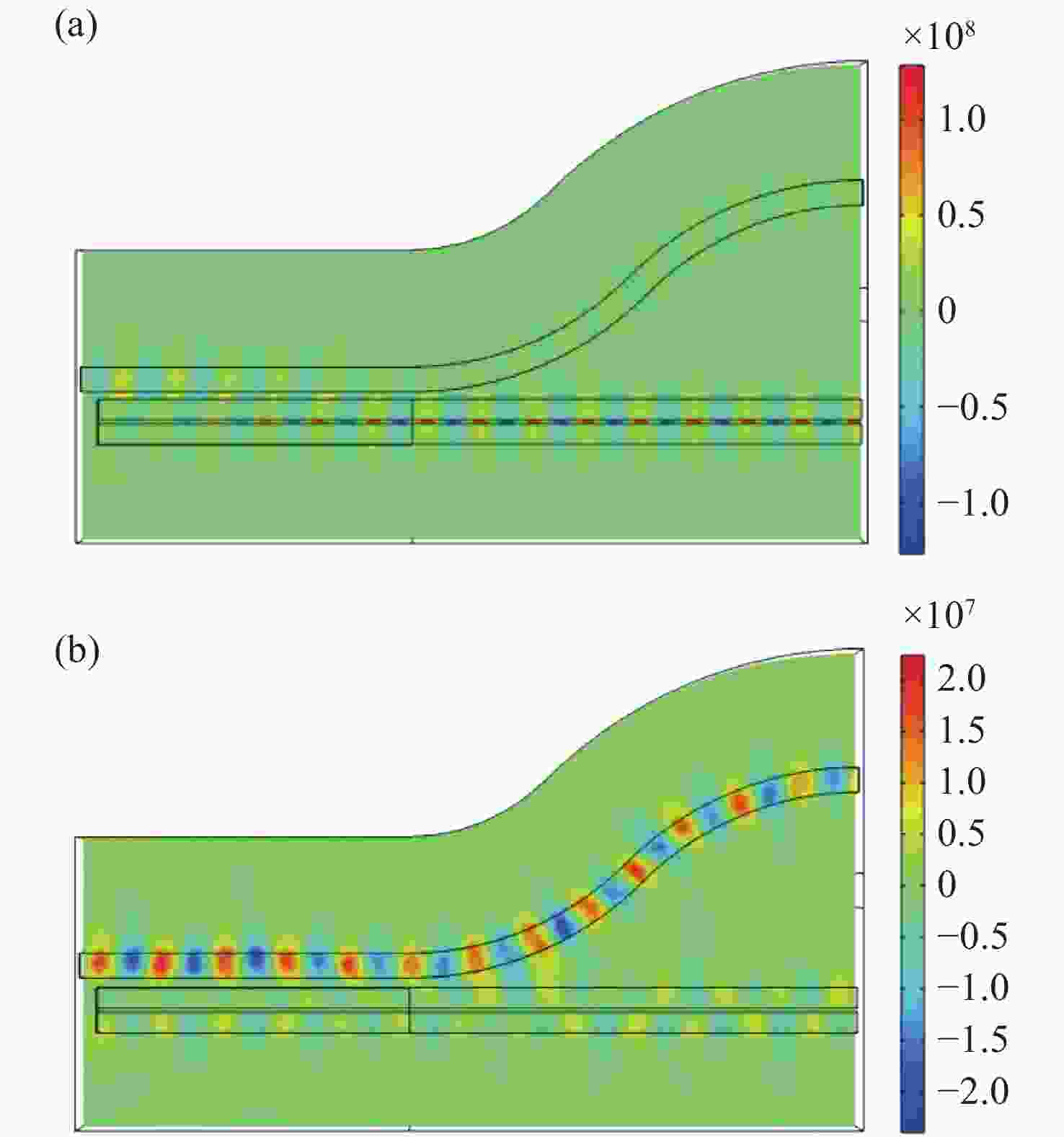

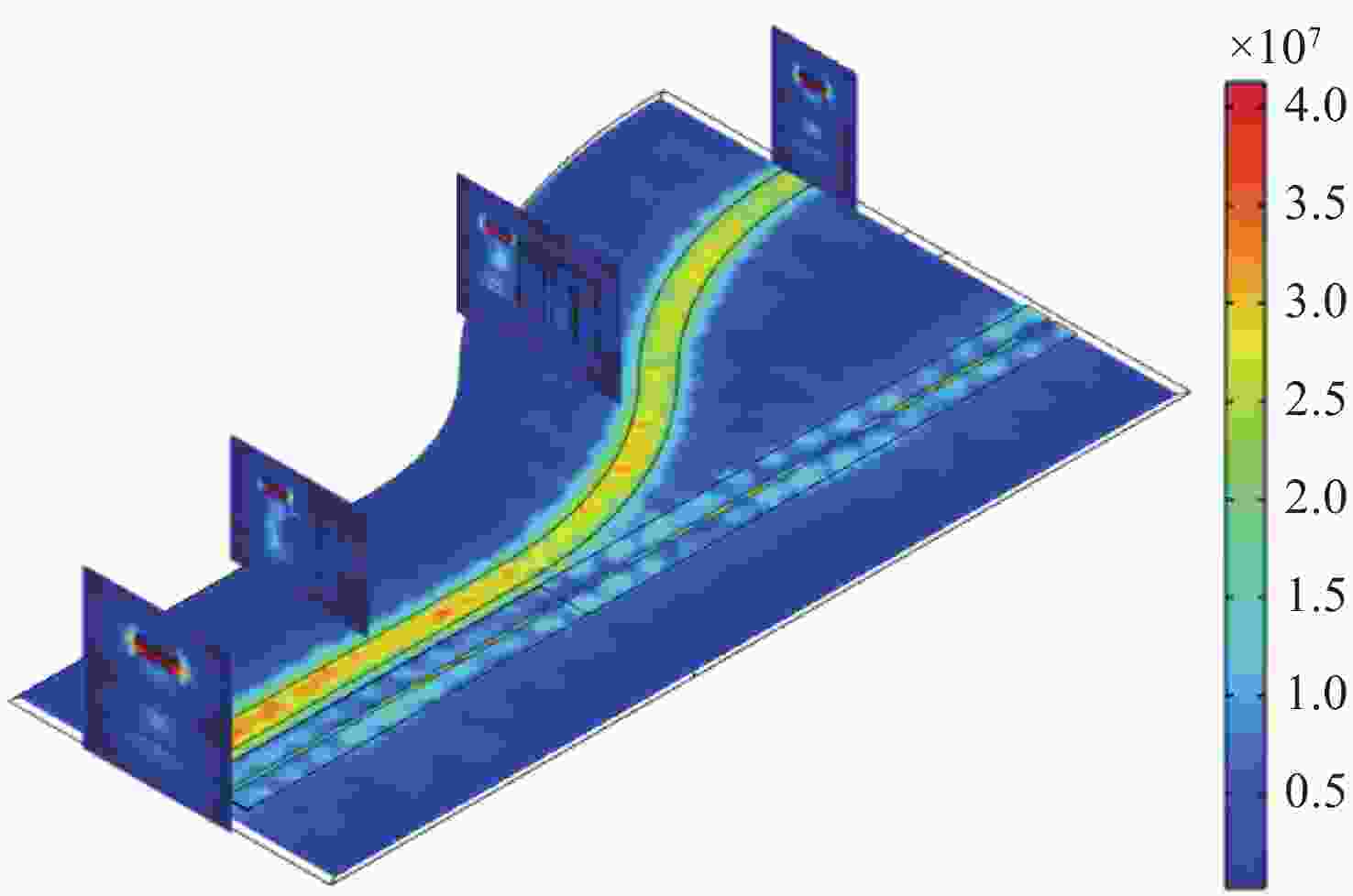

    Figure 7.  The light propagations in the designed PBS of the (a) TE-Ey, (b) TM-Ez

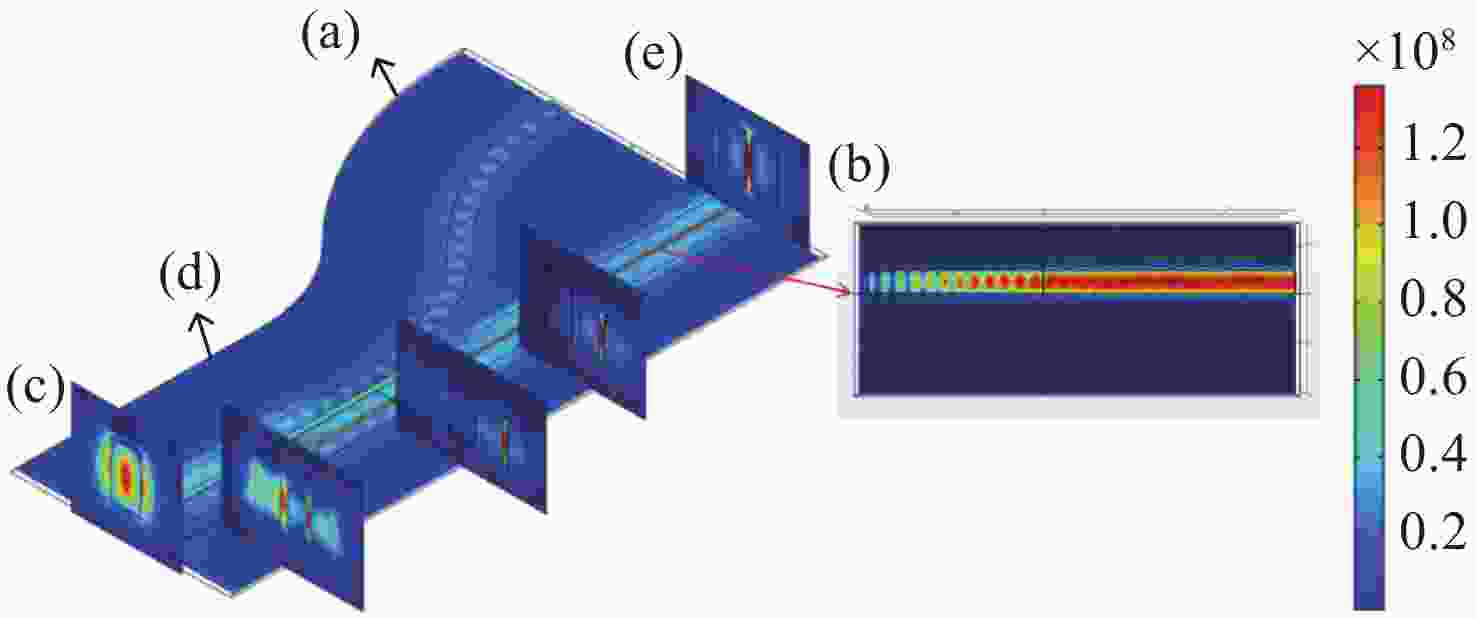

    Figure 8.  TE polarization beam splitting and electric field distribution at the corresponding position for the TE mode

    Figure 9.  TM polarization beam splitting and electric field distribution at the corresponding position for the TM mode

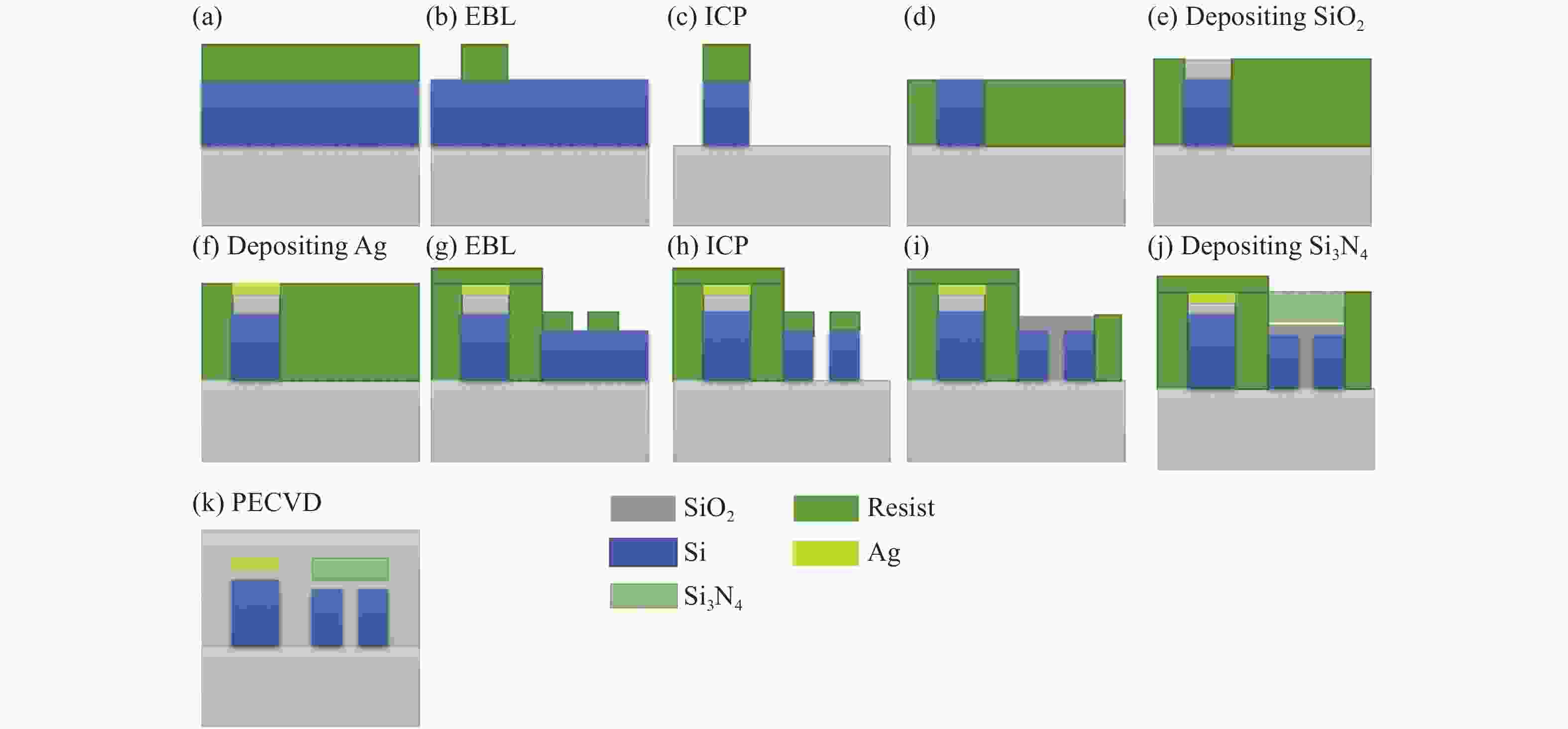

    Figure 10.  The fabrication process of the designed polarization beam splitter

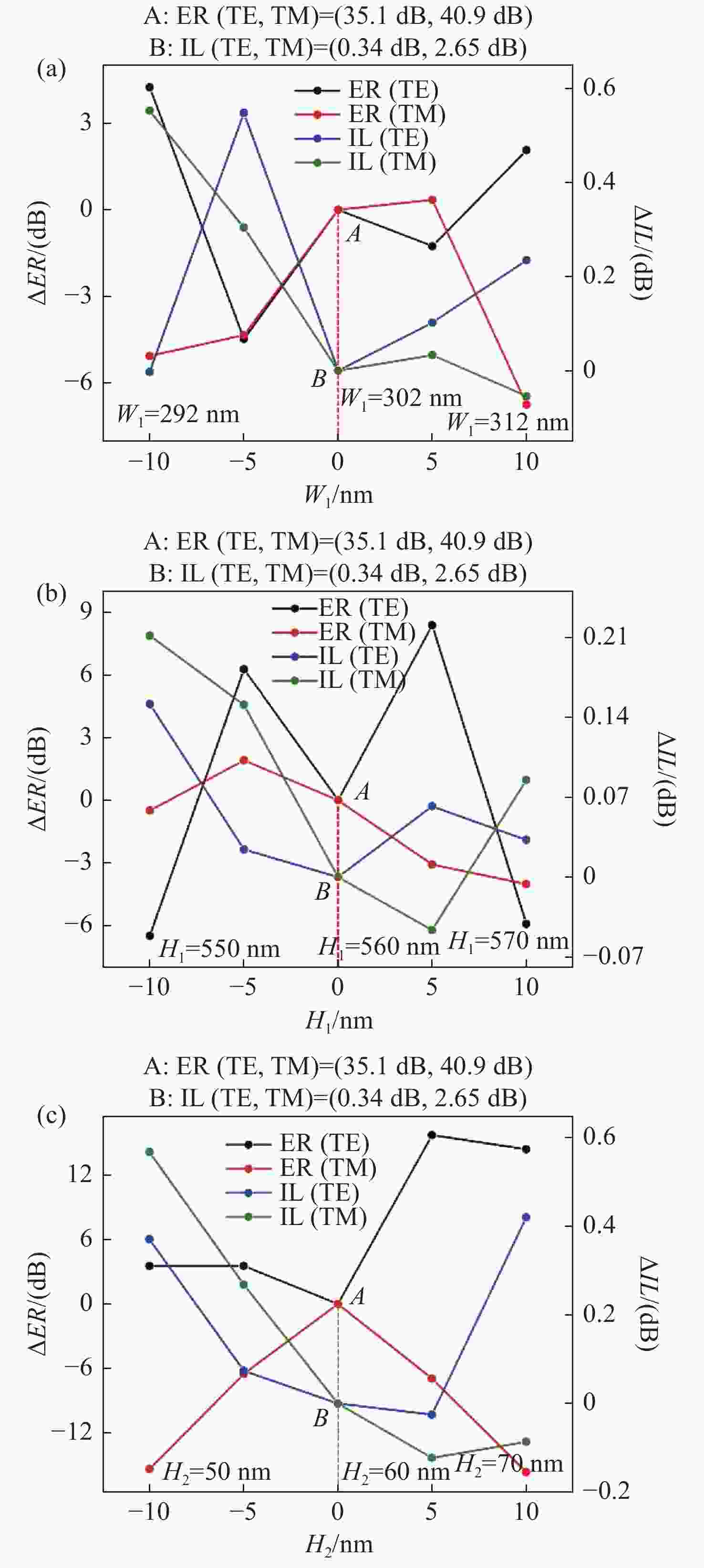

    Figure 11.  Effects of different dimensional tolerances on ER and IL. (a) W1=302 nm, (b) H1=560 m and (c) H2=60 nm

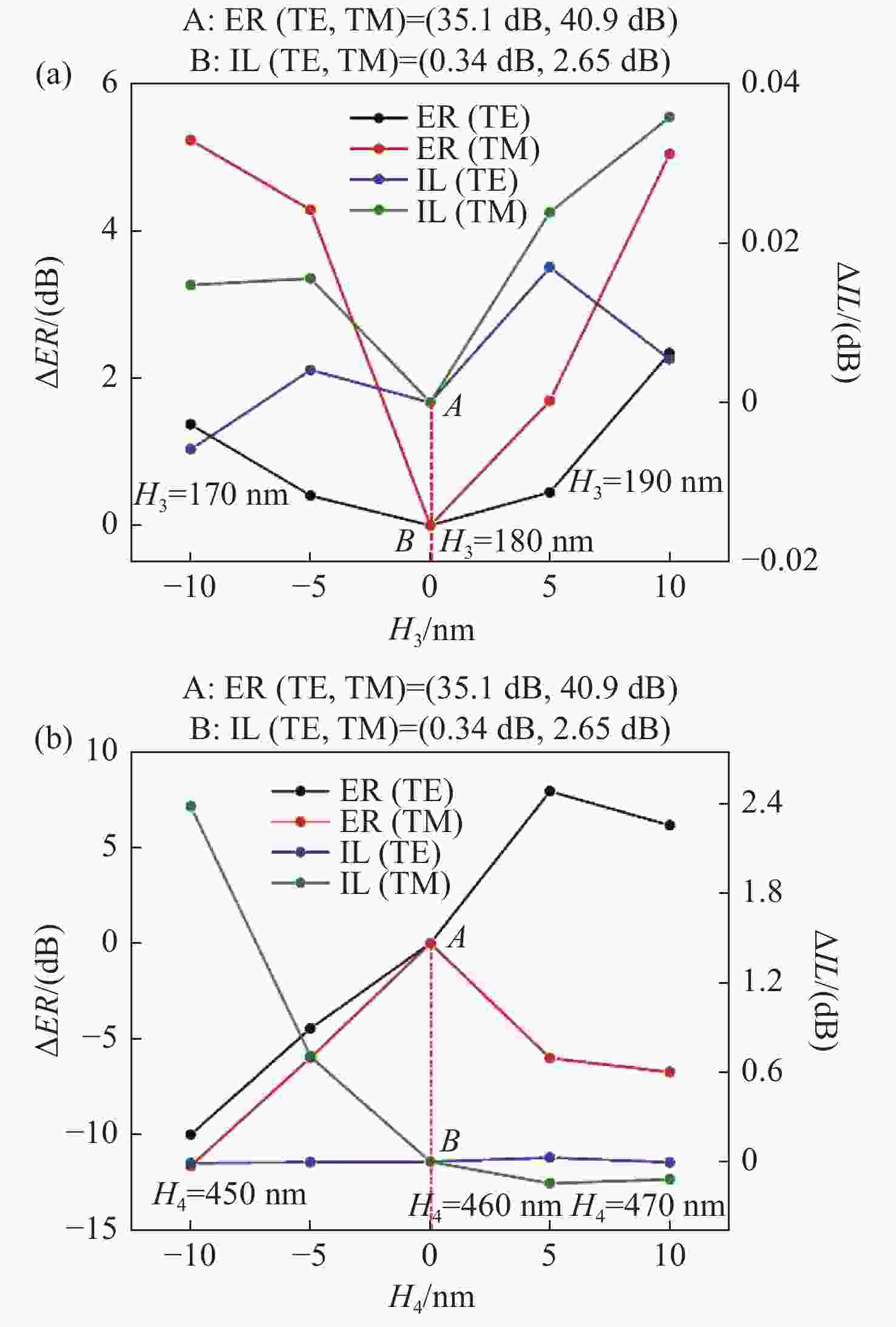

    Figure 12.  Effects of different dimensional tolerances on ER and IL. (a) H3=180 nm and (b) H4=460 m

    Table  1.   Performance comparison of the polarization

    Reference
    paper
    λ
    (μm)
    Length
    (μm)
    ER
    (dB)
    IL
    (dB)
    Input
    mode
    Bandwidth
    (nm)
    [29]1.5526.2717<1TM100
    27TM
    [30]1.551127.10.41TE170
    [31]1.554301TE100
    270.18TM
    [32]1.551438.43.26TE100
    20.90.14TM
    [33]1.551626.70.05TE140
    21.3TM
    [34]1.559.945.6<0.3TE100
    8.320<0.1TM
    [35]3.52519.781.64TE400
    7.782.64TM
    This work1.555.240.92.65TM100
    35.10.34TE
    下载: 导出CSV
