基于电荷转移的钙钛矿单晶和多晶材料表面增强拉曼散射研究

doi: 10.3788/CO.20191205.0952
基金项目: 国家重点研发计划"增材制造与激光制造"重点专项项目(No.2017YFB1104700);国家自然科学基金(No.61705227,No.61774155,No.11774340);吉林省科技发展计划项目(No.20180414019GH);中国科学院国际合作局对外合作重点项目(No.181722KYSB20160015)
详细信息
  • 中图分类号: O433.5

Charge transfer induced surface enhanced Raman scattering of single crystal and polycrystal perovskites

Funds: Supported by National Key R&D Program of China(No.2017YFB1104700); National Natural Science Foundation(No.61705227, No.61774155, No.11774340); Jilin Provincial Science & Technology Development Project (No.20180414019GH); Scientific Research Project of the Chinese Academy of Sciences(No.QYZDB-SSW-SYS038); The Key Program of the International Partnership Program of CAS(No.181722KYSB20160015)
More Information
    Author Bio:

    YU Zhi (1988-), Ph.D, Assistant Professor, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences.His research interests are on interfacial charge transfer based Surface enhanced Raman scattering.E-mail:zhiyu@ciomp.ac.cn

    YU Wei-li (1979-), Ph.D, Associate Professor, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences.His research interests are on functional nanomaterials researches and its light energy related applications.E-mial:weili.yu@ciomp.ac.cn

    GUO Chun-lei (1971-), Ph.D, Professor, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences.His research interests are on laser-matter interactions at high intensities, nano-photonics, femtosecond laser surface nano and microstructuring, and surface plasmonics.E-mail:guo@optics.rochester.edu

    Corresponding author: YU Wei-li, E-mial:weili.yu@ciomp.ac.cnGUO Chun-lei, E-mail:guo@optics.rochester.edu
  • 摘要: 近年来,钙钛矿作为一种新型的能源材料受到了众多学者的广泛关注。由于其具有较高的吸收系数、载流子迁移率以及扩散长度而被应用到光电器件中,例如:太阳能电池、光电探测器、场效晶体管以及发光二极管等。器件界面电荷转移过程则是影响钙钛矿材料性能的一个关键因素,在本工作中,利用表面增强拉曼光谱,研究了钙钛矿材料的电荷转移性质;制备了MAPbCl3钙钛矿单晶以及多晶薄膜,并在其表面沉积一层酞菁铜分子;随后,在酞菁铜表面再次沉积一层银膜。试图通过表面增强拉曼光谱(SERS)技术研究钙钛矿-钛菁铜界面的电荷转移过程以及表面银膜所产生的表面等离子体共振对于界面电荷转移及SERS性质的影响。研究结果表明,钙钛矿材料与钛菁铜分子能级匹配,且对于532 nm激发波长的激光具有良好的响应;532 nm激光能够诱导界面电荷转移过程的发生。同时,表面沉积的银膜可以进一步放大SERS信号。这主要是由于银膜的表面等离子体共振能够增强电荷分离,提高电荷转移效率,同时其表面产生的较强的电磁场,可以进一步增强钛菁铜分子的Raman信号强度。
  • Figure  1.  SEM image and EDS analysis of MAPbCl3perovskite polycrystalline thin film(a) and single crystal(b)

    Figure  2.  XRD spectra of single crystal and polycrystalline perovskite

    Figure  3.  UV-Vis spectra of single crystal perovskite(a) and polycrystal perovskite(b) before and after modification with MPY molecules compared with the spectra of MPY molecules dissolved in CH2Cl2

    Figure  4.  Raman spectra of MPY molecules adsorbed on the surface of polycrystalline and single crystal perovskiteS

    Figure  5.  Raman spectra of MPY powder, MPY on polycrystalline perovskite, MPY on silver film and MPY on the polycrystalline perovskite deposited with a silver film

    Figure  6.  Raman spectra of CuPc adsorbed on the perovskite single crystal and polycrystalline compared with the Raman signal of CuPc powder

    Figure  7.  SERS spectra of CuPc adsorbed on single crystal and polycrystalline perovskite under the excitation lasers of 473, 532 and 785 nm

    Figure  8.  Laser induced CT processes under the excitation laser of 473, 532 and 785 nm

    Figure  9.  SERS spectra of CuPc adsorbed on single crystal and polycrystalline film after the addition of silver film

    Figure  10.  SERS spectra of CuPc-perovskite, CuPc-Ag, perovskite-CuPc-Ag and the Raman spectra of CuPc powder

    Table  1.   Band assignment of the CuPc molecules

    CuPc Powder/cm-1 CuPc-Perovskite/cm-1 Bands Assignments
    594 594 A1g
    678 678 B1g, in plane full symmetric nonmetal bound N-M stretch and outer ring stretches
    745 745 B2g, in plane ring symmetric N-M stretch
    828 828 A1g, in plane full symmetric N-M stretch
    951 951
    1 036 1 037 B1g
    1 140 1 140 A1g, in plane symmetric N-M-N bend
    1 334 1 339 B1g, in plane full symmetric N-C stretch and ring C-C stretch
    1 445 1 449 B2g, in plane ring symmetric outer ring C-C stretch
    1 518 1 525 B2g, ring C-C stretch and in plane ring symmetric non metal bound N-C stretch
    下载: 导出CSV
  • [1] BURSCHKA J, PELLET N, MOON S J, et al.. Sequential deposition as a route to high-performance perovskite-sensitized solar cells[J]. Nature, 2013, 499(7458):316-319. doi:  10.1038/nature12340
    [2] ZHAO Y X, ZHU K.Organic-inorganic hybrid lead halide perovskites for optoelectronic and electronic applications[J]. Chemical Society Reviews, 2016, 45(3):655-689. doi:  10.1039/C4CS00458B
    [3] TAN ZH K, MOGHADDAM R S, LAI M L, et al.. Bright light-emitting diodes based on organometal halide perovskite[J]. Nature Nanotechnology, 2014, 9(9):687-692. doi:  10.1038/nnano.2014.149
    [4] YU W L, LI F, WANG H, et al.. Ultrathin Cu2O as an efficient inorganic hole transporting material for perovskite solar cells[J]. Nanoscale, 2016, 8(11):6173-6179. doi:  10.1039/C5NR07758C
    [5] SHI D, ADINOLFI V, COMIN R, et al.. Low trap-state density and long carrier diffusion in organolead trihalide perovskite single crystals[J]. Science, 2015, 347(6221):519-522. doi:  10.1126/science.aaa2725
    [6] DONG Q F, FANG Y J, SHAO Y CH, et al.. Electron-hole diffusion lengths>175μm in solution-grown CH3NH3PbI3 single crystals[J]. Science, 2015, 347(6225):967-970. doi:  10.1126/science.aaa5760
    [7] ZHOU H P, CHEN Q, LI G, et al.. Interface engineering of highly efficient perovskite solar cells[J]. Science, 2014, 345(6196):542-546. doi:  10.1126/science.1254050
    [8] HAO F, STOUMPOS C C, CAO D H, et al.. Lead-free solid-state organic-inorganic halide perovskite solar cells[J]. Nature Photonics, 2014, 8(6):489-494. doi:  10.1038/nphoton.2014.82
    [9] MA CH, SHI Y M, HU W J, et al.. Heterostructured WS2/CH3NH3PbI3photoconductors with suppressed dark current and enhanced photodetectivity[J]. Advanced Materials, 2016, 28(19):3683-3689. doi:  10.1002/adma.201600069
    [10] LIU M ZH, JOHNSTON M B, SNAITH H J.Efficient planar heterojunction perovskite solar cells by vapour deposition[J]. Nature, 2013, 501(7467):395-398. doi:  10.1038/nature12509
    [11] JEON N J, NOH J H, KIM Y C, et al.. Solvent engineering for high-performance inorganic-organic hybrid perovskite solar cells[J]. Nature Materials, 2014, 13(9):897-903. doi:  10.1038/nmat4014
    [12] XING G CH, MATHEWS N, SUN SH Y, et al.. Long-range balanced electron-and hole-transport lengths in organic-inorganic CH3NH3PbI3[J]. Science, 2013, 42(6156):344-347.
    [13] STRANKS S D, EPERON G E, GRANCINI G, et al.. Electron-hole diffusion lengths exceeding 1 micrometer in an organometal trihalide perovskite absorber[J]. Science, 2013, 342(6156):341-344. doi:  10.1126/science.1243982
    [14] MARCHIORO A, TEUSCHER J, FRIEDRICH D, et al.. Unravelling the mechanism of photoinduced charge transfer processes in lead iodide perovskite solar cells[J]. Nature Photonics, 2014, 8(3):250-255. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=d63ca0b74c4db18927acc652d2f40017
    [15] EDRI E, KIRMAYER S, MUKHOPADHYAY S, et al.. Elucidating the charge carrier separation and working mechanism of CH3NH3PbI3-xClx perovskite solar cells[J]. Nature Communications, 2014, 5:3461. doi:  10.1038/ncomms4461
    [16] BEGUM R, PARIDA M R, ABDELHADY A L, et al.. Engineering interfacial charge transfer in CsPbBr3 perovskite nanocrystals by heterovalent doping[J]. Journal of the American Chemical Society, 2017, 139(2):731-737. doi:  10.1021/jacs.6b09575
    [17] LIU J X, LENG J, WU K F, et al.. Observation of internal photoinduced electron and hole separation in hybrid two-dimentional perovskite films[J]. Journal of the American Chemical Society, 2017, 139(4):1432-1435. doi:  10.1021/jacs.6b12581
    [18] FLEISCHMANN M, HENDRA P J, MCQUILLAN A J. Ramanspectra of pyridine adsorbed at a silver electrode[J]. Chemical Physics Letters, 1974, 26(2):163-166. doi:  10.1016/0009-2614(74)85388-1
    [19] LOMBARDI J R, BIRKE R L. A unified approach to surface-enhanced Raman spectroscopy[J]. The Journal of Physical Chemistry C, 2008, 112(14):5605-5617. doi:  10.1021/jp800167v
    [20] BELL S E J, SIRIMUTHU N M S. Quantitative surface-enhanced Raman spectroscopy[J]. Chemical Society Reviews, 2008, 37(5):1012-1024. doi:  10.1039/b705965p
    [21] PARK S, YANG P X, CORREDOR P, et al.. Transition metal-coated nanoparticle films:vibrational characterization with surface-enhanced Raman scattering[J]. Journal of the American Chemical Society, 2002, 124(11):2428-2429. doi:  10.1021/ja017406b
    [22] KNEIPP K, MOSKOVITS M, KNEIPP H. Surface-Enhanced Raman Scattering: Physics and Applications[M]. Berlin, Germany: Springer, 2006.
    [23] LOMBARDI J R, BIRKE R L. A unified view of surface-enhanced raman scattering[J]. Accounts of Chemical Research, 2009, 42(6):734-742. doi:  10.1021/ar800249y
    [24] YAMADA H, YAMAMOTO Y, TANI N. Surface-enhanced raman scattering(SERS) of adsorbed molecules on smooth surfaces of metals and a metal-oxide[J]. Chemical Physics Letters, 1982, 86(4):397-400. doi:  10.1016/0009-2614(82)83531-8
    [25] YAMADA H, YAMAMOTO Y. Surface enhanced raman scattering(SERS) of chemisorbed species on various kinds of metals and semiconductors[J]. Surface Science, 1983, 134(1):71-90. doi:  10.1016/0039-6028(83)90312-6
    [26] LING X, XIE L M, FANG Y, et al.. Can graphene be used as a substrate for raman enhancement?[J]. Nano Letters, 2010, 10(2):553-561. doi:  10.1021/nl903414x
    [27] LIVINGSTONE R, ZHOU X C, TAMARGO M C, et al.. Surface enhanced raman spectroscopy of pyridine on CdSe/ZnBeSe quantum dots grown by molecular beam epitaxy[J]. The Journal of Physical Chemistry C, 2010, 114(41):17460-17464. doi:  10.1021/jp105619m
    [28] JI W, KITAHAMA Y, XUE X X, et al.. Generation of pronounced resonance profile of charge-transfer contributions to surface-enhanced raman scattering[J]. The Journal of Physical Chemistry C, 2012, 116(3):2515-2520. doi:  10.1021/jp209947p
    [29] SUN ZH H, WANG CH X, YANG J X, et al.. Nanoparticle metal-semiconductor charge transfer in ZnO/PATP/Ag assemblies by surface-enhanced Raman spectroscopy[J]. The Journal of Physical Chemistry C, 2008, 112(15):6093-6098. doi:  10.1021/jp711240a
    [30] MAO ZH, SONG W, XUE X X, et al.. Multiphonon resonant raman scattering and photoinduced charge-transfer effects at ZnO-molecule interfaces[J]. The Journal of Physical Chemistry C, 2012, 116(51):26908-26918. doi:  10.1021/jp3092573
    [31] WANG X L, WANG Y, SUI H M, et al.. Investigation of charge transfer in Ag/N719/TiO2 interface by surface-enhanced raman spectroscopy[J]. The Journal of Physical Chemistry C, 2016, 120(24):13078-13086. doi:  10.1021/acs.jpcc.6b03228
    [32] TARAKESHWAR P, PALMA J L, FINKELSTEIN-SHAPIRO D, et al.. SERS as a probe of charge-transfer pathways in hybrid dye/molecule-metal oxide complexes[J]. The Journal of Physical Chemistry C, 2014, 118(7):3774-3782. doi:  10.1021/jp410725w
    [33] YU ZH, YU W L, XING J, et al.. Charge transfer effects on resonance-enhanced raman scattering for molecules adsorbed on single-crystalline perovskite[J]. ACS Photonics, 2018, 5(4):1619-1627. doi:  10.1021/acsphotonics.8b00152
    [34] MACULAN G, SHEIKH A D, ABDELHADY A L, et al.. CH3NH3PbCl3 single crystals:inverse temperature crystallization and visible-blind UV-photodetector[J]. The Journal of Physical Chemistry Letters, 2015, 6(19):3781-3786. doi:  10.1021/acs.jpclett.5b01666
    [35] BAIKIE T, BARROW N S, FANG Y A, et al.. A combined single crystal neutron/X-ray diffraction and solid-state nuclear magnetic resonance study of the hybrid perovskites CH3NH3PbX3(X=I, Br and Cl)[J].Journal of Materials Chemistry A, 2015, 3(17):9298-9307. doi:  10.1039/C5TA01125F
    [36] LING X, FANG W J, LEE Y H, et al.. Raman enhancement effect on two-dimensional layered materials:graphene, h-BN and MoS2[J]. Nano Letters, 2014, 14(6):3033-3040. doi:  10.1021/nl404610c
    [37] TAN Y, MA L N, GAO ZH B, et al.. Two-dimensional heterostructure as a platform for surface-enhanced raman scattering[J]. Nano Letters, 2017, 17(4):2621-2626. doi:  10.1021/acs.nanolett.7b00412
    [38] BASOVA T V, KOLESOV B A. Raman spectra of copper phthalocyanin:experiment and calculation[J]. Journal of Structural Chemistry, 2000, 41(5):770-777. doi:  10.1023/A:1004802000669
    [39] WANG M F, SPATARU T, LOMBARDI J R, et al.. Time resolved surface enhanced Raman scattering studies of 3-hydroxyflavone on a Ag electrode[J]. The Journal of Physical Chemistry C, 2007, 111(7):3044-3052. doi:  10.1021/jp0650937
    [40] WANG M F, TESLOVA T, XU F, et al.. Raman and surface enhanced Raman scattering of 3-hydroxyflavone[J]. The Journal of Physical Chemistry C, 2007, 111(7):3038-3043. doi:  10.1021/jp062100i
    [41] KIM Y C, YANG T Y, JEON N J, et al.. Engineering interface structures between lead halide perovskite and copper phthalocyanine for efficient and stable perovskite solar cells[J]. Energy & Environmental Science, 2017, 10(10):2109-2116. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=f2ae225853e3af2cc653c9b936edfb7a
    [42] NIU B J, WU L L, TANG W, et al.. Enhancement of near-band edge emission of Au/ZnO composite nanobelts by surface plasmon resonance[J]. CrystEngComm, 2011, 13(11):3678-3681. doi:  10.1039/c1ce05175j
    [43] SU Y H, TU S L, TSENG S W, et al.. Influence of surface plasmon resonance on the emission intermittency of photoluminescence from gold nano-sea-urchins[J]. Nanoscale, 2010, 2(12):2639-2646. doi:  10.1039/c0nr00330a
    [44] BABA A, AOKI N, SHINBO K, et al.. Grating-coupled surface plasmon enhanced short-circuit current in organic thin-film photovoltaic cells[J]. ACS Applied Materials & Interfaces, 2011, 3(6):2080-2084. doi:  10.1021/am200304x
    [45] SU Y H, KE Y F, CAI SH L, et al.. Surface plasmon resonance of layer-by-layer gold nanoparticles induced photoelectric current in environmentally-friendly plasmon-sensitized solar cell[J]. Light:Science & Applications, 2012, 1(6):e14. doi:  10.1038/lsa.2012.14
  • [1] Ye YU, Wen-yan LIN, Xue-kang PENG, Yu JIN, Zhi-jun WU, Yan CHEN.  Weak microcavity effect in tandem white organic light-emitting diodes employing an effective charge-generation layer of Liq/Al/HAT-CN . 中国光学, 2019, 12(2): 382-394. doi: 10.3788/CO.20191202.0382
    [2] 陈洪宇, 王月飞, 闫珺, 李林, 王贺彬, 卞万朋, 李炳生.  基于Se和有机无机钙钛矿异质结的宽光谱光电探测器制备及其光电特性研究 . 中国光学, 2019, 12(5): 1057-1063. doi: 10.3788/CO.20191205.1057
    [3] 王兰, 董渊, 高嵩, 陈奎一, 房法成, 金光勇.  钙钛矿材料在激光领域的研究进展 . 中国光学, 2019, 12(5): 993-1014. doi: 10.3788/CO.20191205.0993
    [4] Hui-wen LIU, Dong YAO, Yi LIU, Hao ZHANG.  Mn2+-doped CsPbX3 (X=Cl, Br and I) perovskite nanocrystals and their applications . 中国光学, 2019, 12(5): 933-951. doi: 10.3788/CO.20191205.0933
    [5] Cheng XIAO, Zhi-bin CHEN, Meng-ze QIN, Dong-xiao ZHANG.  SERS characteristics analysis of composite Ag/SiO2 sinusoidal grating . 中国光学, 2019, 12(1): 59-74. doi: 10.3788/CO.20191201.0059
    [6] 王志乐, 王著元, 宗慎飞, 崔一平.  微流控SERS芯片及其生物传感应用 . 中国光学, 2018, 11(3): 513-530. doi: 10.3788/CO.20181103.0513
    [7] 季洪雷, 周青超, 潘俊, 柏泽龙, 钟海政.  量子点液晶显示背光技术 . 中国光学, 2017, 10(5): 666-680. doi: 10.3788/CO.20171005.0666
    [8] 薛彬, 孔祥贵, 王丹, 夏露, 李晓坤, 于沂, 孙雅娟, 吴飞, 赵慧颖.  785 nm激光诱导银纳米三角片聚集表面增强拉曼散射效应 . 中国光学, 2014, 7(1): 118-123. doi: 10.3788/CO.20140701.0118
  • 加载中
图(10) / 表 (1)
计量
  • 文章访问数:  443
  • HTML全文浏览量:  107
  • PDF下载量:  21
  • 被引次数: 0
出版历程
  • 收稿日期:  2019-01-07
  • 修回日期:  2019-02-28
  • 刊出日期:  2019-10-01

Charge transfer induced surface enhanced Raman scattering of single crystal and polycrystal perovskites

doi: 10.3788/CO.20191205.0952
    基金项目:  国家重点研发计划"增材制造与激光制造"重点专项项目(No.2017YFB1104700);国家自然科学基金(No.61705227,No.61774155,No.11774340);吉林省科技发展计划项目(No.20180414019GH);中国科学院国际合作局对外合作重点项目(No.181722KYSB20160015)
    通讯作者: YU Wei-li, E-mial:weili.yu@ciomp.ac.cnGUO Chun-lei, E-mail:guo@optics.rochester.edu
  • 中图分类号: O433.5

摘要: 近年来,钙钛矿作为一种新型的能源材料受到了众多学者的广泛关注。由于其具有较高的吸收系数、载流子迁移率以及扩散长度而被应用到光电器件中,例如:太阳能电池、光电探测器、场效晶体管以及发光二极管等。器件界面电荷转移过程则是影响钙钛矿材料性能的一个关键因素,在本工作中,利用表面增强拉曼光谱,研究了钙钛矿材料的电荷转移性质;制备了MAPbCl3钙钛矿单晶以及多晶薄膜,并在其表面沉积一层酞菁铜分子;随后,在酞菁铜表面再次沉积一层银膜。试图通过表面增强拉曼光谱(SERS)技术研究钙钛矿-钛菁铜界面的电荷转移过程以及表面银膜所产生的表面等离子体共振对于界面电荷转移及SERS性质的影响。研究结果表明,钙钛矿材料与钛菁铜分子能级匹配,且对于532 nm激发波长的激光具有良好的响应;532 nm激光能够诱导界面电荷转移过程的发生。同时,表面沉积的银膜可以进一步放大SERS信号。这主要是由于银膜的表面等离子体共振能够增强电荷分离,提高电荷转移效率,同时其表面产生的较强的电磁场,可以进一步增强钛菁铜分子的Raman信号强度。

English Abstract

于治, 于伟利, 郭春雷. 基于电荷转移的钙钛矿单晶和多晶材料表面增强拉曼散射研究[J]. 中国光学, 2019, 12(5): 952-963. doi: 10.3788/CO.20191205.0952
引用本文: 于治, 于伟利, 郭春雷. 基于电荷转移的钙钛矿单晶和多晶材料表面增强拉曼散射研究[J]. 中国光学, 2019, 12(5): 952-963. doi: 10.3788/CO.20191205.0952
YU Zhi, YU Wei-li, GUO Chun-lei. Charge transfer induced surface enhanced Raman scattering of single crystal and polycrystal perovskites[J]. Chinese Optics, 2019, 12(5): 952-963. doi: 10.3788/CO.20191205.0952
Citation: YU Zhi, YU Wei-li, GUO Chun-lei. Charge transfer induced surface enhanced Raman scattering of single crystal and polycrystal perovskites[J]. Chinese Optics, 2019, 12(5): 952-963. doi: 10.3788/CO.20191205.0952
    • Hybrid organic-inorganic perovskite materials have attracted enormous attention for their applications in optoelectronic devices, such as solar cells, photodetectors, light-emitting diodes, etc[1-3]. Their wide applicability is mainly due to their attractive optical and electrical properties including high optical absorption coefficient, high carrier mobility and long carrier diffusion length[4-6]. In optoelectronic devices, perovskite plays the role of absorber or emitter accompanied by the assistance of a hole transport layer(HTL) and electron transport layer(ETL)[7-9]. In solar or photodetector systems, when light is irradiated on the devices, a perovskite layer adsorbs the photons and results in charge separation and free carrier generation. The photon-induced electrons and holes are then transferred into the ETL and HTL separately by the energy gaps of different layers. In order to fabricate high efficiency devices, much effort has been made regarding perovskite film deposition, structure optimization and interface manipulation[10-11]. In addition, several valuable works have also focused on clarifying the charge processes, which is beneficial for understanding the working principles of optoelectronic devices[12-15]. Among all the charge processes, charge transfer at the interface plays a very important role in determining the current-voltage characteristics and the conversion efficiency of the devices[16-17].

      Surface Enhanced Raman Scattering(SERS) was first discovered in 1974 by Fleischmann with the observation of extremely enhanced Raman signal of MPY molecules adsorbed on a rough silver electrode[18]. Since then, considerable interest has been given to SERS with different focusses. Such as, mechanism studies, analytical sciences, materials characterization, etc.[19-21]. The most accepted two mechanisms are the electromagnetic mechanism(EM) and the chemical mechanism(CM)[22-23]. The EM mechanism arises from the local surface plasma resonance of the metal surface, while the CM mechanism is caused by the charge transfer(CT) between a substrate and the adsorbed molecules. The CT induced SERS study is mostly carried out on the base of semiconductor materials, such as metallic oxide, 2D materials and quantum dots, etc.[24-27]. As previous work reports, semiconductor based SERS study provides a possibility for analyzing the structure and optoelectronic properties of the semiconductor-molecules interfaces[28-29], such as the size of the semiconductor and excitation laser wavelength dependent CT process on the semiconductors or semiconductor-metal complex SERS active materials[30-31]. Tarakeshwar et al. found that the observed SERS phenomenon on TiO2 nanoparticles directly correlates with the electron transit rates across the molecule-TiO2 interface[32]. This research is of great importance for better understanding the nature of the CT process in a dye-semiconductor complex and outlinest the role of the SERS vibrational modes in the CT process.In a previous study, we observed the SERS phenomenon on a MAPbCl3 single crystal perovskite, which indicates that there is a CT at the perovskite-molecule interface[33]. This study is significant in optoelectronic device studies using the SERS method. However, the adsorbed molecule used in the report is not suitable for fabricating optoelectronic devices.

      In this paper, a SERS study was proposed in a dye sensitized perovskite system. A layer of CuPc molecule was deposited on the surface of both single crystal and polycrystalline perovskite. Due to the charge transfer mechanism, the Raman signal of CuPc molecules on the single crystal was noticeably enhanced while the signal of CuPc on the polycrystalline surface can hardly be observed. That is because the crystallinity affects the enhancement ability. Furthermore, a thin layer of Ag was introduced into the dye sensitized perovskite system. The Raman signal of the CuPc on the single crystal perovskite was further enhanced while the polycrystalline system also exhibited obvious enhancement due to both the electromagnetic and charge transfer enhancement mechanism. This study can be used to further study the interface CT process of the dye sensitive perovskite devices.

    • Lead chloride (PbCl2), Phthalocyanine copper(CuPc), Mercaptopyridine(MPY), dimethyl sulfoxide(DMSO), N, N-Dimethylformamide(DMF), dichloromethane(CH2Cl2) and Ag particles were purchased from Sigma-Aldrich. Chlorine methylamine(MACl) was synthesized as follows[34]:firstly, the mixed solution with 1.2 M methylamine and 1 M hydrochloride acid were stirred for 2 h in an ice bath and then vacuum dried at 50 ℃ for 2 h. After that, the sample was dissolved in ethanol and then filtered using a 0.2 μm PTFE filter. Diethyl ether was then added to the filtered solution to get the MACl powder and then it was vacuum dried at 60 ℃.

    • Equimolar amounts of MACl and PbCl2 was dissolved in the solution of DMSO-DMF(1:1 by volume) to prepare the MAPbCl3 precursor solution with a concentration of 1 M. The solution was then filtered using a 0.2 μm pore size PTFE filter. Then the precursor solution was kept in an oil bath at a temperature of 50 ℃ for 6 h[34].

      The perovskite thin films were prepared using a two-step method. The PbCl2(1 M, in N, N-dimetylformamide) solution was spin-coated on cleaned glass slides with a 3 000 r/min for 50 s and then the slides with PbCl2 film were heated for 5 min at 60 ℃. Then MACl solution(15 mg/mL, in isoproponal) was dropped onto the PbCl2 films after waiting for 30 s and the solution was spin coated to dry.

    • 0.006 g 4-MPY and 0.028 g CuPc was dissolved in 50 mL CH2Cl2 separately with a final concentration of 10-3 M of each sample. The as-prepared perovskite materials were then immersed into these two solutions for 2 h. After washing and drying, the samples were kept for further measurement.

    • Raman spectra were collected using a LabRAM HR Evolution Raman spectrometer(HORIBA Jobin Yvon) with excitation laser wavelengths of 473, 532 and 785 nm. The UV-Vis spectral measurements were carried out using a Cary 5000 UV-Vis-NIR spectrometer(Agilent). XRD spectra were collected using BRUKER D8 FOCUS. SEM and EDS analysis were carried out using a scanning electron microscope(Phenom ProX).

    • Fig. 1(color version please see the journal website) shows the surface morphology of the polycrystalline thin film(a) and single crystal perovskite(b). The EDS analysis for the materials takes place inside the red square labeled(color version please see the journal website) in the SEM image and the results show that four elements(C, N, Pb and Cl) are distributed uniformly in both polycrystalline and single crystal MAPbCl3 perovskite. Fig. 2 shows the XRD spectra of the single crystal perovskite and polycrystalline film, which confirms that both the single crystal and the polycrystalline film possess the single-phase cubic structure with the lattice parameter a=5.68 Å[35].

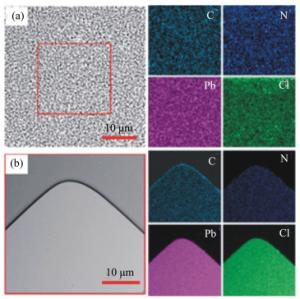

      Figure 1.  SEM image and EDS analysis of MAPbCl3perovskite polycrystalline thin film(a) and single crystal(b)

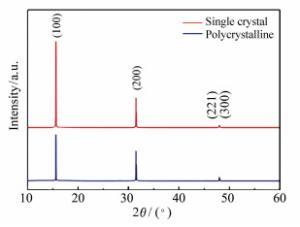

      Figure 2.  XRD spectra of single crystal and polycrystalline perovskite

    • Fig. 3 shows the UV-Vis absorbance spectra of the (a)single crystal and (b)polycrystalline thin film. The MAPbCl3 perovskite polycrystalline thin film shows an absorption edge at 407 nm while the single crystal reveals a 428 nm sharp edge, which determines the optical band gap to be 3.05 eV and 2.89 eV separately. However, after the modification of MPY molecules, both of the two perovskite with different crystalline states exhibit a new absorbance band between 450 nm and 500 nm, which shows a new band absorption edge located near 500 nm. As for the MPY molecules themselves, there is hardly any obvious absorption after 425 nm. We can thus conclude that the adsorption of the molecules on the perovskite surface leads to the formation of new band energy at the interface of the perovskite and the MPY molecules.

      Figure 3.  UV-Vis spectra of single crystal perovskite(a) and polycrystal perovskite(b) before and after modification with MPY molecules compared with the spectra of MPY molecules dissolved in CH2Cl2

    • As in our previous report, the modification of MPY molecules on the single crystal leads to the formation of a new energy level at the interface, which results in a CT between a single crystal and MPY[33]. The interfacial CT process causs the Raman enhancement of MPY molecules under 532 nm laser excitation. However, in the polycrystalline perovskite system, there is nearly no obvious Raman signal achieved. As Fig. 4 shows, the Raman spectra of MPY molecules adsorbed on the polycrystalline perovskite only exhibits one weak band located at 1 003 cm-1. This phenomenon can be attributed to that the defect status will affect the SERS results.

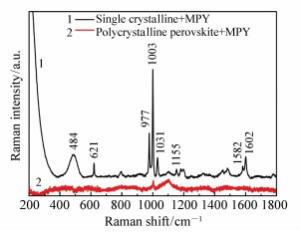

      Figure 4.  Raman spectra of MPY molecules adsorbed on the surface of polycrystalline and single crystal perovskiteS

      However, the lower enhancement property does not mean there is no CT process at the polycrystalline-MPY interface. To further study the CT process of the polycrystalline-MPY system, a thin layer(30 nm) of silver film was added onto the polycrystalline-MPY surface and the Raman spectra of this system were collected. The Raman spectra of MPY molecules in the polycrystalline-MPY-Ag system compared with the Ag film modified with MPY molecules is shown in Fig. 5. As the figure shows, the Raman signal of MPY on Ag film was enhanced, which is due to the local surface plasma resonance. In the perovskite-MPY-Ag system, the Raman signal of MPY molecules was further enhanced and the bands at 1 223 cm-1(C-H in-plane wag) and 1 577 cm-1(C-C stretch with deprotonated nitrogen) were selectively enhanced compared to the band at 1 200 cm-1(C-H in-of-plane asym bend) and 1 609 cm-1(C-C stretch with protonated nitrogen). It was reported that, the vibration bands at 1 223 cm-1 and 1 577 cm-1 can be assigned to the b2 mode and the selective enhanced b2 mode indicates that a CT process takes place in the system, which is beneficial for Raman enhancement. Thus, we can conclude that the polycrystalline perovskite plays a key role in the Raman enhancement of the MPY molecules.

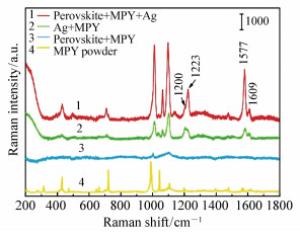

      Figure 5.  Raman spectra of MPY powder, MPY on polycrystalline perovskite, MPY on silver film and MPY on the polycrystalline perovskite deposited with a silver film

    • As is well known, the perovskite materials play a key role in optical-electronic response devices. Interfacial CT is also an important part of this process. From the above discussion, we find that SERS can be used to diagnose the interfacial CT process with the modification of proper molecules on the surface of perovskite. However, small molecules(such as MPY) are not suitable enough to promote the interfacial CT due to the large band difference between the LUMO(lowest unoccupied molecule orbital) and HOMO(highest occupied molecule orbital) level of small molecules. Comparatively speaking, some dye molecules(such as CuPc, FePc, N3), which possess a relativly lower band difference, are much more suitable for the fabrication of optical-electronic response devices. In summary, studying the interfacial CT property in perovskite-dye molecule systems is of great importance.

      The as-prepared single crystal and polycrystalline perovskite were immersed into a 10-3 M CuPc solution. After being washed and dried, the Raman spectra of the sample were collected under a 532 nm excitation laser. As shown in Fig. 6, the Raman signal of CuPc on the single crystal surface was noticeably enhanced while a relatively weak signal appeared on the polycrystalline surface.

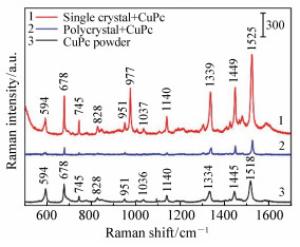

      Figure 6.  Raman spectra of CuPc adsorbed on the perovskite single crystal and polycrystalline compared with the Raman signal of CuPc powder

      The band assignments of the spectra is listed in Tab. 1[36-38]. Compared to the Raman spectra of CuPc powder, the Raman band′s position of the CuPc adsorbed on the perovskite at 594, 678(B1g, in plane full symmetric nonmetal bound N-M stretch and outer ring stretches), 745(B2g, in plane ring symmetric N-M stretch), 828(A1g, in plane full symmetric N-M stretch), 951, 1 037 and 1 140(A1g, in plane symmetric N-M-N bend) remained unchanged while the bands located at 1 339(B1g, in plane full symmetric N-C stretch and ring C-C stretch), 1 449(B2g, in plane ring symmetric outer ring C-C stretch) and 1 525 cm-1(B2g, ring C-C stretch and in plane ring symmetric nonmetal bound N-C stretch) shifted to longer wavelengths. The lower enhancement of the signal on the polycrystalline perovskite can be attributed to stronger defects.

      Table 1.  Band assignment of the CuPc molecules

      CuPc Powder/cm-1 CuPc-Perovskite/cm-1 Bands Assignments
      594 594 A1g
      678 678 B1g, in plane full symmetric nonmetal bound N-M stretch and outer ring stretches
      745 745 B2g, in plane ring symmetric N-M stretch
      828 828 A1g, in plane full symmetric N-M stretch
      951 951
      1 036 1 037 B1g
      1 140 1 140 A1g, in plane symmetric N-M-N bend
      1 334 1 339 B1g, in plane full symmetric N-C stretch and ring C-C stretch
      1 445 1 449 B2g, in plane ring symmetric outer ring C-C stretch
      1 518 1 525 B2g, ring C-C stretch and in plane ring symmetric non metal bound N-C stretch

      However, it should be mentioned that the Raman signal of CuPc on the polycrystalline surface is weaker than the CuPc powder. It is because of this that only one single layer of CuPc molecules adsorbed on the perovskite surface while far more molecules of CuPc powder were adsorbed at the laser′s focus point for the relative Raman measurement.

    • As mentioned above, the EM mechanism is mainly due to the laser-induced surface plasmon resonances on the metal cluster surface, which results in a strong local enhancement of the electric field. This can significantly enhance the Raman signal of the molecules adsorbed on or near the metal surface and the enhancement factor is estimated to be as large as 1012-1015.

      On the other hand, the CM mechanism is of equal importance in SERS studies[39-40]. For in-stance, the factor contributing to enhancement in metals or semiconductors due to above mechanism is associated with the chemical adsorption of the probe molecule and includes either molecule-metal/semiconductor or metal/semiconductor-molecule CT processes. The application of the Herzberg-Teller theory has been the most comprehensive approach in the study of this effect. The main process could be simply described as the excitation of an electron from a full HOMO to an empty level on the metal/semiconductor band(molecule-metal/semiconductor) or from a full level of the metal/semiconductor to the LUMO. Such conditions are a resonance Raman-like process in which CT between the substrate and the molecule constitutes the intermediate stage.

      As mentioned in our previous report[33], the MAPbCl3 perovskite do not possess surface plasmons along the excitation region of the laser lines used in these experiments(473 nm, 532 nm and 785 nm) and the mechanism of the SERS phenomenon based on the perovskite materials was attributed to the CT resonance at the interface between perovskite and the adsorbed molecules. To verify this result, the SERS spectra of CuPc on the perovskite were further measured under another two excitation lasers with different wavelengths:473 nm and 785 nm.

      As shown in Fig. 7, the SERS spectra of CuPc molecules adsorbed on perovskite exhibit enhancement at different levels. In the single crystal system, the SERS intensity of the CuPc molecules under 532 nm excitation laser undergoes the strongest enhancement compared to the other two excitation laser conditions while in the polycrystalline system, only 532 nm excitation laser can induce SERS enhancement for the CuPc molecules. No SERS signal can be achieved under the other two excitation laser conditions. In addition, it can be found that under the three excitation laser conditions, the single crystal perovskite system shows obvious signs that it is attributed to the vibration of the MAPbCl3, while the polycrystalline hardly results in any observable bands. This further verifies that the less defective the system, the better SERS enhancement. The strongest enhancement occurs under 532 nm excitation and can be attributed to the laser-induced interfacial CT from the VB band of perovskite to the LUMO level of the CuPc molecules.

      Figure 7.  SERS spectra of CuPc adsorbed on single crystal and polycrystalline perovskite under the excitation lasers of 473, 532 and 785 nm

      The CT process is shown in Fig. 8. As reported in prior research, the VB and CB bands of MAPbCl3 perovskite are located at 5.82 eV and 2.94 eV separately[34]. The LUMO and HOMO level of CuPc is 3.5 eV and 5.2 eV[41]. Under these conditions, the energy difference between the VB band of perovskite and the LUMO level of CuPc is 2.32 eV. This energy difference is well matched with the energy of the 532 nm excitation laser. Thus, the 532 nm excitation laser can induce a charge transfer between the VB band and the LUMO level, which finally results in a SERS enhancement for the CuPc molecules adsorbed on the perovskite. As for the 473 nm excitation laser, the laser energy is 2.62 eV. It is larger than 2.32 eV and cannot match well with energy difference so the 473 nm laser cannot induce CT resonance at the interface.In the case of 785 nm excitation laser, the laser energy is 1.58 eV, which is not enough to excite electron transits from the VB band to the LUMO level. Thus, we can conclude that, the energy of the 532 nm excitation laser matches the energy difference well and it can induce CT at the interface, which results in SERS enhancement for the CuPc molecules adsorbed on the perovskite surface.

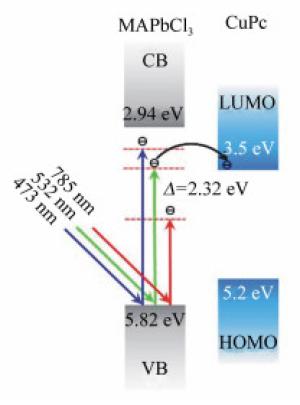

      Figure 8.  Laser induced CT processes under the excitation laser of 473, 532 and 785 nm

    • It is well known that noble metals are widely used in SERS studies. The surface plasmon resonance(SPR) can produce a strong electromagnetic field on the surface of the materials, which can also be applied elsewhere, such as in photoluminescence[42], biolight emission devices[43] and solar cells[44]. Some recent studies reported that in metal-semiconductor solar cell systems, the SPR-induced dipole acts as an energy level and an enhanced pumping rate for photoelectronic formation and increases the CT efficiency at the interface. Finally, the photoelectric current was increased[45]. We created a thin silver film to study the effect of SPR on the Raman enhancement and interfacial charge transfer property of the CuPc-perovskite system.

      Fig. 9 shows the SERS spectra of CuPc molecules adsorbed on the perovskite and deposited on 30 nm silver film. After the decoration of silver film, compared to the CuPc-perovskite system, not only were the SERS intensity of CuPc adsorbed on single crystal perovskite significantly enhanced under all the three excitation lasers, but the SERS intensity of CuPc on polycrystalline perovskite films also showed obvious increased. Among all the three excitation laser conditions, the 532 nm laser induced the strongest SERS enhancement. This is because the silver possesses the strongest SPR effect under 532 nm laser excitation. Under 743 nm and 532 nm irradiation conditions, the SERS enhancement mainly arises for two reasons:(1)The SPR induced strong electromagnetism can lead to the enhancement of the signal due to the EM mechanism; (2)The SPR can enhance the charge separation and further increase the charge transfer at the interface. However, under the 785 nm condition, the SERS intensity of CuPc at the single crystal and polycrystalline perovskite are nearly the same. It is because of this that the lower laser energy and weaker SPR effect under 785 nm excitation cannot effectively enhance the interfacial CT. Its SERS enhancement is mainly due to the EM mechanism.

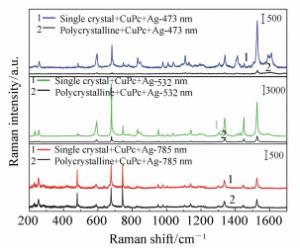

      Figure 9.  SERS spectra of CuPc adsorbed on single crystal and polycrystalline film after the addition of silver film

      In order to verify the contribution of perovskite to the SERS enhancement, the SERS spectra of CuPc on silver film were further measured. The SERS spectrum of CuPc adsorbed on the silver film was shown in Fig. 10. It can be seen from the figure that the SERS signal of CuPc adsorbed on both perovskite and the silver film were enhanced. However, the SERS intensity of CuPc in the perovskite/Ag complex system was further enhanced. Thus, it can be concluded that the SERS phenomenon comes from the double contribution of perovskite and silver film.

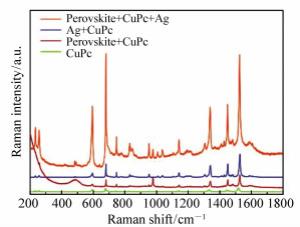

      Figure 10.  SERS spectra of CuPc-perovskite, CuPc-Ag, perovskite-CuPc-Ag and the Raman spectra of CuPc powder
