大视场高像质简单光学系统的光学-算法协同设计

郑云达 黄玮 徐明飞 潘云 贾树强 张晓菲 卢勇男

郑云达, 黄玮, 徐明飞, 潘云, 贾树强, 张晓菲, 卢勇男. 大视场高像质简单光学系统的光学-算法协同设计[J]. 中国光学(中英文), 2019, 12(5): 1090-1099. doi: 10.3788/CO.20191205.1090
引用本文: 郑云达, 黄玮, 徐明飞, 潘云, 贾树强, 张晓菲, 卢勇男. 大视场高像质简单光学系统的光学-算法协同设计[J]. 中国光学(中英文), 2019, 12(5): 1090-1099. doi: 10.3788/CO.20191205.1090
ZHENG Yun-da, HUANG Wei, XU Ming-fei, PAN Yun, JIA Shu-qiang, ZHANG Xiao-fei, LU Yong-nan. Optical/algorithmic co-design of large-field high-quality simple optical system[J]. Chinese Optics, 2019, 12(5): 1090-1099. doi: 10.3788/CO.20191205.1090
Citation: ZHENG Yun-da, HUANG Wei, XU Ming-fei, PAN Yun, JIA Shu-qiang, ZHANG Xiao-fei, LU Yong-nan. Optical/algorithmic co-design of large-field high-quality simple optical system[J]. Chinese Optics, 2019, 12(5): 1090-1099. doi: 10.3788/CO.20191205.1090

大视场高像质简单光学系统的光学-算法协同设计

基金项目: 应用光学国家重点实验室自主基金资助
详细信息
    作者简介:

    郑云达(1992-), 男, 吉林延边人, 博士, 2014年于中国科学技术大学获得学士学位, 主要从事图像复原及光学设计方面的研究。E-mail:yundazheng@foxmail.com

    黄玮(1965-), 男, 吉林长春人, 研究员, 博士生导师, 主要从事光学系统设计方面的研究。E-mail:huangw@ciomp.ac.cn

  • 中图分类号: TP394.1;TH691.9

Optical/algorithmic co-design of large-field high-quality simple optical system

Funds: Supported by the State Key Laboratory of Applied Optics
More Information
  • 摘要: 为了实现高像质相机低成本、小型化的需求,本文提出了一种大视场简单光学系统的光学-算法协同设计方法,并通过图像复原算法校正简单光学系统的残余像差。首先,针对大视场光学系统,对空间变化的交叉通道去卷积算法进行改进,加入倍率色差校正,使图像复原算法可显著去除色差的影响。然后,在光学设计过程中,放开色差的约束,并专注优化绿色通道的像质,使其成像锐利,在后期交叉通道去卷积算法中有助于红、蓝两通道图像复原。利用该方法设计了一个由两片同种材料的镜片构成的大视场简单光学系统。系统焦距为50 mm,全视场为46°,F数为5.6,探测器分辨率为1 000万像素。实验结果表明:本文设计的两片镜、大视场简单光学系统的成像质量可媲美三片式库克镜头,明显优于纯图像复原的结果。本文方法实现了大视场简单光学系统的设计,并能够通过系统最终获得高分辨率、高像质图像。



  • 图 1  空间变化方案示意图

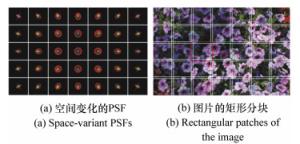

    Figure 1.  Diagram of the space-variant strategy

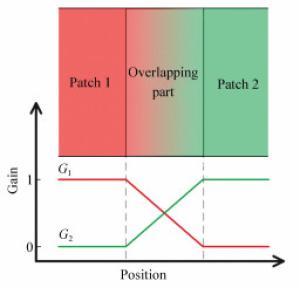

    图 2  图片分块重叠部分的拼接示意图

    Figure 2.  Diagram of stitching method of image overlapping parts

    图 3  交叉通道先验示意图

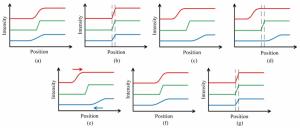

    Figure 3.  Scanline diagrams of cross-channel prior

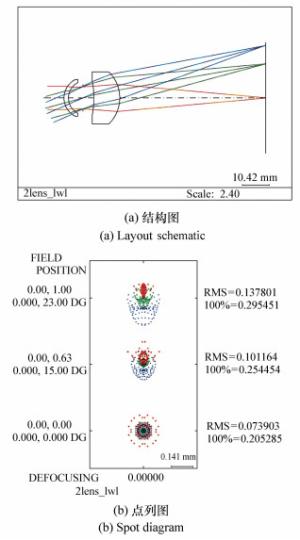

    图 4  简单光学系统结构图

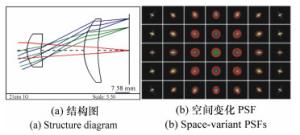

    Figure 4.  Layout of simple optical system

    图 5  简单光学系统设计结果

    Figure 5.  Designed results of simple optical system

    图 6  简单光学系统的空间变化PSF

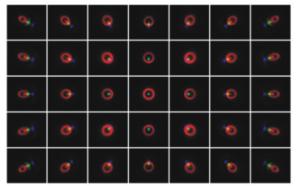

    Figure 6.  Space-variant PSFs of the simple optical system

    图 7  图像复原结果

    Figure 7.  Image restoration results

    图 8  常规设计的两片镜系统

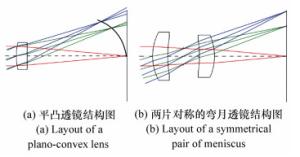

    Figure 8.  Conventional designed two-lens optical system

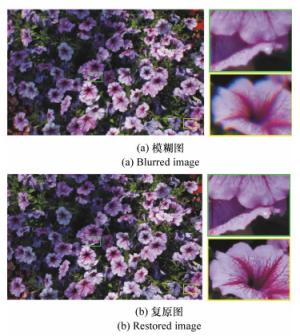

    图 9  鲜花图像复原结果对比s

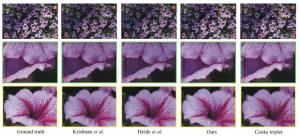

    Figure 9.  Comparison of restoration results of a flower image

    图 10  校园图像复原结果对比

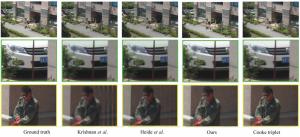

    Figure 10.  Comparison of restoration results of a campus image

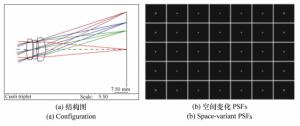

    图 11  库克三片式镜头

    Figure 11.  Cooke triplet lens

    表  1  简单光学系统的镜头参数

    Table  1.   Lens data of the simple optical system

    Surface Radius Thickness Glass Semi-Aperture
    Object Infinity Infinity
    1 7.872 8 1.71 HK9L_CDGM 6.30
    2 6.582 4 5.57 5.38
    stop Infinity 4.28 4.28
    4 -33.333 4 10.00 HK9L_CDGM 6.28
    5 -13.943 6 56.45 9.10
    Image Infinity 0 20.21
    下载: 导出CSV

    表  2  BRISQUE评价结果对比

    Table  2.   Comparison of BRISQUE scores

    Flowers Campus
    Ground truth 17.079 6 21.843 0
    Krishnan et al. 51.551 5 49.697 0
    Heide et al. 44.991 0 44.785 0
    Ours 30.548 2 39.275 0
    Cooke lens 29.490 0 36.888 0
    下载: 导出CSV

    表  3  NIQE评价结果对比

    Table  3.   Comparison of NIQE scores

    Flowers Campus
    Ground truth 3.238 0 3.333 8
    Krishnan et al. 6.612 2 6.527 4
    Heide et al. 6.059 0 5.825 9
    Ours 4.838 0 4.577 5
    Cooke lens 4.200 0 4.413 1
    下载: 导出CSV
  • [1] 杨利红, 赵变红, 张星祥, 等.点扩散函数高斯拟合估计与遥感图像恢复[J].中国光学, 2012, 5(2):181-188. http://www.chineseoptics.net.cn/CN/abstract/abstract8812.shtml

    YANG L H, ZHAO B H, ZHANG X X, et al.. Gaussian fitted estimation of point spread function and remote sensing image restoration[J]. Chinese Optics, 2012, 5(2):181-188.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract8812.shtml
    [2] 闫敬文, 彭鸿, 刘蕾, 等.基于L0正则化模糊核估计的遥感图像复原[J].光学 精密工程, 2014, 22(9):2572-2579. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201409037

    YAN J W, PENG H, LIU L, et al.. Remote sensing image restoration based on zero-norm regularized kernel estimation[J]. Opt. Precision Eng., 2014, 22(9):2572-2579.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201409037
    [3] 曹海霞, 巴音贺希格, 崔继承, 等.基于图像复原的高光谱图像前向像移补偿[J].中国光学, 2013, 6(6):856-862. http://www.chineseoptics.net.cn/CN/abstract/abstract8994.shtml

    CAO H X, BAYAIHESHIG, CUI J CH, et al.. Forward image motion compensation of hyper spectral image based on image restoration[J]. Chinese Optics, 2013, 6(6):856-862.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract8994.shtml
    [4] 杨航, 吴笑天, 王宇庆.基于结构字典学习的图像复原方法[J].中国光学, 2017, 10(2):207-218. http://d.old.wanfangdata.com.cn/Periodical/zggxyyygxwz201702005

    YANG H, WU X T, WANG Y Q. Image restoration approach based on structure dictionary learning[J]. Chinese Optics, 2017, 10(2):207-218.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/zggxyyygxwz201702005
    [5] WIENER N. Extrapolation, Interpolation, and Smoothing of Stationary Time Series[M]. Cambridge, Massachusetts, USA:MIT Press, 1964.
    [6] RICHARDSON W H. Bayesian-based iterative method of image restoration[J]. Journal of the Optical Society of America, 1972, 62(1):55-59. doi: 10.1364/JOSA.62.000055
    [7] LUCY L B. An iterative technique for the rectification of observed distributions[J]. The Astronomical Journal, 1974, 79(6):745-754. doi: 10.1086/111605
    [8] LEVIN A, FERGUS R, DURAND F, et al.. Image and depth from a conventional camera with a coded aperture[J]. ACM Transactions on Graphics, 2007, 26(3):70. doi: 10.1145/1276377.1276464
    [9] KRISHNAN D, FERGUS R. Fast image deconvolution using hyper-Laplacian priors[C]. Advances in Neural Information Processing Systems 22: 23rd Annual Conference on Neural Information Processing Systems 2009, NIPS, 2009, 22: 1-9.
    [10] 郭从洲, 秦志远.非凸高阶全变差正则化自然光学图像盲复原[J].光学 精密工程, 2015, 23(12):3490-3499. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201512027

    GUO C ZH, QIN ZH Y. Blind restoration of nature optical images based on non-convex high order total variation regularization[J]. Opt. Precision Eng., 2015, 23(12):3490-3499.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201512027
    [11] YUE T, SUO J L, WANG J, et al.. Blind optical aberration correction by exploring geometric and visual priors[C]. 2015 IEEE Conference on Computer Vision and Pattern Recognition, IEEE, 2015: 1684-1692.
    [12] 张金刚, 相里斌, 汶德胜, 等.采用色差先验约束的像差校正技术[J].中国光学, 2018, 11(4):560-567. http://www.chineseoptics.net.cn/CN/abstract/abstract9579.shtml

    ZHANG J G, XIANG L B, WEN D SH, et al.. Aberration correction technology based on chromatic aberration prior constraints[J]. Chinese Optics, 2018, 11(4):560-567.(in Chinese) http://www.chineseoptics.net.cn/CN/abstract/abstract9579.shtml
    [13] SCHULER C J, HIRSCH M, HARMELING S, et al.. Non-stationary correction of optical aberrations[C]. 2011 International Conference on Computer Vision, IEEE, 2011: 659-666.
    [14] HEIDE F, ROUF M, HULLIN M B, et al.. High-quality computational imaging through simple lenses[J]. ACM Transactions on Graphics, 2013, 32(5):149. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=fbb2ee3c18e52a4fff4d6d4f6cea3b40
    [15] LI W L, LIU Y, YIN X Q, et al.. A computational photography algorithm for quality enhancement of single lens imaging deblurring[J]. Optik, 2015, 126(21):2788-2792. doi: 10.1016/j.ijleo.2015.07.030
    [16] WANG J Y, WANG L, YANG Y, et al.. An integral design strategy combining optical system and image processing to obtain high resolution images[J]. Proceedings of SPIE, 2016, 9874:98740F. doi: 10.1117/12.2224394
    [17] 谭政, 相里斌, 吕群波, 等.基于像差选择性校正的光学-数字联合设计[J].光子学报, 2018, 47(5):0511001. http://d.old.wanfangdata.com.cn/Periodical/gzxb201805022

    TAN ZH, XIANG L B, LV Q B, et al.. Optics/digital processing co-design method based on aberration optional-correcting[J]. Acta Photonica Sinica, 2018, 47(5):0511001. in Chinese http://d.old.wanfangdata.com.cn/Periodical/gzxb201805022
    [18] 崔金林.基于计算光学的非完善光学系统图像质量提高及其应用研究[D].长春: 中国科学院长春光学精密机械与物理研究所, 2018.

    CUI J L. Research on enhancing imaging quality of imperfect optical systems and its application via computational optics[D]. Changchun: Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, 2018.(in Chinese)
    [19] CHAMBOLLE A, POCK T. A first-order primal-dual algorithm for convex problems with applications to imaging[J]. Journal of Mathematical Imaging and Vision, 2011, 40(1):120-145. doi: 10.1007/s10851-010-0251-1
    [20] 张以谟.应用光学[M].北京:电子工业出版社, 2012.

    ZHANG Y M. Applied Optics[M]. Beijing:Publishing House of Electronics Industry, 2012.(in Chinese)
    [21] MITTAL A, MOORTHY A K, BOVIK A C. No-reference image quality assessment in the spatial domain[J]. IEEE Transactions on Image Processing, 2012, 21(12):4695-4708. doi: 10.1109/TIP.2012.2214050
    [22] MITTAL A, SOUNDARARAJAN R, BOVIK A C. Making a "completely blind" image quality analyzer[J]. IEEE Signal Processing Letters, 2013, 20(3):209-212. doi: 10.1109/LSP.2012.2227726
