激光诱导击穿光谱技术对烟草快速分类研究

李昂泽 王宪双 徐向君 何雅格 郭帅 柳宇飞 郭伟 刘瑞斌

李昂泽, 王宪双, 徐向君, 何雅格, 郭帅, 柳宇飞, 郭伟, 刘瑞斌. 激光诱导击穿光谱技术对烟草快速分类研究[J]. 中国光学(中英文), 2019, 12(5): 1139-1146. doi: 10.3788/CO.20191205.1139
引用本文: 李昂泽, 王宪双, 徐向君, 何雅格, 郭帅, 柳宇飞, 郭伟, 刘瑞斌. 激光诱导击穿光谱技术对烟草快速分类研究[J]. 中国光学(中英文), 2019, 12(5): 1139-1146. doi: 10.3788/CO.20191205.1139
LI Ang-ze, WANG Xian-shuang, XU Xiang-jun, HE Ya-ge, GUO Shuai, LIU Yu-fei, GUO Wei, LIU Rui-bin. Fast classification of tobacco based on laser-induced breakdown spectroscopy[J]. Chinese Optics, 2019, 12(5): 1139-1146. doi: 10.3788/CO.20191205.1139
Citation: LI Ang-ze, WANG Xian-shuang, XU Xiang-jun, HE Ya-ge, GUO Shuai, LIU Yu-fei, GUO Wei, LIU Rui-bin. Fast classification of tobacco based on laser-induced breakdown spectroscopy[J]. Chinese Optics, 2019, 12(5): 1139-1146. doi: 10.3788/CO.20191205.1139

激光诱导击穿光谱技术对烟草快速分类研究

基金项目:

国家自然科学基金 61574017

北京理工大学火炸药全链条创新专项 2017CX10007

详细信息
    作者简介:

    李昂泽(1996-), 男, 硕士研究生, 2013于太原师范学院获得学士学位, 主要从事激光诱导击穿光谱学方面的研究。E-mail:leeangze@163.com

    刘瑞斌(1977-), 男, 河北承德人, 博士, 教授, 博士生导师, 1999年、2003年于长春光机学院分别获得学士、硕士学位, 2007年于中国科学院物理研究所获得博士学位, 主要从事半导体材料和微纳光电器件光学性质、激光器、光电探测、激光光谱学、可调激光等方面的研究。E-mail:liuruibin8@gmail.com

  • 中图分类号: O433.4

Fast classification of tobacco based on laser-induced breakdown spectroscopy

Funds:

National Natural Science Foundation of China 61574017

Beijing Institute of Technology Whole Chain of Explosives Innovation Project 2017CX10007

More Information
  • 摘要: 不同类型的烟草在元素种类和元素含量上存在一定的差异,本文基于激光诱导击穿光谱(LIBS)技术,采集了不同种类烟草的原子发射光谱,并结合支持向量机方法,实现了烟草的快速分类鉴别。文章选取了市面上9种不同品牌的香烟,提取了其烟丝LIBS谱线的全部特征峰,通过对全谱进行窗口平滑去背景和峰位漂移的修正等预处理,再进行主成分分析降维,结合支持向量机方法(SVM),建立了分类模型,给出了9种品牌香烟烟草的分类结果,平均准确度达到97.47%。实验结果表明:激光诱导击穿光谱技术在烟草防伪鉴定和现场快速识别分类等方面具有巨大的应用潜力。

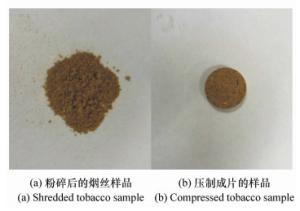

  • 图 1  样品图

    Figure 1.  Sample pictures

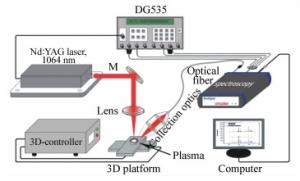

    图 2  实验装置(M:反射镜)

    Figure 2.  Experimental set-up(M:mirror)

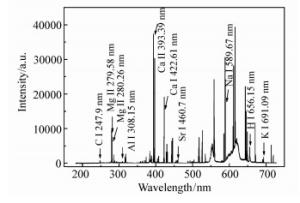

    图 3  等离子体发射光谱图

    Figure 3.  Plasma emission spectra

    图 4  香烟LIBS光谱

    Figure 4.  Laser-induced breakdown spectra of cigarettes

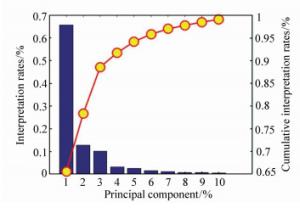

    图 5  每个主成分得分和主成分累积得分

    Figure 5.  Each principal component score and principal component cumulative score

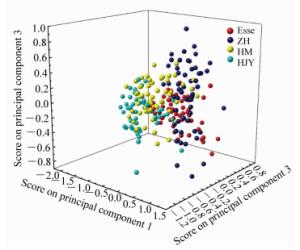

    图 6  9种香烟前3个主成分的散点分布图

    Figure 6.  Scatter diagram of the first three principal components for 9 types of cigarettes

    表  1  9种香烟的理化参数

    Table  1.   The physical and chemical parameters of 9 kinds of cigarettes

    Brand Production place Tar content/mg CO content/mg Nicotine content/mg
    Esse Korea 4 - 0.3
    HM Hainan 10 12 0.8
    DQM Shanghai 10 12 0.8
    JMT Henan 10 11 0.8
    YY Taiyuan 10 12 1.1
    ZNH Beijing 5 6 0.4
    HHL Hubei 11 13 1.1
    FRW Hunan 11 11 1.2
    ZH Shanghai 11 11 1
    下载: 导出CSV

    表  2  测试集准确率

    Table  2.   Test set accuracy

    Esse ZH ZNH YY DQM HM FRW HJY HHL Accuracy
    HHL 4.55% 95.45% 95.45%
    HJY 100% 100%
    FRW 100% 100%
    HM 100% 100%
    DQM 95.45% 4.55% 95.45%
    YY 100% 100%
    ZNH 100% 100%
    ZH 86.36% 13.64% 86.36%
    Esse 100% 100%
    下载: 导出CSV
  • [1] 邓晨曦.基于萤火虫群优化模糊聚类的烟草品质集成分类方法[D].衡阳: 南华大学, 2016. http://cdmd.cnki.com.cn/Article/CDMD-10555-1018035217.htm

    DENG CH X. Integrated classification method of tobacco quality based on fuzzy clustering of firefly swarm optimization[D]. Hengyang: University of South China, 2016.(in Chinese) http://cdmd.cnki.com.cn/Article/CDMD-10555-1018035217.htm
    [2] 张媛媛.基于图像特征的香烟品牌分类与真假鉴别研究[D].北京: 北京工业大学, 2013. http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2446749

    ZHANG Y Y. Research on cigarettes brands classification and authentication based on image features[D]. Beijing: Beijing University of Technology, 2013.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2446749
    [3] 吴琼, 方晶晶, 纪建伟.基于高光谱成像的香烟分类识别研究[J].中国高新技术企业, 2015(23):63-64. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zggxjsqy-z201508035

    WU Q, FANG J J, JI J W. Study on classification and recognition of cigarettes based on high spectral image[J]. China High-Tech Enterprises, 2015(23):63-64.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zggxjsqy-z201508035
    [4] ZHONG SH L, LU Y, KONG W J, et al.. Quantitative analysis of lead in aqueous solutions by ultrasonic nebulizer assisted laser induced breakdown spectroscopy[J]. Frontiers of Physics, 2016, 11(4):114202. doi: 10.1007/s11467-015-0543-4
    [5] ARAS N, YEŞILLER S Ü, ATEŞ D A, et al.. Ultrasonic nebulization-sample introduction system for quantitative analysis of liquid samples by laser-induced breakdown spectroscopy[J]. Spectrochimica Acta Part B:Atomic, 2012, 74-75:87-94. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=7d7138f7d1a901abb6e227a5d7d13e9e
    [6] 石焕, 赵南京, 王春龙, 等.应用激光诱导击穿光谱测量水体中痕量重金属锌[J].激光与光电子学进展, 2012, 49(1):013003. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgygdzxjz201201024

    SHI H, ZHAO N J, WANG CH L, et al.. Measurement of trace heavy metal zinc in water by laser induced breakdown spectroscopy[J]. Laser & Optoelectronics Progress, 2012, 49(1):013003.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgygdzxjz201201024
    [7] 陈金忠, 白津宁, 宋广聚, 等.激光诱导击穿光谱技术测定土壤中元素Cr和Pb[J].红外与激光工程, 2013, 42(4):947-950. doi: 10.3969/j.issn.1007-2276.2013.04.020

    CHEN J ZH, BAI J N, SONG G J, et al.. Determination of Cr and Pb in soil by laser-induced breakdown spectroscopy[J]. Infrared and Laser Engineering, 2013, 42(4):947-950.(in Chinese) doi: 10.3969/j.issn.1007-2276.2013.04.020
    [8] 谷艳红, 李颖, 田野, 等.基于LIBS技术的钢铁合金中元素多变量定量分析方法研究[J].光谱学与光谱分析, 2014, 34(8):2244-2249. doi: 10.3964/j.issn.1000-0593(2014)08-2244-06

    GU Y H, LI Y, TIAN Y, et al.. Study on the multivariate quantitative analysis method for steel alloy elements using LIBS[J]. Spectroscopy and Spectral Analysis, 2014, 34(8):2244-2249.(in Chinese) doi: 10.3964/j.issn.1000-0593(2014)08-2244-06
    [9] KONGBONGA Y G M, GHALILA H, ONANA M B, et al.. Classification of vegetable oils based on their concentration of saturated fatty acids using laser induced breakdown spectroscopy(LIBS)[J]. Food Chemistry, 2014, 147:327-331. doi: 10.1016/j.foodchem.2013.09.145
    [10] YAO M Y, YANG H, HUANG L, et al.. Detection of heavy metal Cd in polluted fresh leafy vegetables by laser-induced breakdown spectroscopy[J]. Applied Optics, 2017, 56(14):4070-4075. doi: 10.1364/AO.56.004070
    [11] WAINNER R T, HARMON R S, MIZIOLEK A W, et al.. Analysis of environmental lead contamination:comparison of LIBS field and laboratory instruments[J]. Spectrochimica Acta Part B:Atomic Spectroscopy, 2001, 56(6):777-793. doi: 10.1016/S0584-8547(01)00229-4
    [12] 阎宏涛, 昌征.激光诱导击穿光谱分析法及其在彩绘文物分析与表征中的应用[J].文博, 2009(6):229-233. doi: 10.3969/j.issn.1000-7954.2009.06.027

    YAN H T, CHANG ZH. The laser-induced breakdown spectroscopy and its application in the polychrome cultural relics[J]. Relics and Museology, 2009(6):229-233.(in Chinese) doi: 10.3969/j.issn.1000-7954.2009.06.027
    [13] 刘晓娜, 吴志生, 乔延江.LIBS快速评价产品质量属性的研究进展及在中药的应用前景[J].世界中医药, 2013, 8(11):1269-1272. doi: 10.3969/j.issn.1673-7202.2013.11.002

    LIU X N, WU ZH SH, QIAO Y J. Review on rapid evaluation of product quality attributes and application prospects in Chinese materia medica[J]. World Chinese Medicine, 2013, 8(11):1269-1272.(in Chinese) doi: 10.3969/j.issn.1673-7202.2013.11.002
    [14] LI A, GUO SH, WAZIR N, et al.. Accuracy enhancement of laser induced breakdown spectra using permittivity and size optimized plasma confinement rings[J]. Optics Express, 2017, 25(22):27559-27569. doi: 10.1364/OE.25.027559
    [15] 杨崇瑞.激光诱导击穿光谱数据处理方法研究[D].北京: 北京交通大学, 2014. http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2603425

    YANG CH R. Study of the spectral data processing in laser induced breakdown spectroscopy technology[D]. Beijing: Beijing Jiaotong University, 2014.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2603425
    [16] WANG X SH, LI A, WAZIR N, et al.. Accuracy enhancement of laser induced breakdown spectroscopy by safely low-power discharge[J]. Optics Express, 2018, 26(11):13973-13984. doi: 10.1364/OE.26.013973
    [17] 余琦, 马晓红, 王锐, 等.基于LIBS技术和主成分分析的快速分类方法研究[J].光谱学与光谱分析, 2014, 34(11):3095-3099. doi: 10.3964/j.issn.1000-0593(2014)11-3095-05

    YU Q, MA X H, WANG R, et al.. Research on fast classification based on LIBS technology and principle component analyses[J]. Spectroscopy and Spectral Analysis, 2014, 34(11):3095-3099.(in Chinese) doi: 10.3964/j.issn.1000-0593(2014)11-3095-05
    [18] 丁世飞, 齐炳娟, 谭红艳.支持向量机理论与算法研究综述[J].电子科技大学学报, 2011, 40(1):1-10. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzkjdxxb201101001

    DING SH F, QI B J, TAN H Y. An overview on theory and algorithm of support vector machines[J]. Journal of University of Electronic Science and Technology of China, 2011, 40(1):1-10.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzkjdxxb201101001
    [19] 黄昕, 张良培.一种遥感图像空间形状特征提取与分类方法: 中国,

    CN1932850A[P].2007-03-21. HUANG X, ZHANG L P. A method for extraction and classification of spatial shape features of remote sensing images: CN, CN1932850A[P].2007-03-21.(in Chinese)
