二维低频光纤布拉格光栅振动传感器的设计

刘强; 李文静; 马超; 魏淑辉; 付天舒; 于波; 刘超

doi:10.37188/CO.2024-0069

二维低频光纤布拉格光栅振动传感器的设计

doi: 10.37188/CO.2024-0069

cstr: 32171.14.CO.2024-0069

东北石油大学物理与电子工程学院, 黑龙江大庆 163318

基金项目: 黑龙江省省属本科高校“优秀青年教师基础研究支持计划”（No. YQJH2023077）

详细信息

作者简介:
刘　强（1980—），男，黑龙江泰来人，博士，教授，2012年于哈尔滨工程大学获得博士学位，主要从事光纤传感技术研究。 E-mail：nepulq@126.com

刘　超（1978—），男，黑龙江木兰人，博士，教授，博士生导师，2008年于哈尔滨工业大学获得博士学位，主要从事微结构光学器件研究。E-mail：msm-liu@126.com

中图分类号: TP212.9
计量
- 文章访问数: 129
- HTML全文浏览量: 115
- PDF下载量: 32
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-12
- 修回日期: 2024-04-30
- 录用日期: 2024-06-25
- 网络出版日期: 2024-08-21

Design of two-dimensional low-frequency fiber Bragg grating vibration sensor

School of Physics and Electronic Engineering, Northeast Petroleum University, Daqing 163318, China

Funds: Supported by The Basic Research Support Project for the Excellent Youth Scholars of Heilongjiang Province (No. YQJH2023077)

More Information

Corresponding author: msm-liu@126.com

摘要

摘要:
本文设计了一种可在x轴和z轴方向工作的对称圆形柔性铰链式二维振动传感器，以对低频振动信号进行获取和监测。从理论上分析了传感结构的力学特性，在Comsol中建立模型进行仿真分析，并采用有限元法对结构进行优化设计，将铰链谐振频率设计为420 Hz。采用光纤布拉格光栅（FBG）作为应变检测器件粘贴在铰链结构表面，利用边沿滤波器法实现FBG的动态解调，采用标准振动台对传感器性能进行测试。实验结果表明该传感器在x轴和z轴的谐振频率为420 Hz，工作频率为20~300 Hz。在平坦区的平均灵敏度为1847.32 mV/g，加速度分辨率达5.41×10⁻⁴ g。该传感器在所有二维方向上的横向干扰水平均小于5%。本文设计的传感器为二维振动传感器，可适用于低频振动信号的高灵敏检测。
- 加速度传感器 /
- 振动检测 /
- 光纤布拉格光栅 /
- 铰链结构
Abstract:
In order to acquire and monitor the low-frequency vibration signal, a two-dimensional vibration sensor with a symmetrical circular flexure hinge is designed, which can work in the x and z axes. The mechanical characteristics of the sensing structure are analyzed theoretically. The model is established in Comsol for simulation analysis, and the structure is optimized by finite element method. The hinge resonant frequency is designed to be 420 Hz. The fiber Bragg grating is pasted on the surface of the hinge structure as a strain detection device, and the dynamic demodulation of FBG is realized by the edge filter method. The performance of the sensor is tested with a standard shaking table. The experimental results show that the natural frequencies of the sensor in the x and z axes both are 420 Hz, the operating frequency range is 20−300 Hz, the average sensitivity in the flat region is 1847.32 mV/g, and the acceleration resolution is 5.41×10⁻⁴ g. The sensor demonstrates a less than 5% lateral interference level in all two-dimensional orientations. The sensor designed in this paper is a two-dimensional vibration sensor, which is suitable for highly sensitive detection of low-frequency vibration signals.
- acceleration sensor /
- vibration test /
- Fiber Bragg Grating /
- hinged construction

HTML全文

图 1 传感器结构模型

Figure 1. The sensing structure model

下载: 全尺寸图片幻灯片

图 2 传感结构仿真分析结果

Figure 2. Simulation analysis results of sensing structure

下载: 全尺寸图片幻灯片

图 3 不同结构参数对应变和固有频率的影响

Figure 3. The influence of different structural parameters on strain and natural frequency

下载: 全尺寸图片幻灯片

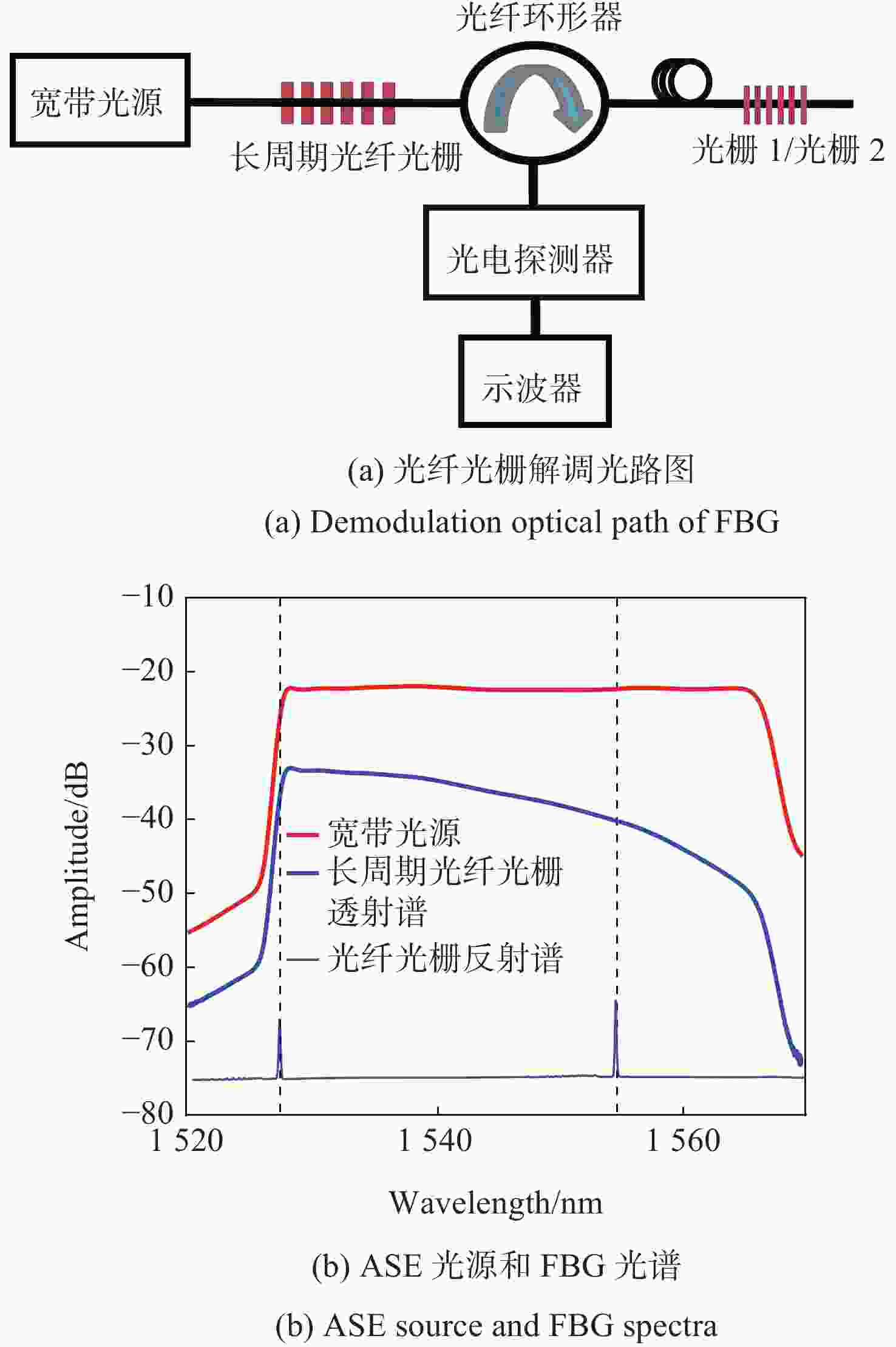

图 4 光纤光栅边缘解调方法
